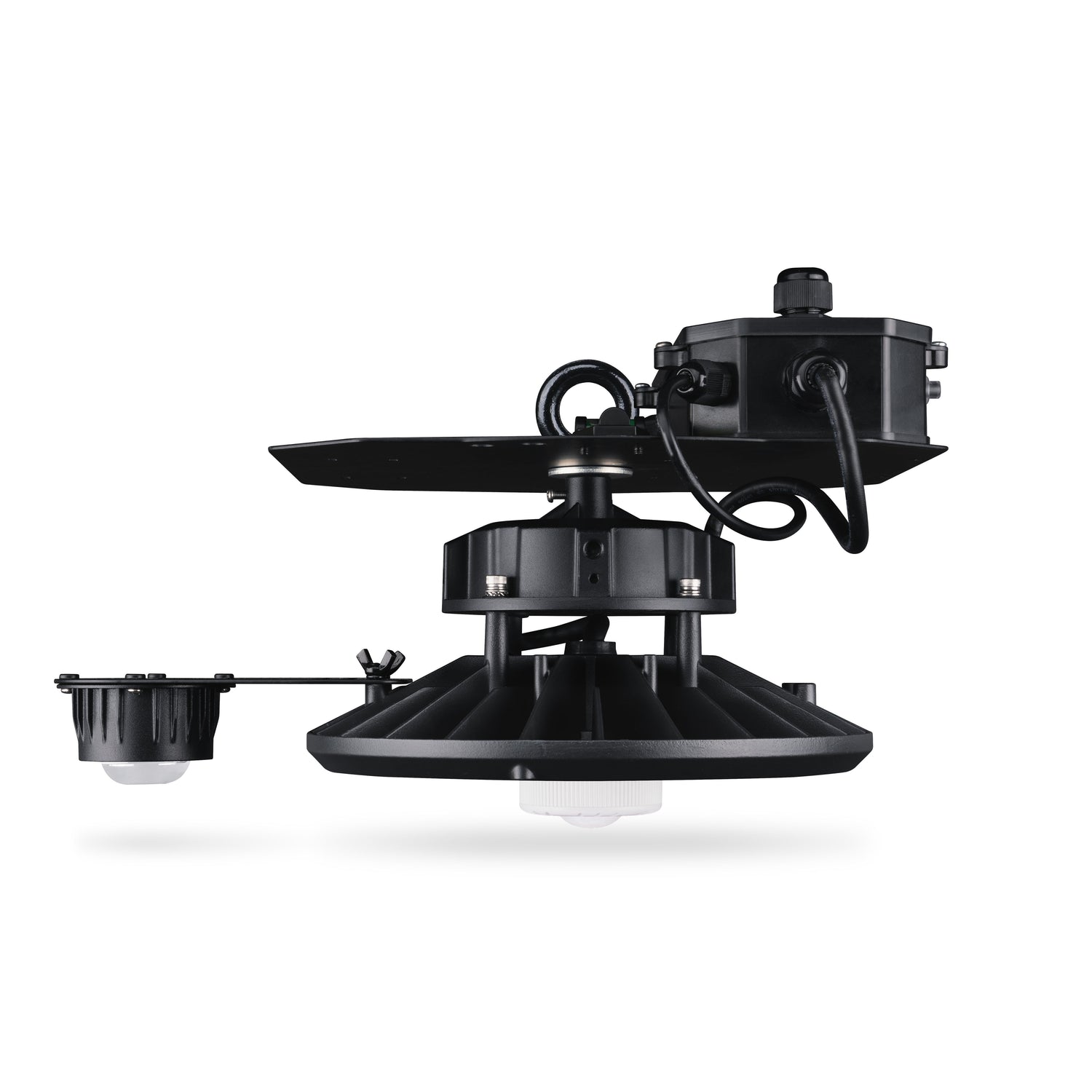

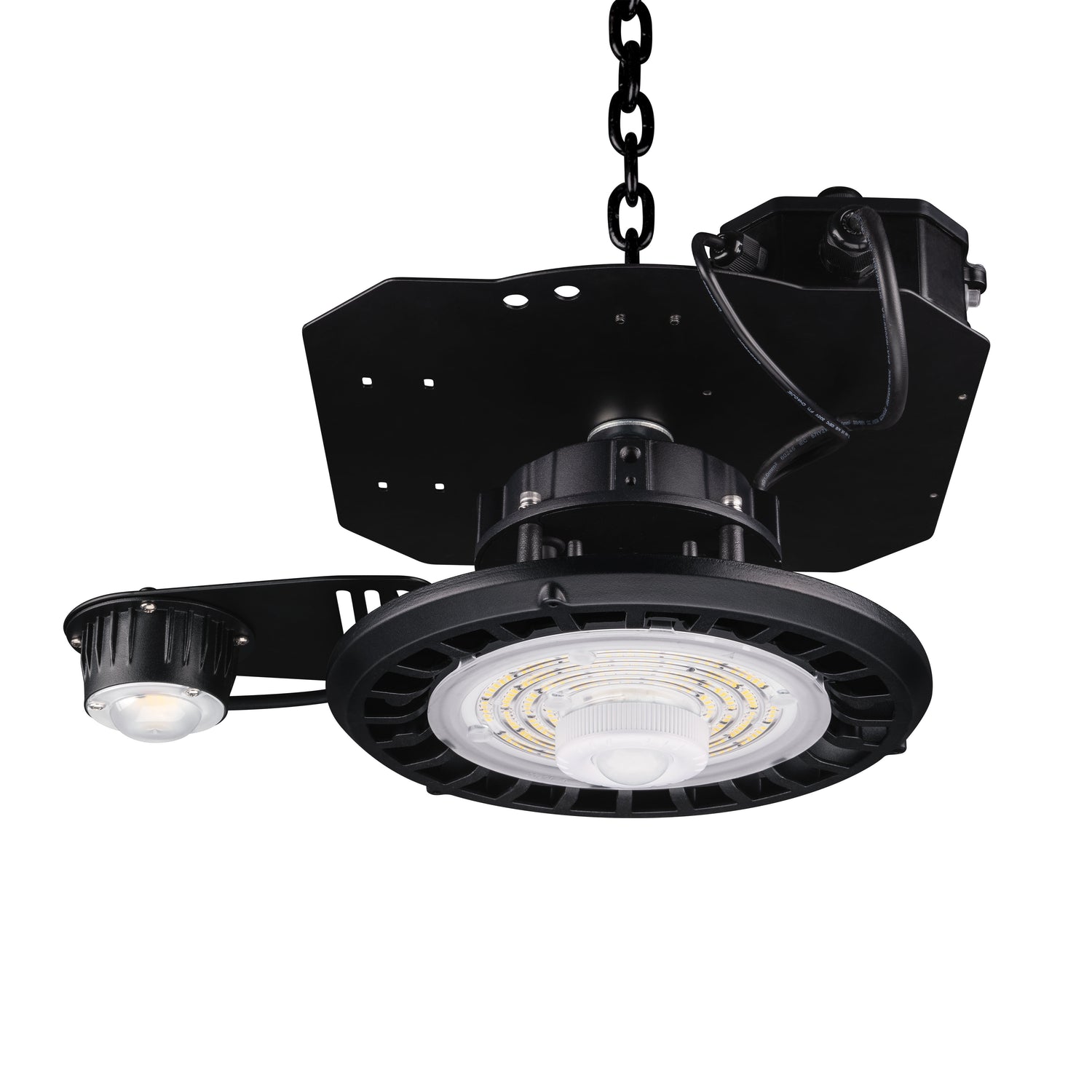

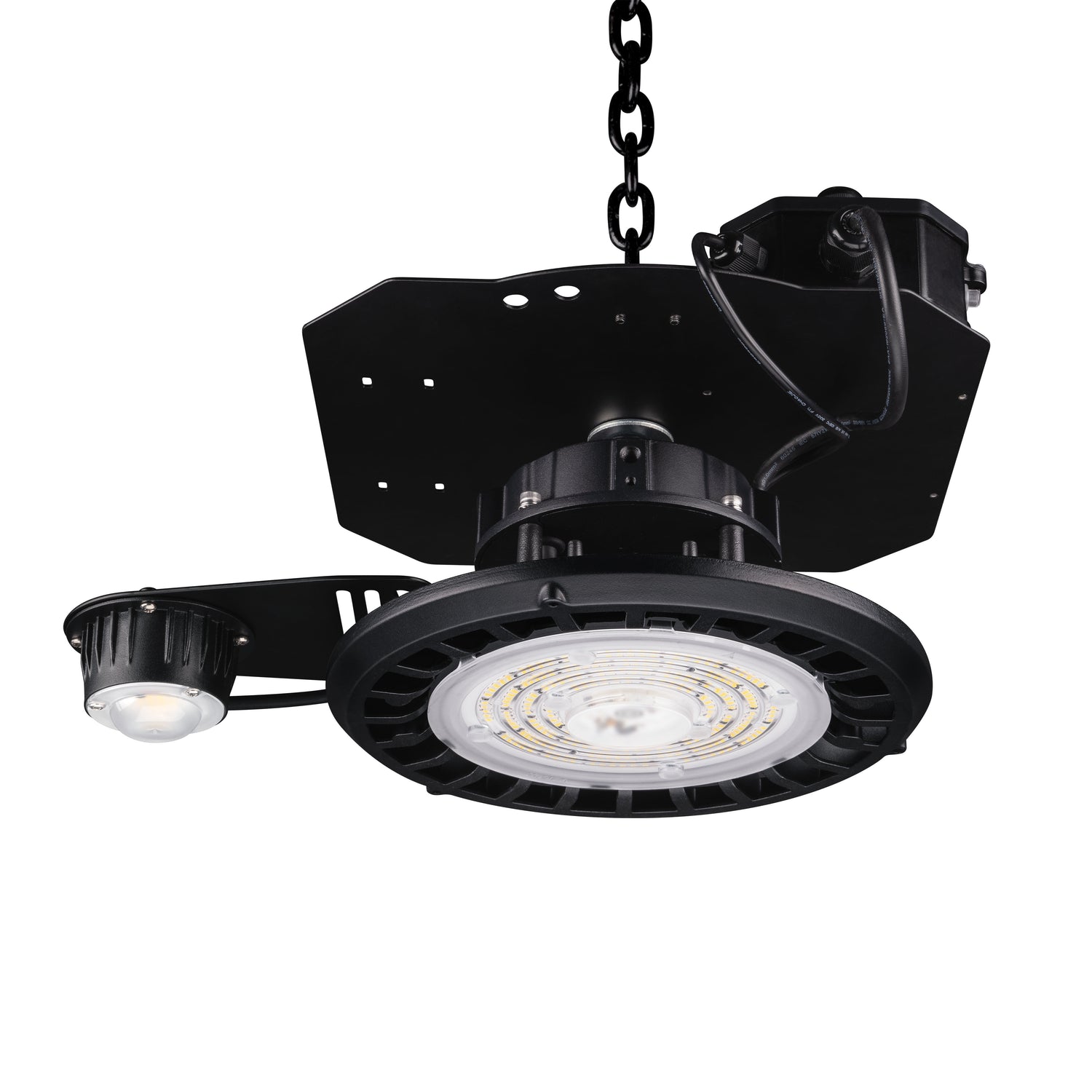

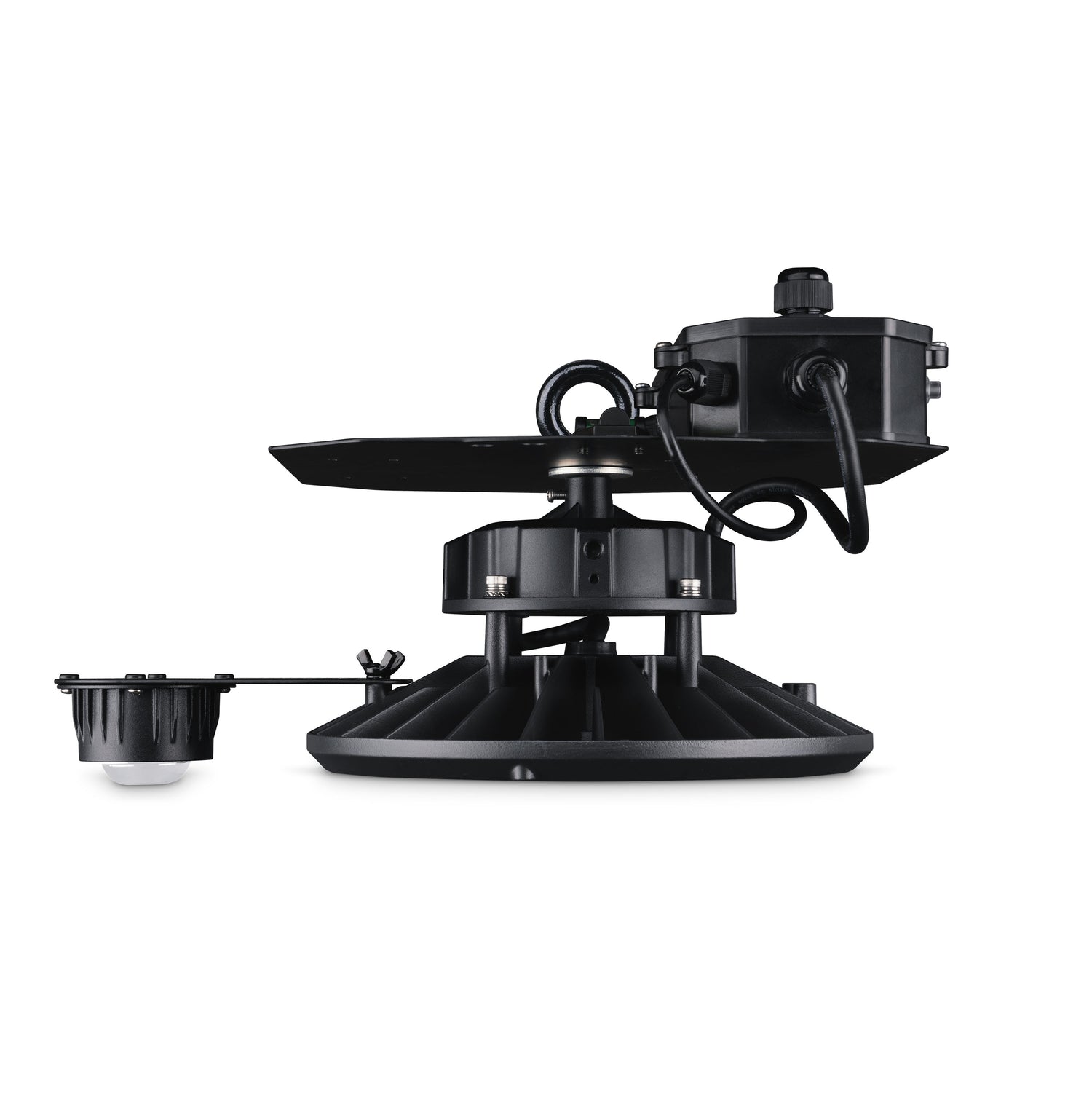

JCC Lighting JC040207 Toughbay Pro 150W (115W & 80W) IP65 5700K 60°

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

SKU: JC040207

Barcode: 5052544123016

JCC Lighting

JCC Lighting JC040207 Toughbay Pro 150W (115W & 80W) IP65 5700K 60° 1-10V EM ST

(0)

£157.56 £479.76

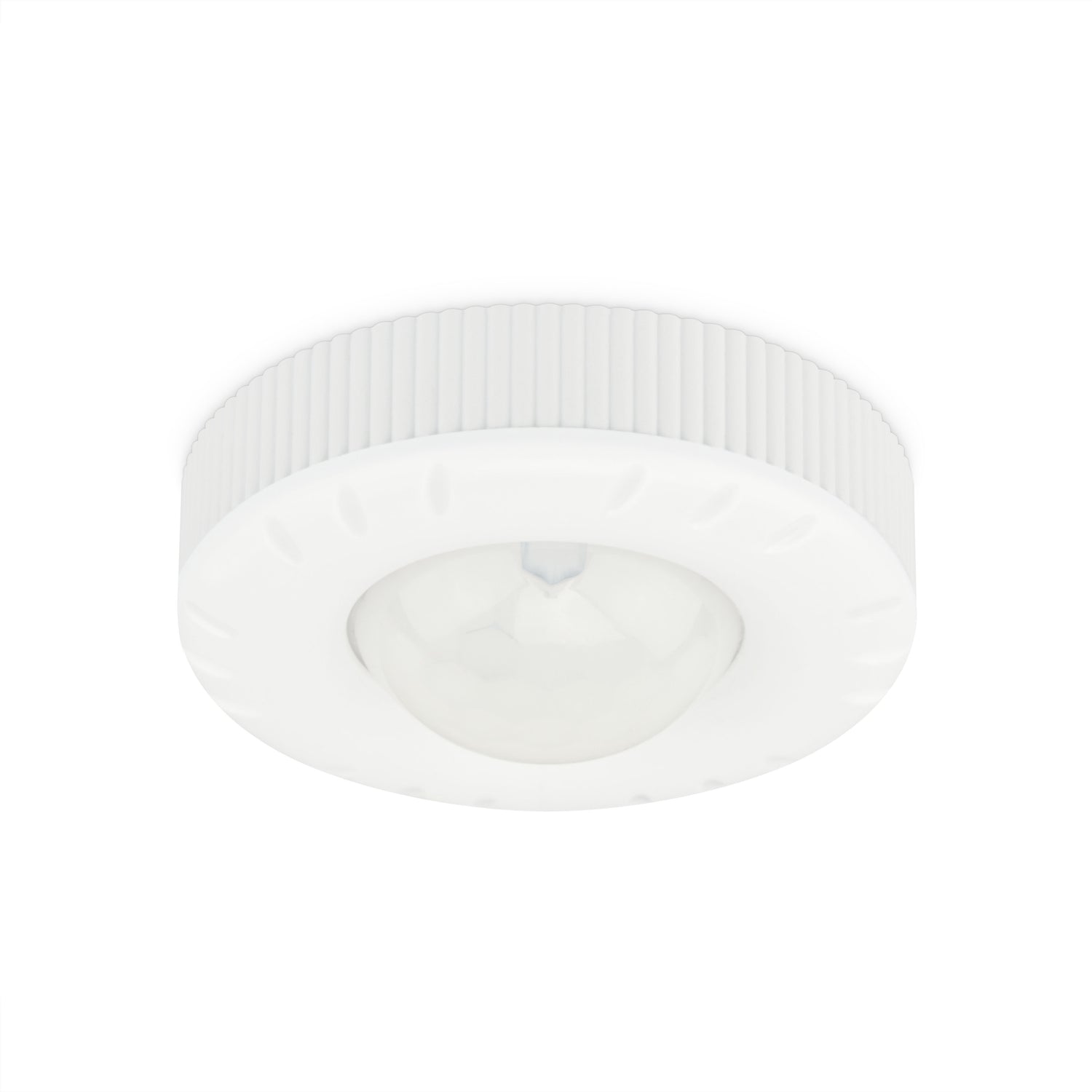

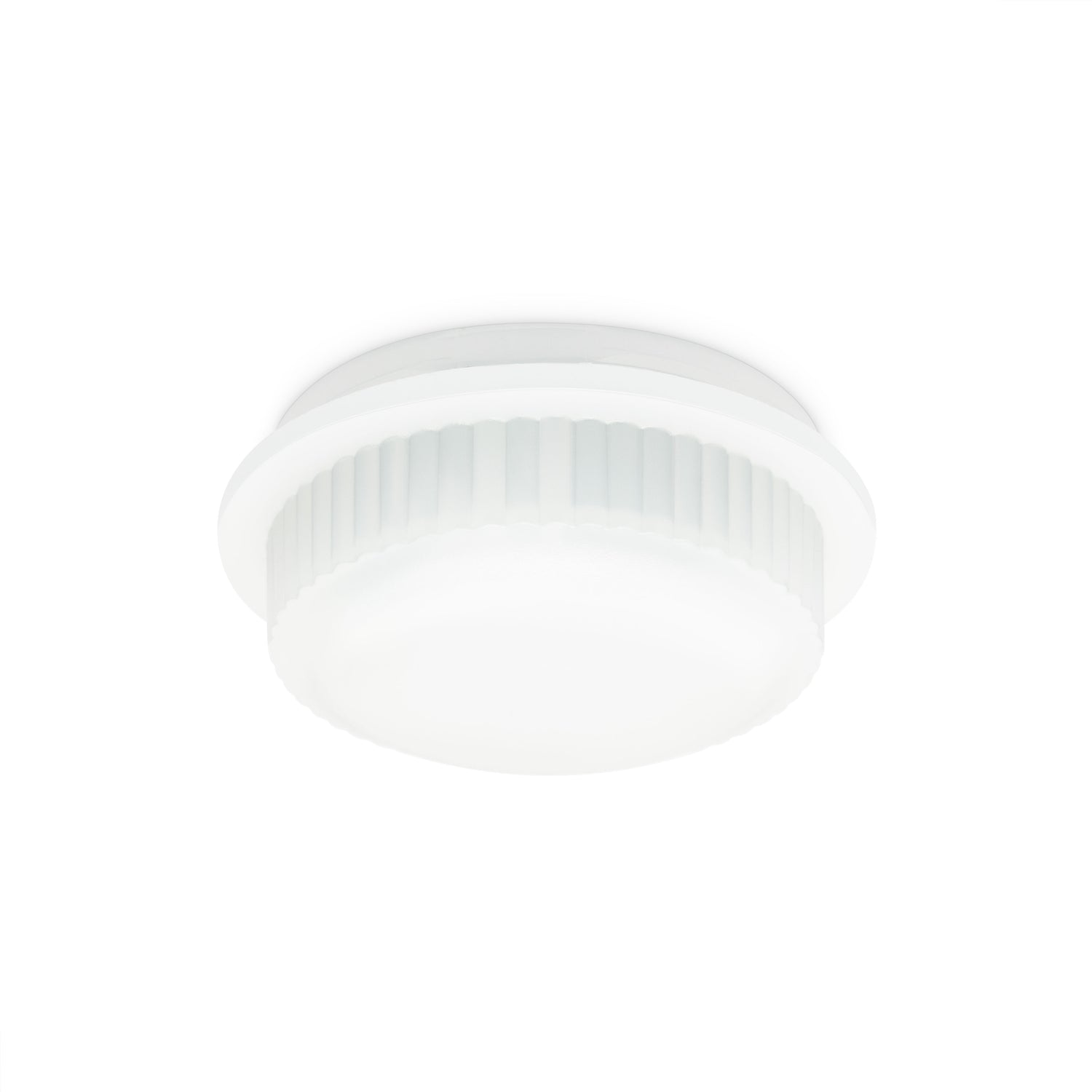

JCC Lighting JC040207 Toughbay Pro 150W (115W & 80W) IP65 5700K 60° 1-10V EM ST is a electrical switch identified by product code JC040207. 100W, 150W and 200W options available with wattage switch to adjust output where necessary Available in 60°, 90° and 120° degree beam angles 1-10V dimmable as standard Simple toolless conversion to Microwave dim or PIR dim sensing Remote control available to control PIR on/off, MW on/off and MW step dim Ultra efficient, up to 150 Lumens per circuit Watt Emergency options available Surface mount bracket also available 5 year warranty including 1 year on-site.

Confirm dimensions, rating, connections and compatibility with the existing product before replacement. For the best match, review the product details and use the SKU JC040207 when comparing specifications or replacing an existing item. This detailed listing helps you identify the correct electrical switch for your lighting project.

Available from Stock from First Light Direct, JCC Lighting JC040207 Toughbay Pro 150W (115W & 80W) IP65 5700K 60° 1-10V EM ST (JC040207) is offered as part of a wide UK lighting range at Best Prices. First Light Direct brings over 40 years of lighting experience, trusted-brand choice, monthly deals and straightforward delivery options to customers choosing the right electrical switch for homes, hospitality spaces and commercial projects. Order using product reference JC040207 and check the product page for the latest price, stock position and delivery information.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC040207
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544123016
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 82
JCC - Energy Rating - This product contains a light source of energy efficiency class C
JCC - Operating Temperature Range °C - 0°C to +40°C
JCC - Dimmable - Yes, 1-10V only
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - <15
JCC - Output Voltage Max/Range (VDC) - 180-260
JCC - Class - Class I
JCC - Luminaire Circuit Wattage - 150/115/80
JCC - Rating(Amp) - 150/115/80
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 57A@200µs 230V~
JCC - Primary Running Current(Amp) - 2.0
JCC - Secondary running current(mA) - 370/500/620
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - 1-10V
JCC - Warranty - 5 Year Warranty(5 year on batteries)(includes 1 year onsite)(see website for terms and conditions)
JCC - IK Rating - IK10
JCC - IP Rating - IP65

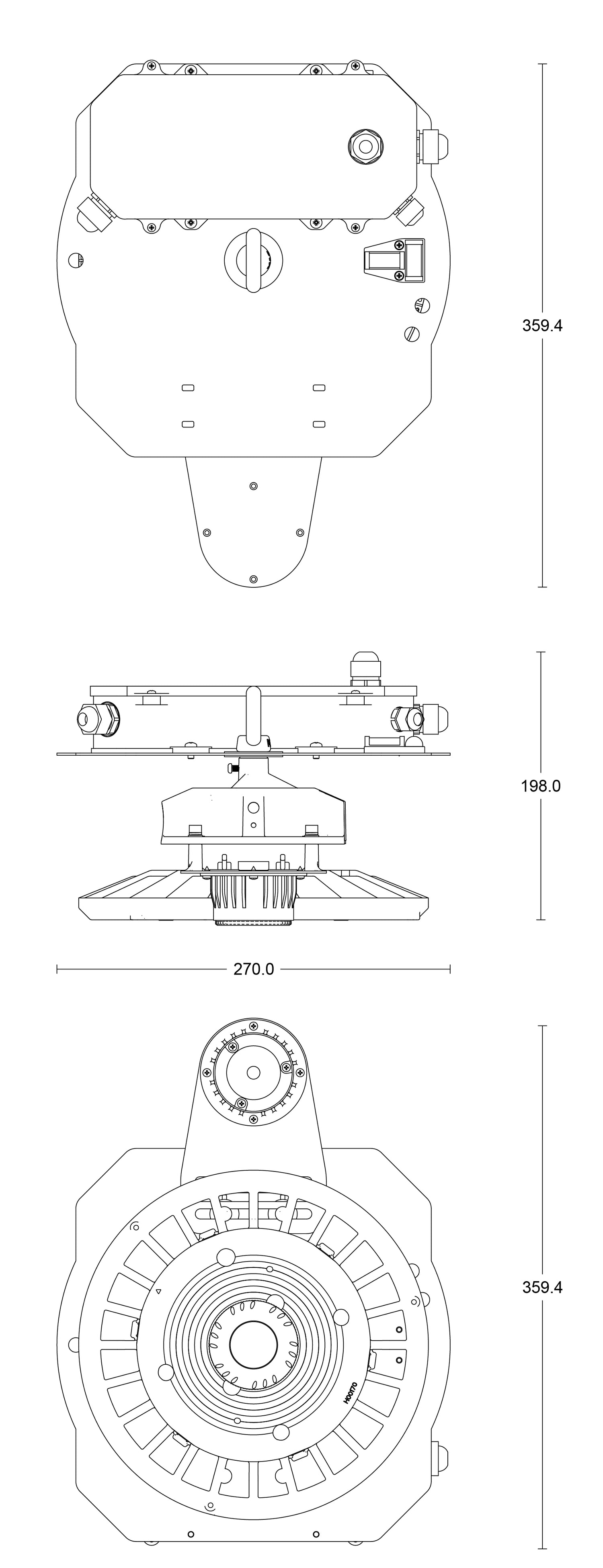

JCC - Overall dimensions (mm) Rim - 359.4 x 270 x 198 cm
JCC - Height (mm) - 198
JCC - Width (mm) - 270
JCC - Length (mm) - 359.4
JCC - Color Finish - Black
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Highbay and Lowbay/Toughbay Pro- IS.pdf
