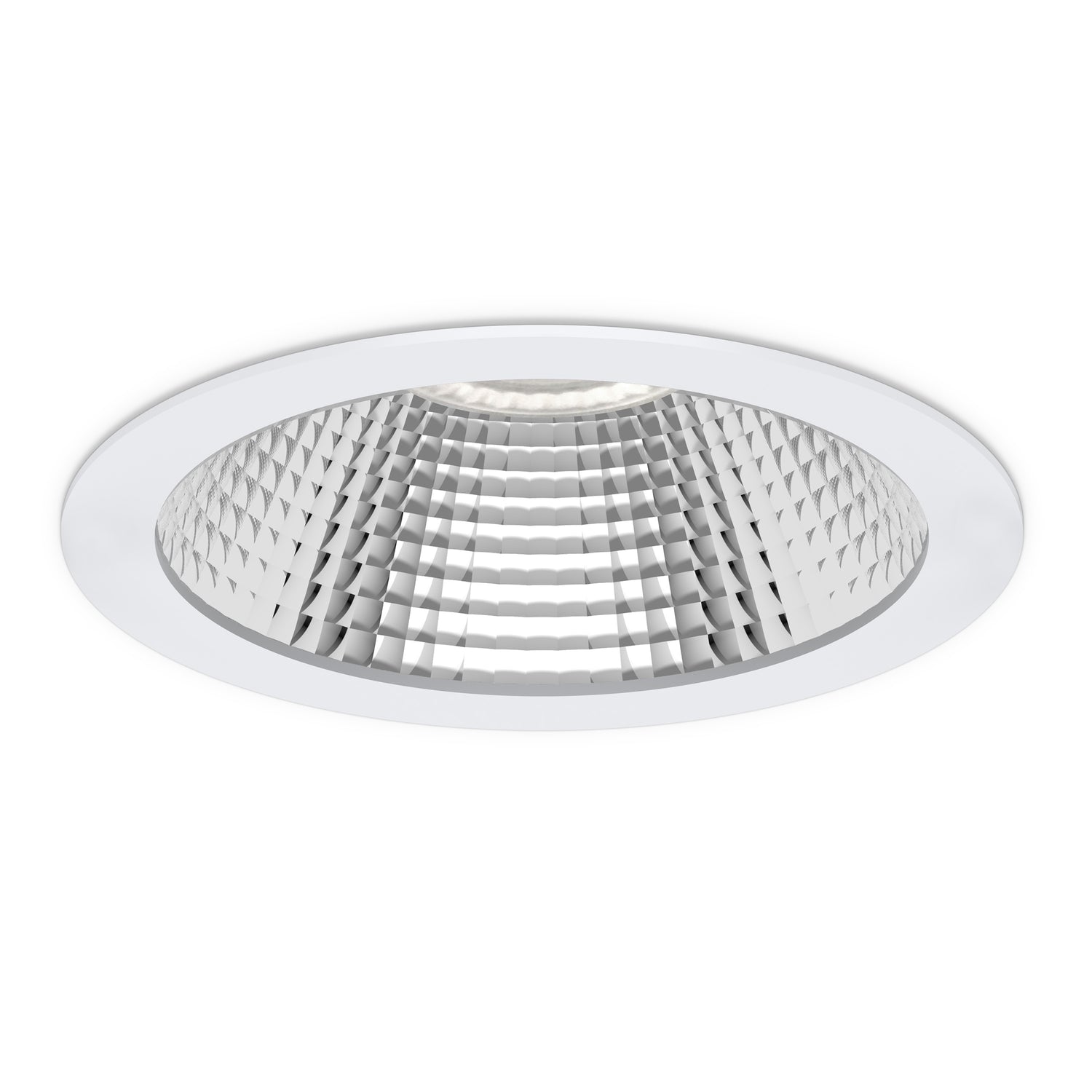

JCC Lighting JC5504 CoraLED™ Plus Commercial Downlight 18W IP54 3000

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

SKU: JC5504

Barcode: 5052544116070

JCC Lighting

JCC Lighting JC5504 CoraLED™ Plus Commercial Downlight 18W IP54 3000K/4000K/5700K DALI/1-10V/SW dim

(3)

£95.32 £234.84

JCC Lighting JC5504 CoraLED™ Plus Commercial Downlight 18W IP54 3000K/4000K/5700K DALI/1-10V/SW dim is a downlight identified by product code JC5504. 3CCT switchable as standard, 3000K/4000K/5700K 13W, 18W and 25W Options UGR19 as standard, designed to comply with BS EN 12464-1 lighting of workspace Up to 133 LpcW IP54 rated Low profile, suitable for shallow ceilings 60° beam angle with a Cri: of 85 Non-dimmable flicker free driver DALI/1-10V/SW dim and DSI dimmable options Suitable for use with JCEM002/JCEM002ST remote emergency packs.

It is intended for focused downward illumination in a compatible installation. For the best match, review the product details and use the SKU JC5504 when comparing specifications or replacing an existing item. This detailed listing helps you identify the correct downlight for your lighting project.

Available from Stock from First Light Direct, JCC Lighting JC5504 CoraLED™ Plus Commercial Downlight 18W IP54 3000K/4000K/5700K DALI/1-10V/SW dim (JC5504) is offered as part of a wide UK lighting range at Best Prices. First Light Direct brings over 40 years of lighting experience, trusted-brand choice, monthly deals and straightforward delivery options to customers choosing the right downlight for homes, hospitality spaces and commercial projects. Order using product reference JC5504 and check the product page for the latest price, stock position and delivery information.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC5504
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544116070
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 85
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Operating Temperature Range °C - -25 to +50
JCC - Dimmable - DALI/1-10V/SW dim
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - <20
JCC - Output Voltage Max/Range (VDC) - 9-58
JCC - Class - II
JCC - Luminaire Circuit Wattage - 18
JCC - Rating(Amp) - 18
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 8
JCC - Primary Running Current(Amp) - 0.16
JCC - Secondary running current(mA) - 450
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - DALI/1-10V/SW dim
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Zone 2
JCC - IP Rating - IP54

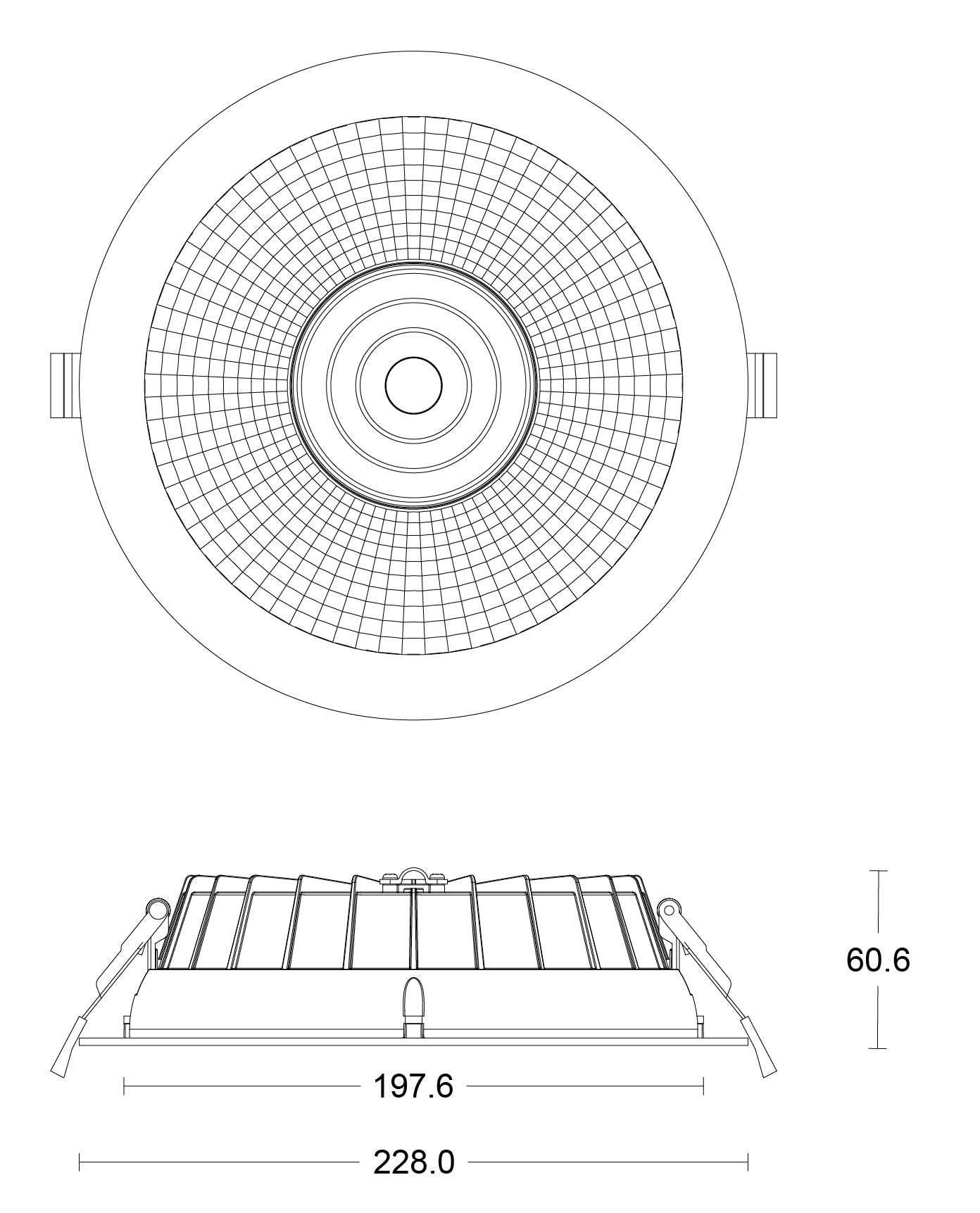

JCC - Product Aperture Size - Ø200-210mm
JCC - Method of fix - Spring clips
JCC - Diameter (mm) - 228
JCC - Depth (mm) - 60.6
JCC - Color Finish - White
