JCC Lighting | SKU:
BC020011

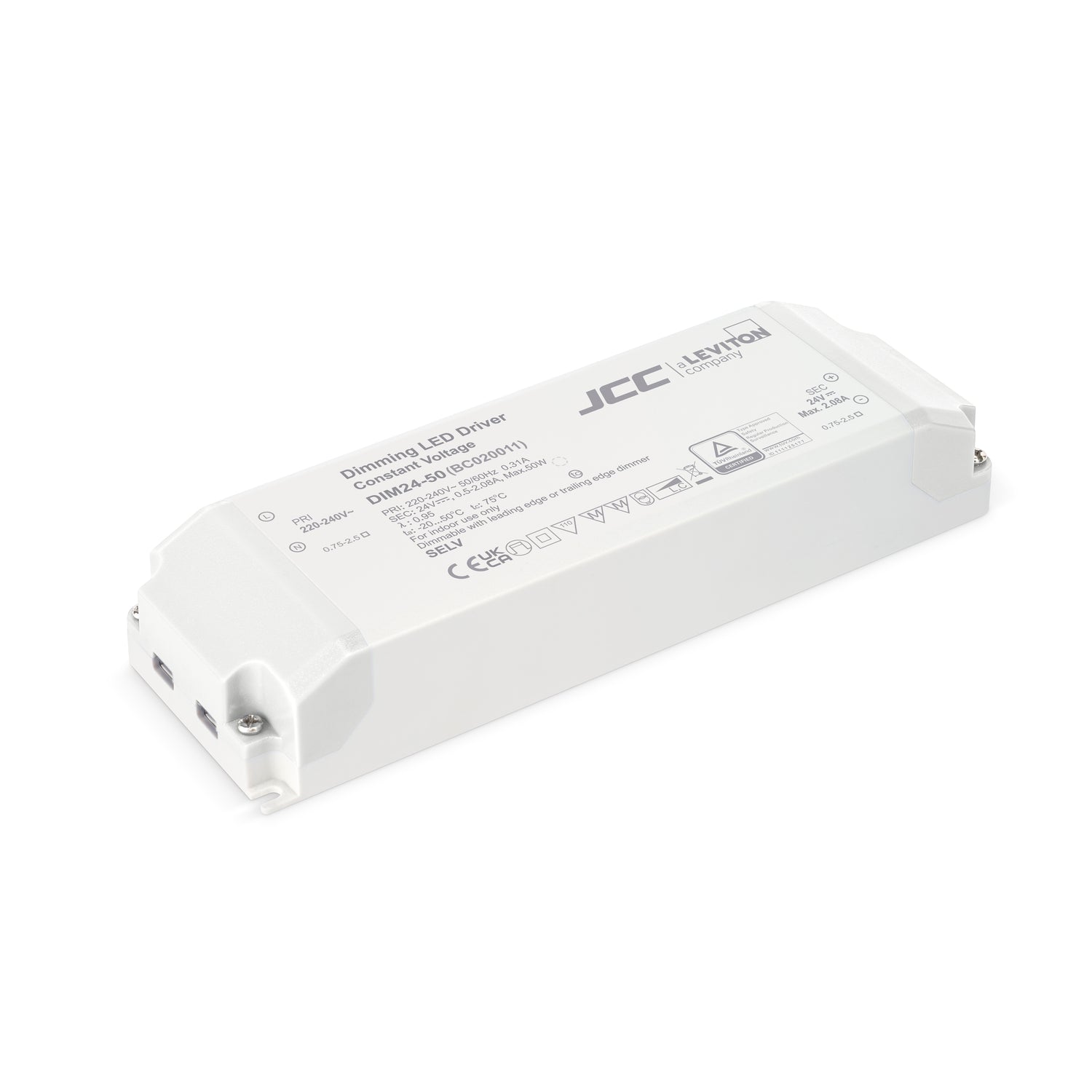

JCC Lighting BC020011 24V 50W Triac dimmable IP20 driver
86% off
£28.00
£204.60
Unit price
Unavailable
VAT included, shipping and discounts calculated at checkout.
JCC Lighting BC020011 24V 50W Triac dimmable IP20 driver is backordered and will ship as soon as it is back in stock.
24V 50W Triac dimmable IP20 driver for use with single colour LED strip
Manufacturer - JCC Lighting
Manufacturers Part Number - BC020011
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544112027
JCC - Primary Material - Polycarbonate
JCC - Operating Temperature Range °C - -20 to +50
JCC - Dimmable - Yes, leading and trailing 1% to 100%
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 15
JCC - Output Voltage Max/Range (VDC) - 24
JCC - Class - II
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 20
JCC - Primary Running Current(Amp) - 310mA
JCC - Secondary running current(mA) - 500-2008mA
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - Triac
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP20

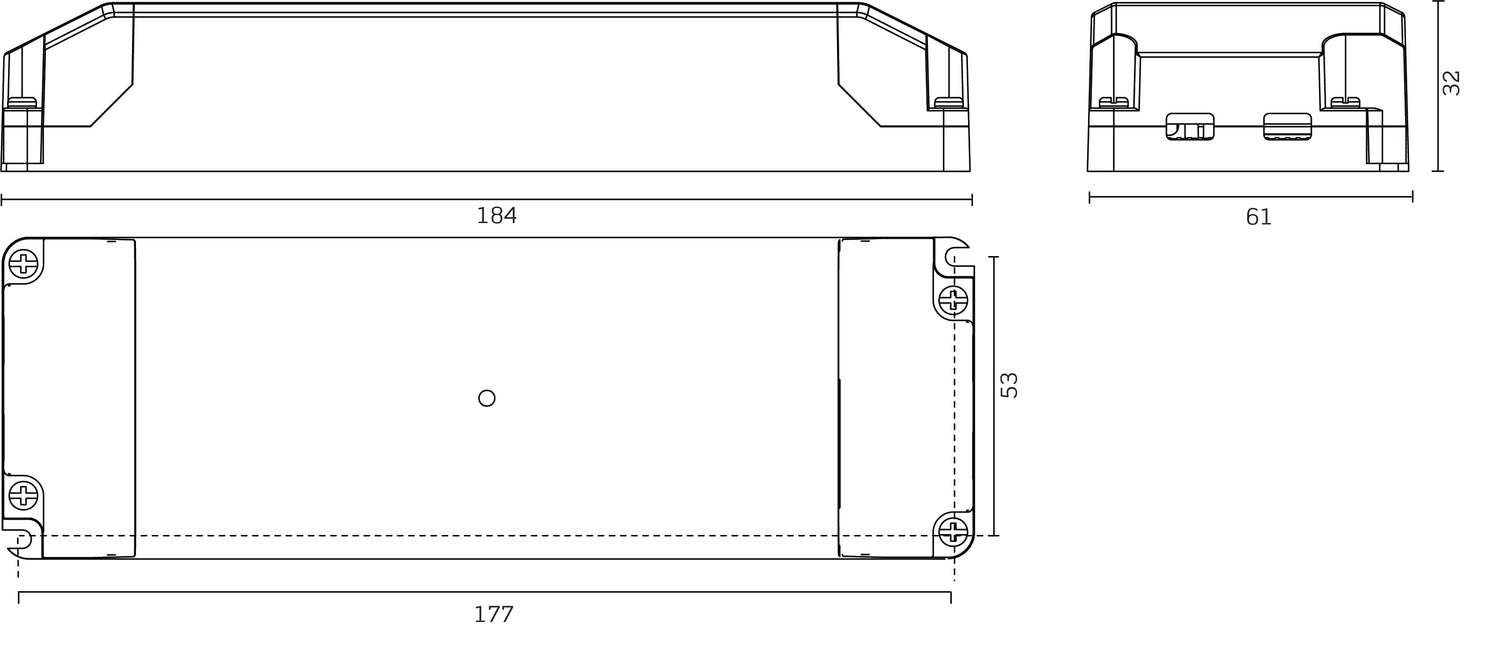

JCC - Height (mm) - 61
JCC - Length (mm) - 184
JCC - Color Finish - White
