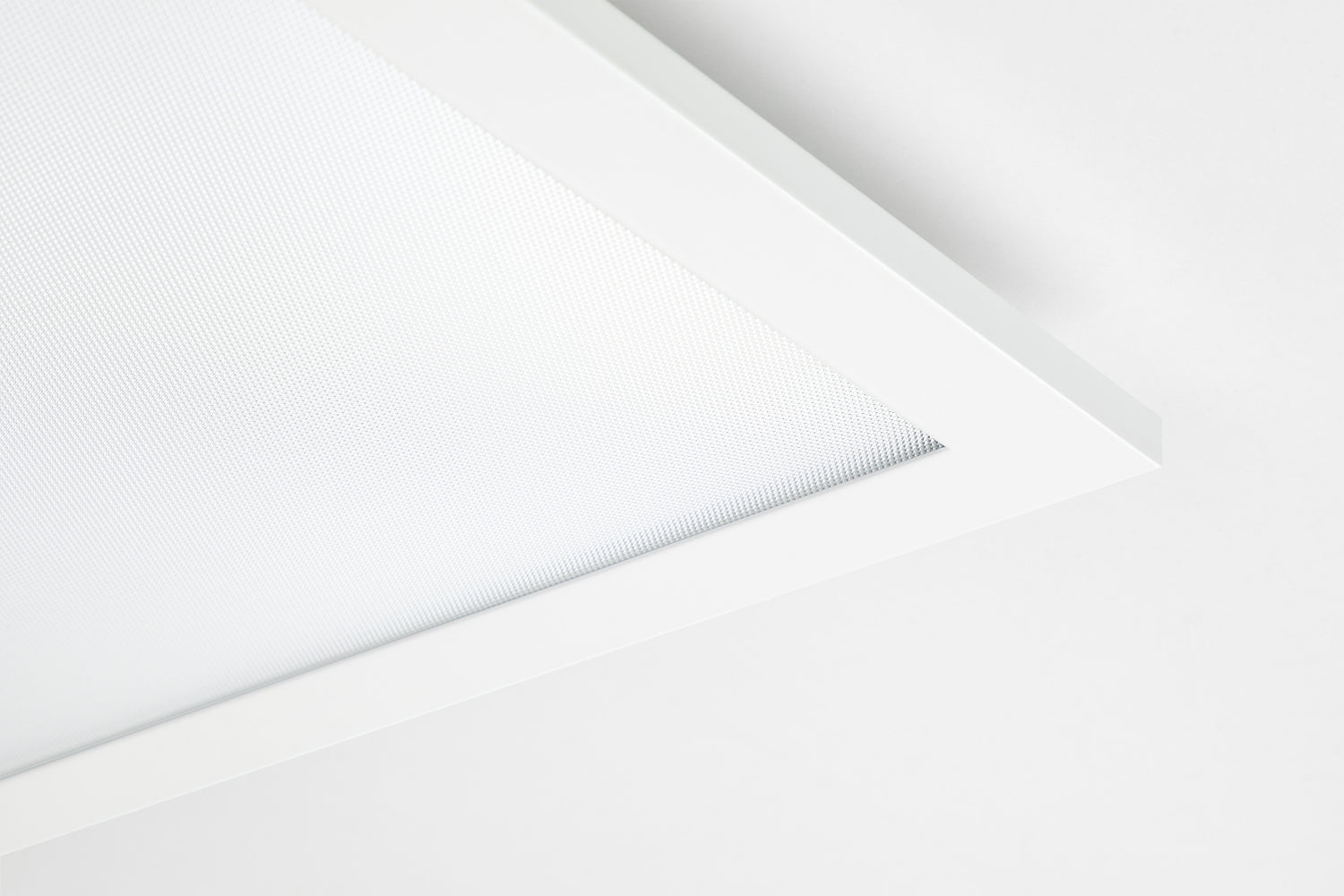

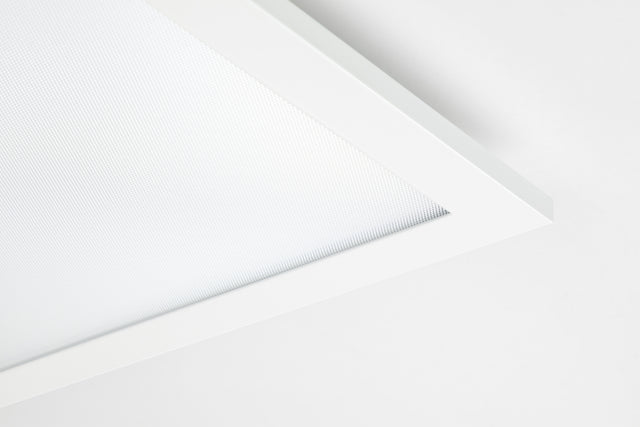

JCC Lighting JC080221 Skytile Base 600x600mm 38W IP40 CCT 3000/4000/5700K TP(a)

(0)

£24.18 £124.00

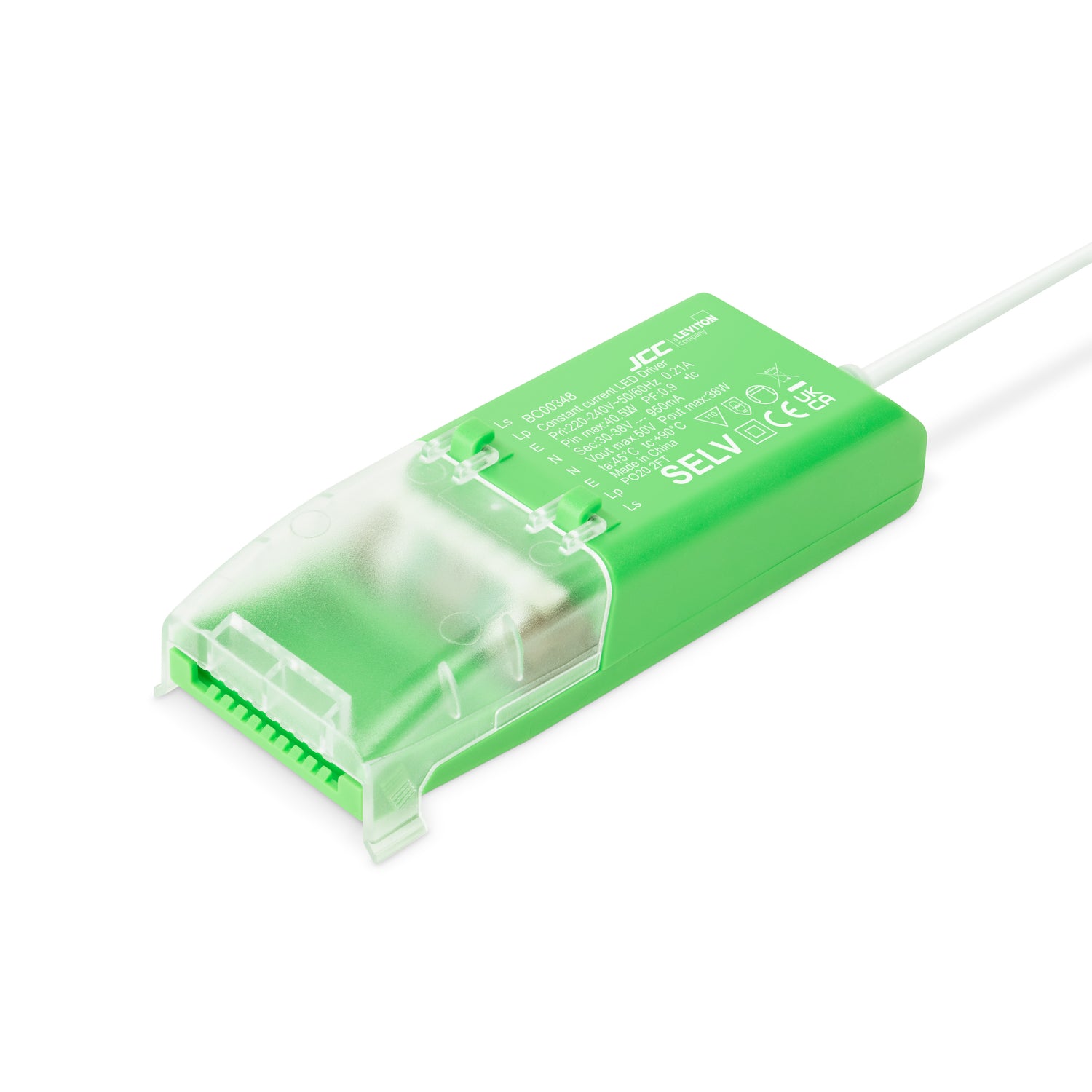

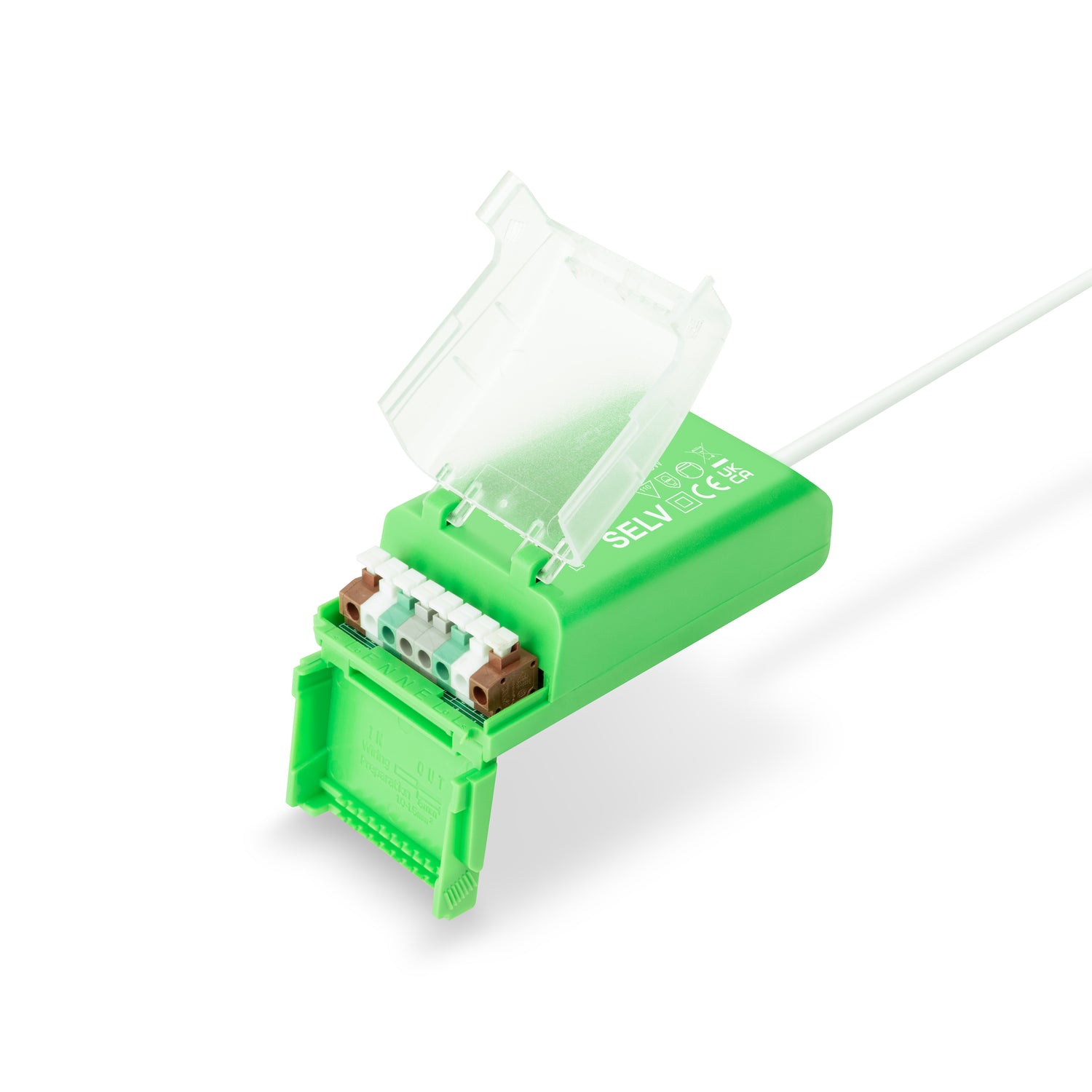

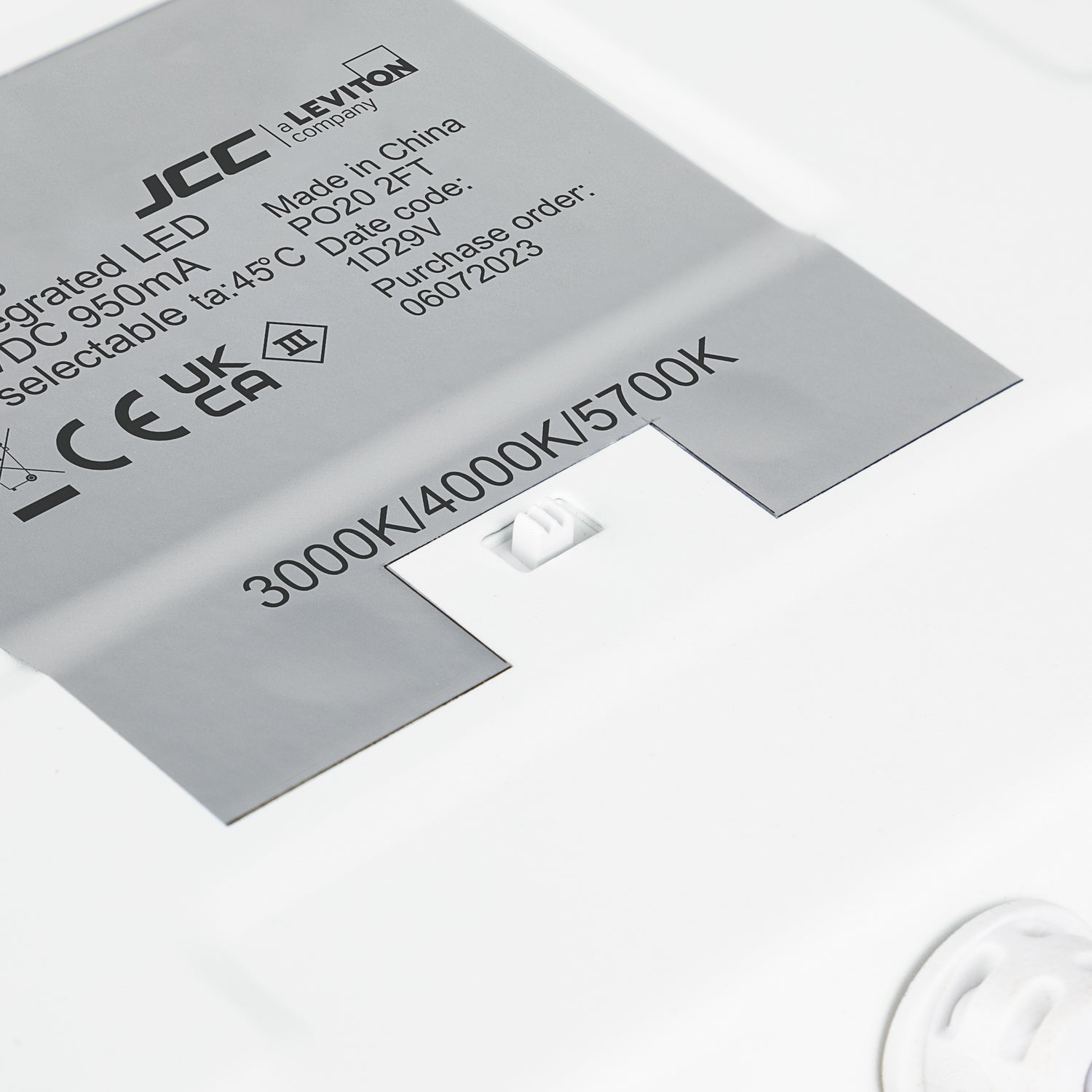

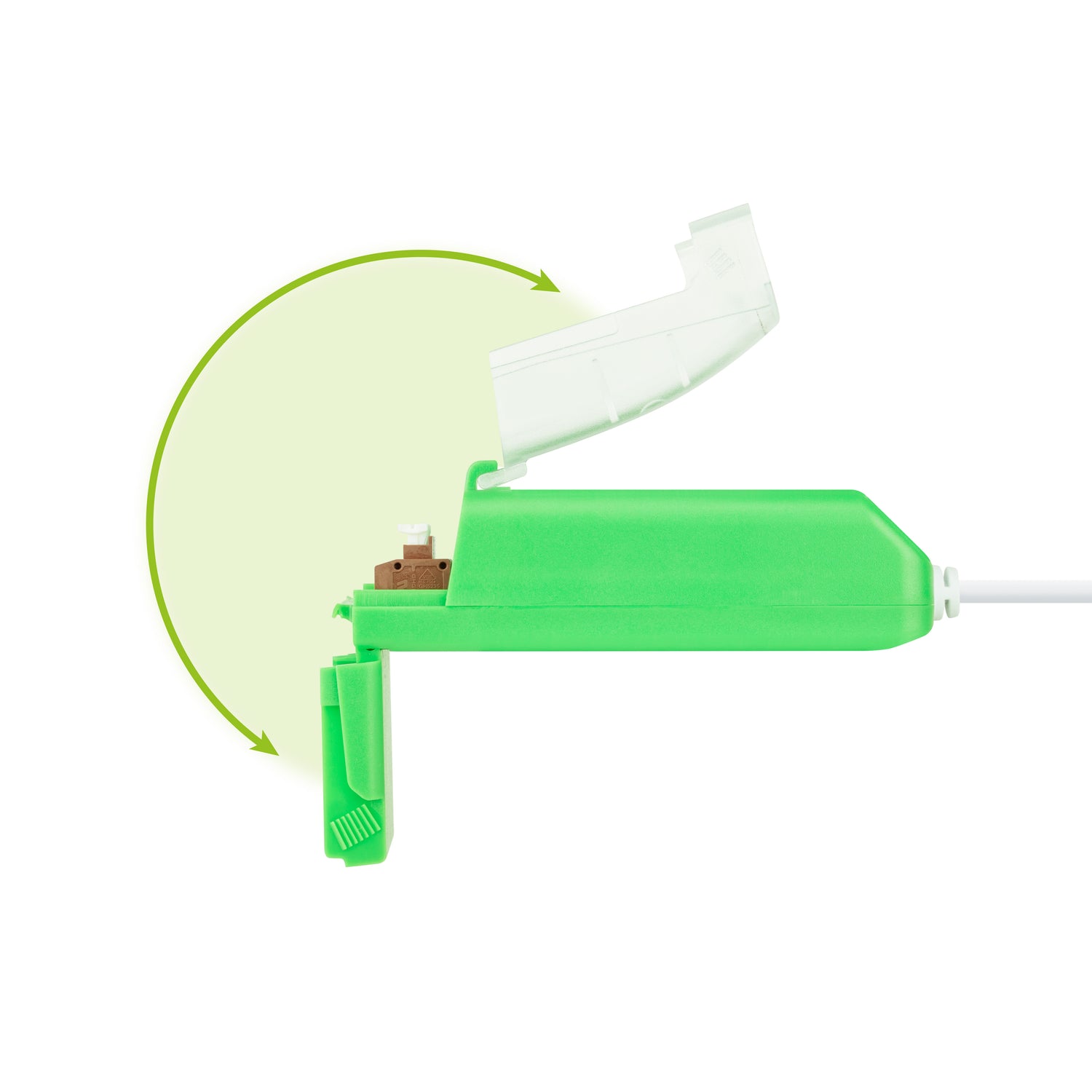

JCC Lighting JC080221 Skytile Base 600x600mm 38W IP40 CCT 3000/4000/5700K TP(a) is a lighting driver identified by product code JC080221. Up to 122 LpcW 3CCT 3000/4000/5700K selectable 8 pole loop in/loop out double hinged driver with permanent live and earth for continuous wiring Flicker free non dimmable driver as standard Meets TP(a) requirements, suitable for all applications UGR options designed to comply with BS EN 12464-1 lighting of workspace Available in low, standard and high output options to suit various applications High output option over 5100 lumens, suitable for applications with higher ceilings or areas that require greater light levels DALI/1-10V/Switch dim or DSI options Emergency remote pack options available.

Confirm output, wattage, current, voltage, dimming protocol and physical dimensions before replacement. For the best match, review the product details and use the SKU JC080221 when comparing specifications or replacing an existing item. This detailed listing helps you identify the correct lighting driver for your lighting project.

Available from Stock from First Light Direct, JCC Lighting JC080221 Skytile Base 600x600mm 38W IP40 CCT 3000/4000/5700K TP(a) (JC080221) is offered as part of a wide UK lighting range at Best Prices. First Light Direct brings over 40 years of lighting experience, trusted-brand choice, monthly deals and straightforward delivery options to customers choosing the right lighting driver for homes, hospitality spaces and commercial projects. Order using product reference JC080221 and check the product page for the latest price, stock position and delivery information.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC080221
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544119026
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 113
JCC - CRI: Ra - 82-85
JCC - Energy Rating - E
JCC - Operating Temperature Range °C - -20 to +45
JCC - Dimmable - No
JCC - Power Factor Correction - 0.9
JCC - Total Harmonic Distortion (THD)% - 20
JCC - Class - II
JCC - Sec - Voltage (VDC) - 38-40
JCC - Luminaire Circuit Wattage - 38
JCC - Rating(Amp) - 38
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 17
JCC - Primary Running Current(Amp) - 0.23
JCC - Secondary running current(mA) - 950
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP40

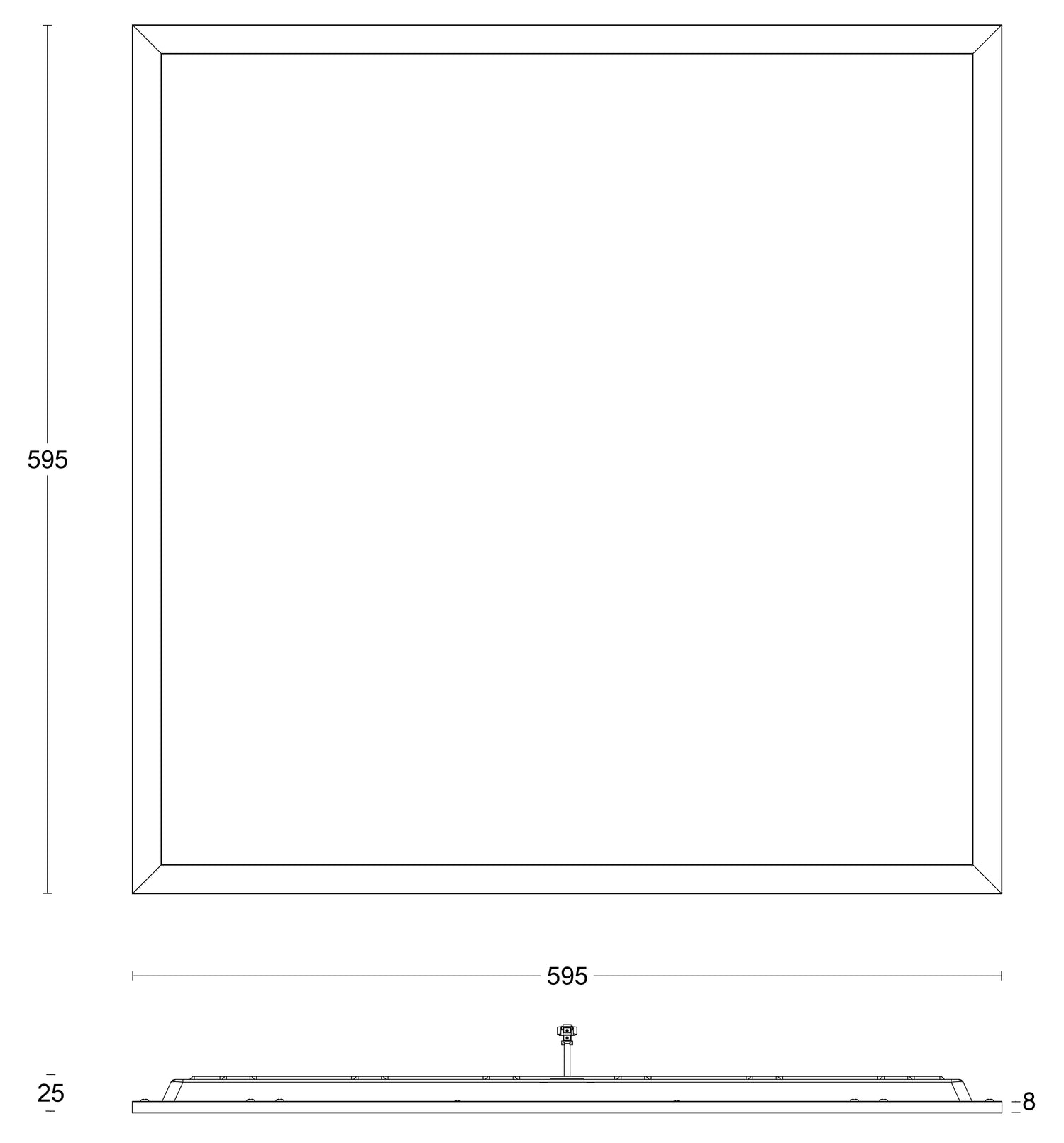

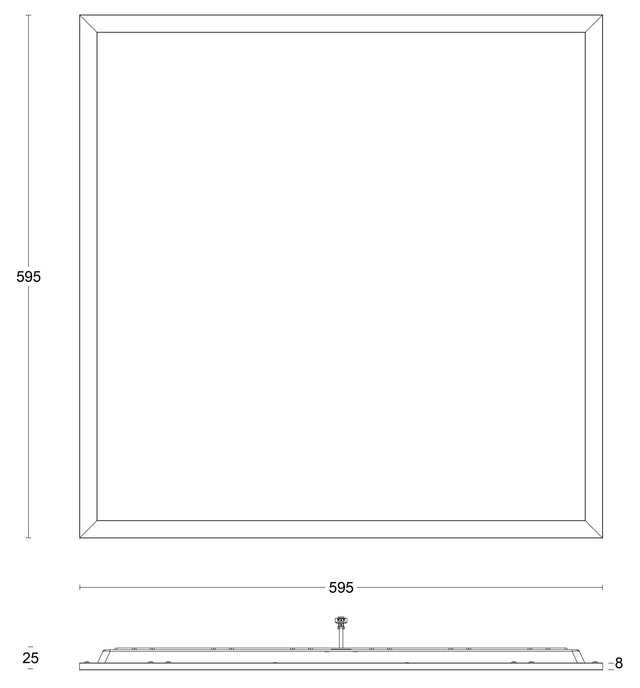

JCC - Overall dimensions (mm) Rim - 595 x 595 x 25mm
JCC - Height (mm) - 25
JCC - Width (mm) - 595
JCC - Length (mm) - 595
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/LED Panels/Skytile Base CCT - IS.pdf
