Description
Description
IP65 suitable for use in bathrooms (internal use only)

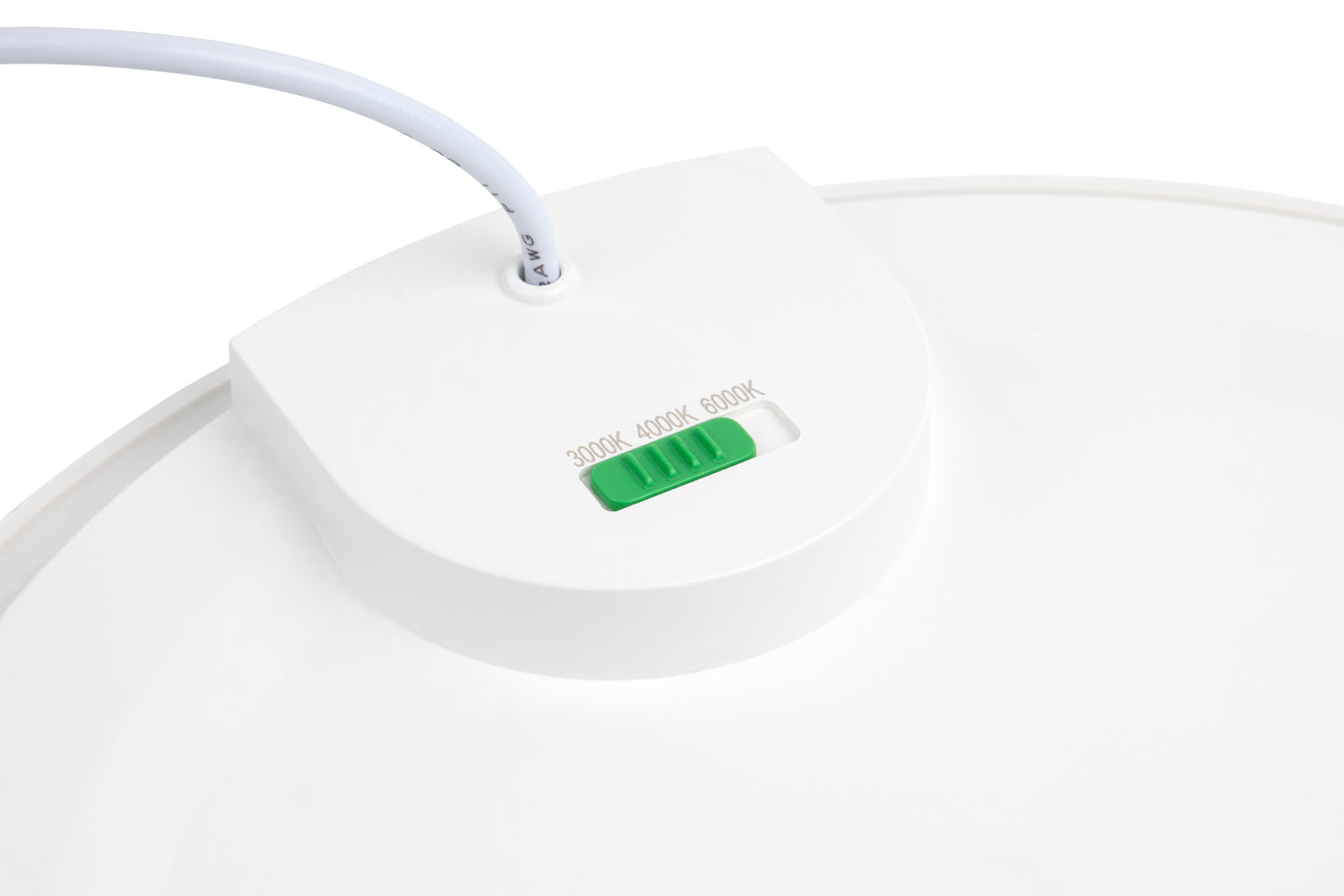

Two wattage and three colour selectable from fitting
Loop-in/loop-out driver with permanent live and earth provision
Designed for ceiling cut-outs from 100-110mm
Polycarbonate construction
TP(a) rated
Manufacturers Part Number - JC72001
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 110
JCC - CRI: Ra - 80
JCC - Energy Rating - E
JCC - Dimmable - Yes
JCC - Power Factor Correction - 0.85
JCC - Output Voltage Max/Range (VDC) - 45-54
JCC - Class - II
JCC - Luminaire Circuit Wattage - 4
JCC - Rating(Amp) - 4
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 3.8A @ 67uS
JCC - Dimming Protocol Compatibility - Triac, leading and trailing edge
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.05
JCC - Method of fix - Spring Clips (supplied)

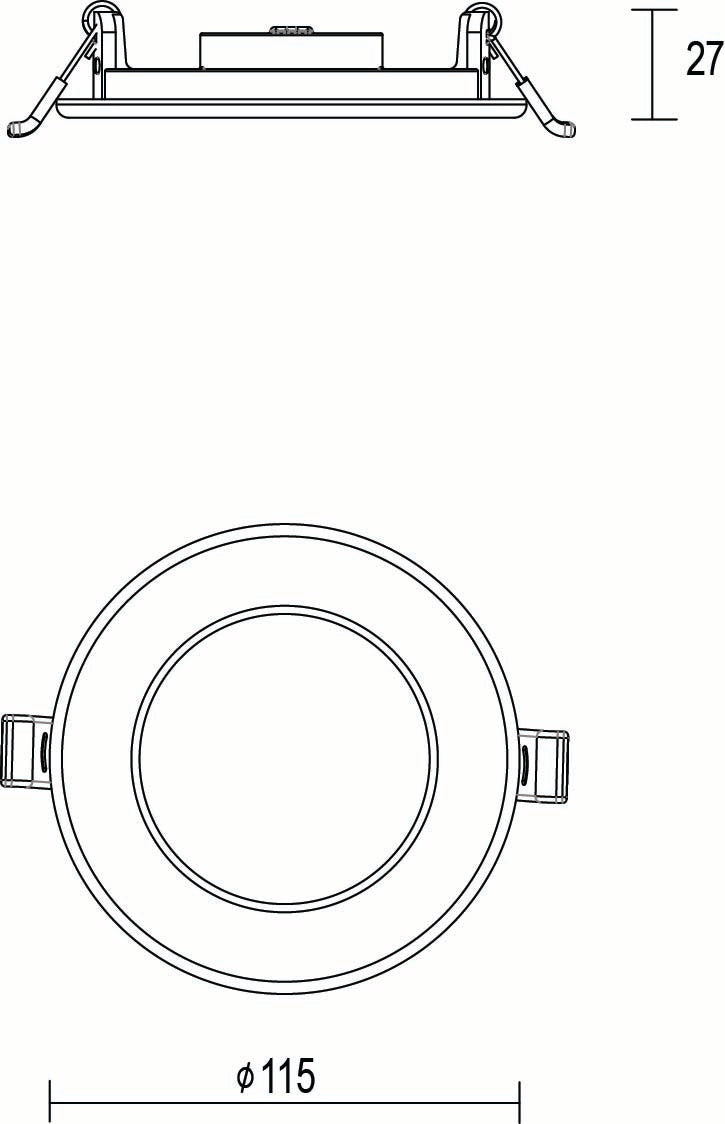

JCC - Overall dimensions (mm) Rim - 2
JCC - Diameter (mm) - 115
JCC - Depth (mm) - 27
JCC - Color Finish - White
