JCC JC72003 Skydisc 170mm 8W/12W 3000K/4000K/5700K IP65 TP(a) Triac
JCC JC72003 Skydisc 170mm 8W/12W 3000K/4000K/5700K IP65 TP(a) Triac is backordered and will ship as soon as it is back in stock.
Description
Description
IP65 suitable for use in bathrooms (internal use only)

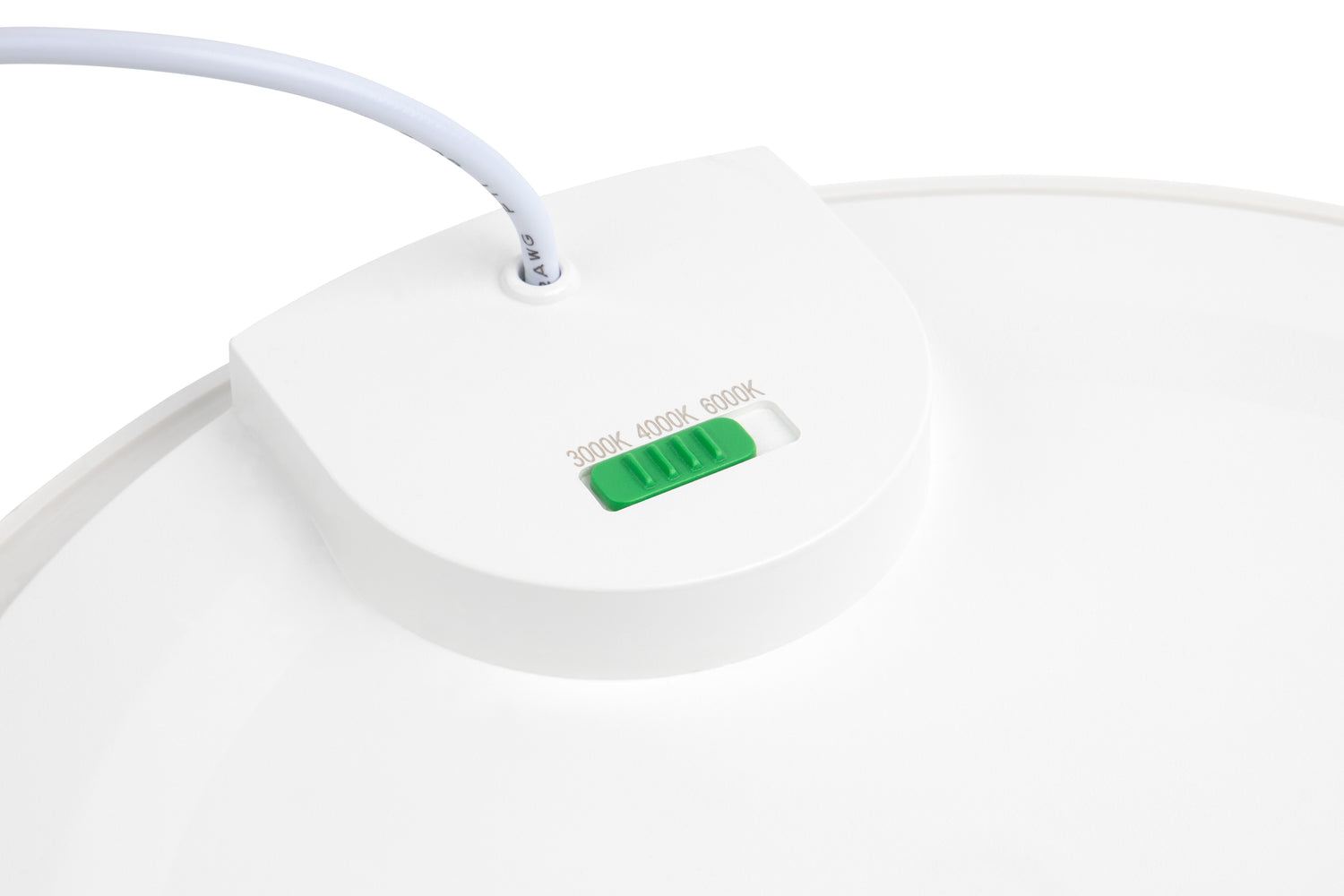

Two wattage and three colour selectable from fitting
Loop-in/loop-out driver with permanent live and earth provision
Designed for ceiling cut-outs from 150-160mm
Polycarbonate construction
TP(a) rated
Manufacturers Part Number - JC72003
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 110
JCC - CRI: Ra - 80
JCC - Energy Rating - E
JCC - Dimmable - Yes
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 60-75
JCC - Class - II
JCC - Luminaire Circuit Wattage - 8
JCC - Rating(Amp) - 8
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 3.8A @ 67uS
JCC - Dimming Protocol Compatibility - Triac, leading and trailing edge
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.09
JCC - Method of fix - Spring Clips (supplied)
JCC - Overall dimensions (mm) Rim - 2

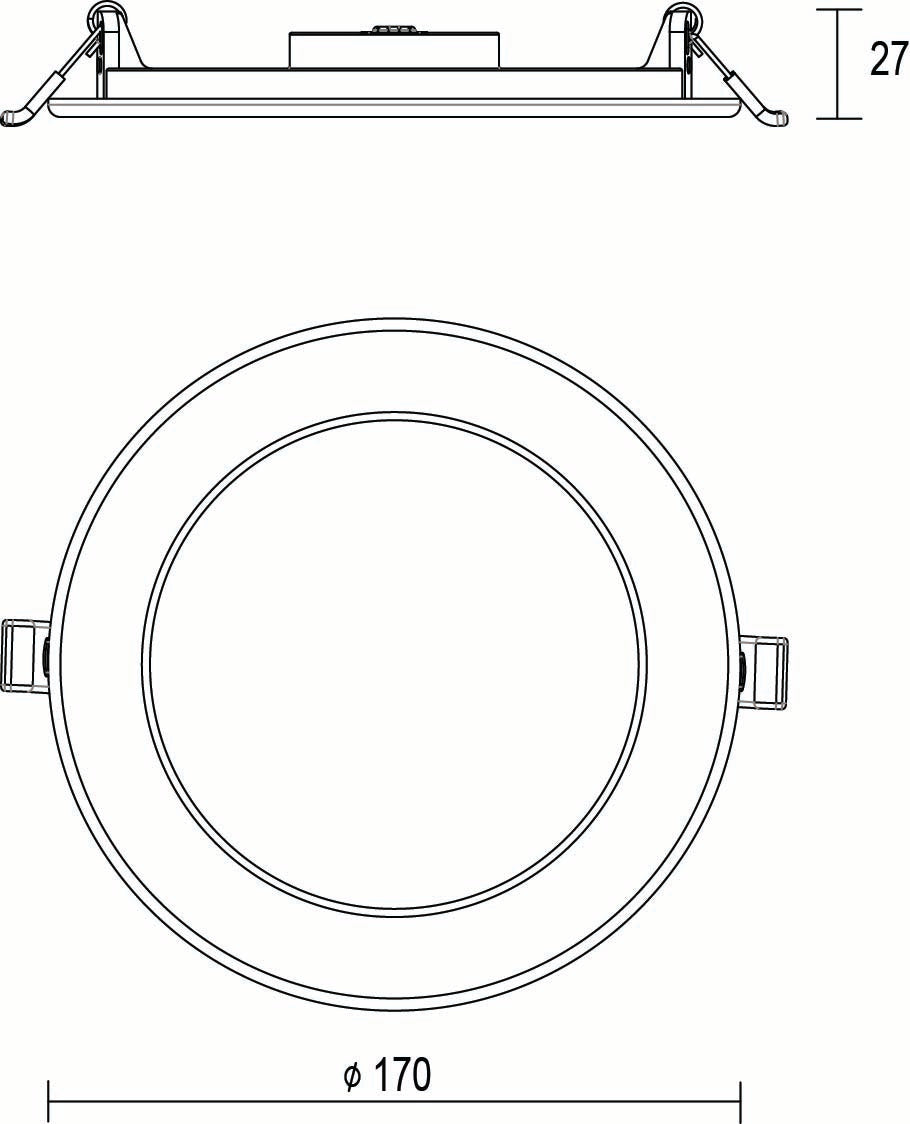

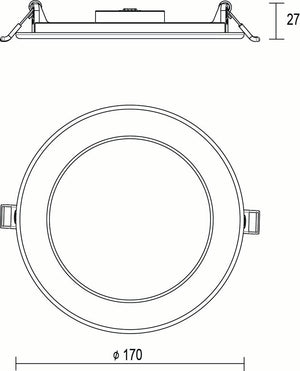

JCC - Diameter (mm) - 170
JCC - Depth (mm) - 27
JCC - Color Finish - White
