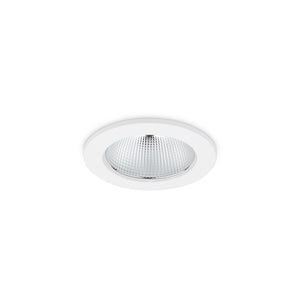

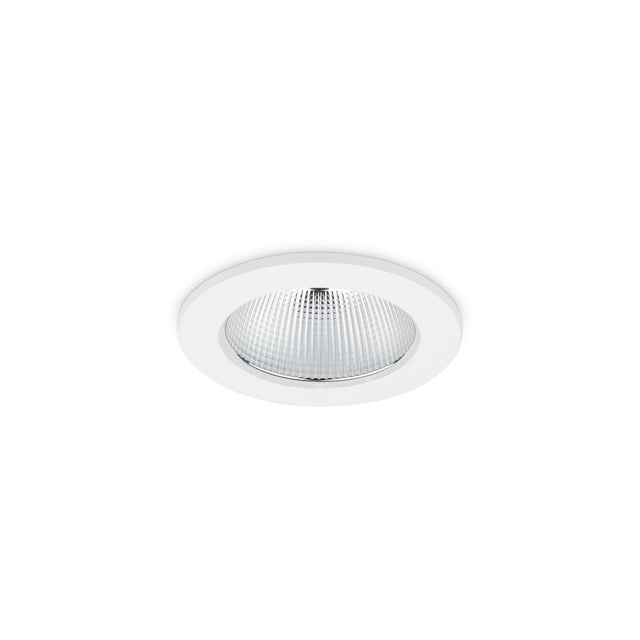

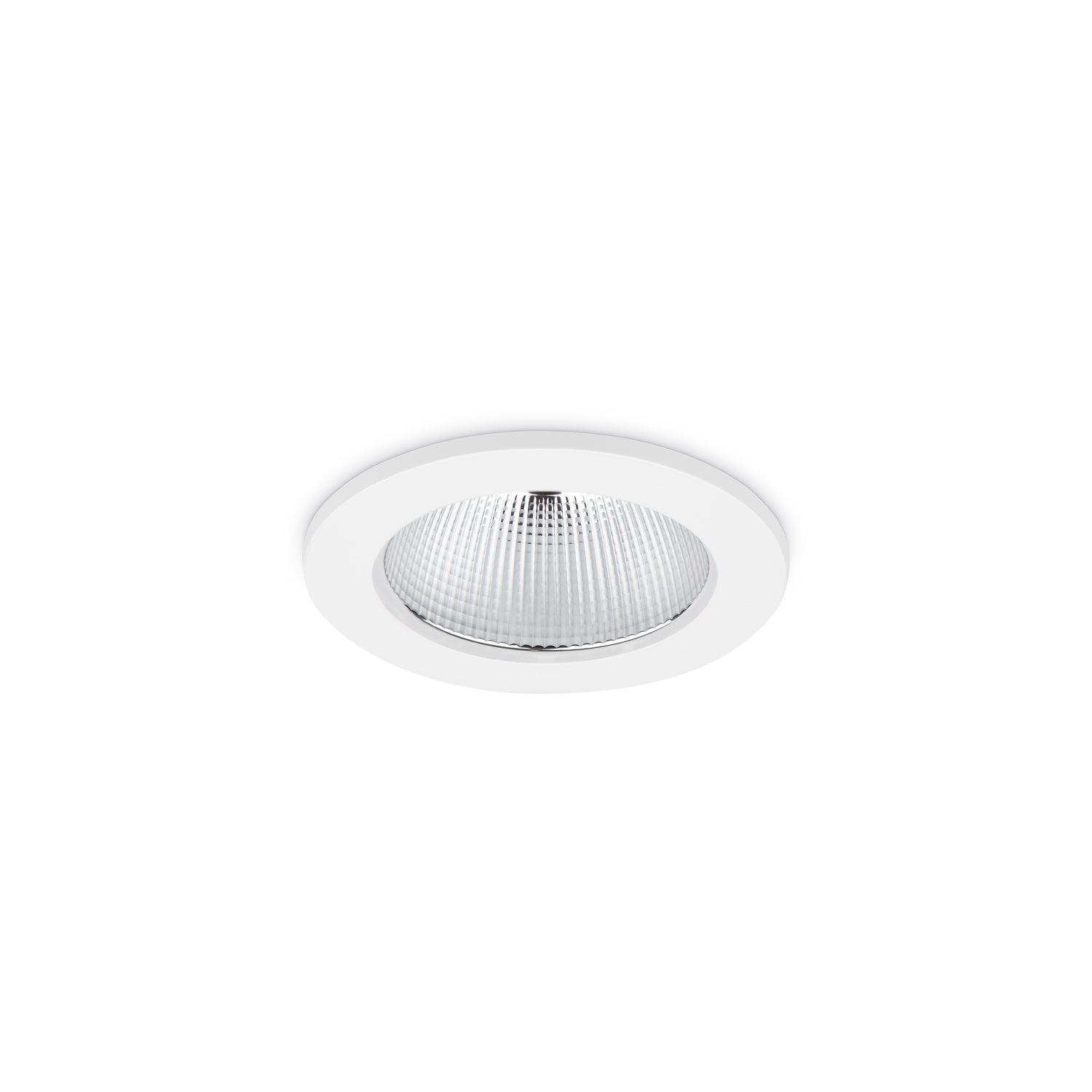

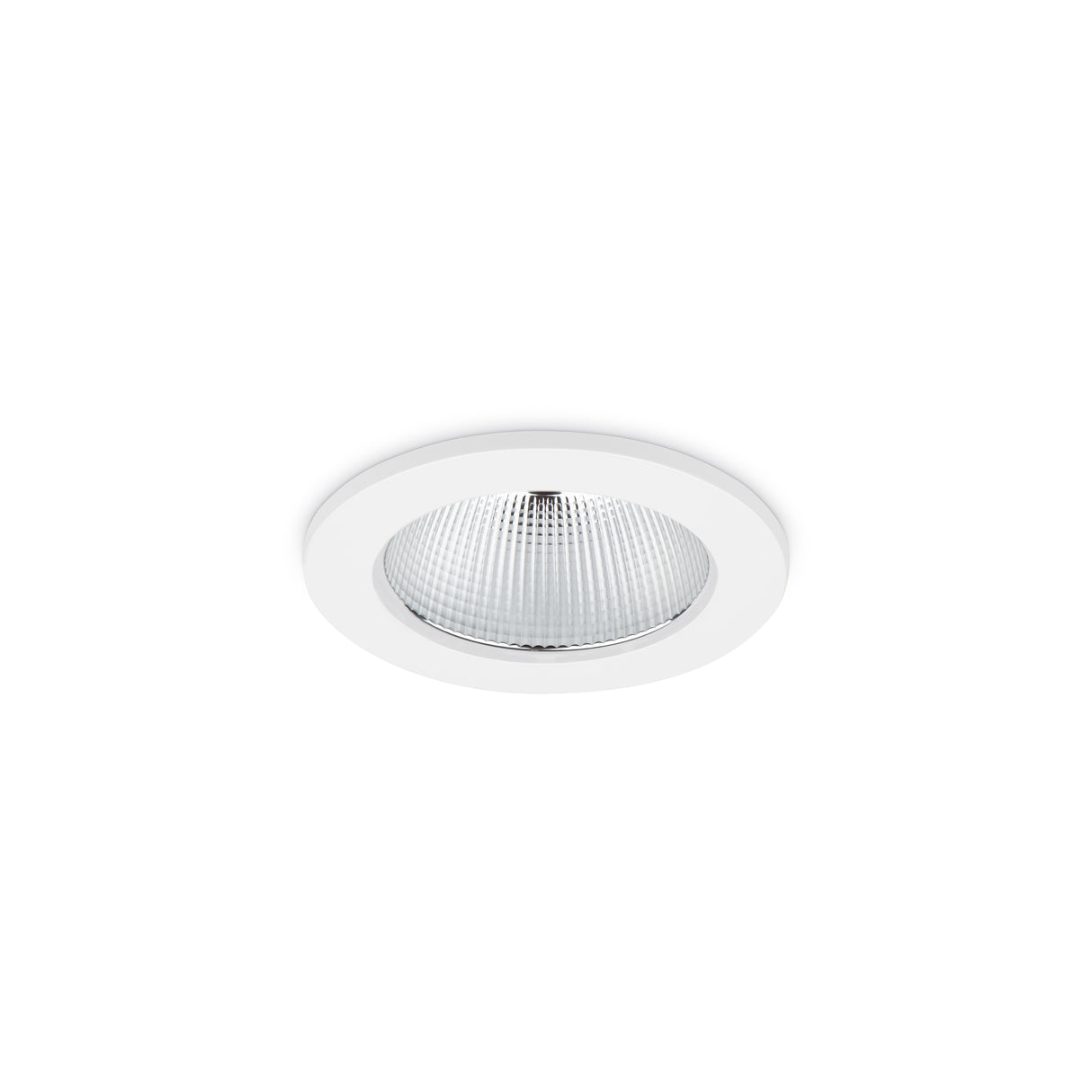

JCC JC74001 Rakula downlight 114mm 7W/10W 3000K/4000K/5700K IP65 TP(a) Triac
JCC JC74001 Rakula downlight 114mm 7W/10W 3000K/4000K/5700K IP65 TP(a) Triac is backordered and will ship as soon as it is back in stock.
Description
Description
Three colour selectable 3000K, 4000K & 5700K
Wattage selectable 7W/10W
Designed for ceiling cut-outs from 90mm-102mm

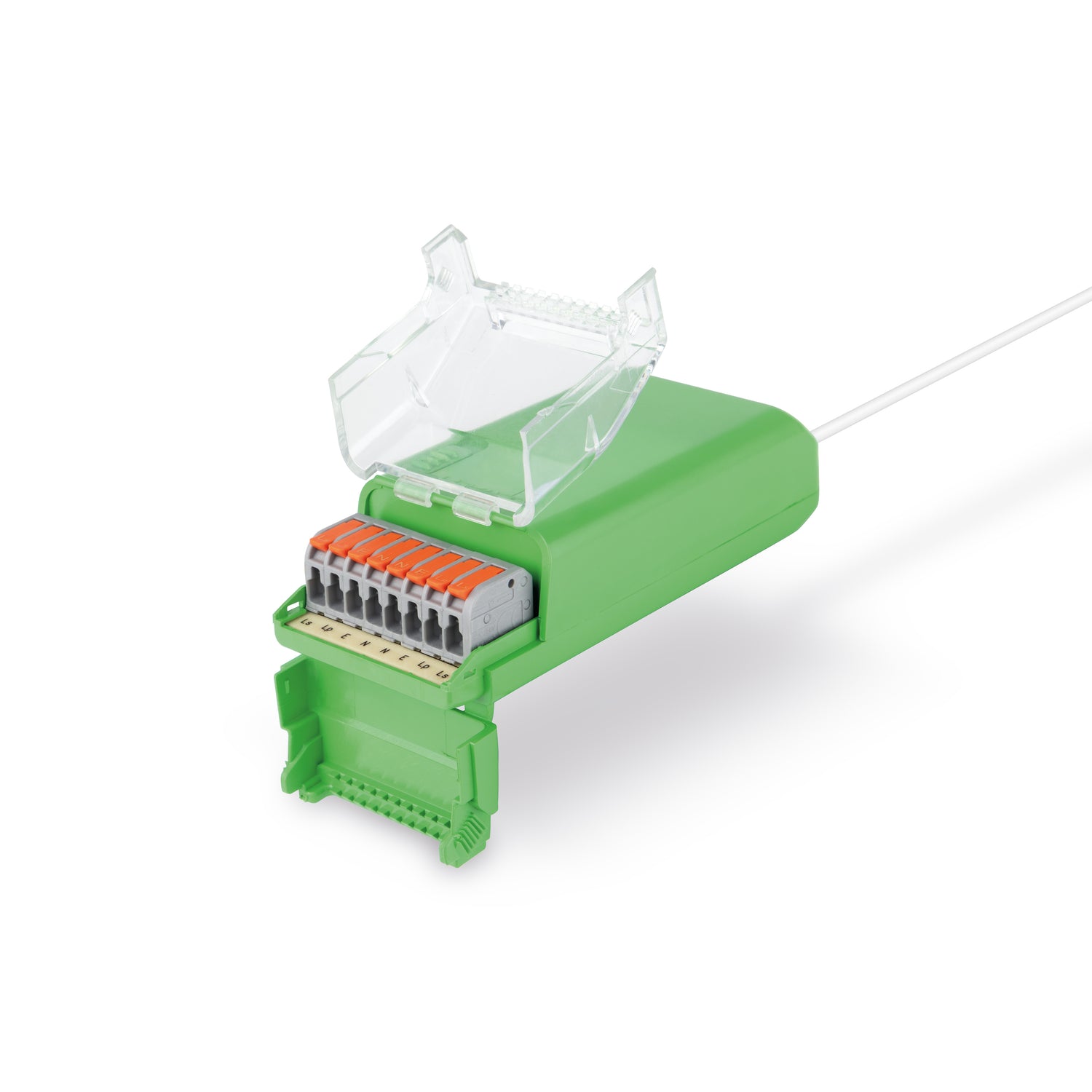

Loop-in/loop-out driver with permanent live and earth provision
Non dim, DALI/1-10V/Switch Dim available
Manual test, self-test and DALI addressable emergency options available
TP(a) rated
Manufacturers Part Number - JC74001
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 56
JCC - CRI: Ra - 80
JCC - Dimmable - Triac, leading and trailing edge
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 30-40
JCC - Class - II
JCC - Luminaire Circuit Wattage - 7
JCC - Rating(Amp) - 7
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - ?20A
JCC - Dimming Protocol Compatibility - Triac
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.06
JCC - Method of fix - Spring clips
JCC - Diameter (mm) - 114
JCC - Height (mm) - 66
JCC - Color Finish - White
