JCC Lighting JC100128 Skypack™ Pro 5ft Single 34W IP20 4000K DALI WO

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

SKU: JC100128

Barcode: 5052544122354

JCC Lighting

JCC Lighting JC100128 Skypack™ Pro 5ft Single 34W IP20 4000K DALI WOP

(0)

£68.73 £234.96

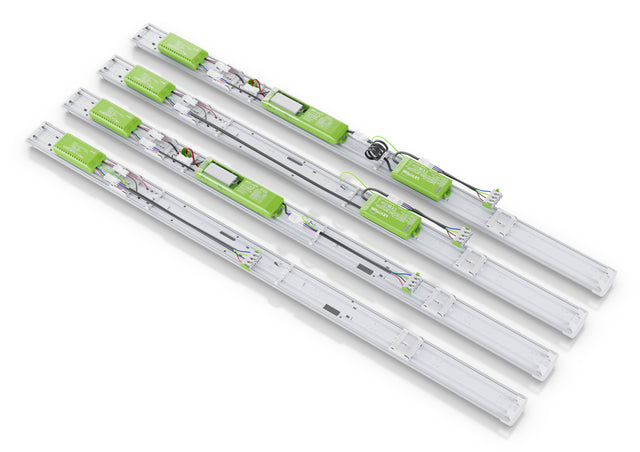

JCC Lighting JC100128 Skypack™ Pro 5ft Single 34W IP20 4000K DALI WOP is a electrical cable identified by product code JC100128. Intelligent press release buttons for simple installation Suspended LED tray for easy installation Press fit terminals loop in loop out with multiple position options Rear and end conduit entry points Plug and play Emergency and Microwave on/off modules Flexible cross mount fixing points Keyhole BESA mounting points Pre-moulded two way cable restraints Improved funnel clip in end caps for ease of installation.

Confirm conductor type, length, colour and electrical specification before use. For the best match, review the product details and use the SKU JC100128 when comparing specifications or replacing an existing item. This detailed listing helps you identify the correct electrical cable for your lighting project.

Available from Stock from First Light Direct, JCC Lighting JC100128 Skypack™ Pro 5ft Single 34W IP20 4000K DALI WOP (JC100128) is offered as part of a wide UK lighting range at Best Prices. First Light Direct brings over 40 years of lighting experience, trusted-brand choice, monthly deals and straightforward delivery options to customers choosing the right electrical cable for homes, hospitality spaces and commercial projects. Order using product reference JC100128 and check the product page for the latest price, stock position and delivery information.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC100128
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Steel
JCC -Beam Angle ° - 120
JCC - CRI: Ra - 80
JCC - Operating Temperature Range °C - -25?~50?
JCC - Dimmable - DALI or Switch dim
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - Typical: 13% ?@230Vac, 100% load?
JCC - Output Voltage Max/Range (VDC) - Sep-57
JCC - Class - I
JCC - Luminaire Circuit Wattage - 34
JCC - Rating(Amp) - 34
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - <20A (Half current pulse width 100uS) @230VAC
JCC - Primary Running Current(Amp) - 0.2A
JCC - Secondary running current(mA) - 650
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - DALI
JCC - Warranty - 5 Years see JCC Website
JCC - IP Rating - IP40 (Surface Mount) IP20 (Suspended)
JCC - Method of fix - Surface or Suspended

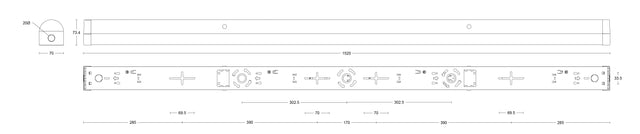

JCC - Overall dimensions (mm) Rim - 1520 x 73.4 x 70
JCC - Height (mm) - 70
JCC - Width (mm) - 73.4
JCC - Length (mm) - 1520
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Battens and Weatherproofs/Skypack Pro/Skypack Pro- IS.pdf
