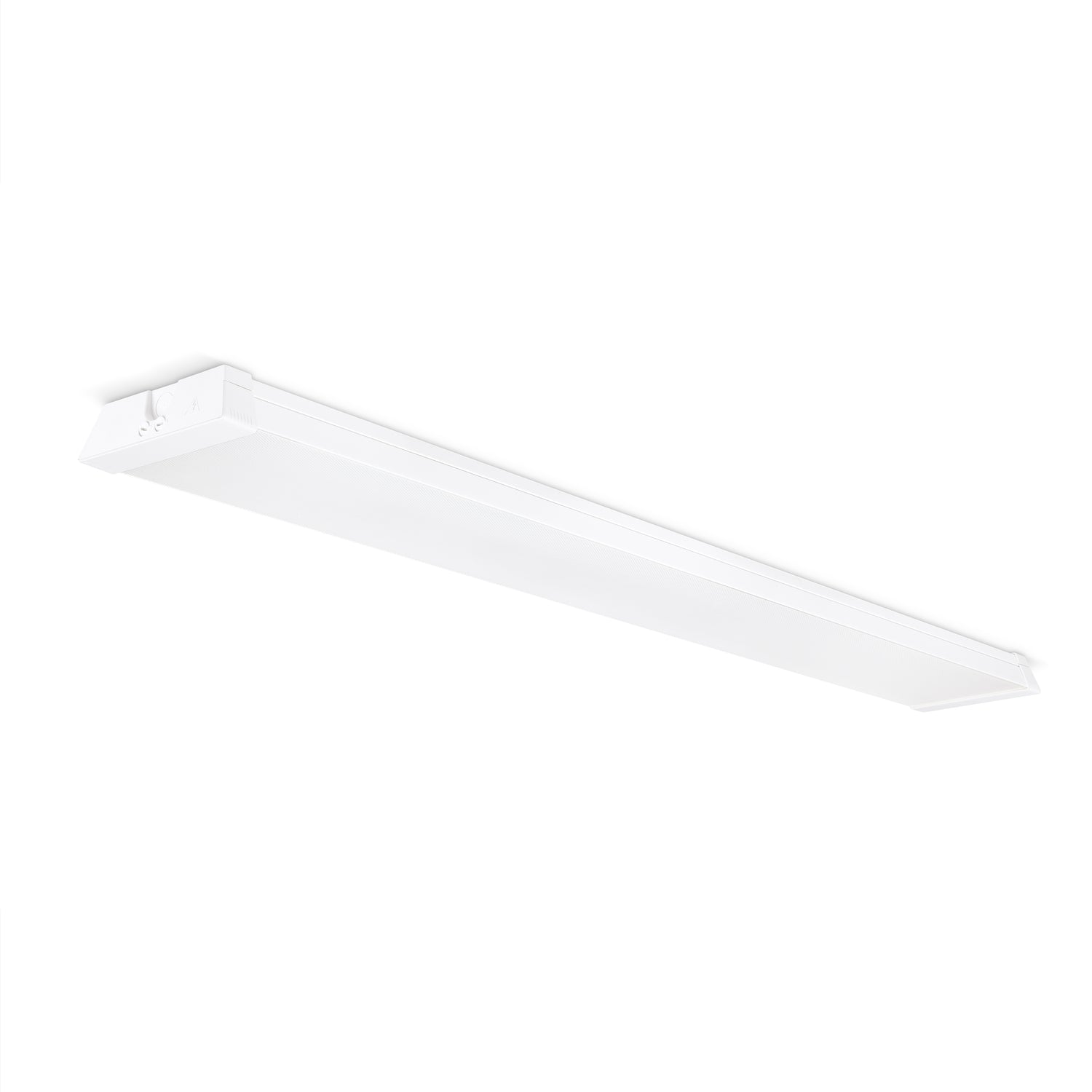

JCC Lighting JC030041 Commercial Linear UGR19 5FT 30W/32W/34W/36W 3CCT
JCC Lighting JC030041 Commercial Linear UGR19 5FT 30W/32W/34W/36W 3CCT is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace.
Four Wattage output selectable allowing you to choose between 30W, 32W, 34W and 36W
CCT colour selectable allowing you to choose between 3000K, 4000K and 5700K
DALI dimmable and Microwave on/off options
Self-test emergency as standard

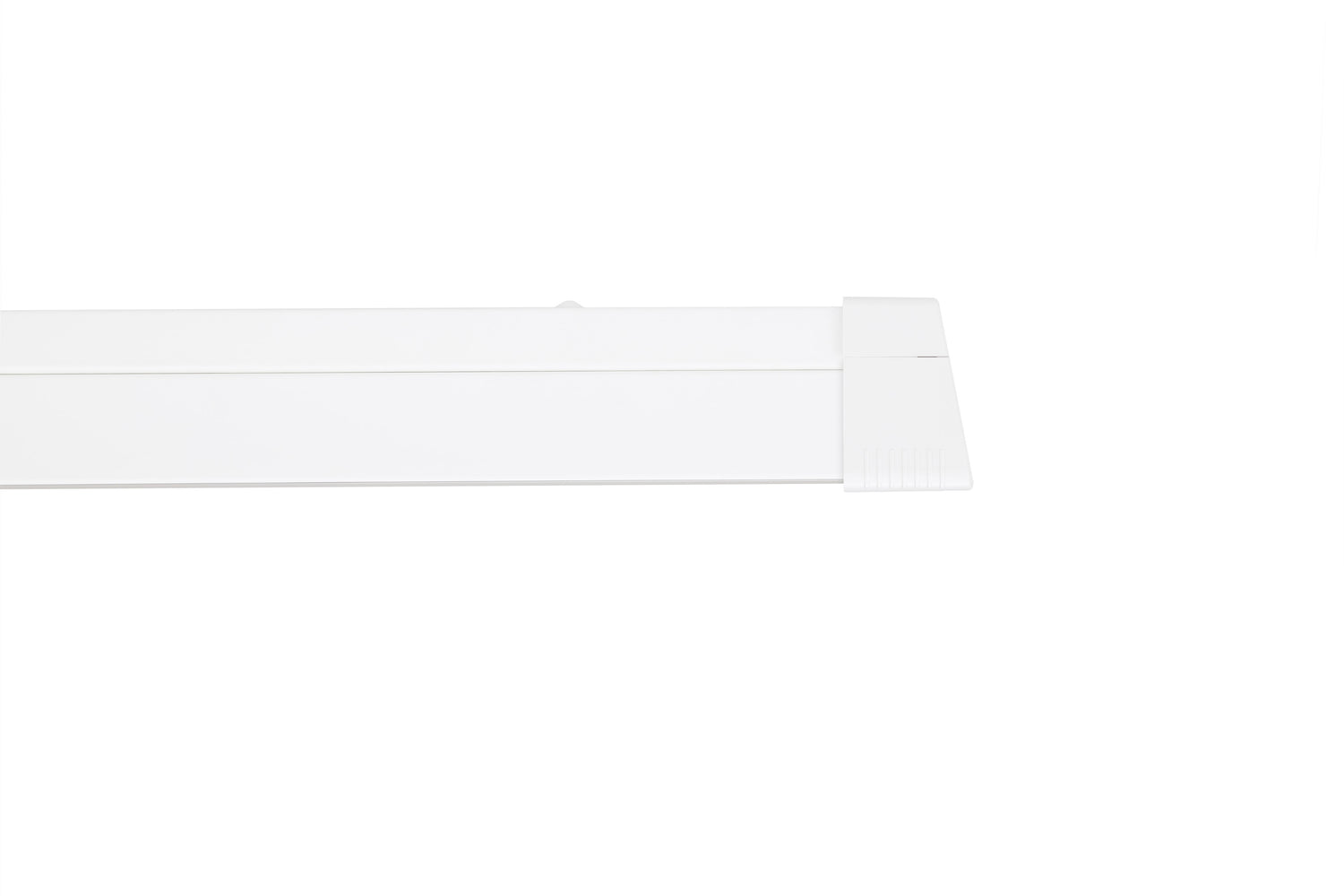

Anti- tamper end caps
Up to 132 LpcW
Flicker free driver
Manufacturers Part Number - JC030041
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544119507
JCC - Primary Material - Pressed Steel
JCC -Beam Angle ° - 90
JCC - CRI: Ra - 82/87/84
JCC - Energy Rating - This product contains a light source of energy efficiency class C
JCC - Operating Temperature Range °C - 0-60
JCC - Dimmable - No
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 15
JCC - Output Voltage Max/Range (VDC) - 60-125
JCC - Class - I
JCC - Luminaire Circuit Wattage - 30/32/34/36
JCC - Rating(Amp) - 30/32/34/36
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 18
JCC - Primary Running Current(Amp) - 0.07-0.26
JCC - Secondary running current(mA) - 260/280/300/320
JCC - Voltage Rating - 220-240V~
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside Zone 2
JCC - IP Rating - IP20
JCC - Method of fix - Screw fix or suspend
JCC - Overall dimensions (mm) Rim - 1500 x 164 x 48mm
JCC - Height (mm) - 48
JCC - Width (mm) - 164
JCC - Length (mm) - 1500
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Commercial Linear LED/Commercial Linear-IS.pdf
