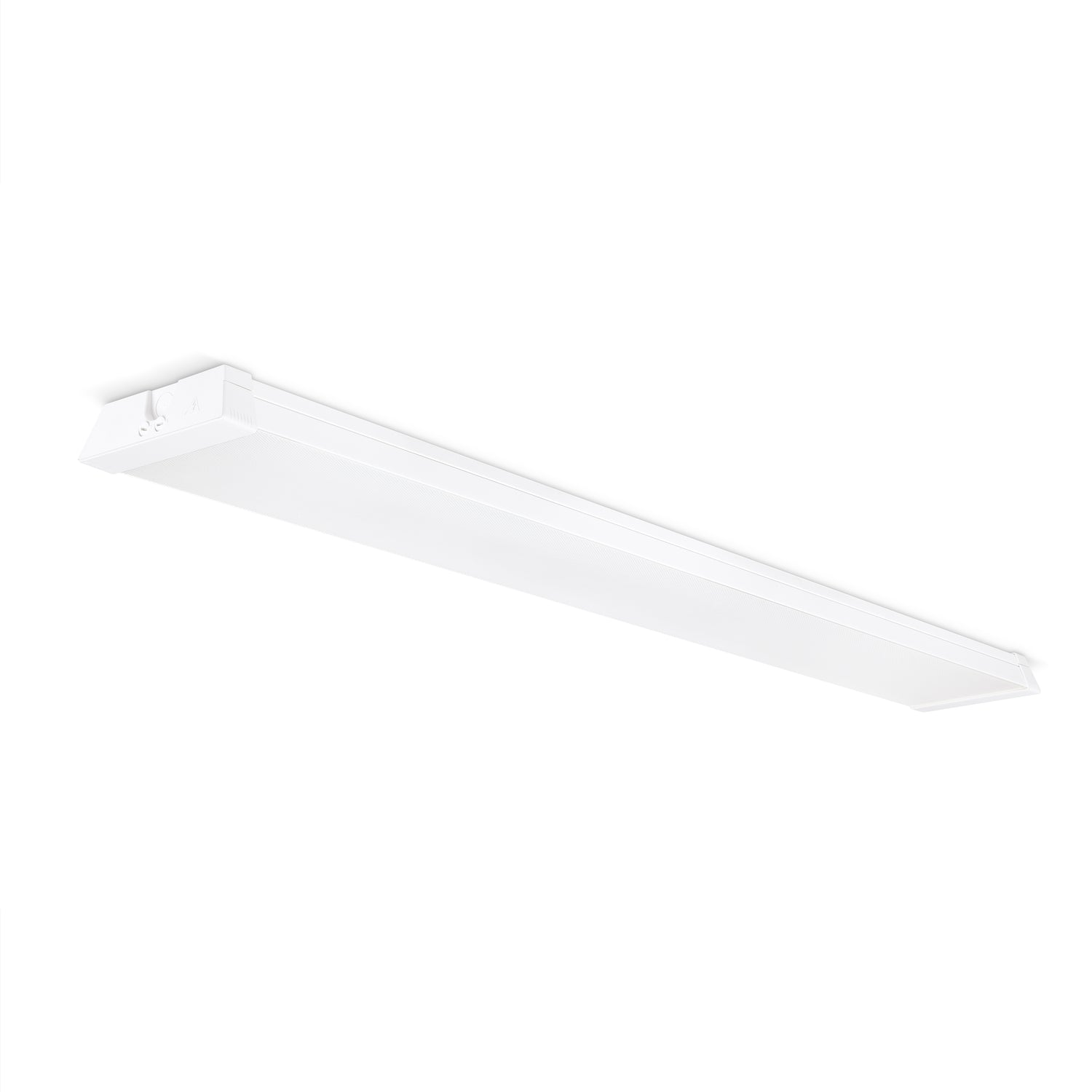

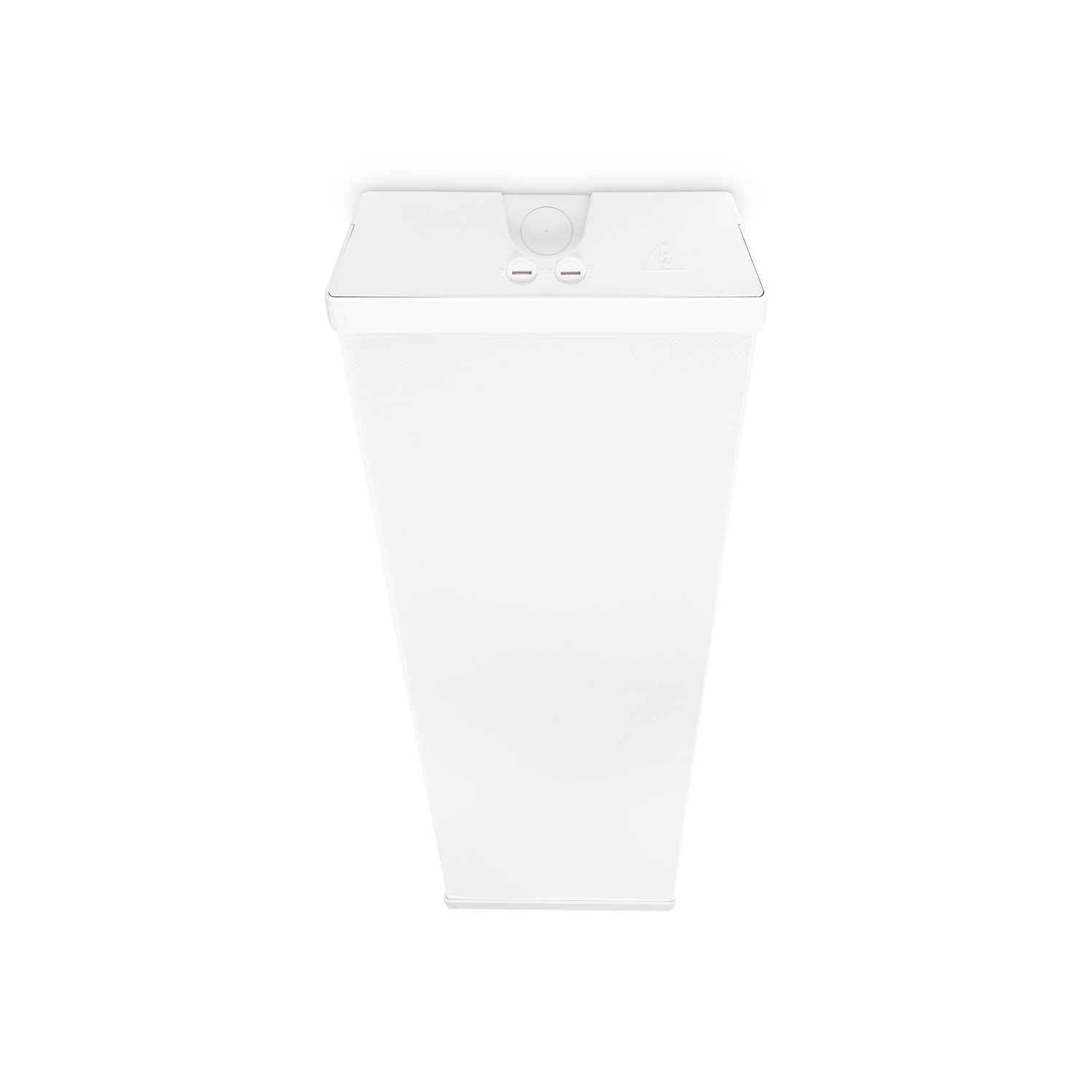

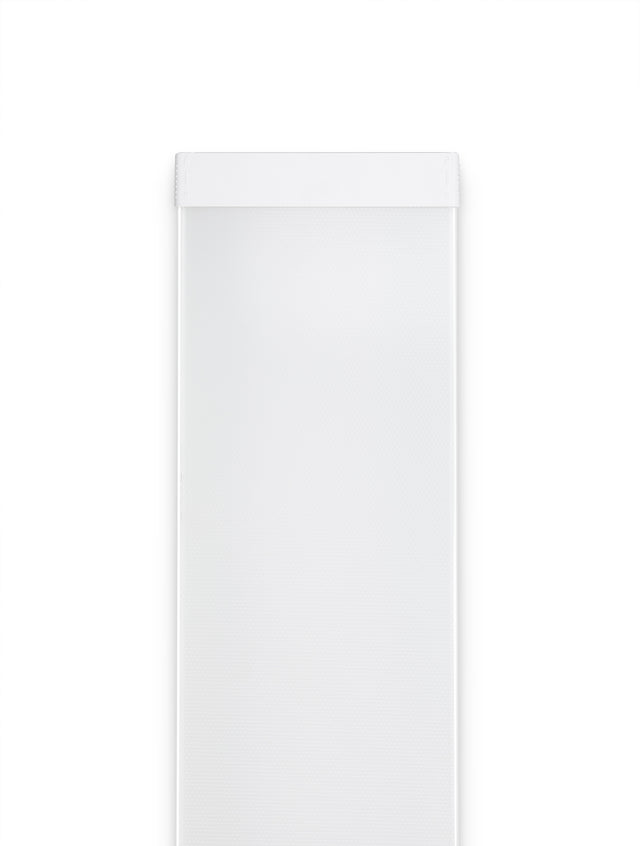

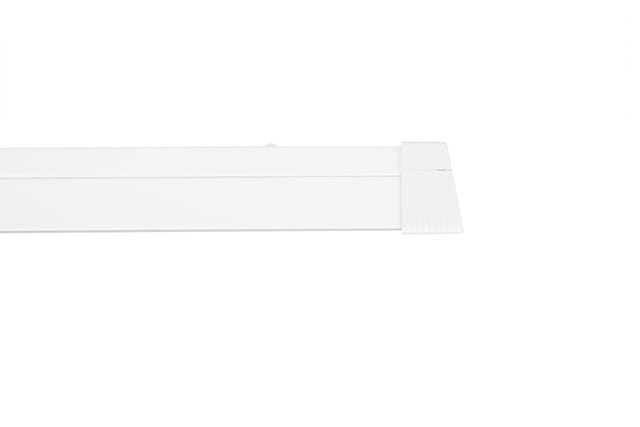

JCC Lighting JC030043 Commercial Linear UGR19 5FT 30W/32W/34W/36W 3CCT DALI

Qty

Decrease quantity Increase quantity

Add to cart

Manufacturer - JCC Lighting
Manufacturers Part Number - JC030043
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544119521
JCC - Primary Material - Pressed Steel
JCC -Beam Angle ° - 90
JCC - CRI: Ra - 82/87/84
JCC - Energy Rating - This product contains a light source of energy efficiency class C
JCC - Operating Temperature Range °C - -20+60
JCC - Dimmable - Yes
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 8
JCC - Output Voltage Max/Range (VDC) - 50-140
JCC - Class - I
JCC - Luminaire Circuit Wattage - 30/32/34/36
JCC - Rating(Amp) - 30/32/34/36
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 36
JCC - Primary Running Current(Amp) - 0.5-0.95
JCC - Secondary running current(mA) - 260/280/300/320
JCC - Voltage Rating - 220-240V~
JCC - Dimming Protocol Compatibility - DALI
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside Zone 2
JCC - IP Rating - IP20
JCC - Method of fix - Screw fix or suspend
JCC - Overall dimensions (mm) Rim - 1500 x 164 x 48mm
JCC - Height (mm) - 48
JCC - Width (mm) - 164
JCC - Length (mm) - 1500
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Commercial Linear LED/Commercial Linear-IS.pdf
