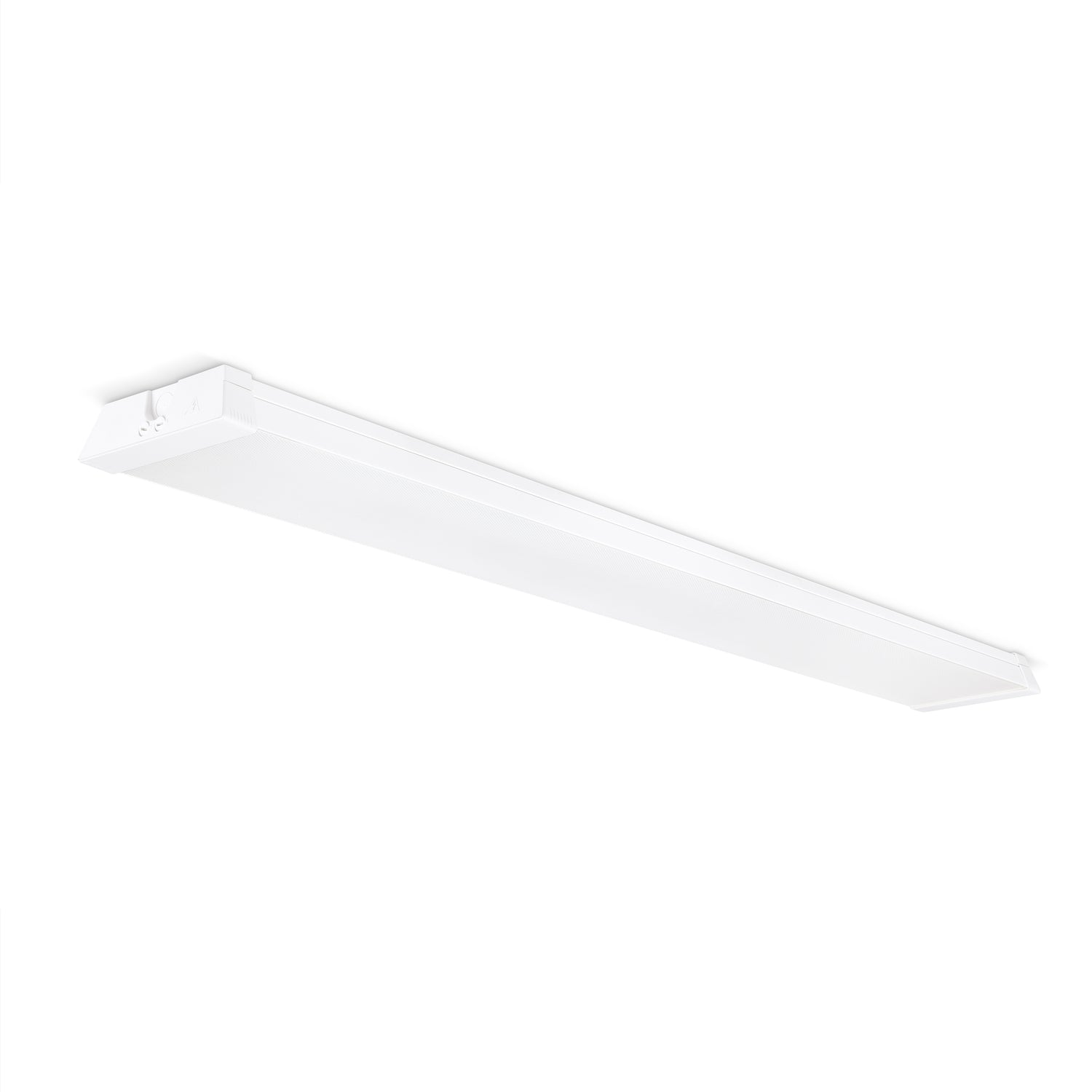

JCC Lighting JC030047 Commercial Linear UGR19 5FT 30W/32W/34W/36W 3CCT Microwave On/Off

(0)

£125.03 £326.51

JCC Lighting JC030047 Commercial Linear UGR19 5FT 30W/32W/34W/36W 3CCT Microwave On/Off is a lighting driver identified by product code JC030047. UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace. Four Wattage output selectable allowing you to choose between 30W, 32W, 34W and 36W CCT colour selectable allowing you to choose between 3000K, 4000K and 5700K DALI dimmable and Microwave on/off options Self-test emergency as standard Anti- tamper end caps Up to 132 LpcW Flicker free driver.

Confirm output, wattage, current, voltage, dimming protocol and physical dimensions before replacement. For the best match, review the product details and use the SKU JC030047 when comparing specifications or replacing an existing item. This detailed listing helps you identify the correct lighting driver for your lighting project.

Available from Stock from First Light Direct, JCC Lighting JC030047 Commercial Linear UGR19 5FT 30W/32W/34W/36W 3CCT Microwave On/Off (JC030047) is offered as part of a wide UK lighting range at Best Prices. First Light Direct brings over 40 years of lighting experience, trusted-brand choice, monthly deals and straightforward delivery options to customers choosing the right lighting driver for homes, hospitality spaces and commercial projects. Order using product reference JC030047 and check the product page for the latest price, stock position and delivery information.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC030047
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544119569
JCC - Primary Material - Pressed Steel
JCC -Beam Angle ° - 90
JCC - CRI: Ra - 82/87/84
JCC - Energy Rating - This product contains a light source of energy efficiency class C
JCC - Operating Temperature Range °C - 0-60
JCC - Dimmable - No
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 15
JCC - Output Voltage Max/Range (VDC) - 60-125
JCC - Class - I
JCC - Luminaire Circuit Wattage - 30/32/34/36
JCC - Rating(Amp) - 30/32/34/36
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 18
JCC - Primary Running Current(Amp) - 0.07-0.26
JCC - Secondary running current(mA) - 260/280/300/320
JCC - Voltage Rating - 220-240V~
JCC - Mounting height - 2.5-6m
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside Zone 2
JCC - IP Rating - IP20
JCC - Method of fix - Screw fix or suspend
JCC - Overall dimensions (mm) Rim - 1500 x 164 x 48mm
JCC - Height (mm) - 48
JCC - Width (mm) - 164
JCC - Length (mm) - 1500
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Commercial Linear LED/Commercial Linear-IS.pdf
