JCC Lighting JC030064 Commercial Linear 5FT 32W/34W/36W/38W 4000K DALI Self-test Emergency
JCC Lighting JC030064 Commercial Linear 5FT 32W/34W/36W/38W 4000K DALI Self-test Emergency is backordered and will ship as soon as it is back in stock.
Four Wattage output selectable allowing you to choose between 32W, 34W, 36W and 38W
DALI dimmable and Microwave on/off options
4ft(1200mm) or 5ft(1500mm) options
4000K Colour temperature as standard
Self-test emergency as standard

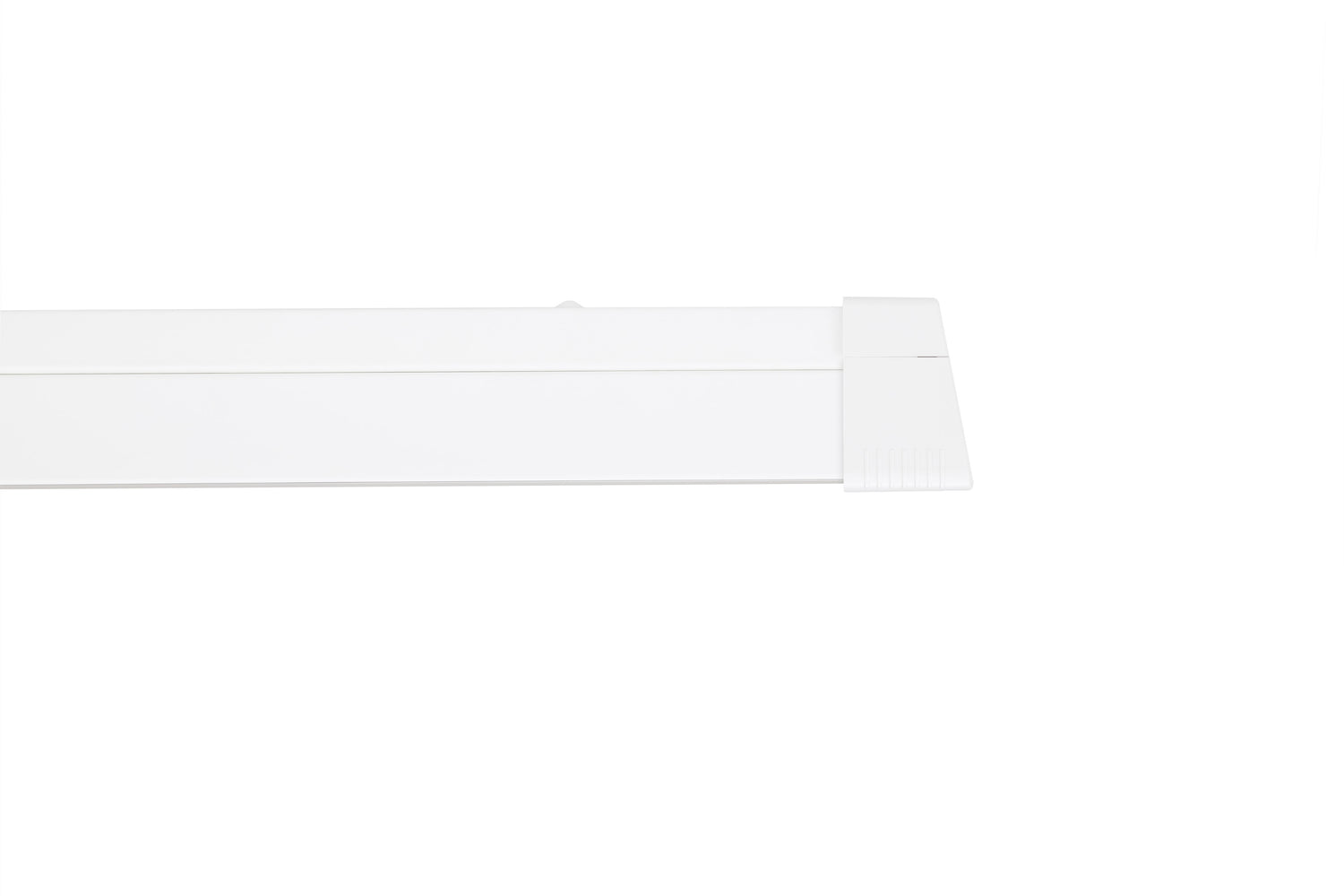

Anti- tamper end caps
Up to 156 LpcW
Manufacturers Part Number - JC030064
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544119736
JCC - Primary Material - Pressed Steel
JCC -Beam Angle ° - 112
JCC - CRI: Ra - 87
JCC - Energy Rating - This product contains a light source of energy efficiency class C
JCC - Operating Temperature Range °C - -20+60
JCC - Dimmable - Yes
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 8
JCC - Output Voltage Max/Range (VDC) - 50-140
JCC - Class - I
JCC - Luminaire Circuit Wattage - 32/34/36/38
JCC - Rating(Amp) - 32/34/36/38
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 36
JCC - Primary Running Current(Amp) - 0.5-0.95
JCC - Secondary running current(mA) - 260/280/300/320
JCC - Voltage Rating - 220-240V~
JCC - Dimming Protocol Compatibility - DALI
JCC - Warranty - 5 Year Warranty (5 years on batteries) (See Website for terms and conditions)
JCC - Suitable For Zones - Outside Zone 2
JCC - IP Rating - IP20
JCC - Method of fix - Screw fix or suspend
JCC - Overall dimensions (mm) Rim - 1500 x 164 x 48mm
JCC - Height (mm) - 48
JCC - Width (mm) - 164
JCC - Length (mm) - 1500
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Commercial Linear LED/Commercial Linear-IS.pdf
