JCC JC1015/CH V50™ Pro 135mm Fire-rated LED Downlight 6W 3000/4000K IP65 Chrome
JCC JC1015/CH V50™ Pro 135mm Fire-rated LED Downlight 6W 3000/4000K IP65 Chrome is backordered and will ship as soon as it is back in stock.
Description
Description
Slim profile 3mm bezel with a slimline double hinged driver, including colour coded loop in/loop out terminals
Allows for retrofit where larger downlights were previously installed covers ceiling cut-outs Ø70-92mm
Ideal for damage from previous fittings or replacement of traditional large fittings
Low profile design, for installations in shallow 50mm ceiling voids
Selectable colour temperature from beneath the ceiling, 3000K & 4000K
See jcc.co.uk for latest Fire test reports
Manufacturers Part Number - JC1015/CH
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Steel
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Dimmable - Yes
JCC - Output Voltage Max/Range (VDC) - 30-44
JCC - Class - II
JCC - Luminaire Circuit Wattage - 6
JCC - Rating(Amp) - 6
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 0.325A
JCC - Dimming Protocol Compatibility - Triac
JCC - IP Rating - IP65
JCC - Product Aperture Size - 0.042
JCC - Method of fix - Recessed with Spring Clips

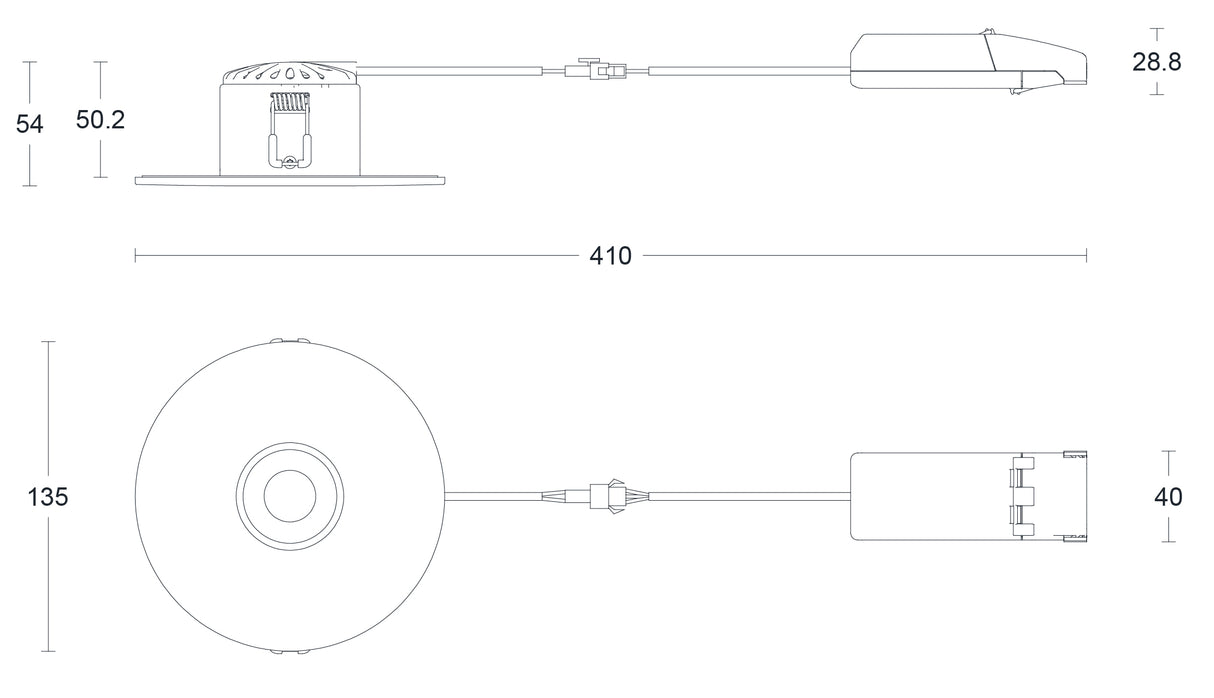

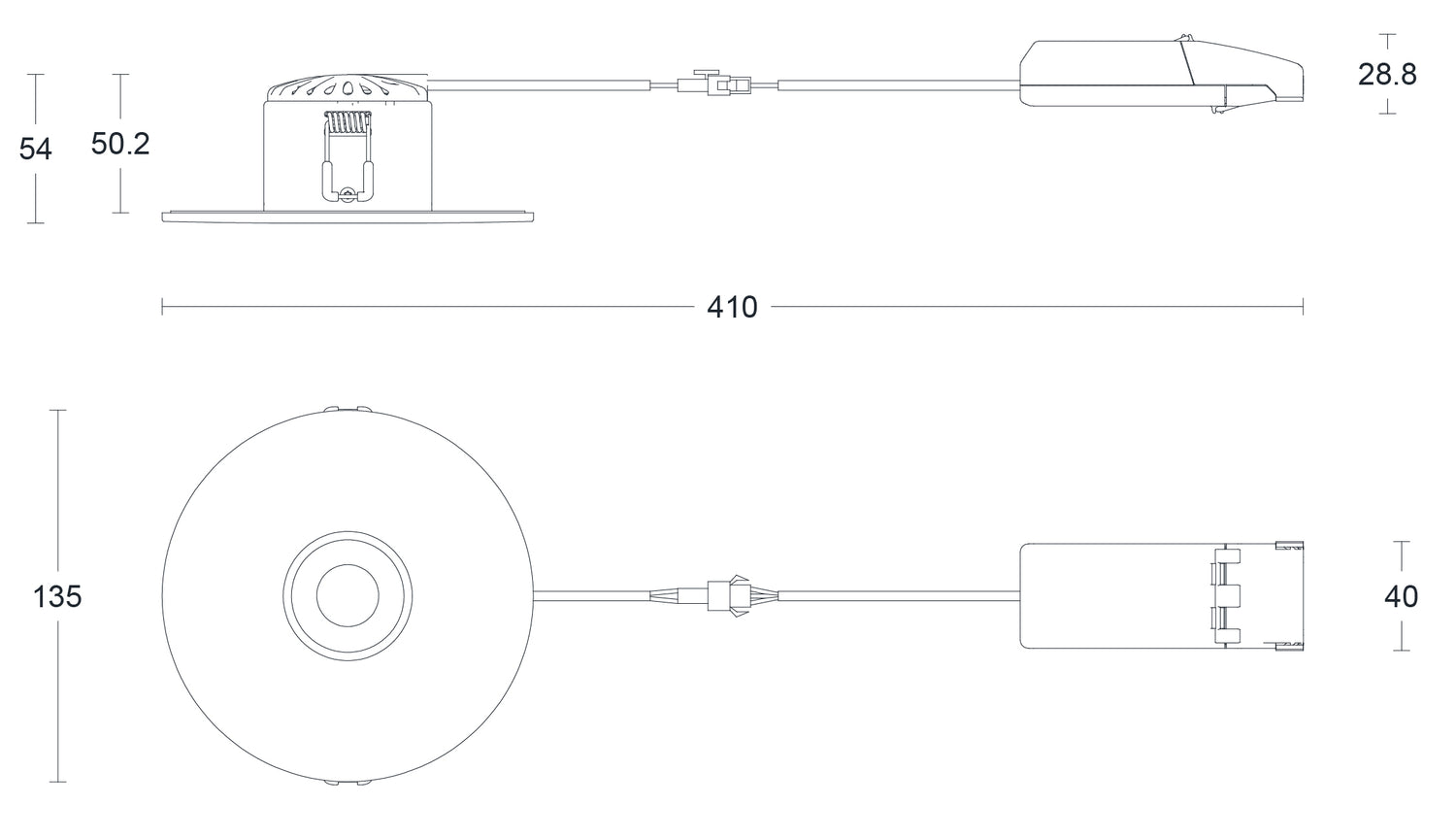

JCC - Overall dimensions (mm) Rim - Ø135
JCC - Diameter (mm) - 135
JCC - Height (mm) - 54
JCC - Color Finish - Chrome
