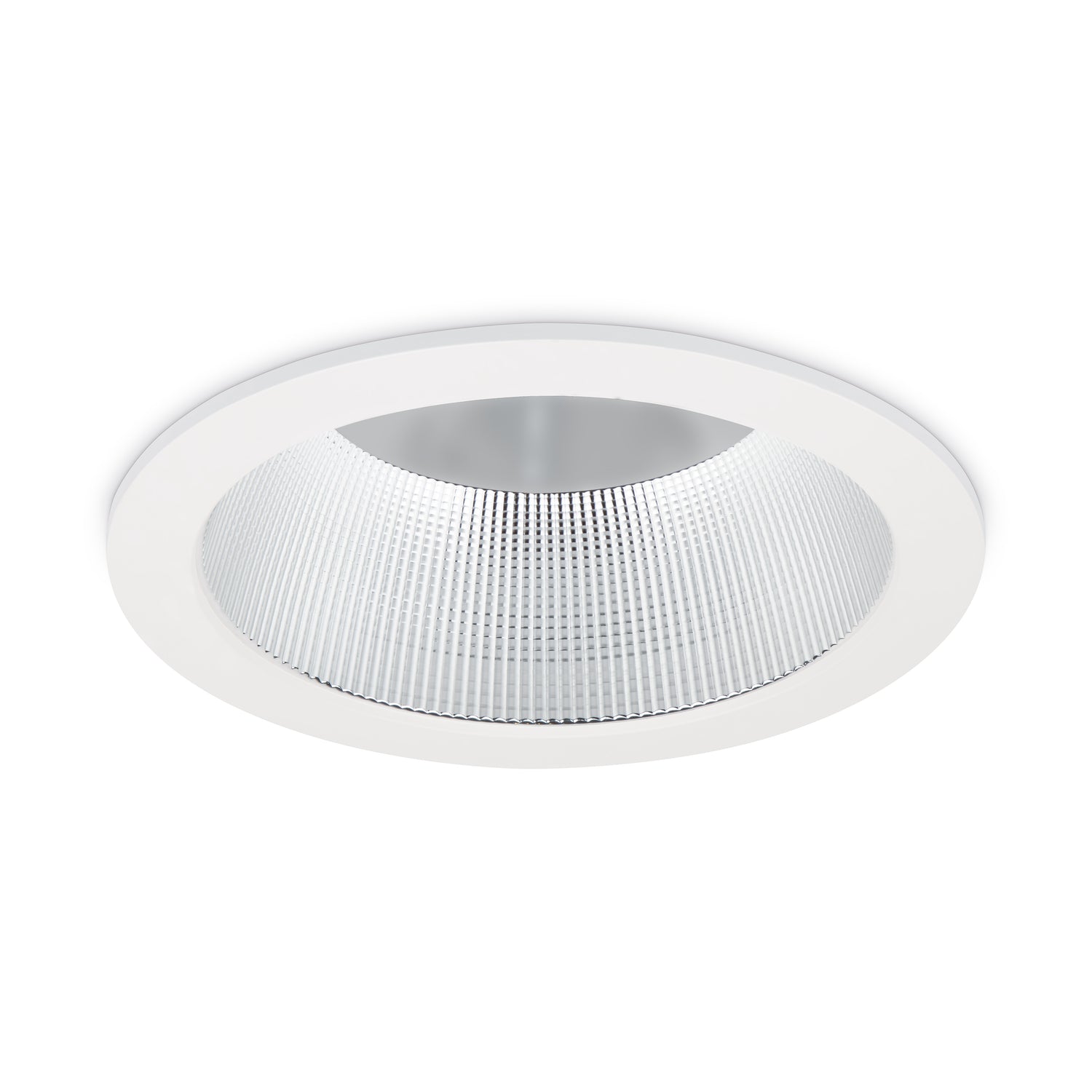

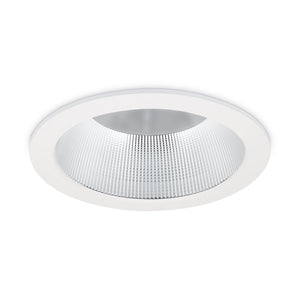

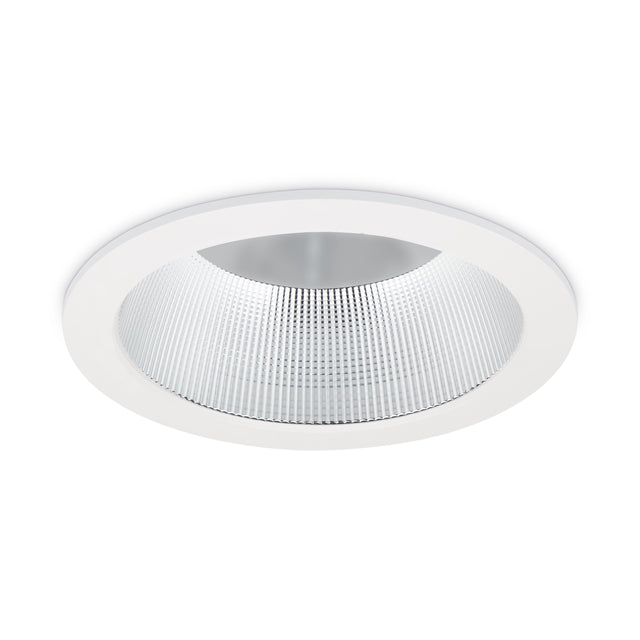

JCC JC74012 Rakula downlight 280mm 35W/50W 3000K/4000K/5700K IP65 TP(a) DALI/1-10V

(0)

£79.17 £243.60

JCC JC74012 Rakula downlight 280mm 35W/50W 3000K/4000K/5700K IP65 TP(a) DALI/1-10V is a downlight identified by product code JC74012. Three colour selectable 3000K, 4000K & 5700K Wattage selectable 35W/50W Designed for ceiling cut-outs from 240mm-255mm Loop-in/loop-out driver with permanent live and earth provision Non dim, available Manual test, self-test and DALI addressable emergency options available TP(a) rated.

It is intended for focused downward illumination in a compatible installation. For the best match, review the product details and use the SKU JC74012 when comparing specifications or replacing an existing item. This detailed listing helps you identify the correct downlight for your lighting project.

Available from Stock from First Light Direct, JCC JC74012 Rakula downlight 280mm 35W/50W 3000K/4000K/5700K IP65 TP(a) DALI/1-10V (JC74012) is offered as part of a wide UK lighting range at Best Prices. First Light Direct brings over 40 years of lighting experience, trusted-brand choice, monthly deals and straightforward delivery options to customers choosing the right downlight for homes, hospitality spaces and commercial projects. Order using product reference JC74012 and check the product page for the latest price, stock position and delivery information.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC74012
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 61
JCC - CRI: Ra - 80
JCC - Dimmable - DALI/1-10V, Retractive switch dimming
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 14-42
JCC - Class - II
JCC - Luminaire Circuit Wattage - 35
JCC - Rating(Amp) - 35
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 35A@50uS
JCC - Dimming Protocol Compatibility - DALI, 1-10V, Retractive switch dimming
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.18-0.3
JCC - Method of fix - Spring clips

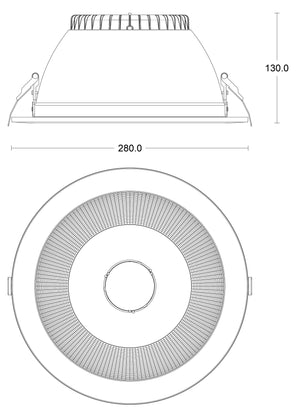

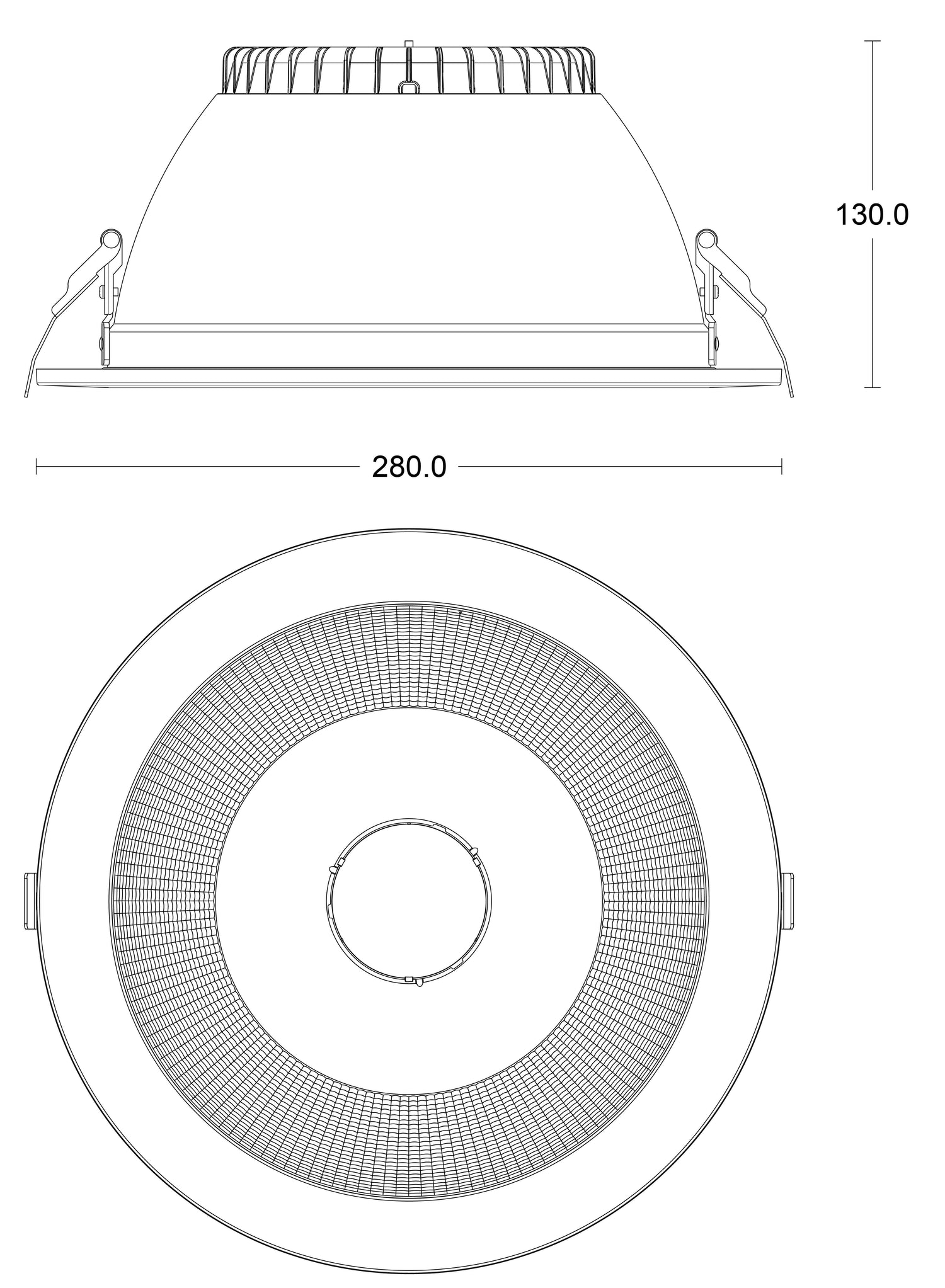

JCC - Diameter (mm) - 280
JCC - Height (mm) - 130
JCC - Color Finish - White
