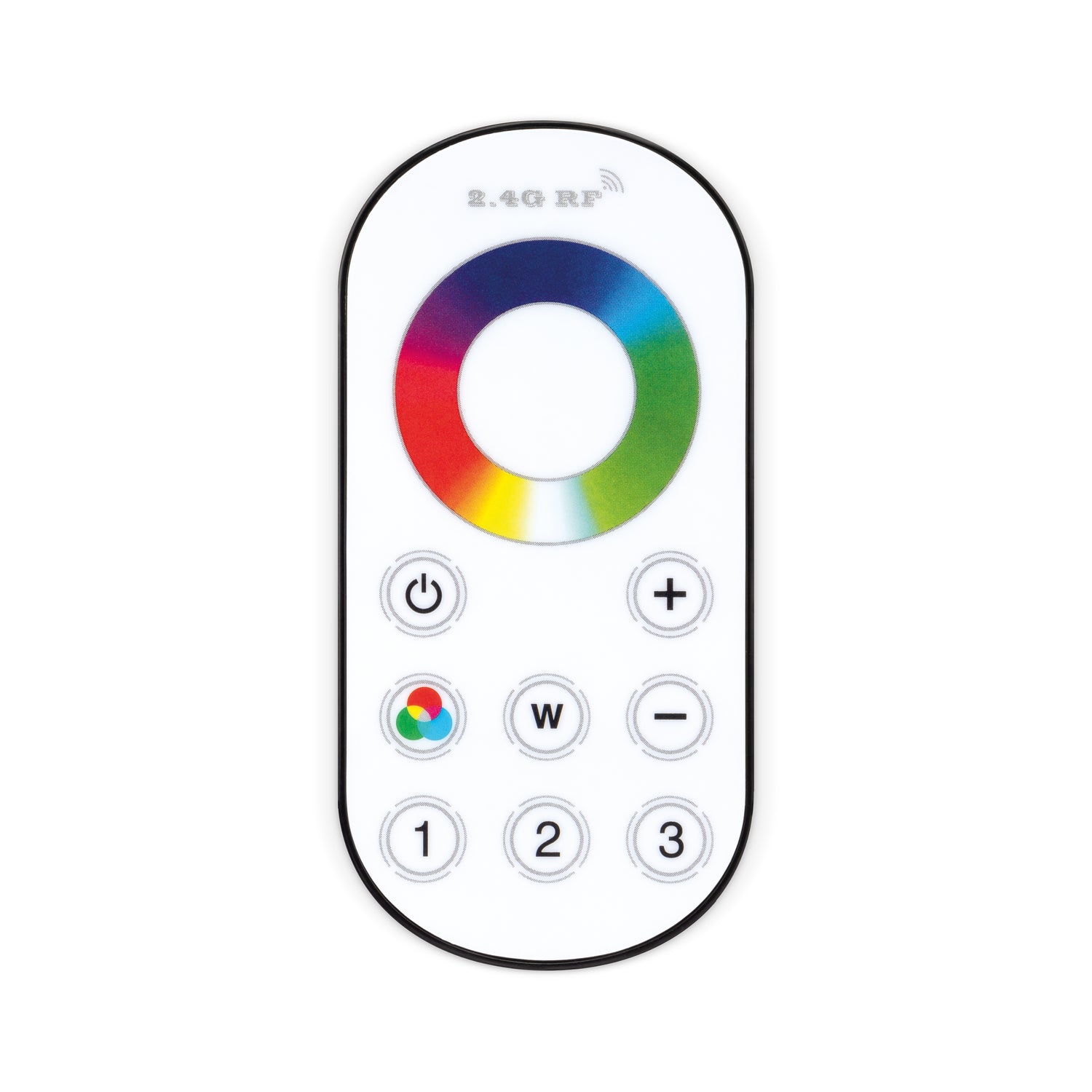

JCC Lighting JC121450 RGBW 2.4G RF LED Receiver for use with JC121451 Remote Control, Wall mounted
JCC Lighting JC121450 RGBW 2.4G RF LED Receiver for use with JC121451 Remote Control, Wall mounted is backordered and will ship as soon as it is back in stock.
Controllers for use with JCC RGBW strip
Simple, fast installation
Easy set up and pairing with Wall Control
2.4GHz RF, does not require line of site to operate using JC121373 Wall Control
350W max output per controller
12VDC or 24VDC, requires constant Voltage non dim driver (to match tape Wattage connected) *JCC RGBW Tape is 24VDC
Run up to 10m 17.6W RGBW tape per controller *based on 180W driver-must not exceed the maximum Wattage of the driver
Run up to 25m 7.2W RGBW tape per controller *based on 180W driver-must not exceed the maximum Wattage of the driver
Connect up to 10 controllers (100m 17.6W RGBW and 250m 7.2W RGBW) per zone *based on 180W driver-must not exceed the maximum Wattage of the driver
Manufacturers Part Number - JC121450
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544119255
JCC - Class - III
JCC - Luminaire Circuit Wattage - 350
JCC - Rating(Amp) - 350
JCC - Primary Running Current(Amp) - 16
JCC - Secondary running current(mA) - 4000 per channel
JCC - Voltage Rating - 24VDC
JCC - Warranty - 5 Years see JCC Website
JCC - IP Rating - IP20

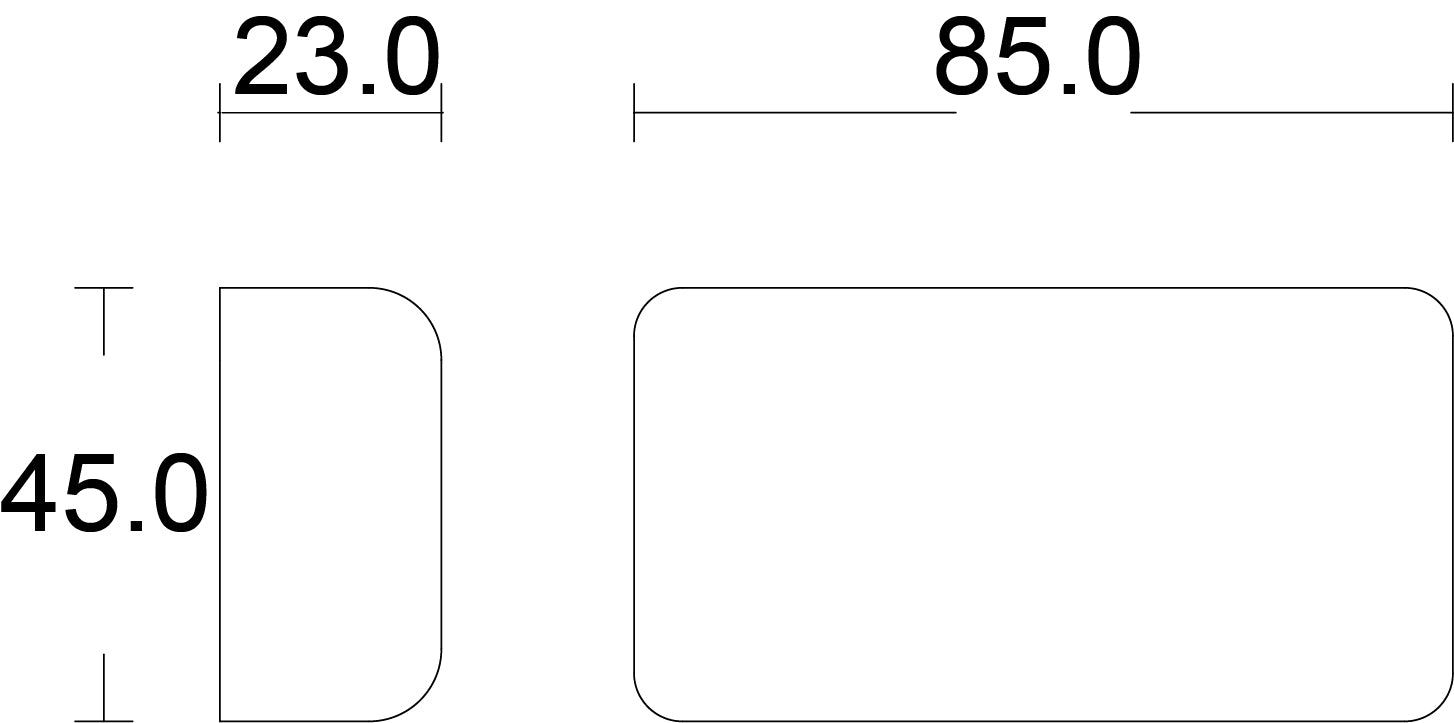

JCC - Overall dimensions (mm) Rim - 85 x 45 x 23
JCC - Depth (mm) - 23
JCC - Height (mm) - 45
JCC - Width (mm) - 85
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Undershelf and Cabinet/JC121450_JC121451 Instruction sheet.pdf
