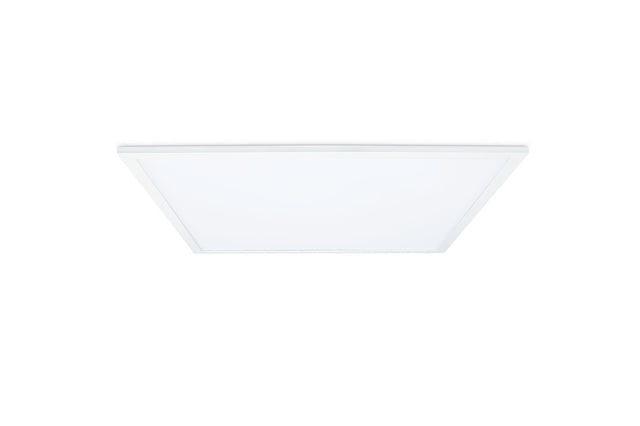

JCC Lighting JC080100 Skytile 600x600mm 30W IP44 3000K 3000lm Tp(a)

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

SKU: JC080100

Barcode: 5052544116544

JCC Lighting

JCC Lighting JC080100 Skytile 600x600mm 30W IP44 3000K 3000lm Tp(a) UGR <19

(3)

£39.08 £391.14

JCC Lighting JC080100 Skytile 600x600mm 30W IP44 3000K 3000lm Tp(a) UGR <19 is a lighting driver identified by product code JC080100. Meets TP(a) requirements, suitable for all applications UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace Ultra efficient 100LpcW DALI/1-10V and DSI Dimming versions available IP44 protection against dust and moisture Comes with non-dimmable flicker free driver as standard Suspension kits and surface mount boxes available Suitable for use with JCEM002 and JCEM002ST emergency remote packs This product contains a light source of energy efficiency class F.

Confirm output, wattage, current, voltage, dimming protocol and physical dimensions before replacement. For the best match, review the product details and use the SKU JC080100 when comparing specifications or replacing an existing item. This detailed listing helps you identify the correct lighting driver for your lighting project.

Available from Stock from First Light Direct, JCC Lighting JC080100 Skytile 600x600mm 30W IP44 3000K 3000lm Tp(a) UGR <19 (JC080100) is offered as part of a wide UK lighting range at Best Prices. First Light Direct brings over 40 years of lighting experience, trusted-brand choice, monthly deals and straightforward delivery options to customers choosing the right lighting driver for homes, hospitality spaces and commercial projects. Order using product reference JC080100 and check the product page for the latest price, stock position and delivery information.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC080100
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544116544
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 90
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class F
JCC - Operating Temperature Range °C - -25 to +45
JCC - Dimmable - No
JCC - Power Factor Correction - 0.9
JCC - Total Harmonic Distortion (THD)% - 20
JCC - Output Voltage Max/Range (VDC) - 27-45
JCC - Class - II
JCC - Luminaire Circuit Wattage - 30
JCC - Rating(Amp) - 30
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - <15
JCC - Primary Running Current(Amp) - 0.2
JCC - Secondary running current(mA) - 700
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (inc 2 year on site)(See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 1
JCC - IP Rating - IP44
JCC - Method of fix - sits in 15mm and 25mm ceiling grid system

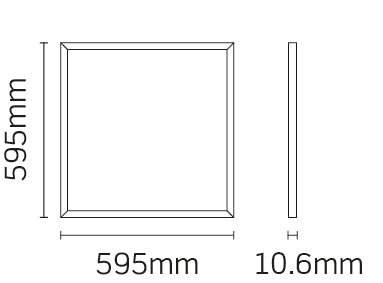

JCC - Height (mm) - 9.8
JCC - Length (mm) - 595
JCC - Color Finish - White
