JCC JC180122/1-10V ToughLED™ Pro 5ft 63W 3000K/4000K/5700K IP66 FR 1-1

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

SKU: JC180122/1-10V

Barcode: 5052544131271

JCC Lighting

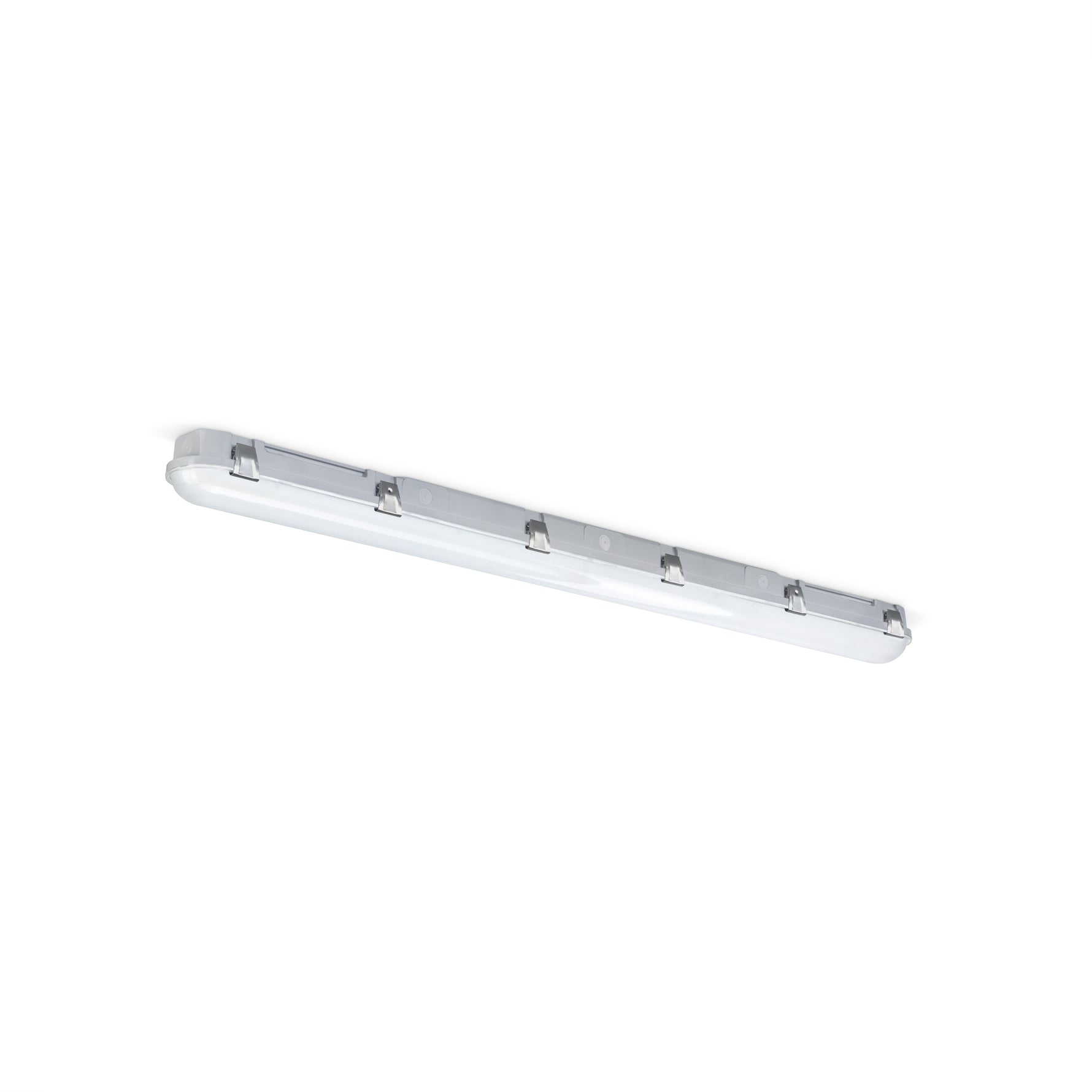

JCC JC180122/1-10V ToughLED™ Pro 5ft 63W 3000K/4000K/5700K IP66 FR 1-10V

(0)

£85.25 £260.64

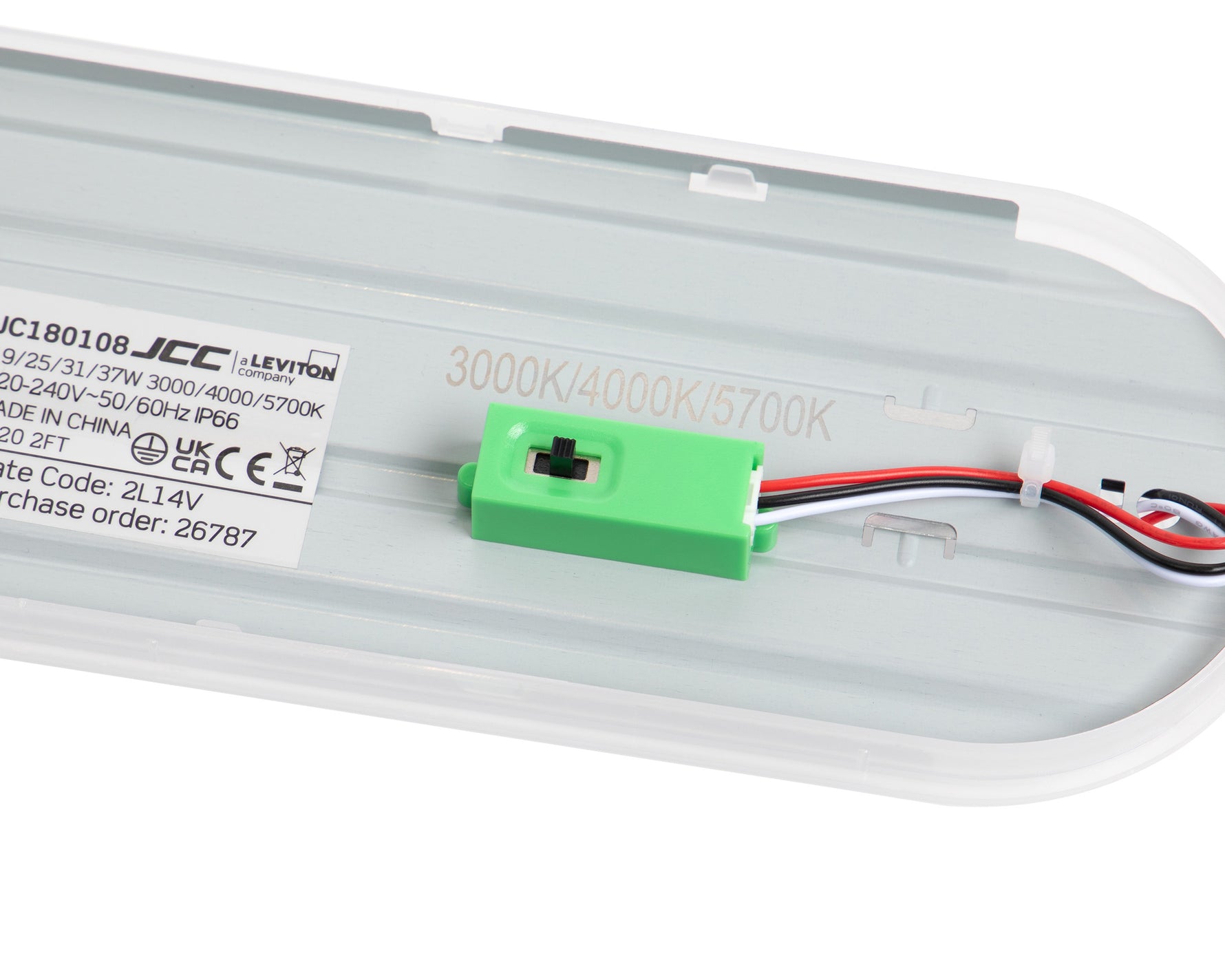

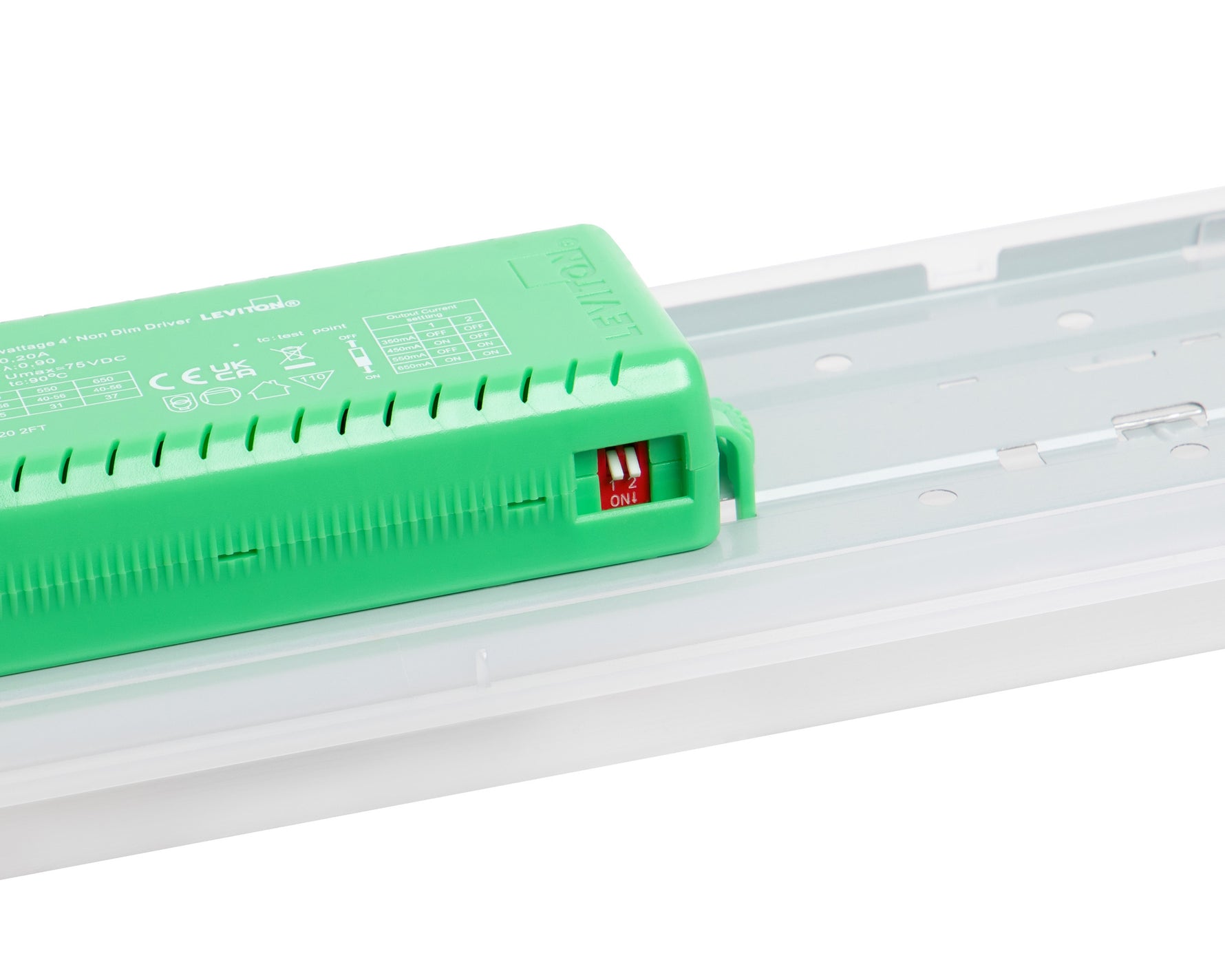

3 CCT selectable

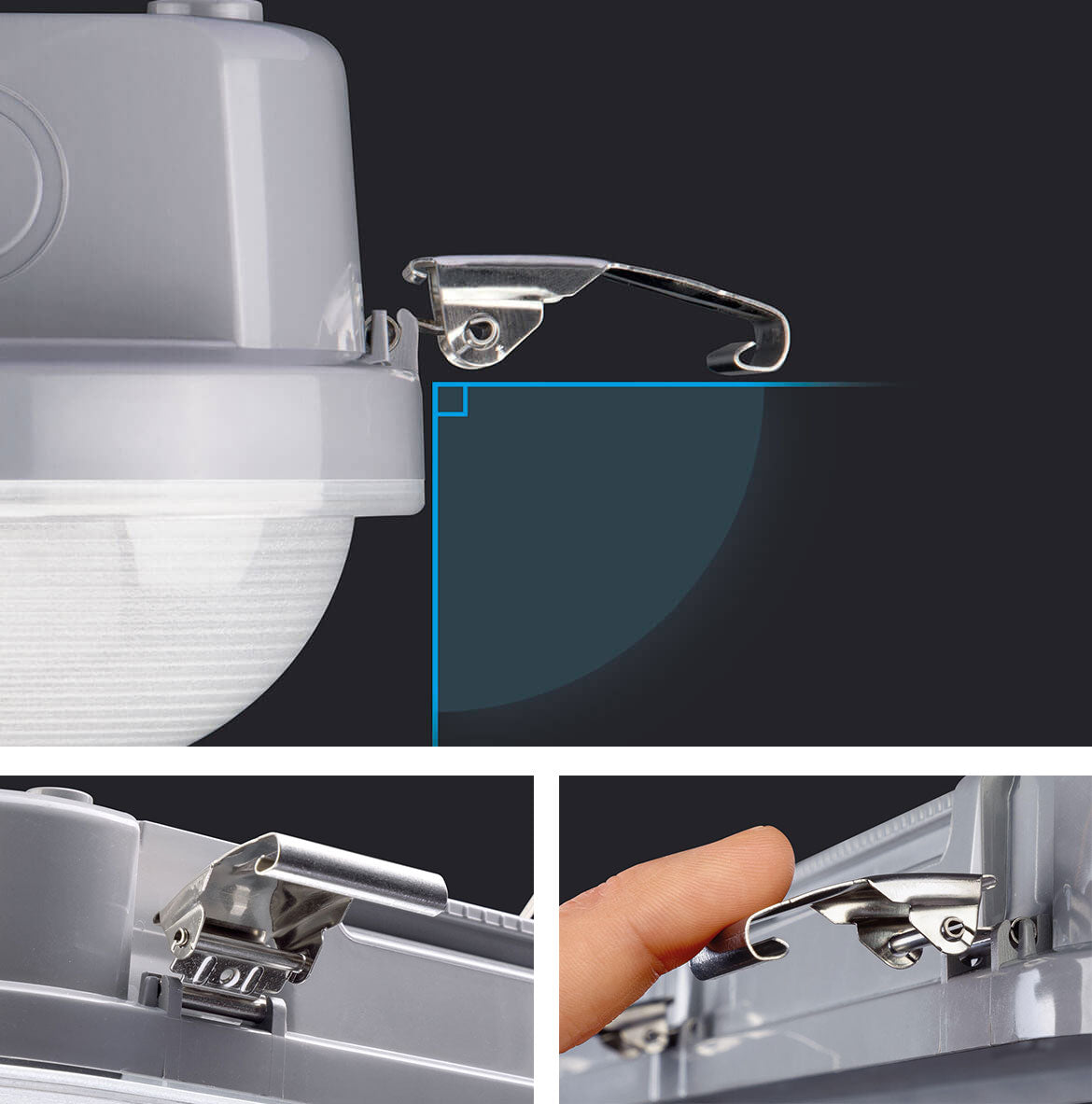

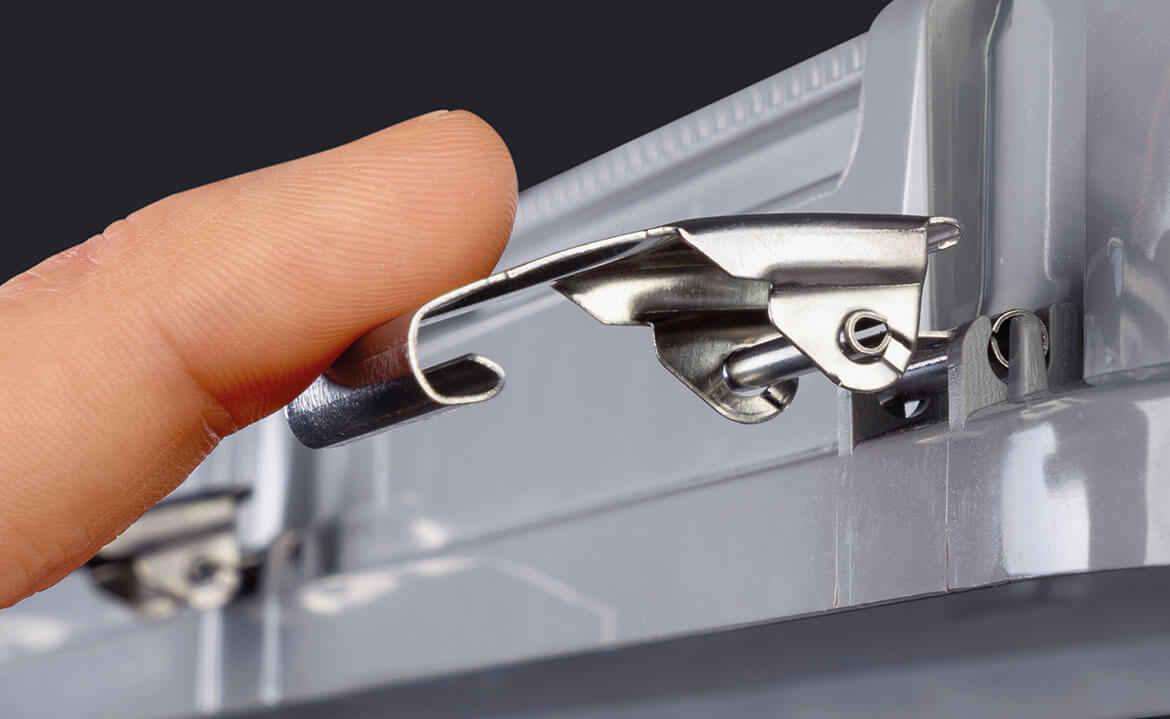

90º Lock-in-place side clip design, keeps clips clear during installation

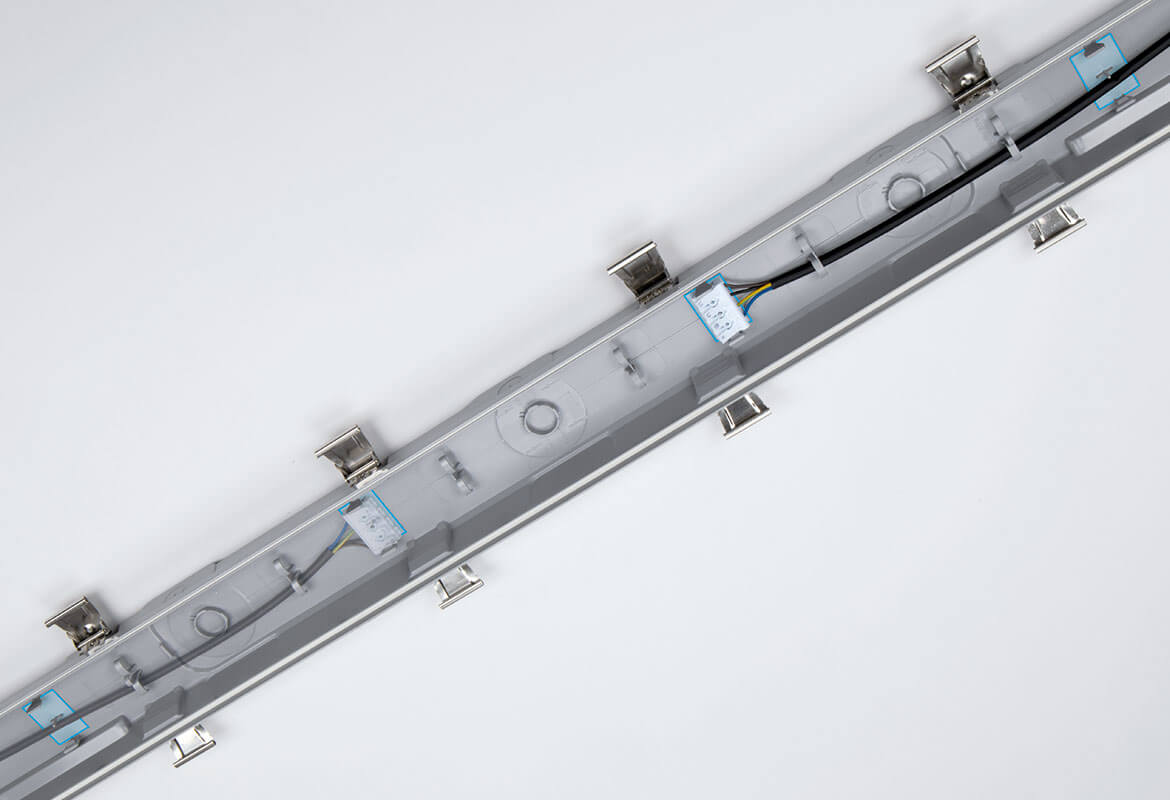

Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

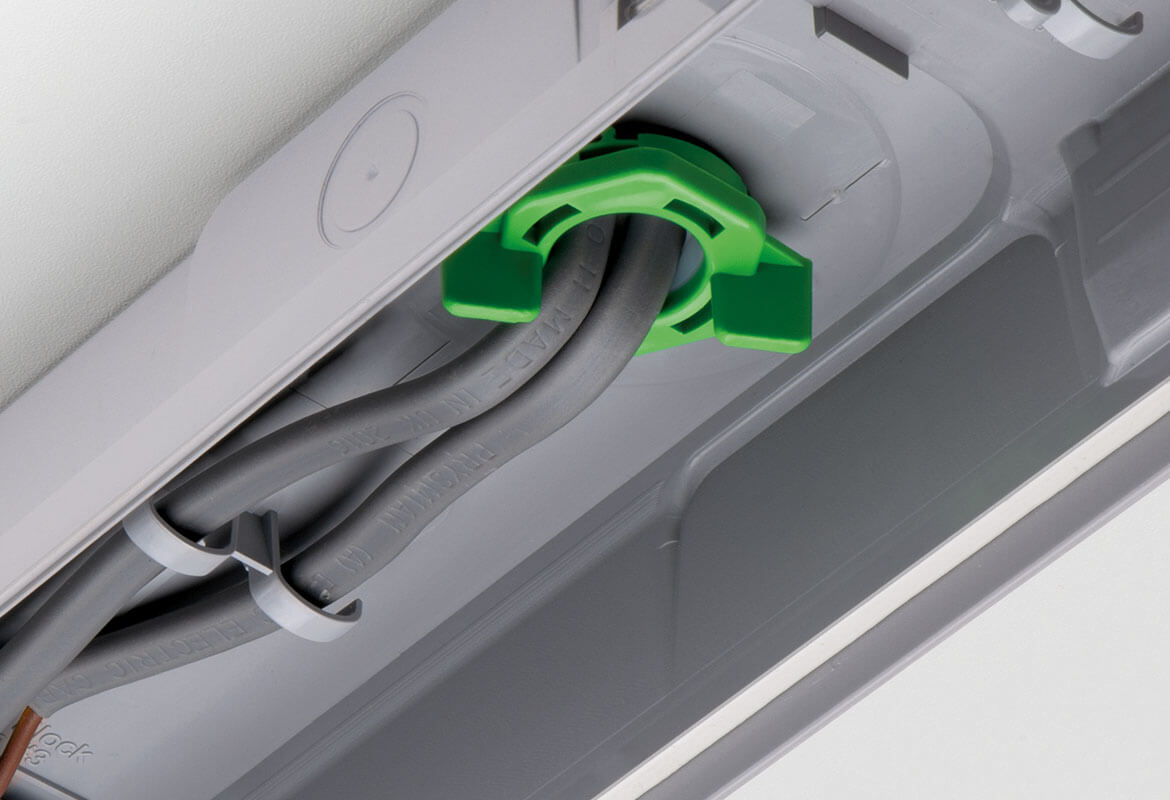

Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash when closing the fixture

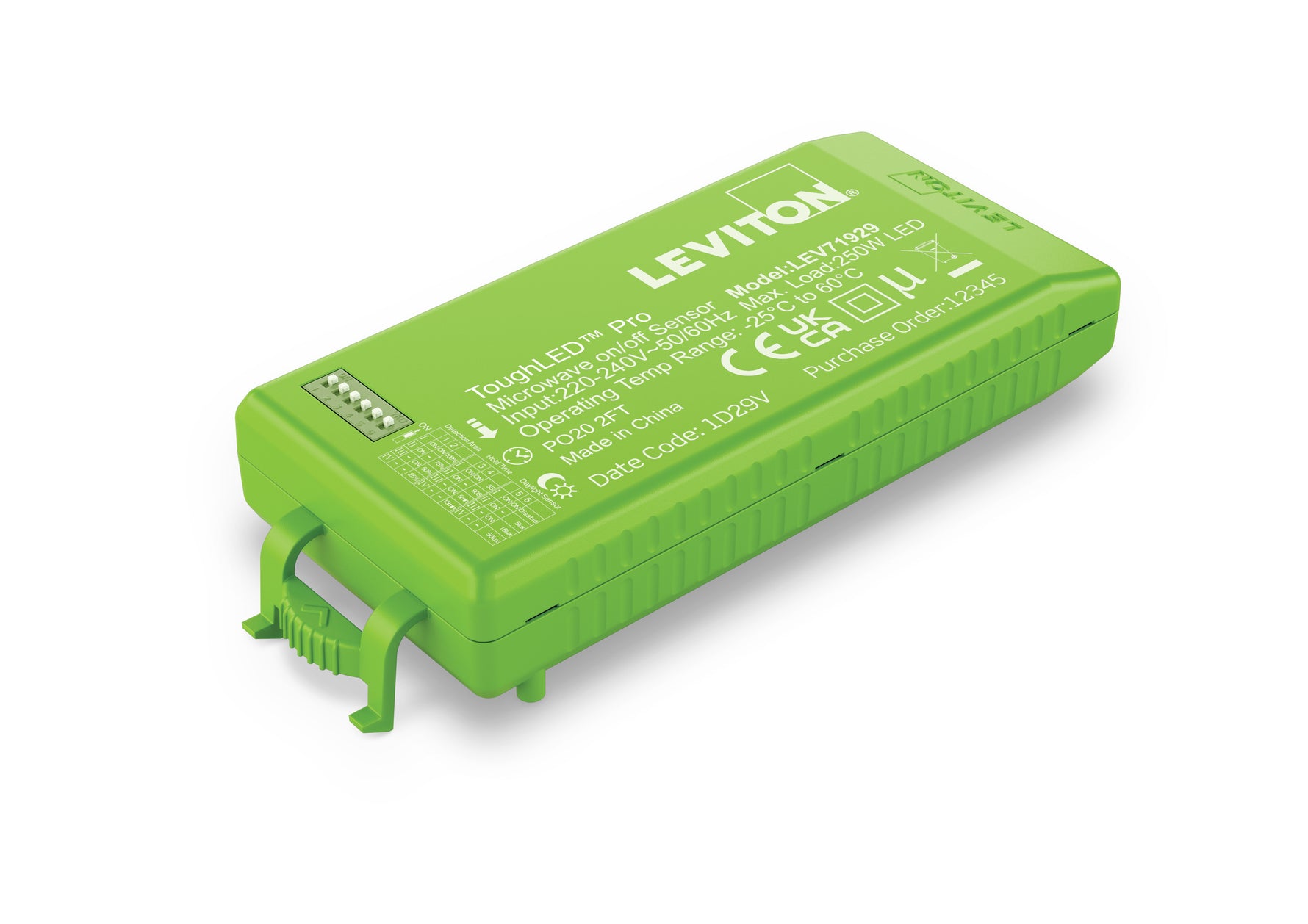

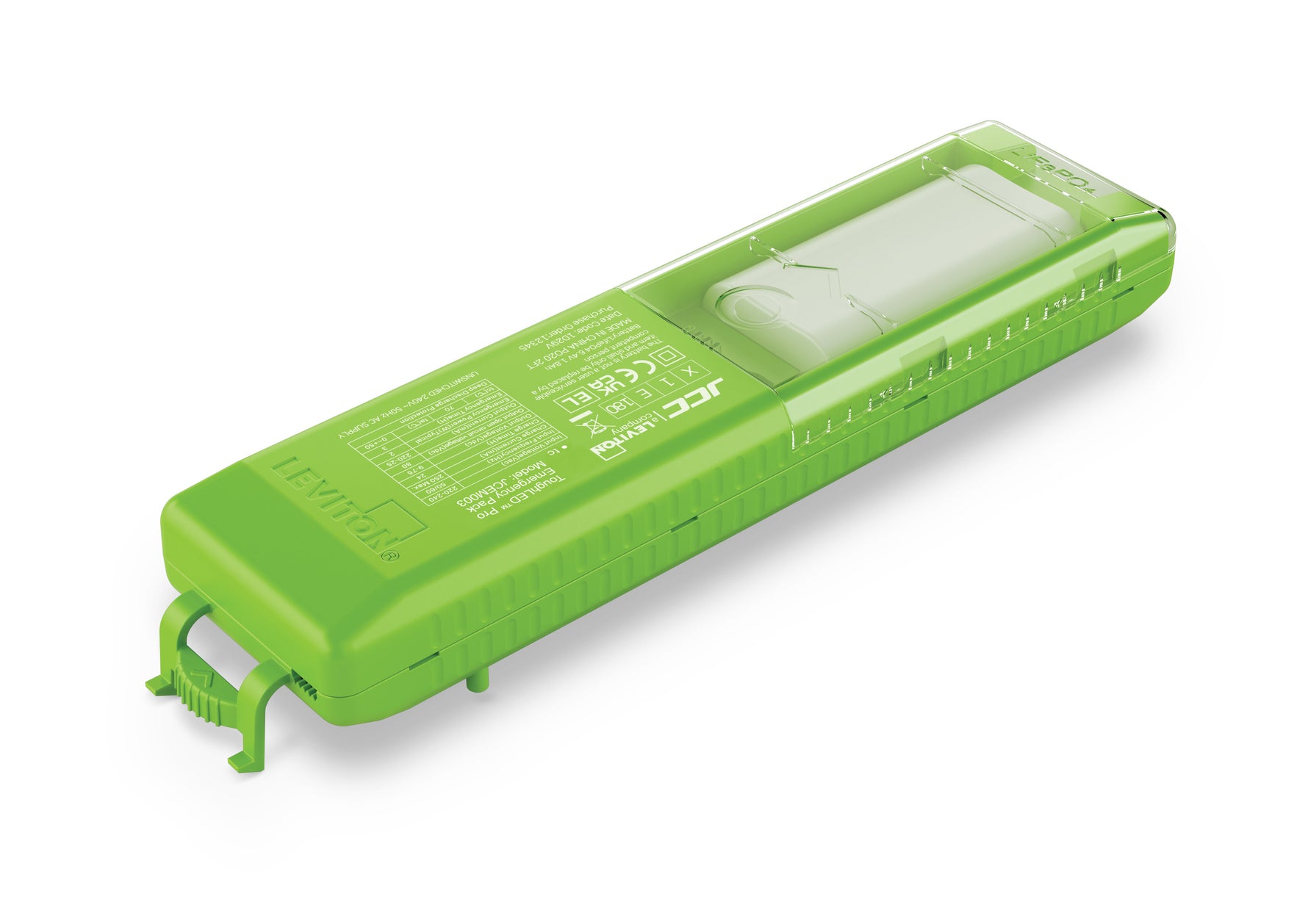

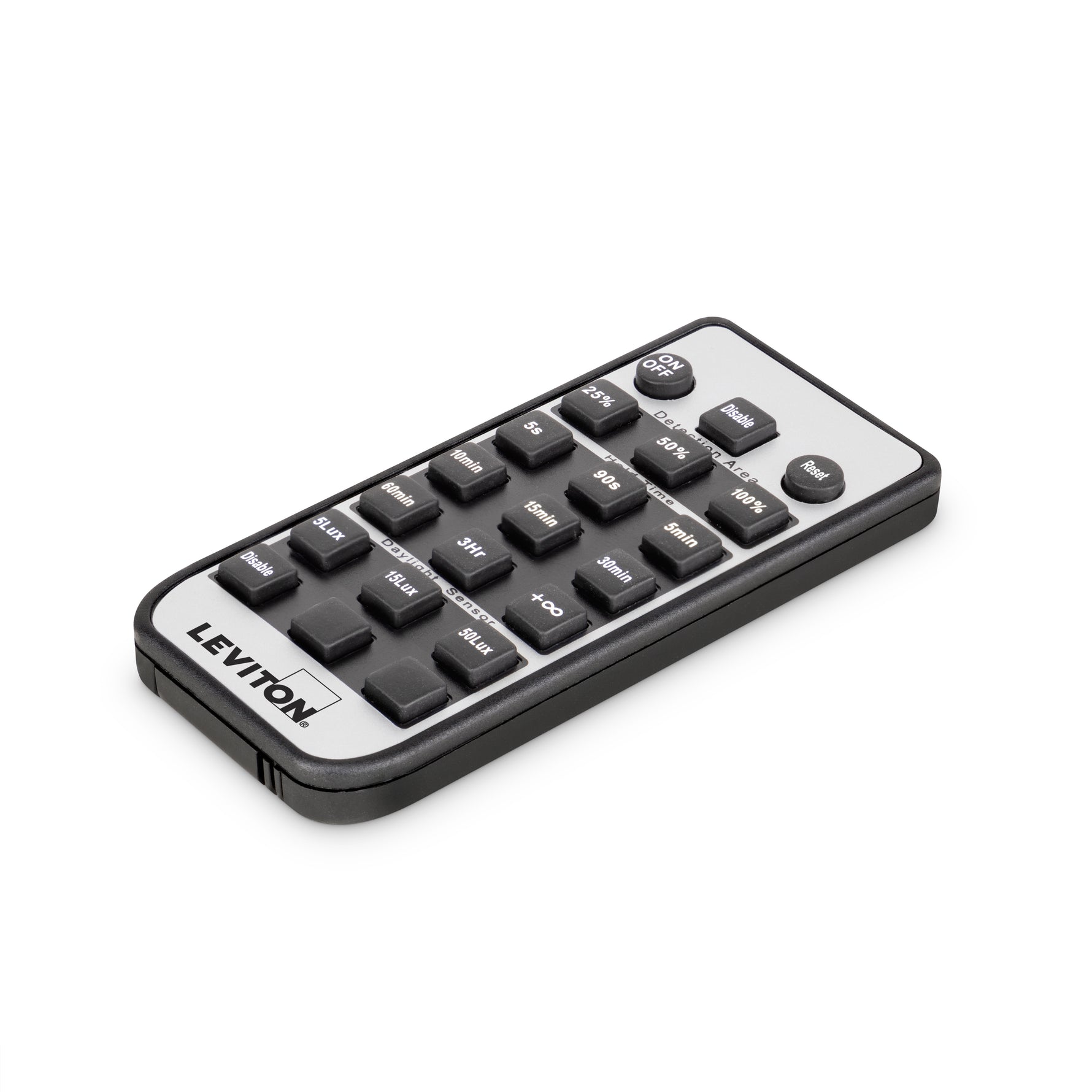

Plug & play emergency & microwave sensor modules with optional remote control

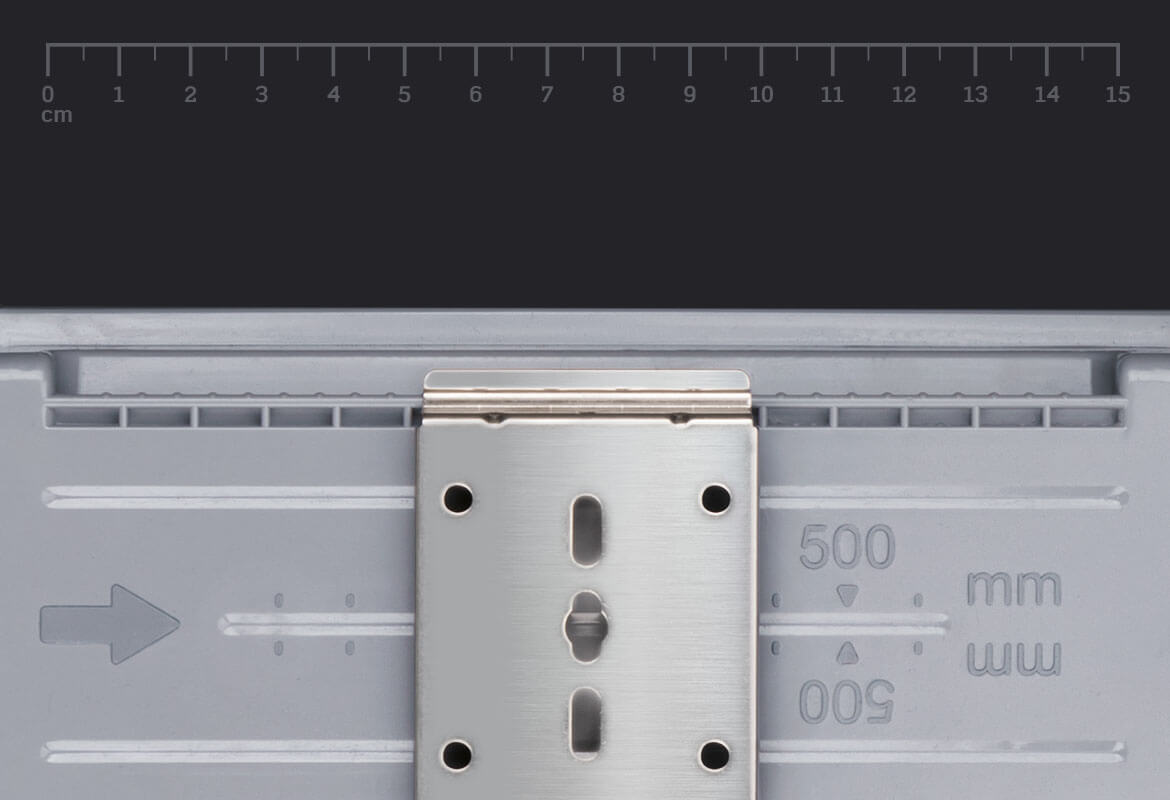

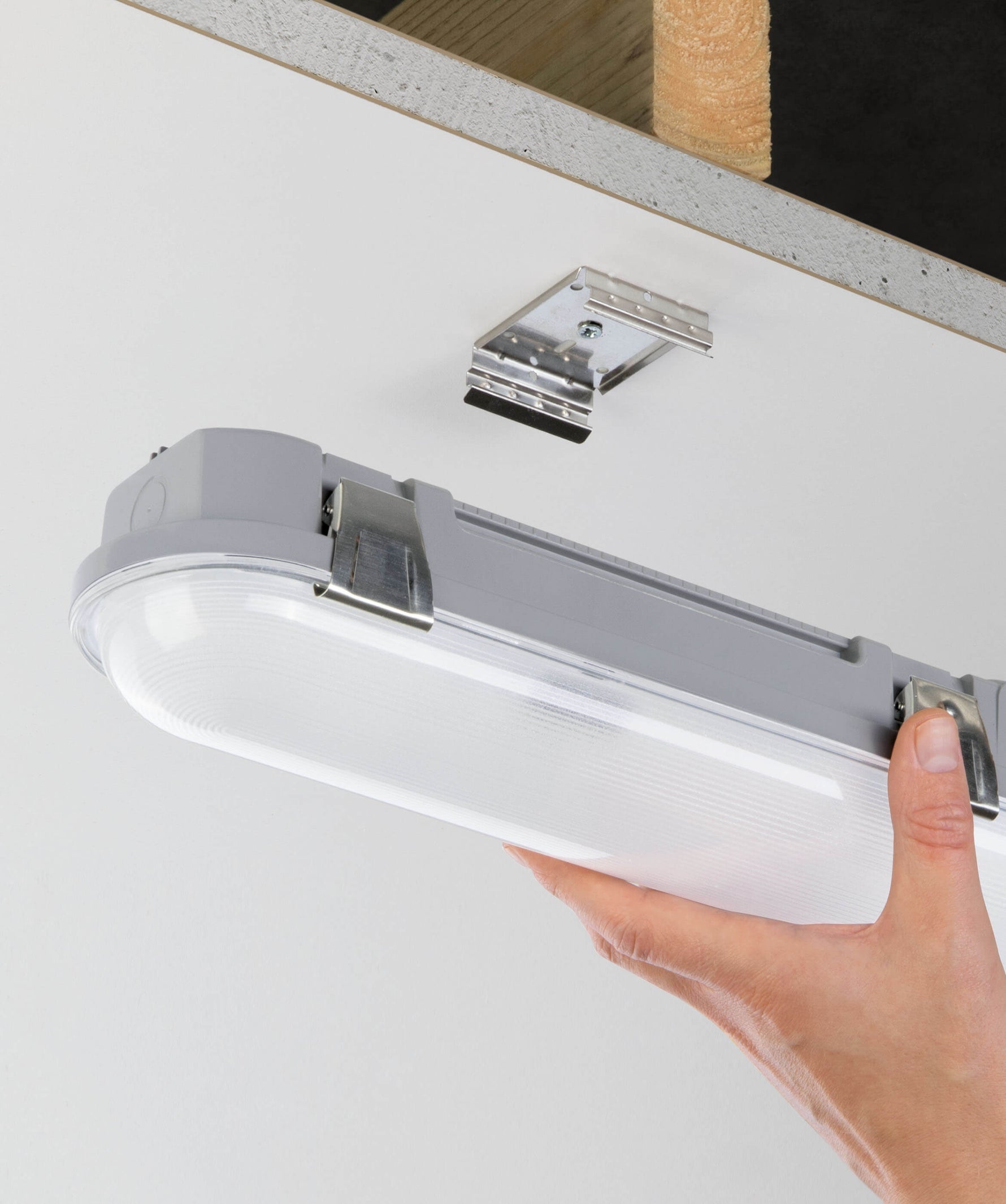

Ultra-wide surface mount bracket rail to enable flexibility to locate joists

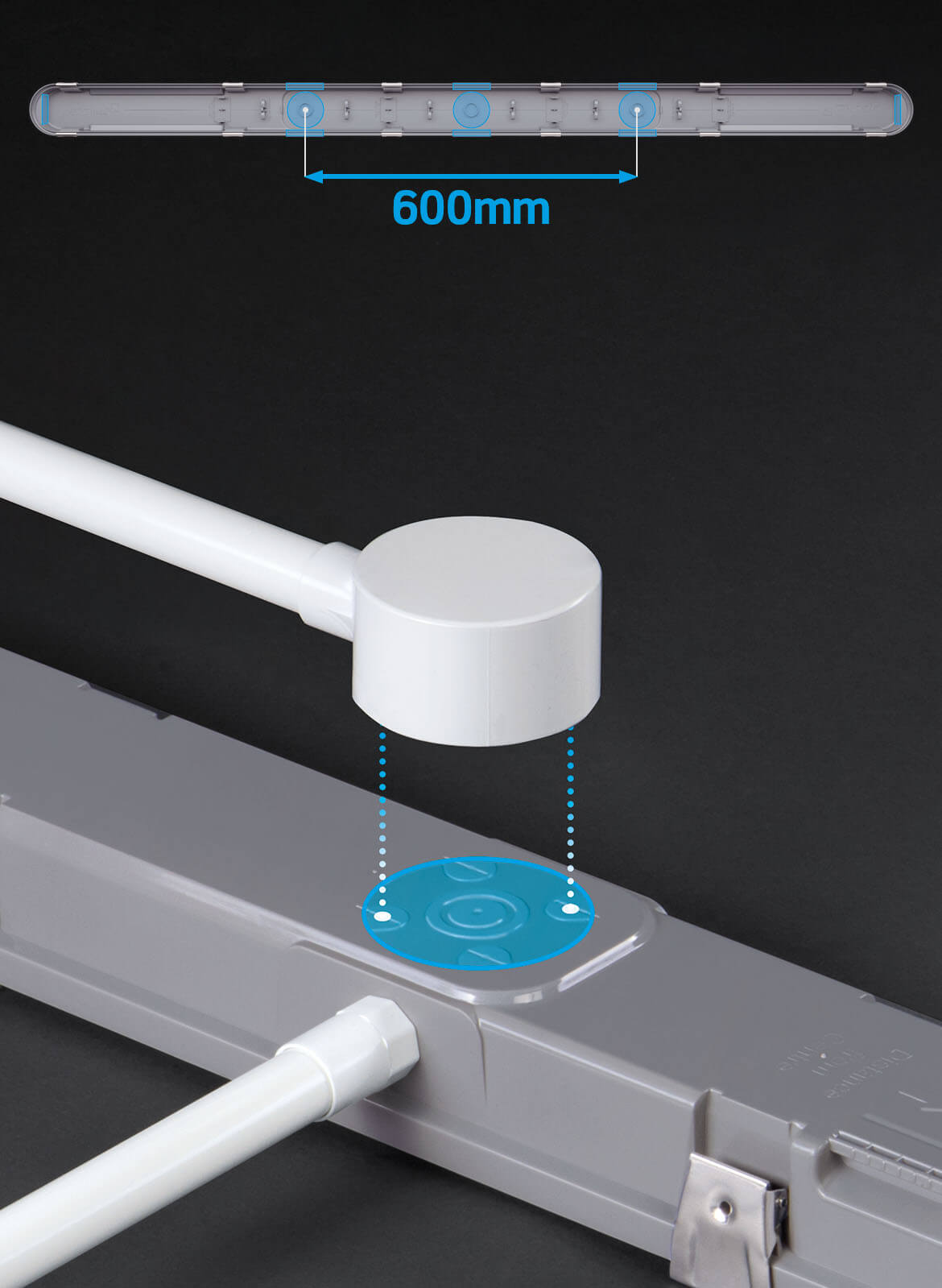

Wide body for retrofitting BESA conduit box mounting, with rear, side and end conduit entry points

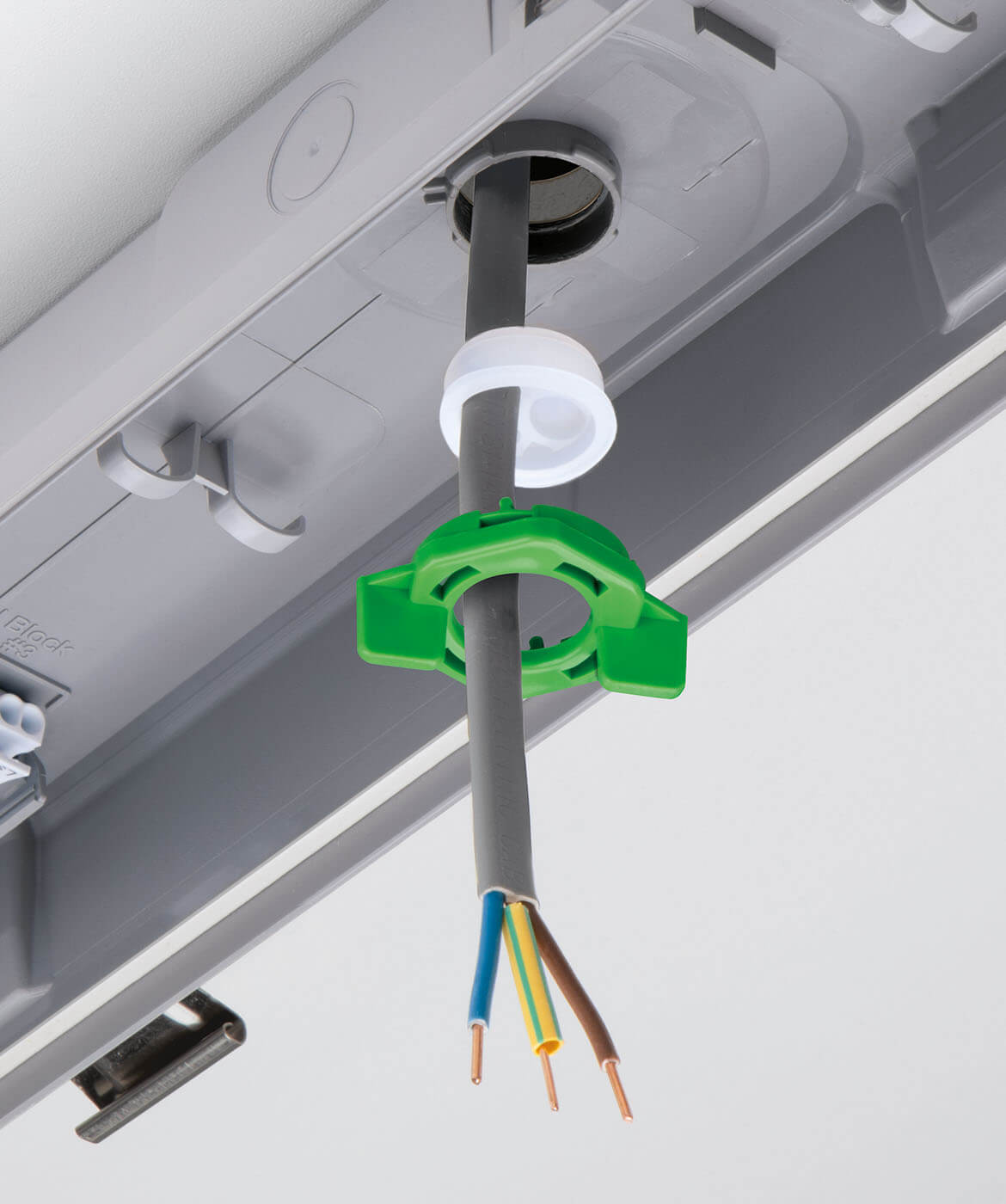

Unique rear IP66 gasket, sealing cable entry from within the fixture for surface mounting applications
4ft, 5ft, 6ft single and twin light outputs in both opal and prismatic diffuser options
Microwave step dimmable, DALI and 1-10V dimmable options available
High efficiency up to 165 lpcW, IP66, IK10
5-year extended warranty on fixture and batteries

Manufacturer - JCC Lighting
Manufacturers Part Number - JC180122/1-10V
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 120
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class C
JCC - Dimmable - 1-10V
JCC - Power Factor Correction - 0.95
JCC - Output Voltage Max/Range (VDC) - 21155
JCC - Class - I
JCC - Luminaire Circuit Wattage - 63
JCC - Rating(Amp) - 63
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 16
JCC - Suitable For Zones - Zone 1
JCC - IK Rating - IK10
JCC - IP Rating - IP66
JCC - Product Aperture Size - 0.4

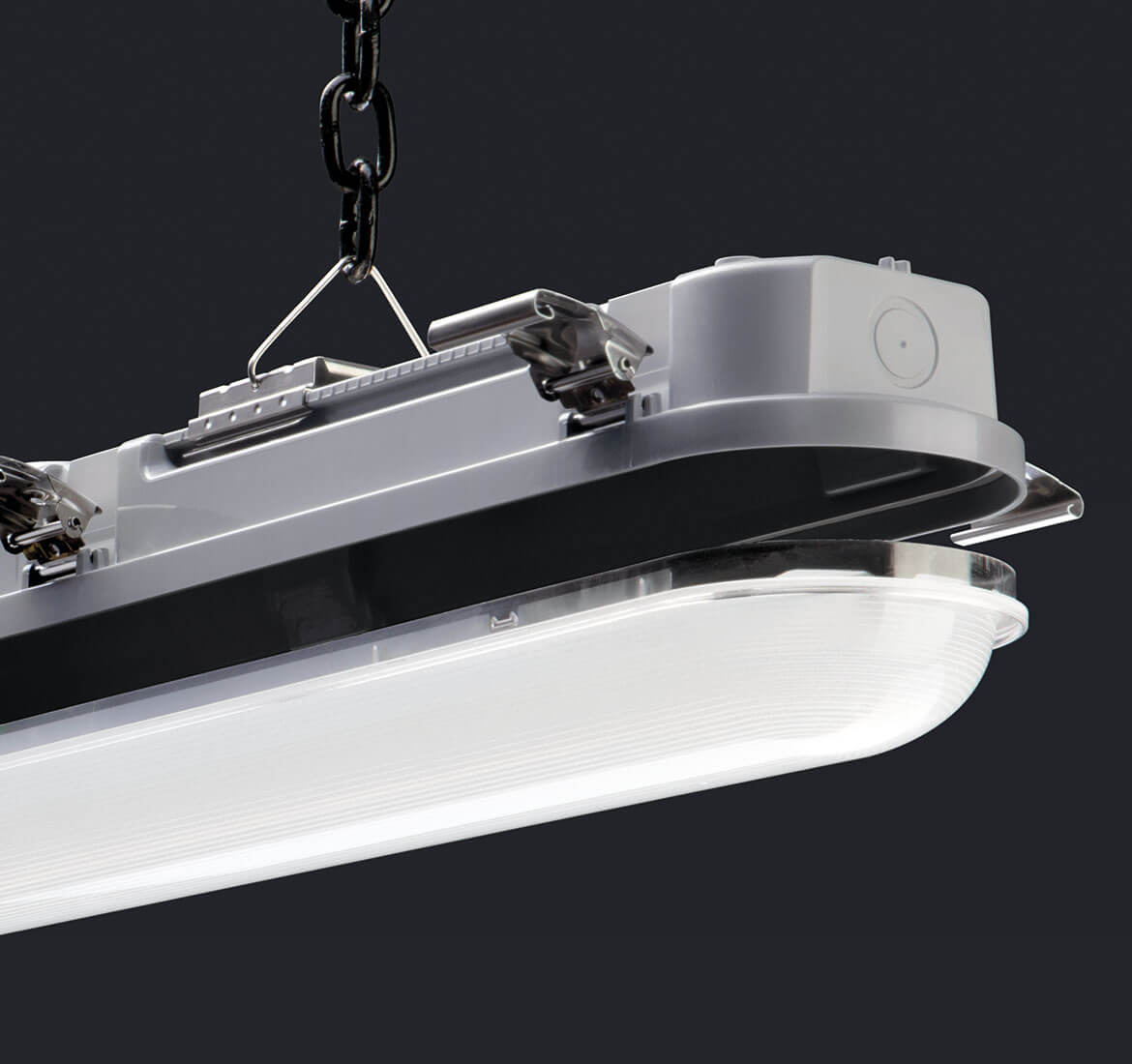

JCC - Method of fix - Mounting Brackets, Suspension chains or conduit mounting

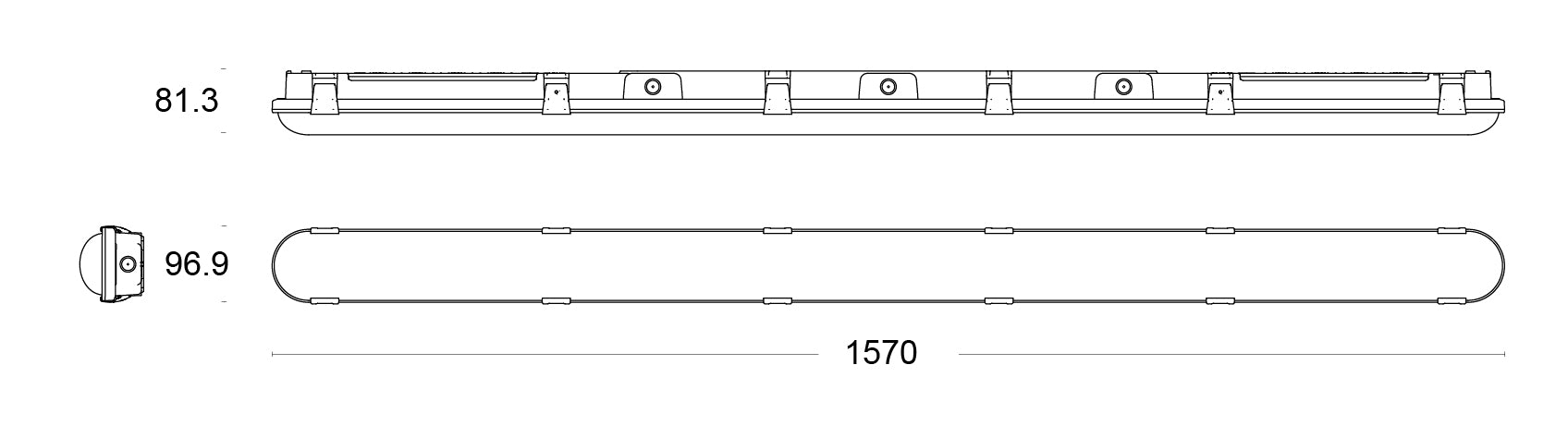

JCC - Height (mm) - 81.3
JCC - Length (mm) - 1570
JCC - Color Finish - Grey

Made With Care

Great Value

Elegant Design

Quality Materials

Low in stock

Built To Order Normally 3 Working Days
