JCC Lighting | SKU:
JC73030
JCC JC73030 Parluma downlight 106mm 6W/9W 3K/4K/57K IP65 Black bezel Silver ref Non-dim
Sold out
67% off
New arrival
£19.19
£59.04
Unit price
Unavailable
VAT included, shipping and discounts calculated at checkout.
JCC JC73030 Parluma downlight 106mm 6W/9W 3K/4K/57K IP65 Black bezel Silver ref Non-dim is backordered and will ship as soon as it is back in stock.
Description
Description

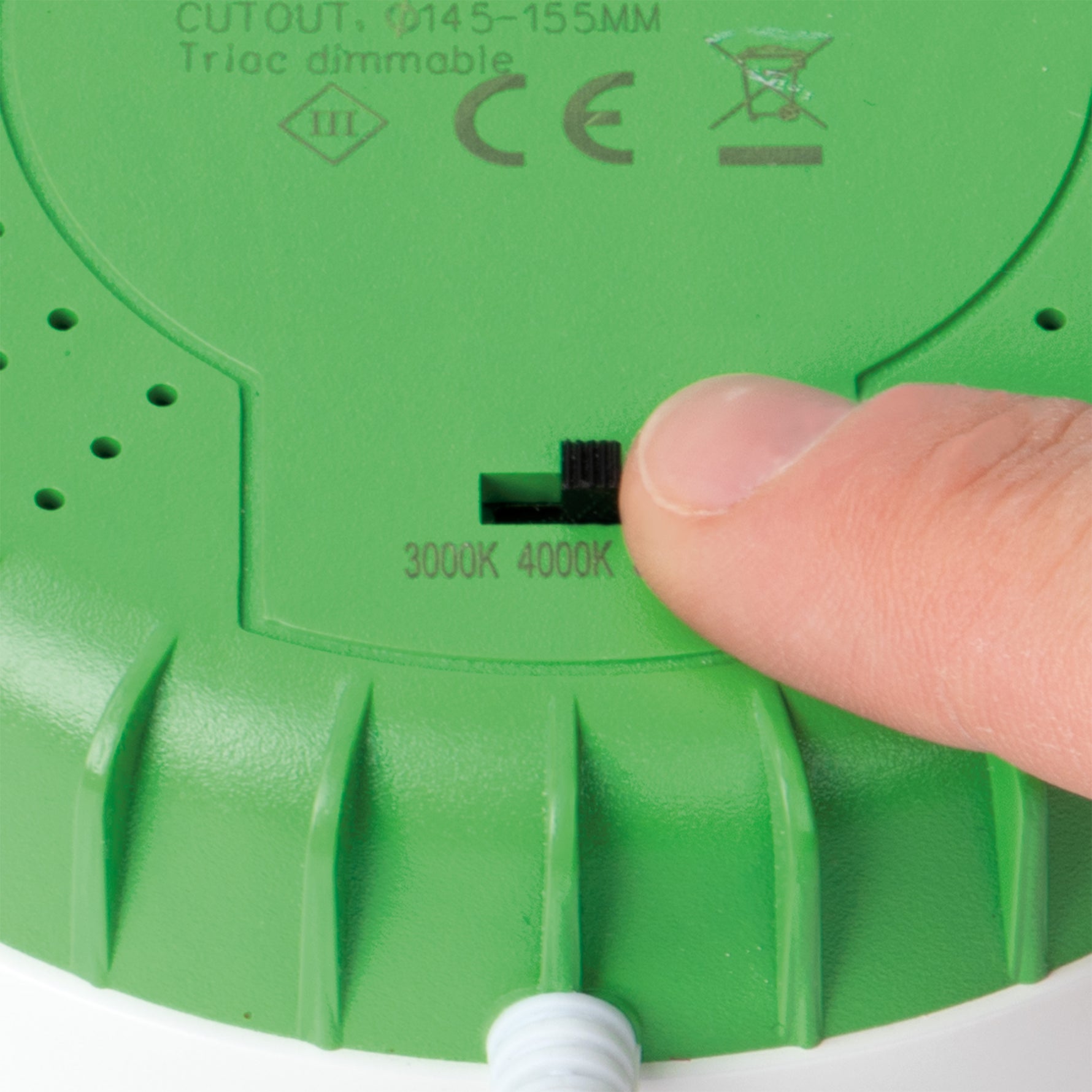

Three colour selectable 3000K, 4000K & 5700K
Wattage selectable 6W/9W

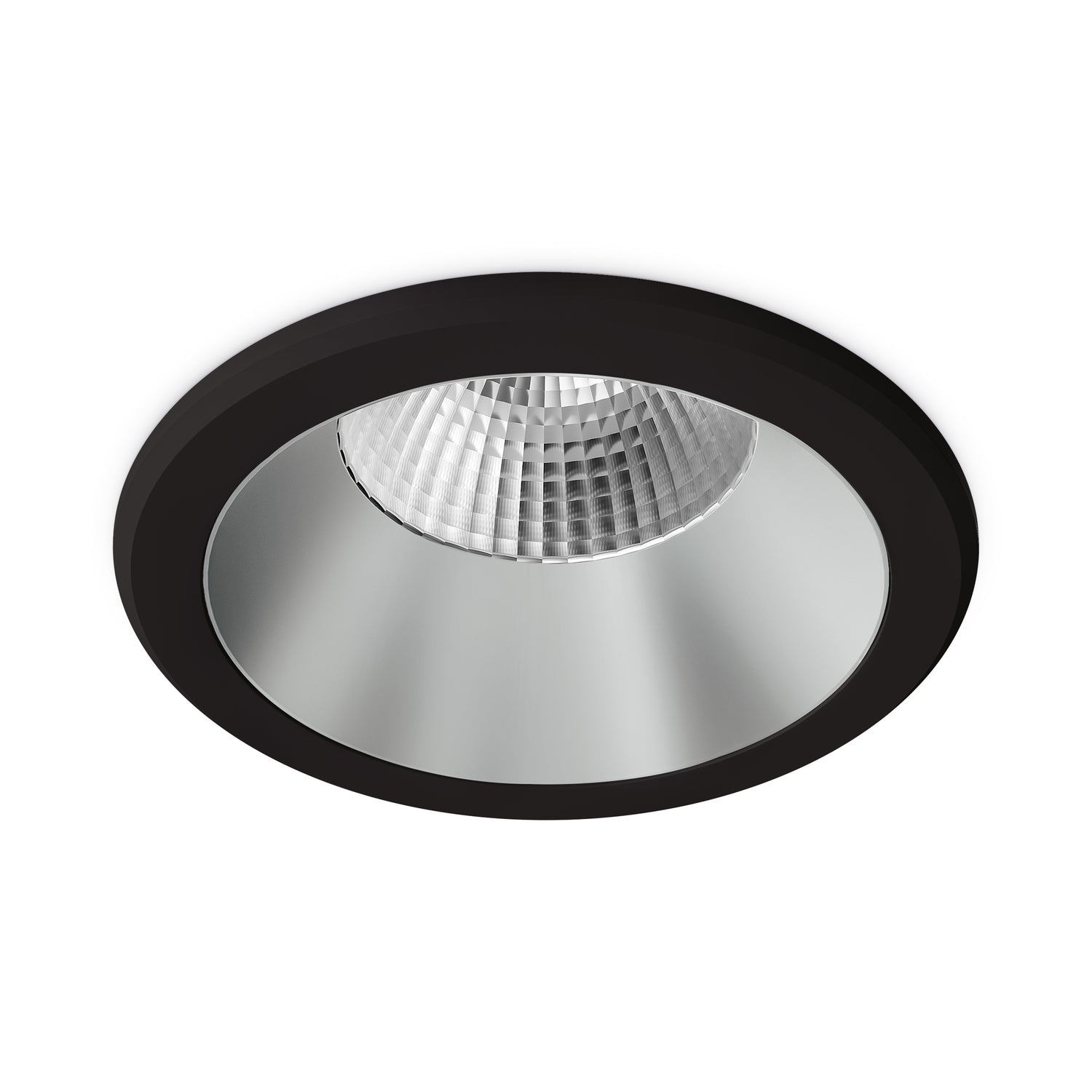

Black bezel with silver reflector finish
Designed for ceiling cut-outs from 90mm-98mm

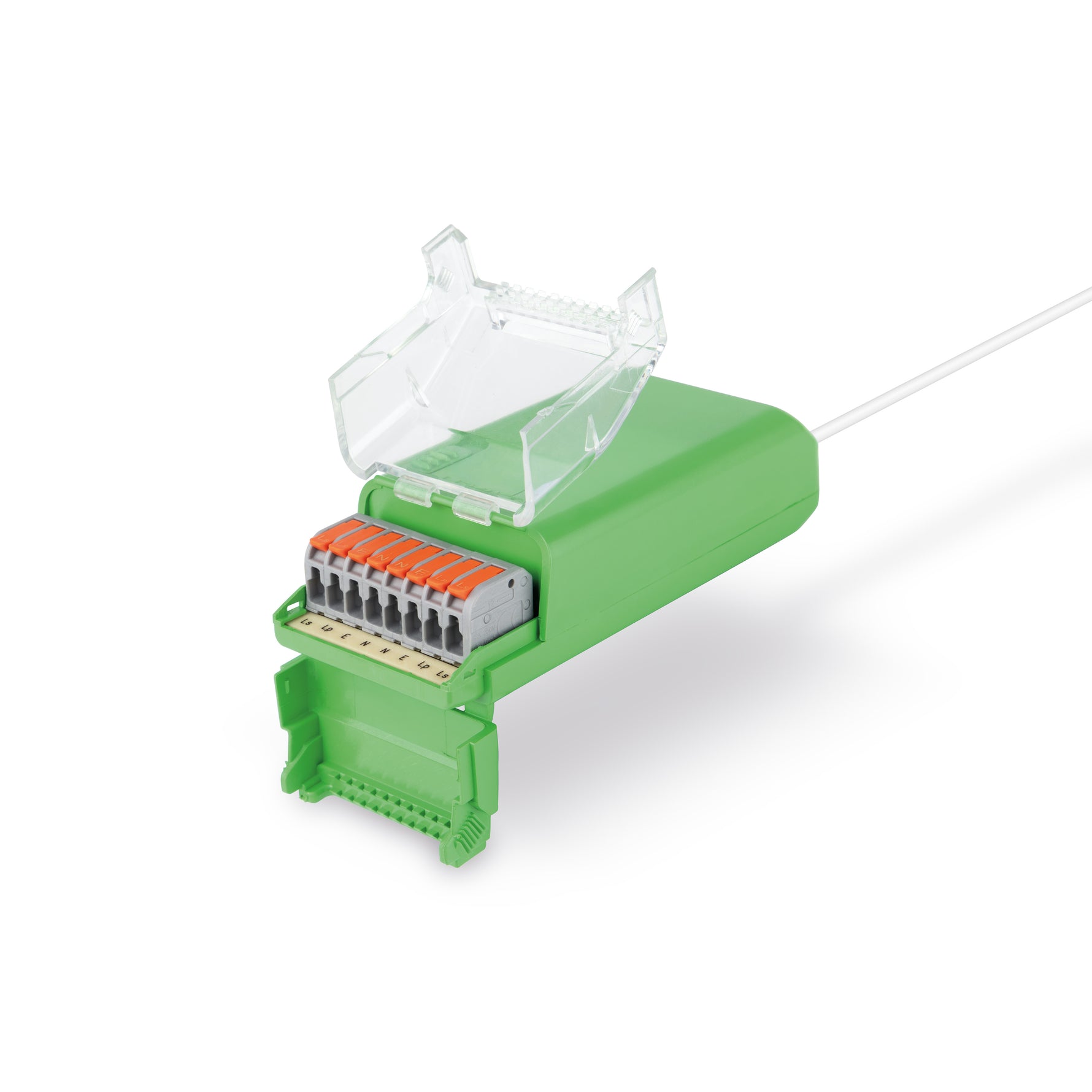

Loop-in/loop-out driver with permanent live and earth provision
Triac, DALI/1-10V/Switch Dim available
Manual test, self-test and DALI addressable emergency options available
TP(a) rated
Manufacturer - JCC Lighting
Manufacturers Part Number - JC73030
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - PA6 Nylon
JCC -Beam Angle ° - 40
JCC - CRI: Ra - 80
JCC - Energy Rating - D
JCC - Dimmable - No
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 60-75
JCC - Class - II
JCC - Luminaire Circuit Wattage - 6
JCC - Rating(Amp) - 6
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 9.1A@153uS
JCC - Dimming Protocol Compatibility - Non-dimmable
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.09

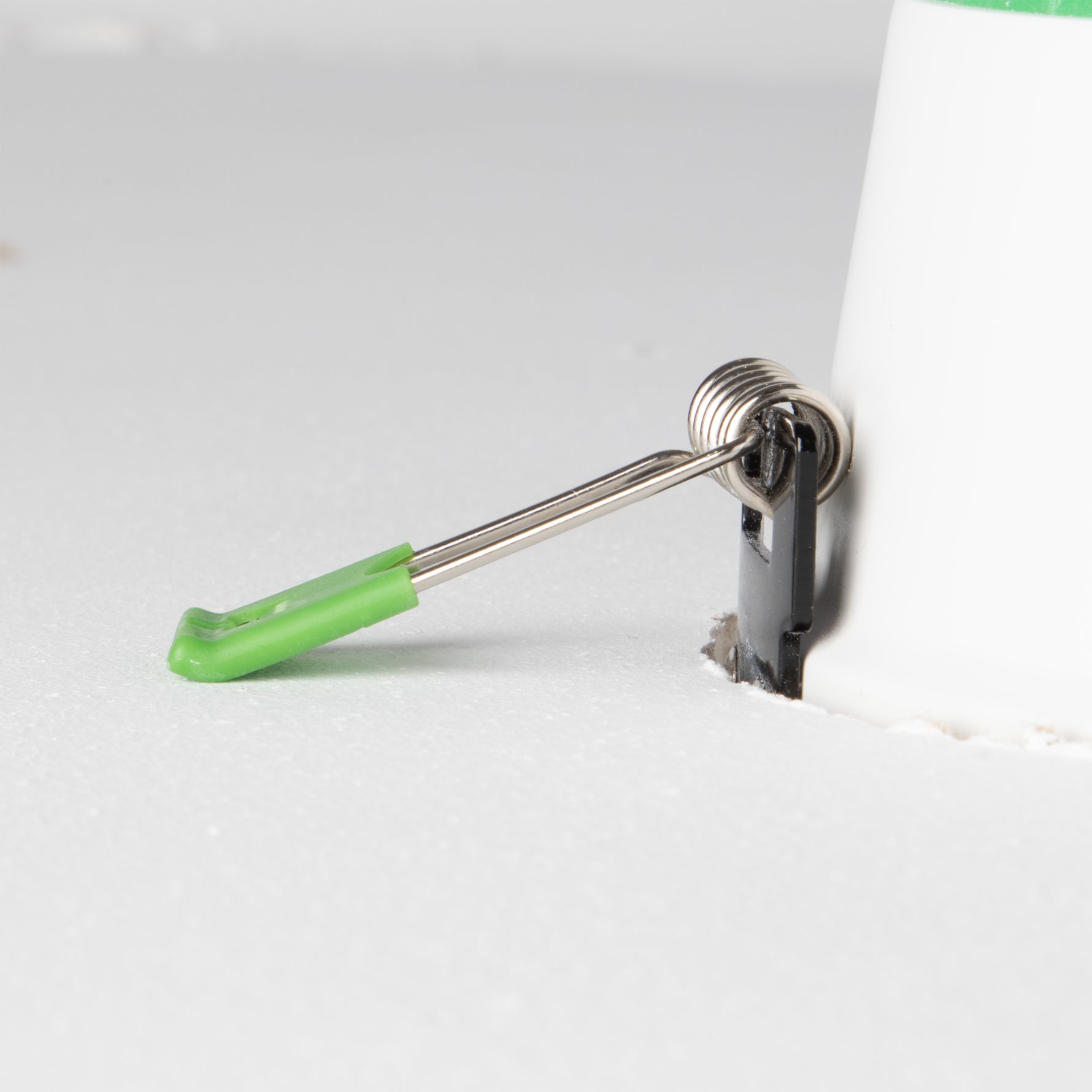

JCC - Method of fix - Spring clips

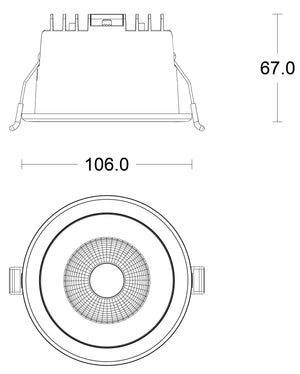

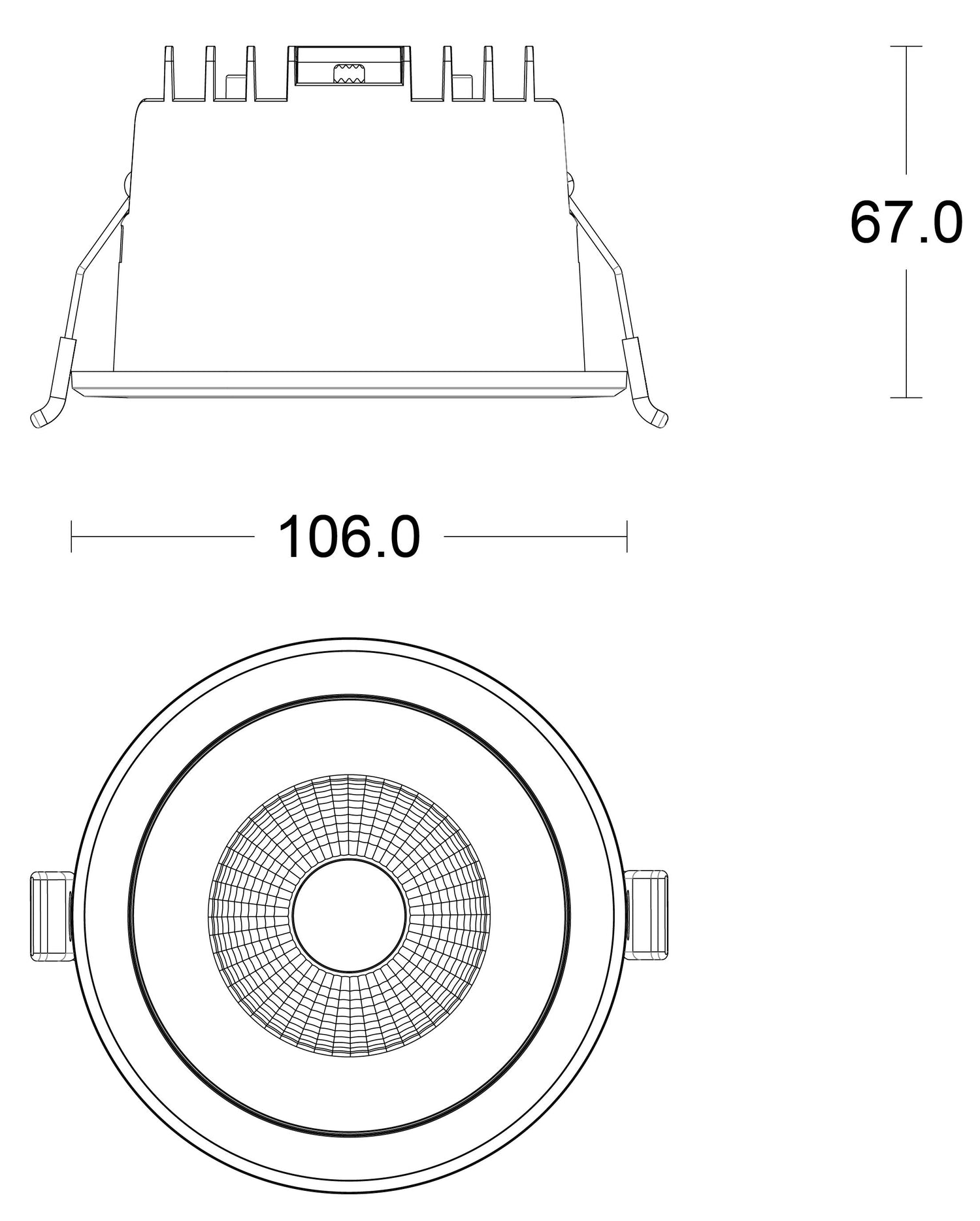

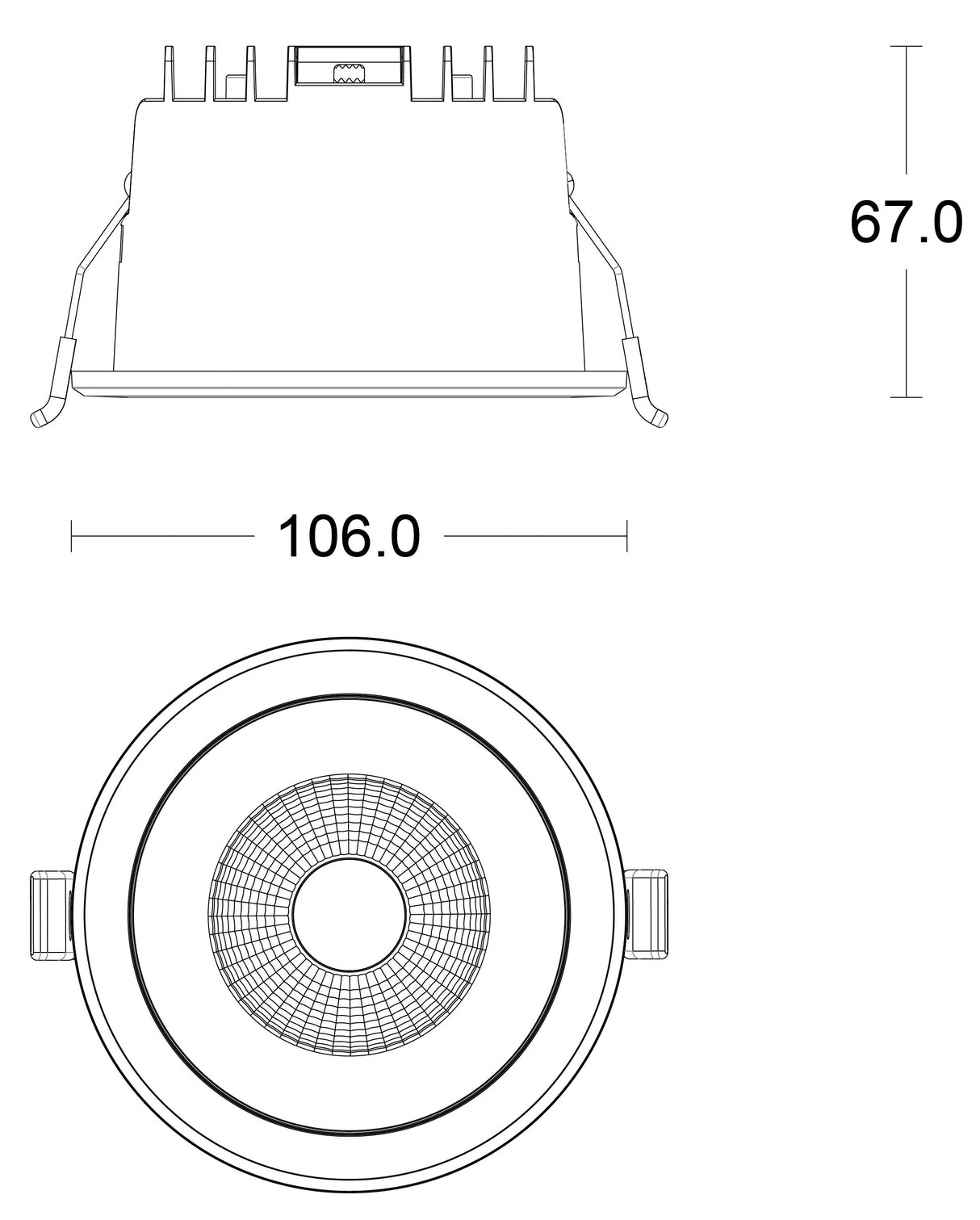

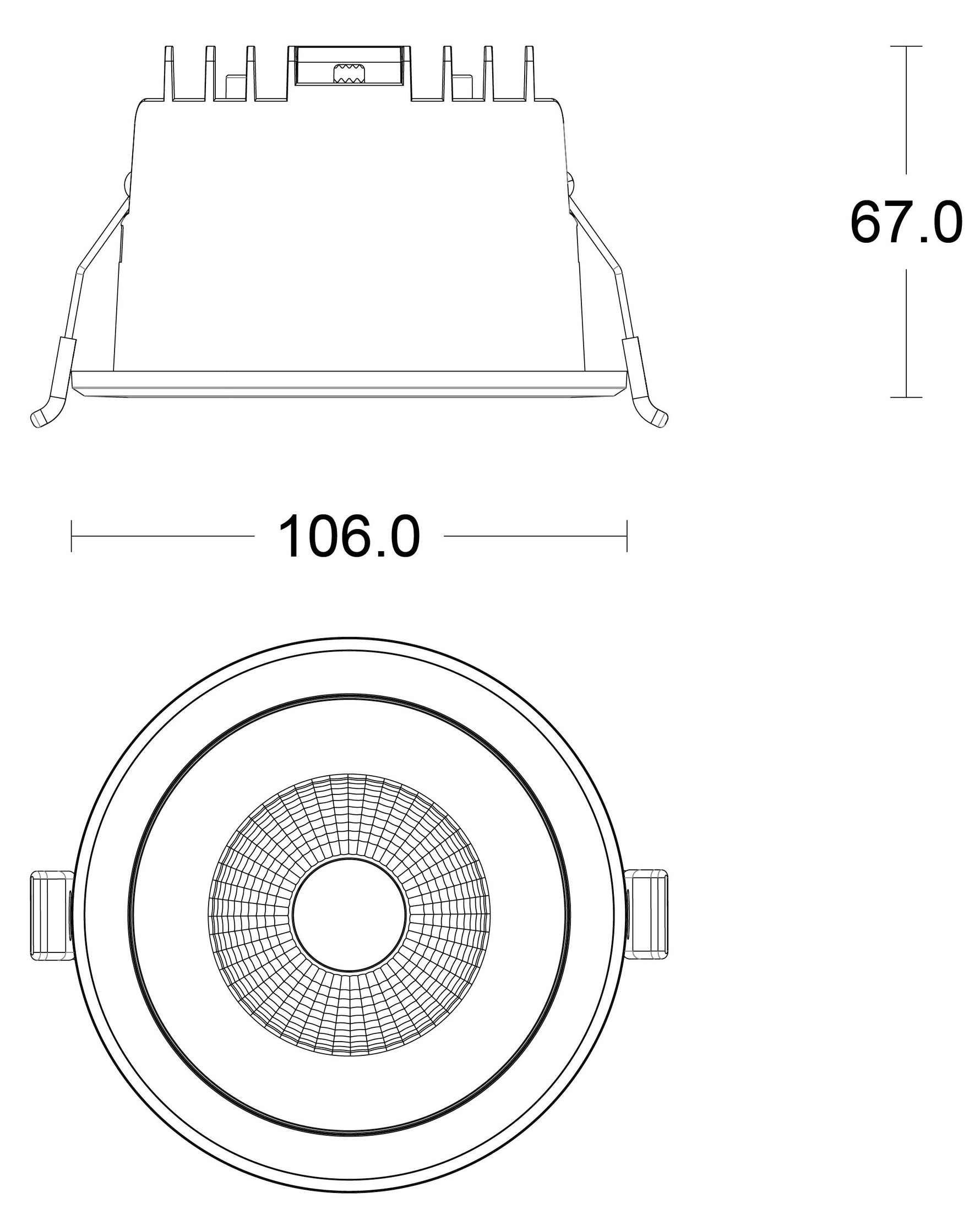

JCC - Diameter (mm) - 106
JCC - Height (mm) - 67
JCC - Color Finish - Black bezel with silver reflector
Manufacturers Part Number - JC73030
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - PA6 Nylon
JCC -Beam Angle ° - 40
JCC - CRI: Ra - 80
JCC - Energy Rating - D
JCC - Dimmable - No
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 60-75
JCC - Class - II
JCC - Luminaire Circuit Wattage - 6
JCC - Rating(Amp) - 6
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 9.1A@153uS
JCC - Dimming Protocol Compatibility - Non-dimmable
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.09
JCC - Method of fix - Spring clips
JCC - Diameter (mm) - 106
JCC - Height (mm) - 67
JCC - Color Finish - Black bezel with silver reflector
