JCC JC73065 Parluma downlight 140mm 9W/12W 3K/4K/57K IP65 White bezel

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

SKU: JC73065

Barcode: 5052544135415

JCC Lighting

JCC JC73065 Parluma downlight 140mm 9W/12W 3K/4K/57K IP65 White bezel Black ref DALI/1-10V

(0)

£60.06 £184.80

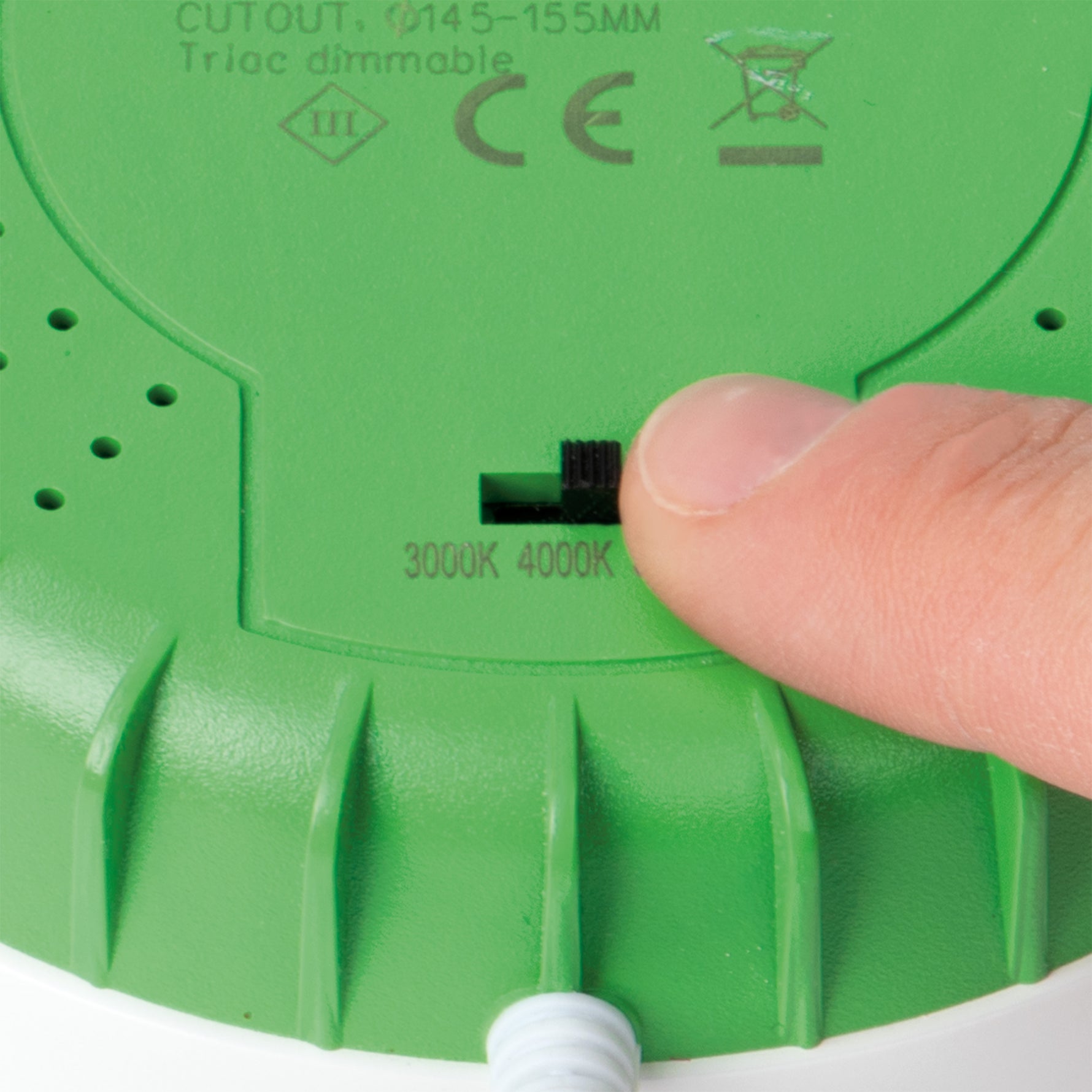

Three colour selectable 3000K, 4000K & 5700K
Wattage selectable 9W/12W

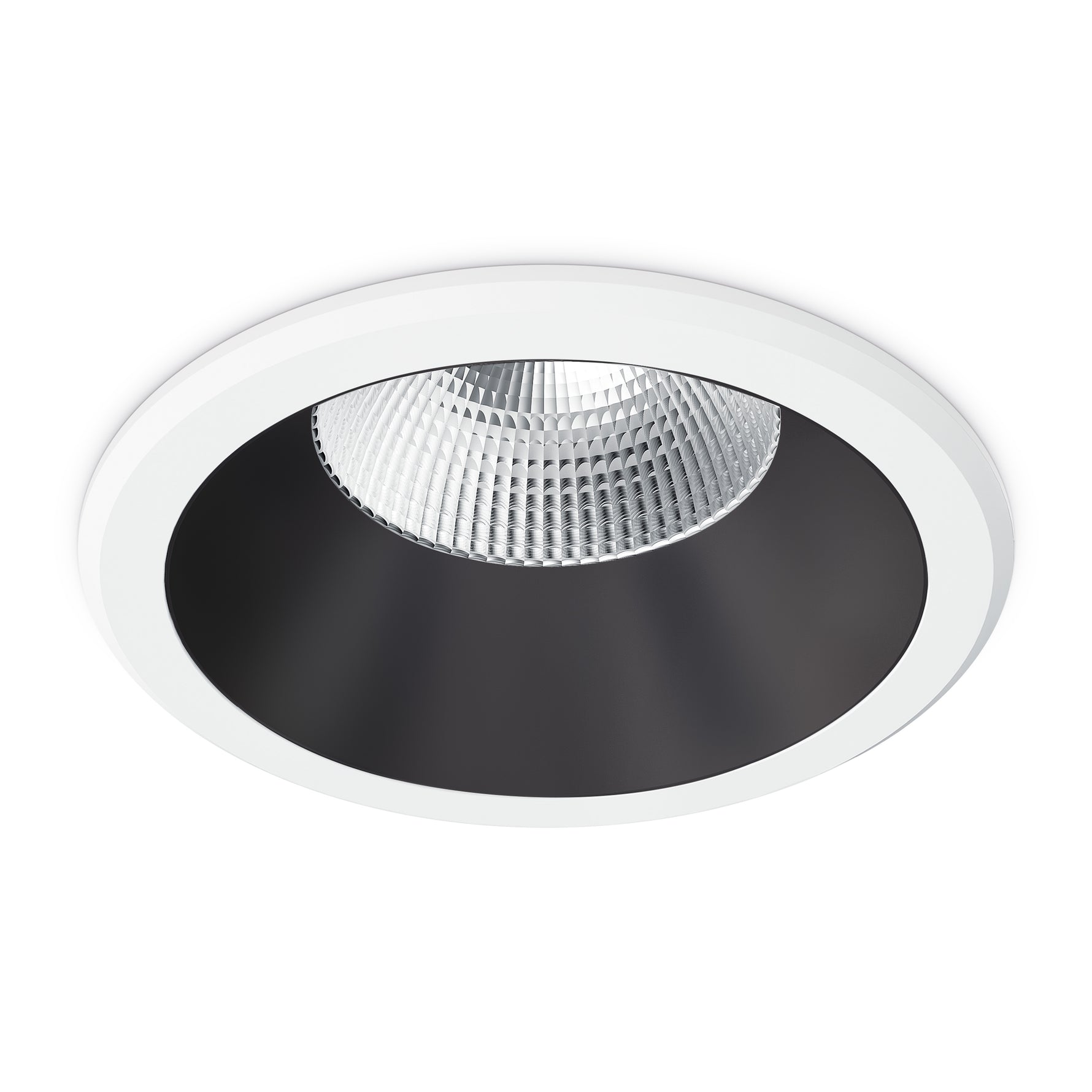

White bezel with black reflector finish
Designed for ceiling cut-outs from 120mm-130mm
Loop-in/loop-out driver with permanent live and earth provision
DALI/1-10V/Switch Dim , with non dimmable and Triac available
Manual test, self-test and DALI addressable emergency options available
TP(a) rated

Manufacturer - JCC Lighting
Manufacturers Part Number - JC73065
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - PA6 Nylon
JCC -Beam Angle ° - 40
JCC - CRI: Ra - 80
JCC - Energy Rating - D
JCC - Dimmable - DALI, 1-10V, Retractive switch dimming
JCC - Power Factor Correction - 0.95
JCC - Output Voltage Max/Range (VDC) - 30651
JCC - Class - II
JCC - Luminaire Circuit Wattage - 9
JCC - Rating(Amp) - 9
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 8A@50uS
JCC - Dimming Protocol Compatibility - DALI, 1-10V, Retractive switch dimming
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.16

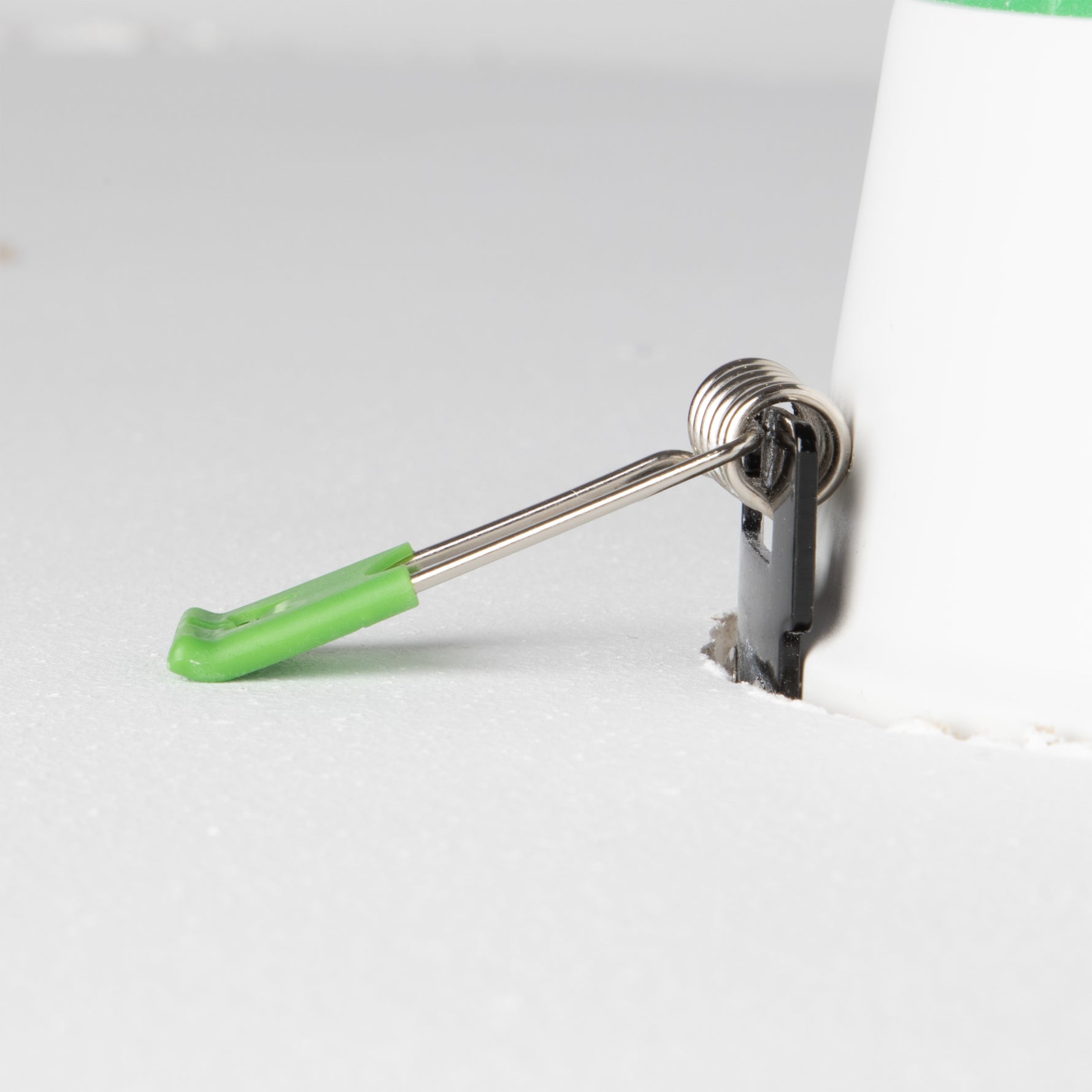

JCC - Method of fix - Spring clips

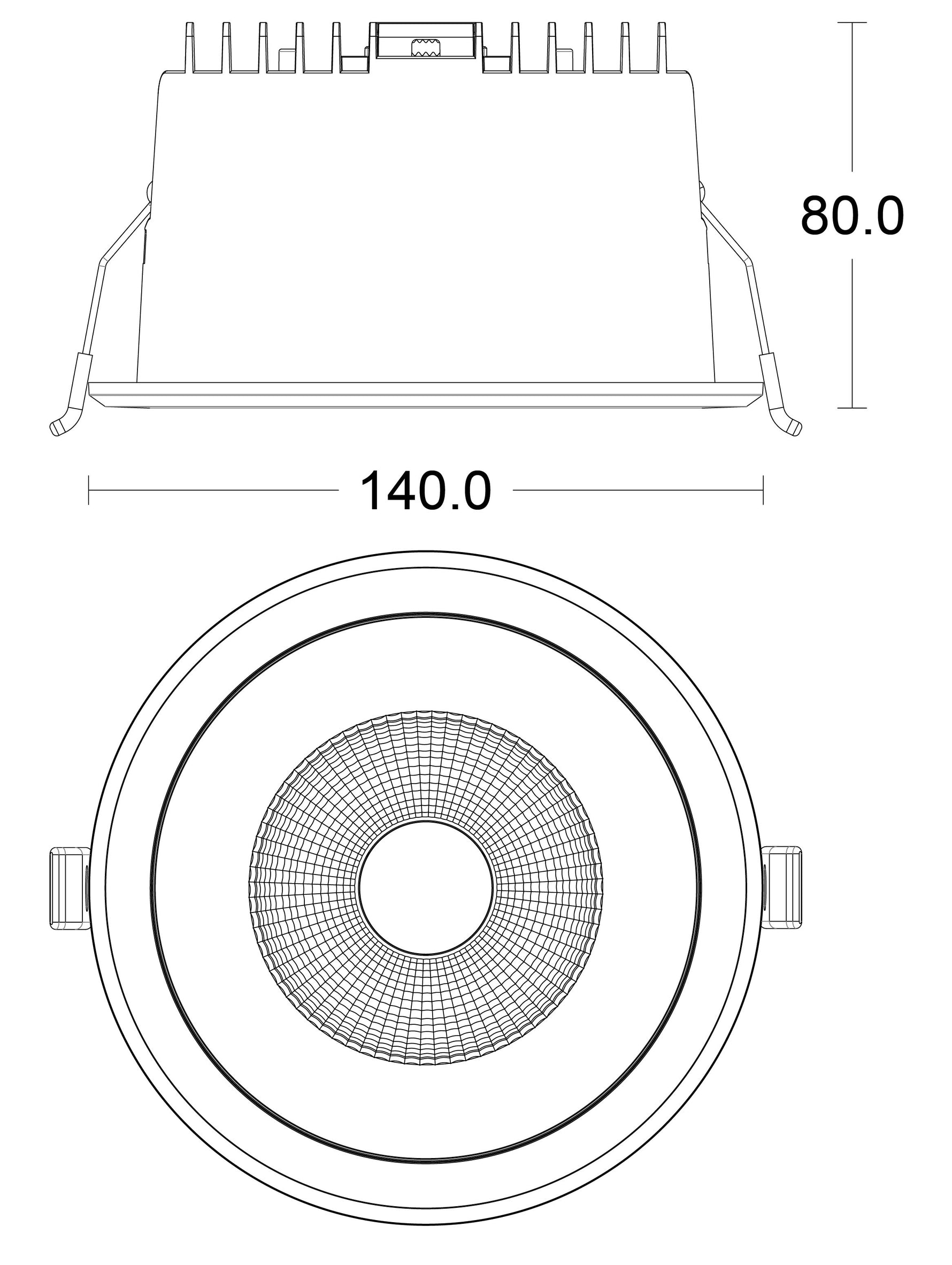

JCC - Diameter (mm) - 140
JCC - Height (mm) - 80
JCC - Color Finish - White bezel with black reflector
