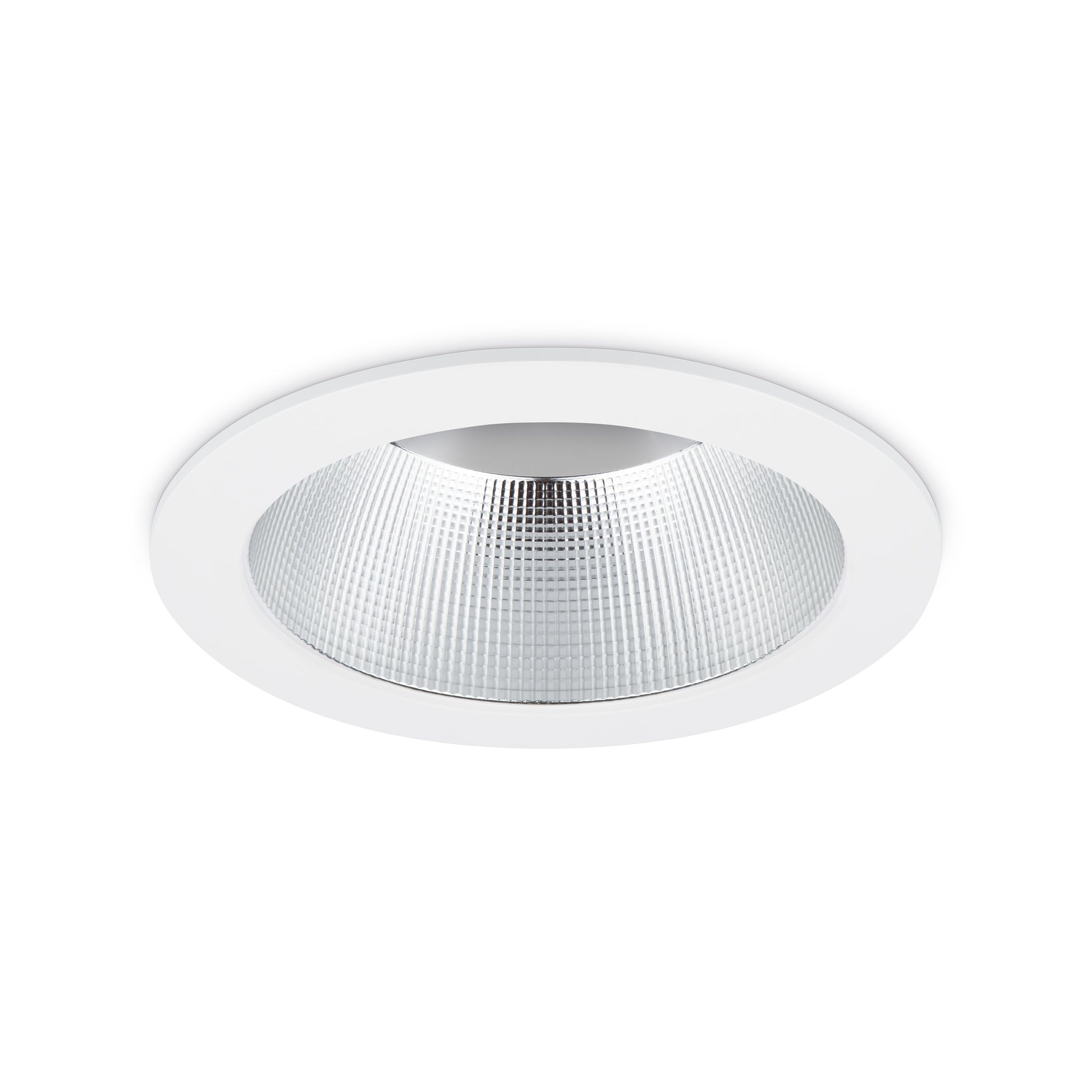

JCC JC74009 Rakula downlight 232mm 24W/35W 3000K/4000K/5700K IP65 TP(a

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

SKU: JC74009

Barcode: 5052544134043

JCC Lighting

JCC JC74009 Rakula downlight 232mm 24W/35W 3000K/4000K/5700K IP65 TP(a) Non-dim

(0)

£35.65 £109.68

Three colour selectable 3000K, 4000K & 5700K
Wattage selectable 24W/35W
Designed for ceiling cut-outs from 195mm-210mm

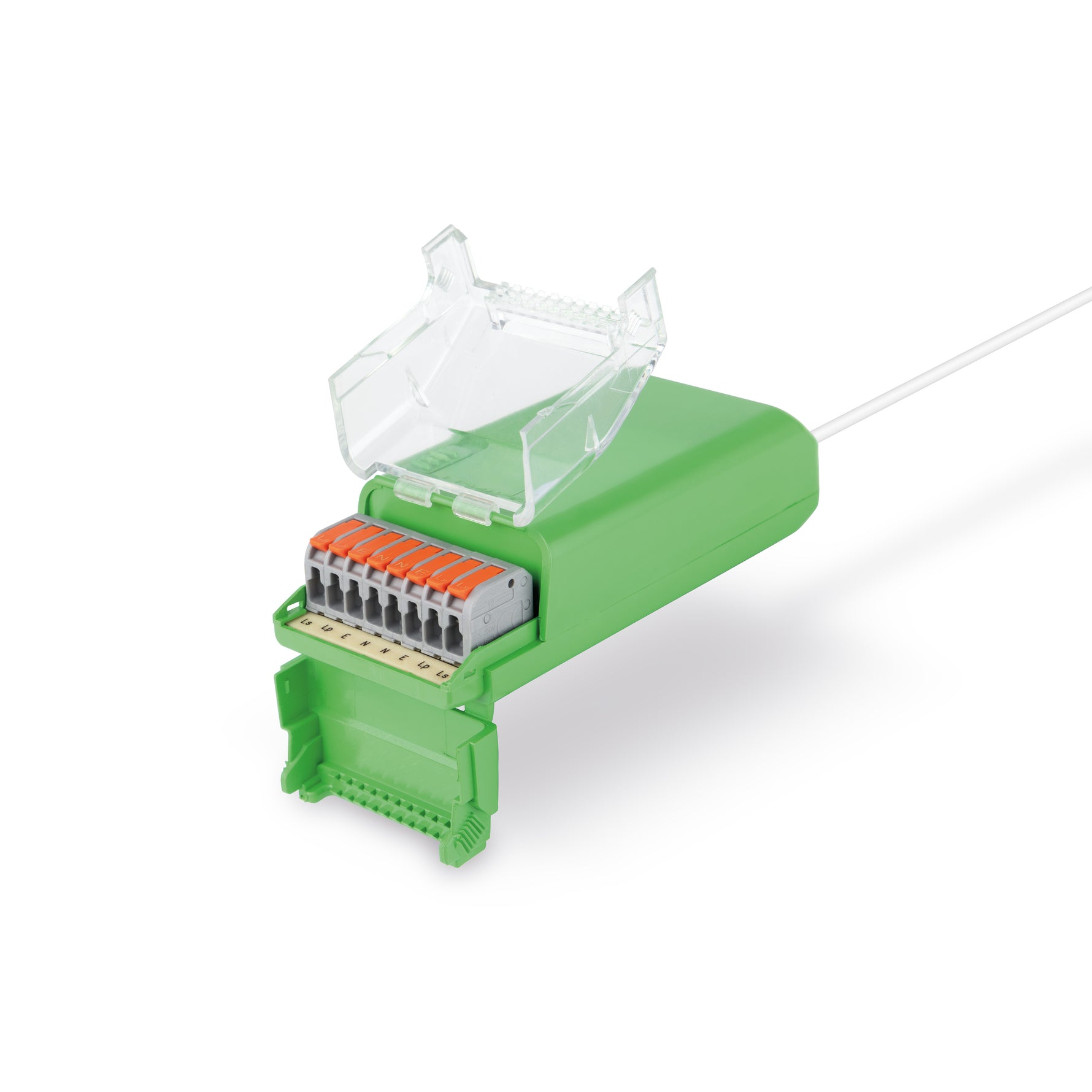

Loop-in/loop-out driver with permanent live and earth provision
DALI/1-10V/Switch Dim available
Manual test, self-test and DALI addressable emergency options available
TP(a) rated

Manufacturer - JCC Lighting
Manufacturers Part Number - JC74009
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 61
JCC - CRI: Ra - 80
JCC - Dimmable - No
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 30-40
JCC - Class - II
JCC - Luminaire Circuit Wattage - 24
JCC - Rating(Amp) - 24
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 30A
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.25
JCC - Method of fix - Spring clips

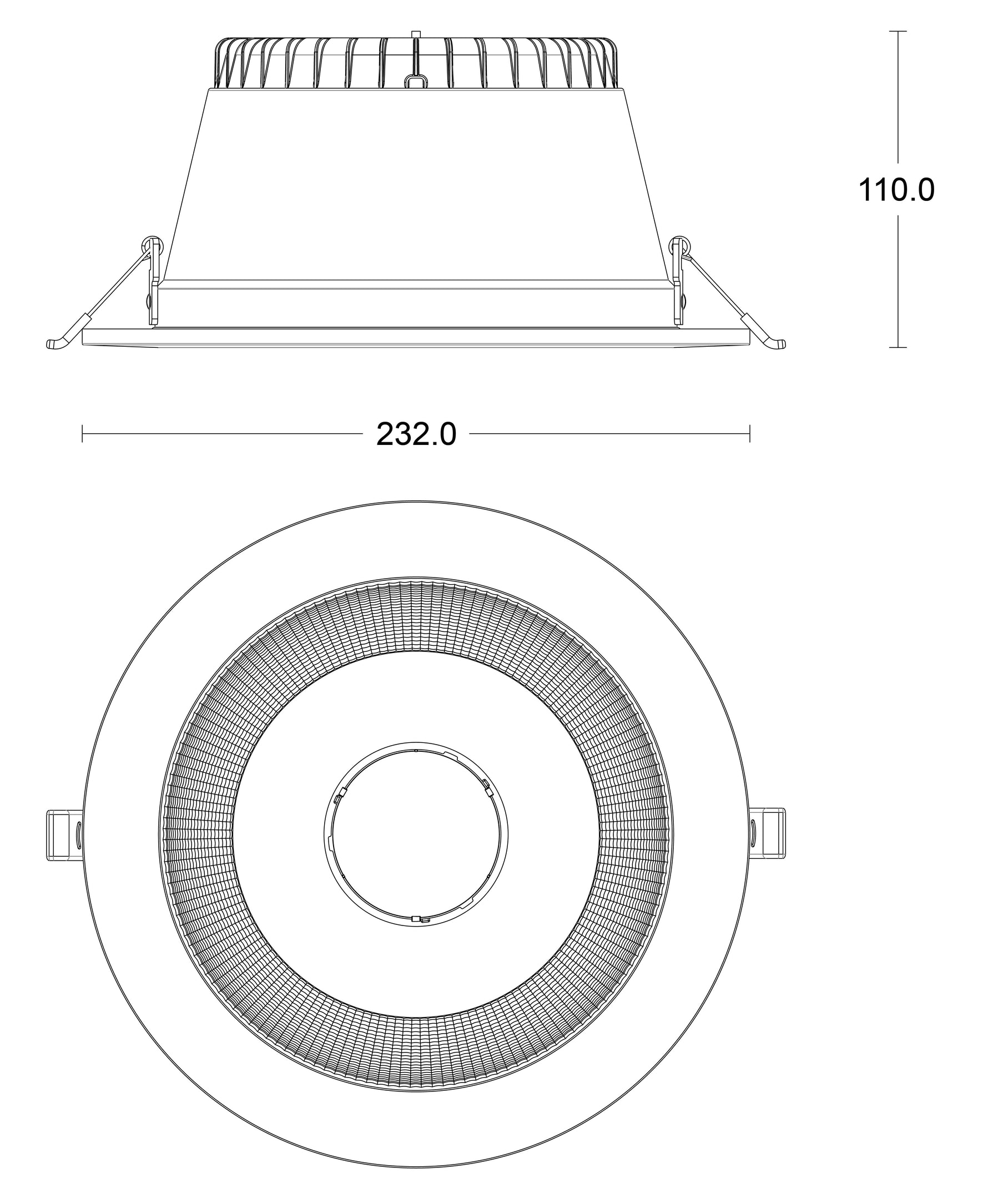

JCC - Diameter (mm) - 232
JCC - Height (mm) - 110
JCC - Color Finish - White

Made With Care

Great Value

Elegant Design

Quality Materials

In stock
