JCC JC74012 Rakula downlight 280mm 35W/50W 3000K/4000K/5700K IP65 TP(a

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

SKU: JC74012

Barcode: 5052544134074

JCC Lighting

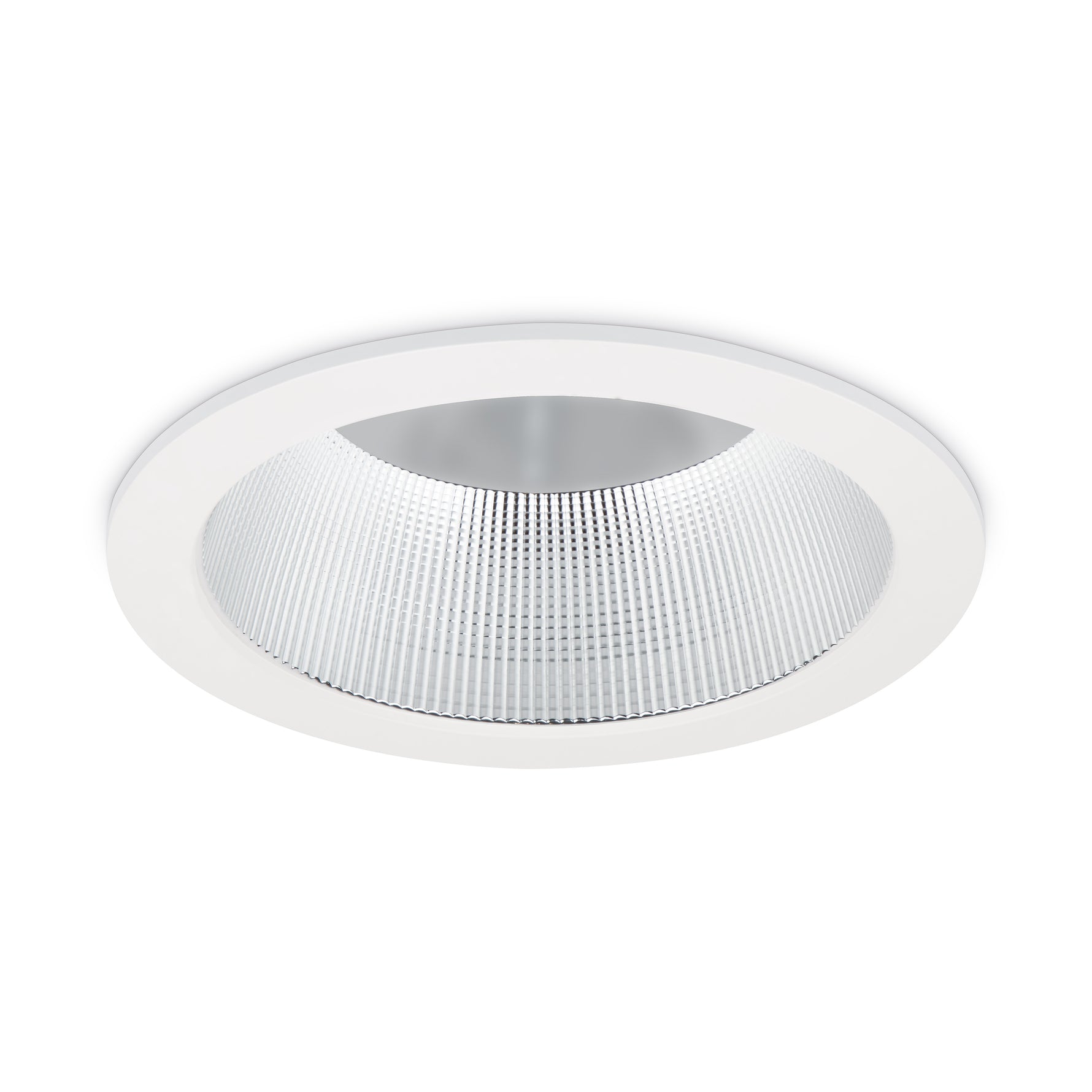

JCC JC74012 Rakula downlight 280mm 35W/50W 3000K/4000K/5700K IP65 TP(a) DALI/1-10V

(0)

£79.17 £243.60

Three colour selectable 3000K, 4000K & 5700K
Wattage selectable 35W/50W
Designed for ceiling cut-outs from 240mm-255mm
Loop-in/loop-out driver with permanent live and earth provision
Non dim, available
Manual test, self-test and DALI addressable emergency options available
TP(a) rated

Manufacturer - JCC Lighting
Manufacturers Part Number - JC74012
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 61
JCC - CRI: Ra - 80
JCC - Dimmable - DALI/1-10V, Retractive switch dimming
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 14-42
JCC - Class - II
JCC - Luminaire Circuit Wattage - 35
JCC - Rating(Amp) - 35
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 35A@50uS
JCC - Dimming Protocol Compatibility - DALI, 1-10V, Retractive switch dimming
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.18-0.3
JCC - Method of fix - Spring clips

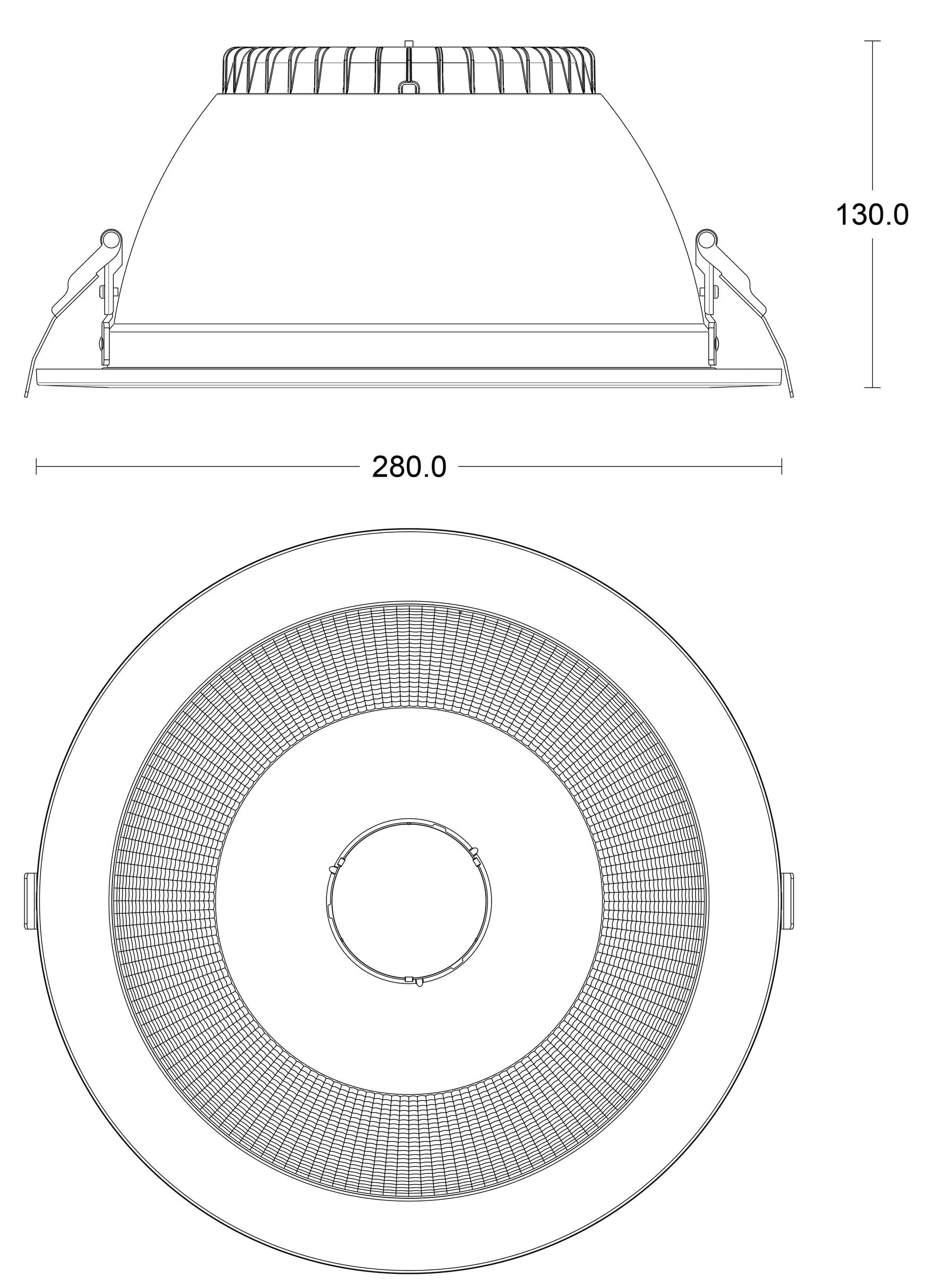

JCC - Diameter (mm) - 280
JCC - Height (mm) - 130
JCC - Color Finish - White

Made With Care

Great Value

Elegant Design

Quality Materials

In stock
