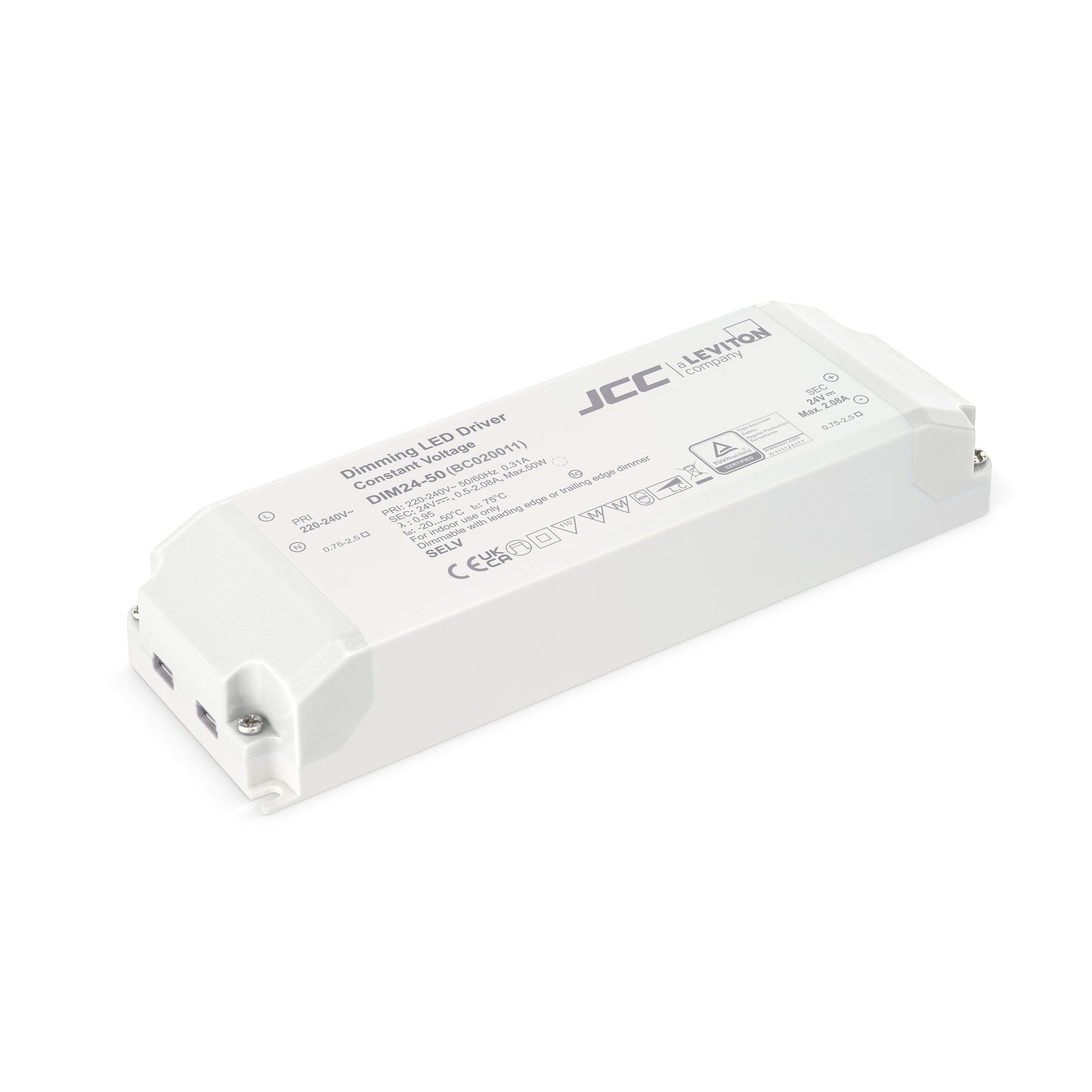

JCC Lighting Part Number BC020011 24V 50W Triac dimmable IP20 driver

Our Part Number: BC020011
£2463 GBP £20460 GBP

Discounts Added at Cart so Buy More & Save More

357 in stock

🚛 - Delivered in 2 to 3 working days.

Product Description
JCC Lighting Led Tape range of Led Lighting Product Code = BC020011
24V 50W Triac dimmable IP20 driver
24V 50W Triac dimmable IP20 driver for use with single colour LED strip
Product Specification
Manufacturer - JCC Lighting
Manufacturers Part Number - BC020011
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544112027
JCC - Primary Material - Polycarbonate
JCC - Operating Temperature Range °C - -20 to +50
JCC - Dimmable - Yes, leading and trailing 1% to 100%
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 15
JCC - Output Voltage Max/Range (VDC) - 24
JCC - Class - II
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 20
JCC - Primary Running Current(Amp) - 310mA
JCC - Secondary running current(mA) - 500-2008mA
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - Triac
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP20

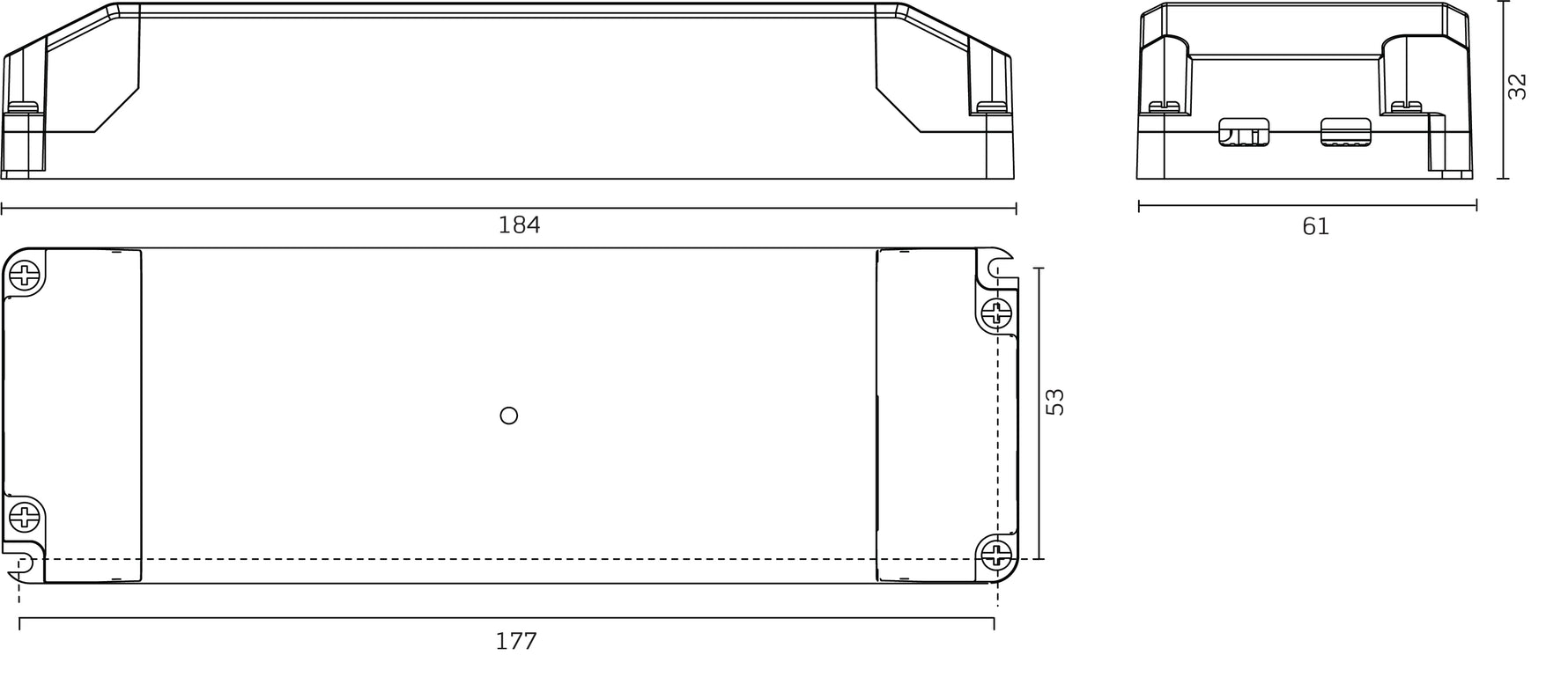

JCC - Height (mm) - 61
JCC - Length (mm) - 184
JCC - Color Finish - White
