SKU: BC020012

Barcode: 5052544116162

JCC Lighting

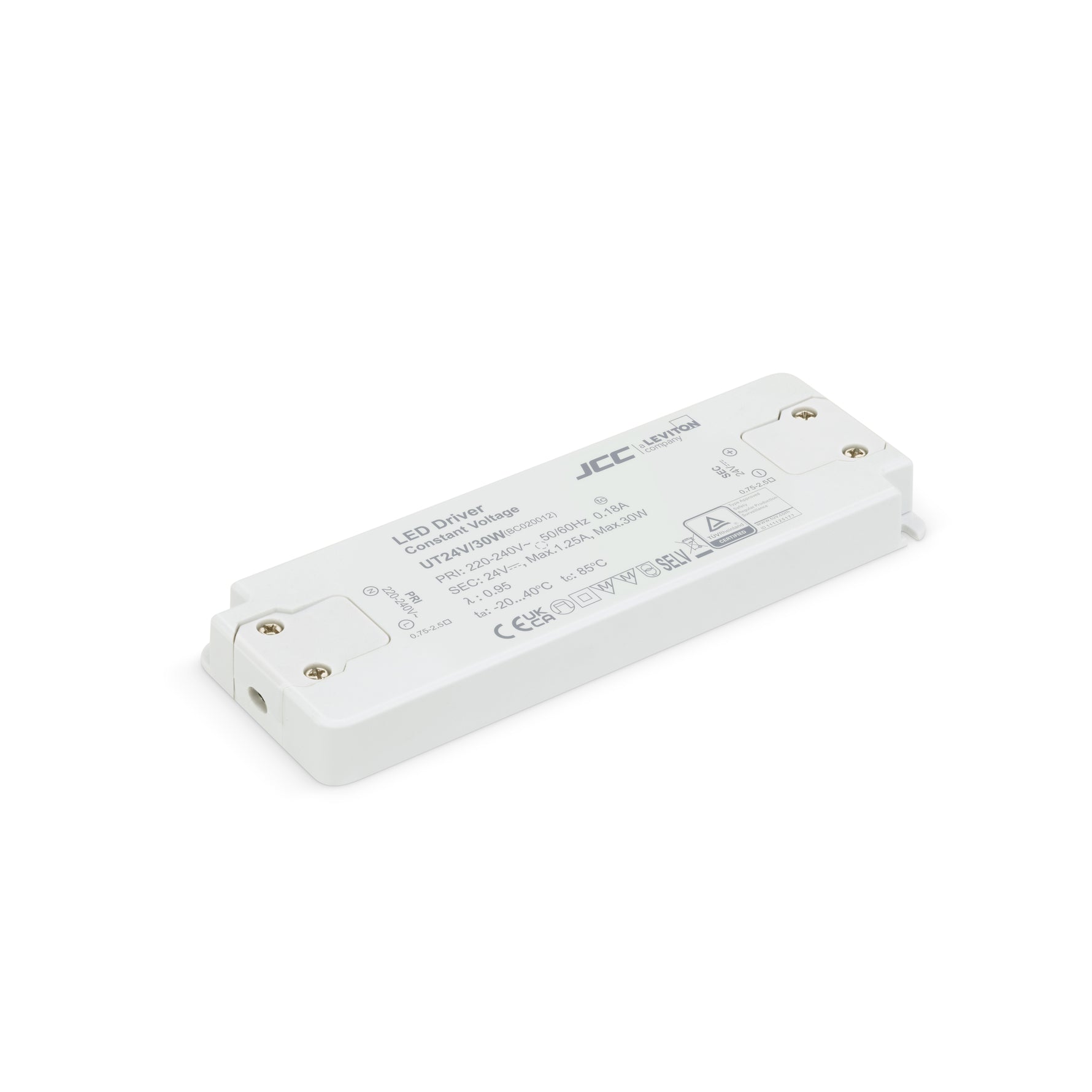

JCC Lighting BC020012 24V 30W Non-dimmable IP20 Driver

(3)

£20.28 £148.24

24V 30W Non-dimmable IP20 driver for use with single colour and RGBW LED strip

Manufacturer - JCC Lighting
Manufacturers Part Number - BC020012
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544116162
JCC - Primary Material - Polycarbonate
JCC - Operating Temperature Range °C - -20 to +40
JCC - Dimmable - No
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 10
JCC - Output Voltage Max/Range (VDC) - 24
JCC - Class - II
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 25
JCC - Primary Running Current(Amp) - 180mA
JCC - Secondary running current(mA) - 0-1250mA
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP20

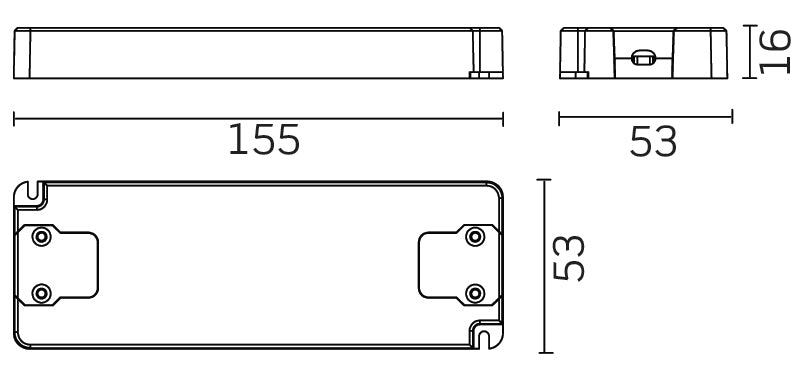

JCC - Height (mm) - 16
JCC - Length (mm) - 155
JCC - Color Finish - White
