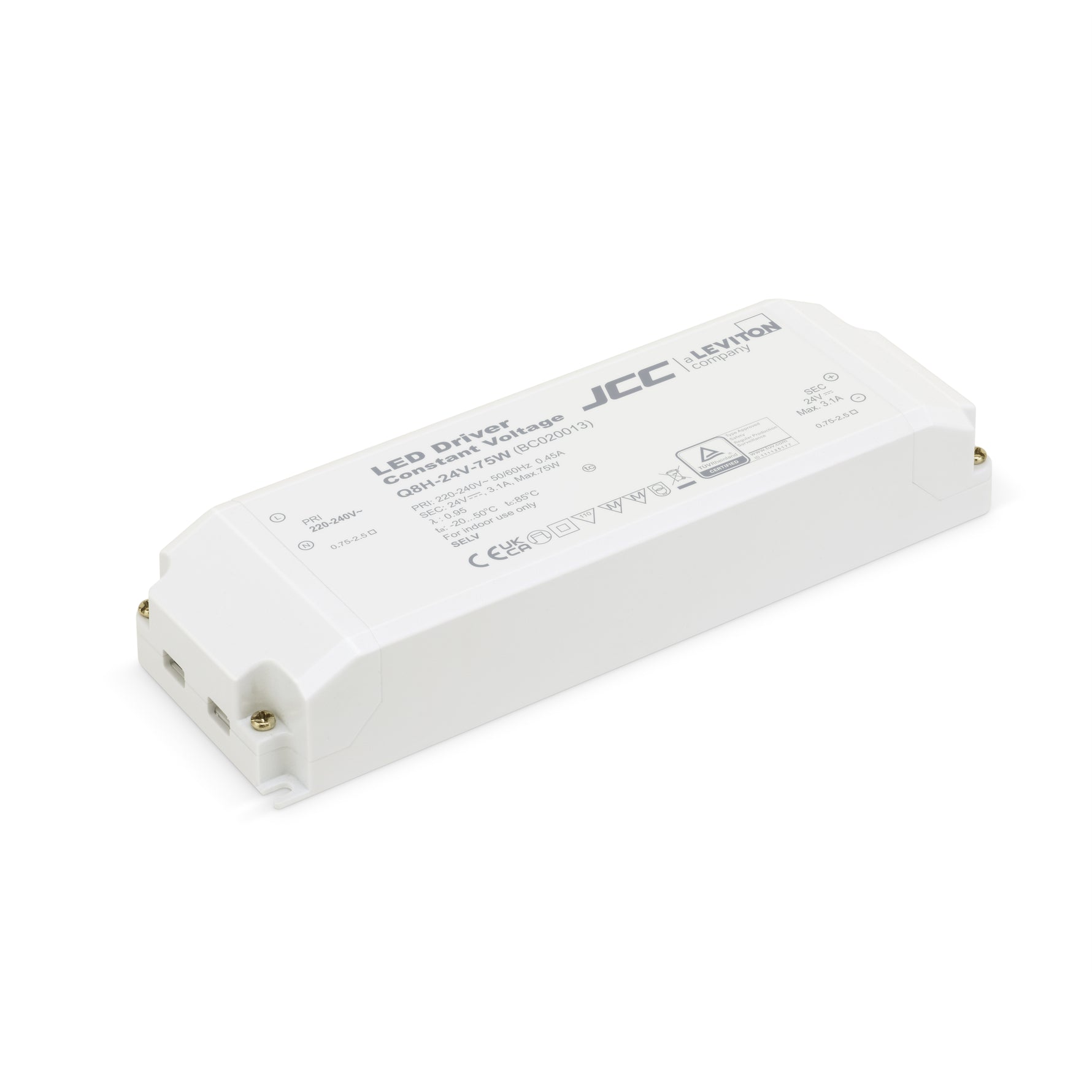

JCC Lighting Part Number BC020013 24V 75W Non-dimmable IP20 Driver
Our Part Number: BC020013
£29.28 GBP
£243.23 GBP
VAT included
Shipping calculated at checkout.
Discounts Added at Cart so Buy More & Save More
1327 in stock
🚛 - Delivered in 2 to 3 working days.
Our stock is in the UK ready for shipment to you today!
Product Description
JCC Lighting Led Tape range of Led Lighting Product Code = BC020013
24V 75W Non-dimmable IP20 Driver
24V 75W Non-dimmable IP20 driver for use with single colour and RGBW LED strip
24V 75W Non-dimmable IP20 Driver
24V 75W Non-dimmable IP20 driver for use with single colour and RGBW LED strip
Product Specification
Manufacturer - JCC Lighting
Manufacturers Part Number - BC020013
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544116179
JCC - Primary Material - Polycarbonate
JCC - Operating Temperature Range °C - -20 to +50
JCC - Dimmable - No
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 15
JCC - Output Voltage Max/Range (VDC) - 24
JCC - Class - II
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 30
JCC - Primary Running Current(Amp) - 450mA
JCC - Secondary running current(mA) - 0-3100mA
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP20

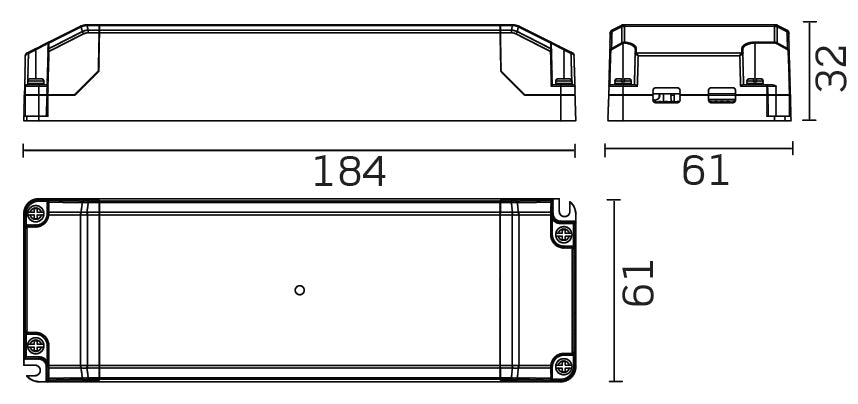

JCC - Height (mm) - 32
JCC - Length (mm) - 184
JCC - Color Finish - White
Manufacturers Part Number - BC020013
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544116179
JCC - Primary Material - Polycarbonate
JCC - Operating Temperature Range °C - -20 to +50
JCC - Dimmable - No
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - 15
JCC - Output Voltage Max/Range (VDC) - 24
JCC - Class - II
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 30
JCC - Primary Running Current(Amp) - 450mA
JCC - Secondary running current(mA) - 0-3100mA
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP20
JCC - Height (mm) - 32
JCC - Length (mm) - 184
JCC - Color Finish - White
