SKU: JC014235

Barcode: 5052544121050

JCC Lighting

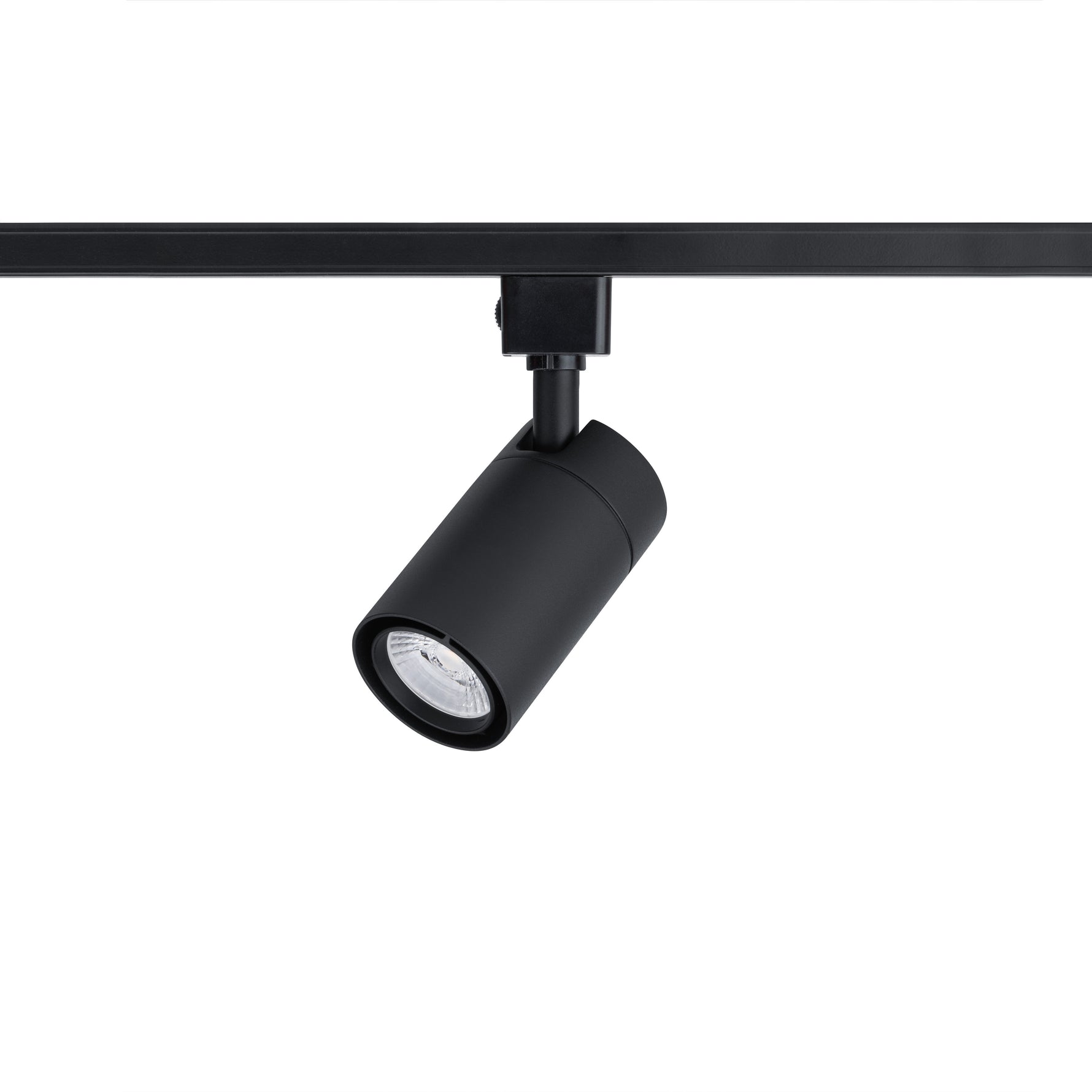

JCC Lighting JC014235 Starspot™ LED 7.5W IP20 3000K 35° Triac dimmable Single-Circuit Black

(0)

£46.64 £99.00

7.5W 35° beam angle
No UV, suitable for retail applications
3000K and 4000K CCT options
Available in black or white finish
Single circuit or Three circuit track variants available
Up to 133 LpcW
Triac dimmable as standard

Manufacturer - JCC Lighting
Manufacturers Part Number - JC014235
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544121050
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 35
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Operating Temperature Range °C - -20 to +40
JCC - Dimmable - Yes, Triac dimmable
JCC - Power Factor Correction - 0.9
JCC - Total Harmonic Distortion (THD)% - 20
JCC - Class - I
JCC - Luminaire Circuit Wattage - 7.5
JCC - Rating(Amp) - 7.5
JCC - Operating Frequency Hz - 50/60Hz
JCC - Voltage Rating - 220-240V~
JCC - Dimming Protocol Compatibility - Triac
JCC - Warranty - 5 Years see JCC Website
JCC - Suitable For Zones - Outside Zone 2
JCC - IP Rating - IP20

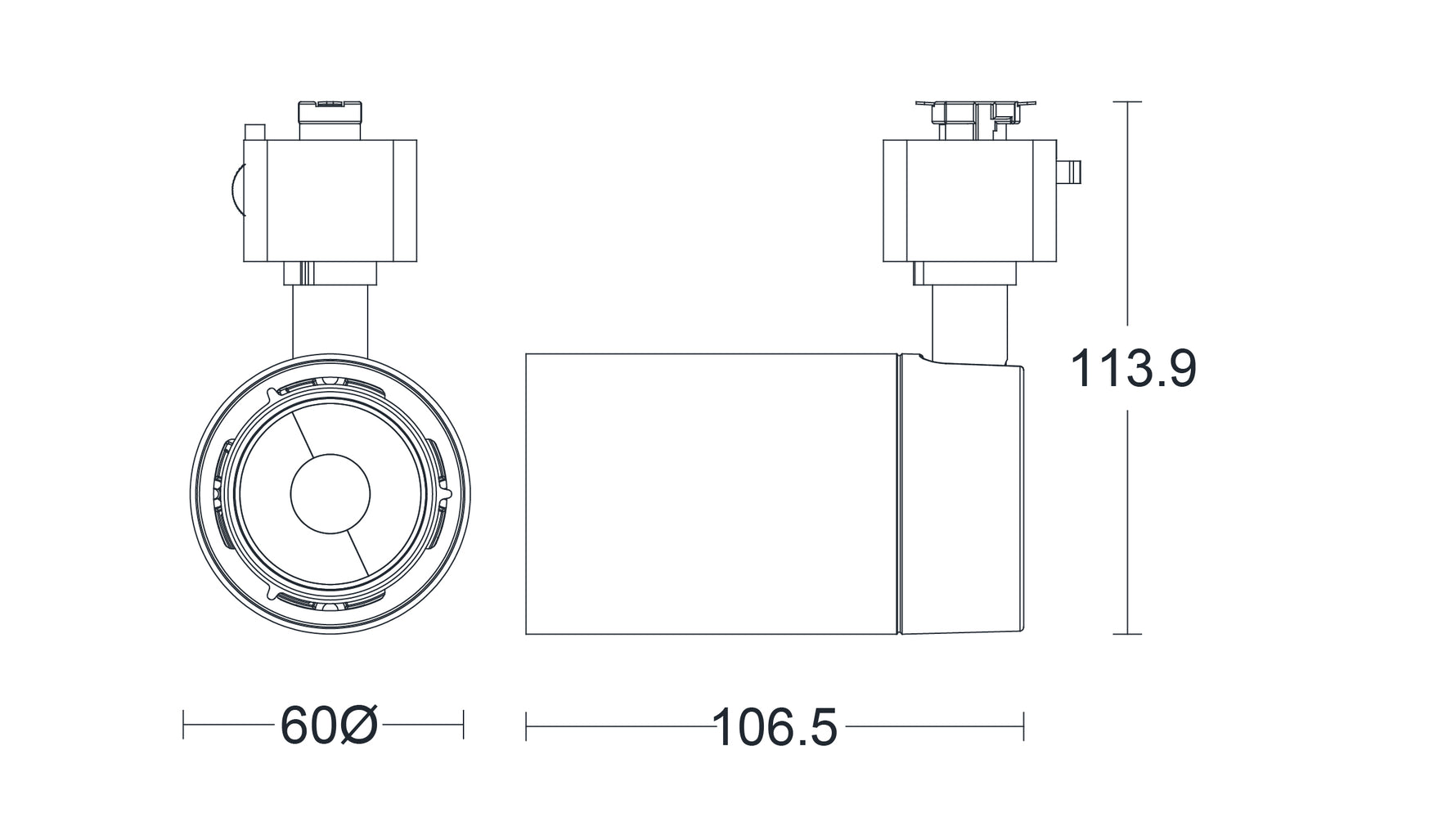

JCC - Overall dimensions (mm) Rim - 60Ø x 106.5 x 113.9mm
JCC - Diameter (mm) - 60
JCC - Height (mm) - 113.9
JCC - Width (mm) - 106.5
JCC - Color Finish - Black
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Spotlights and Track Systems/Starspot LED Single Circuit-IS.pdf
