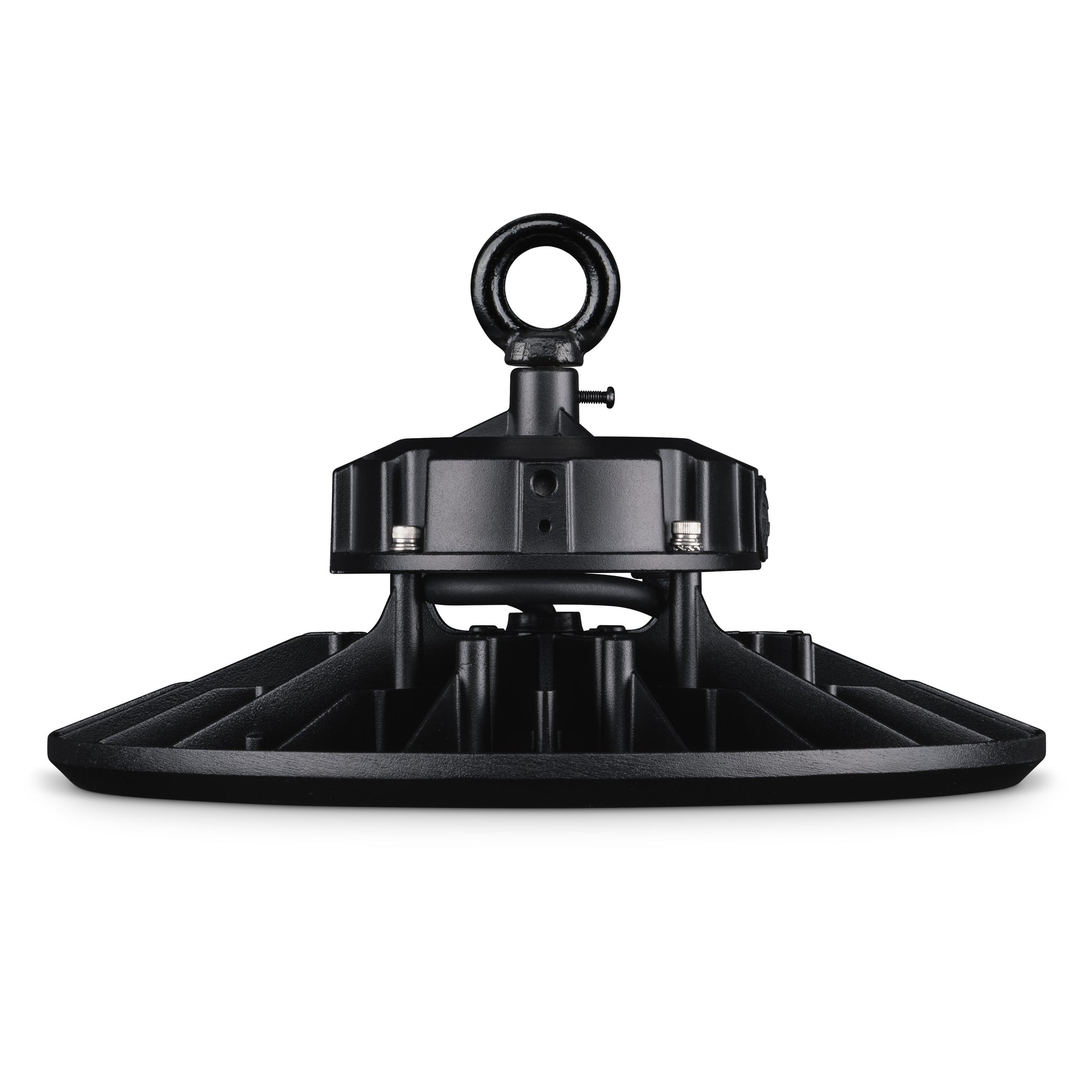

JCC Lighting JC040214 Toughbay Pro 200W (150W & 100W) IP65 5700K 90° 1-10V

(0)

£79.87 £239.76

100W, 150W and 200W options available with Wattage switch to adjust output where necessary
Available in 60°, 90° and 120° degree beam angles
1-10V dimmable as standard

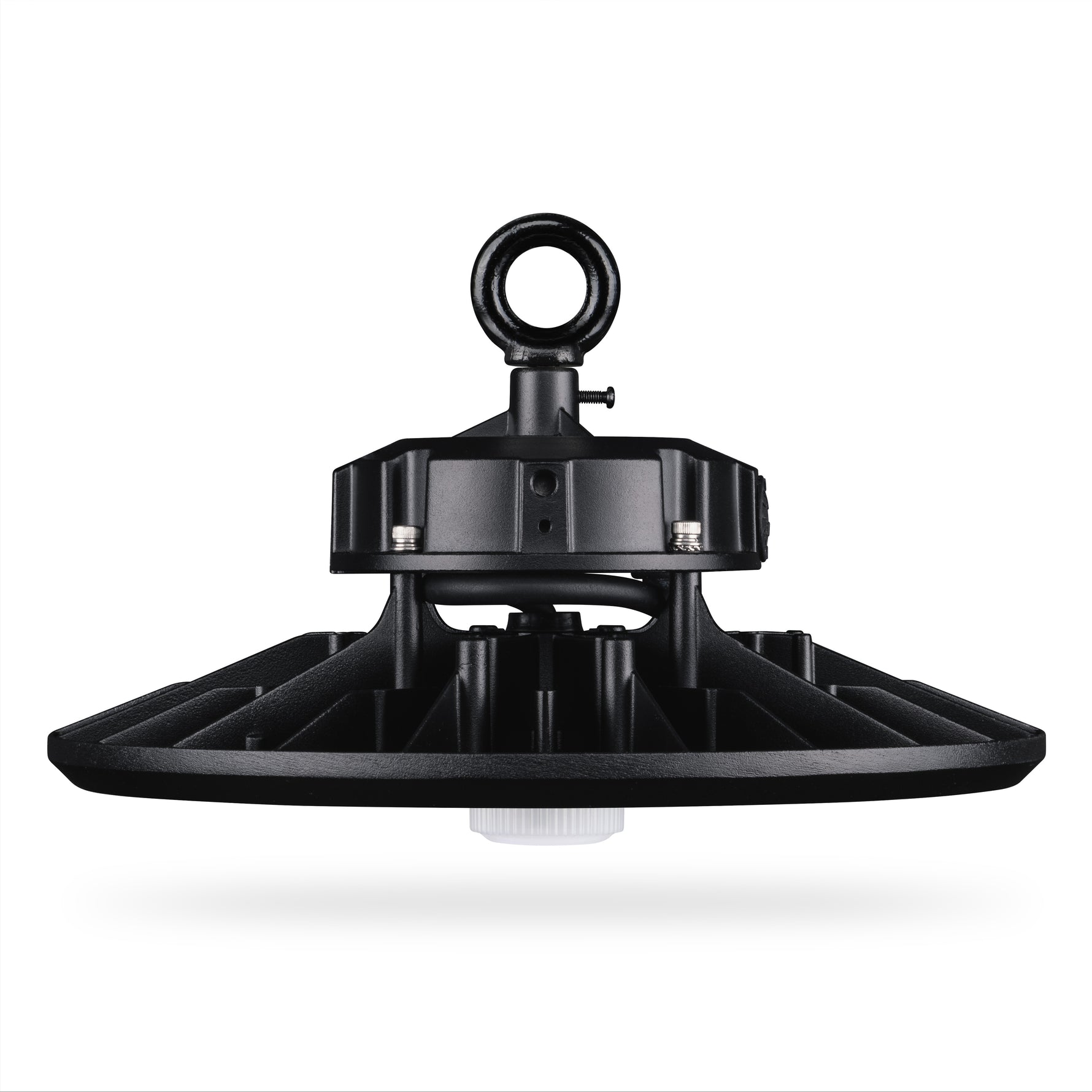

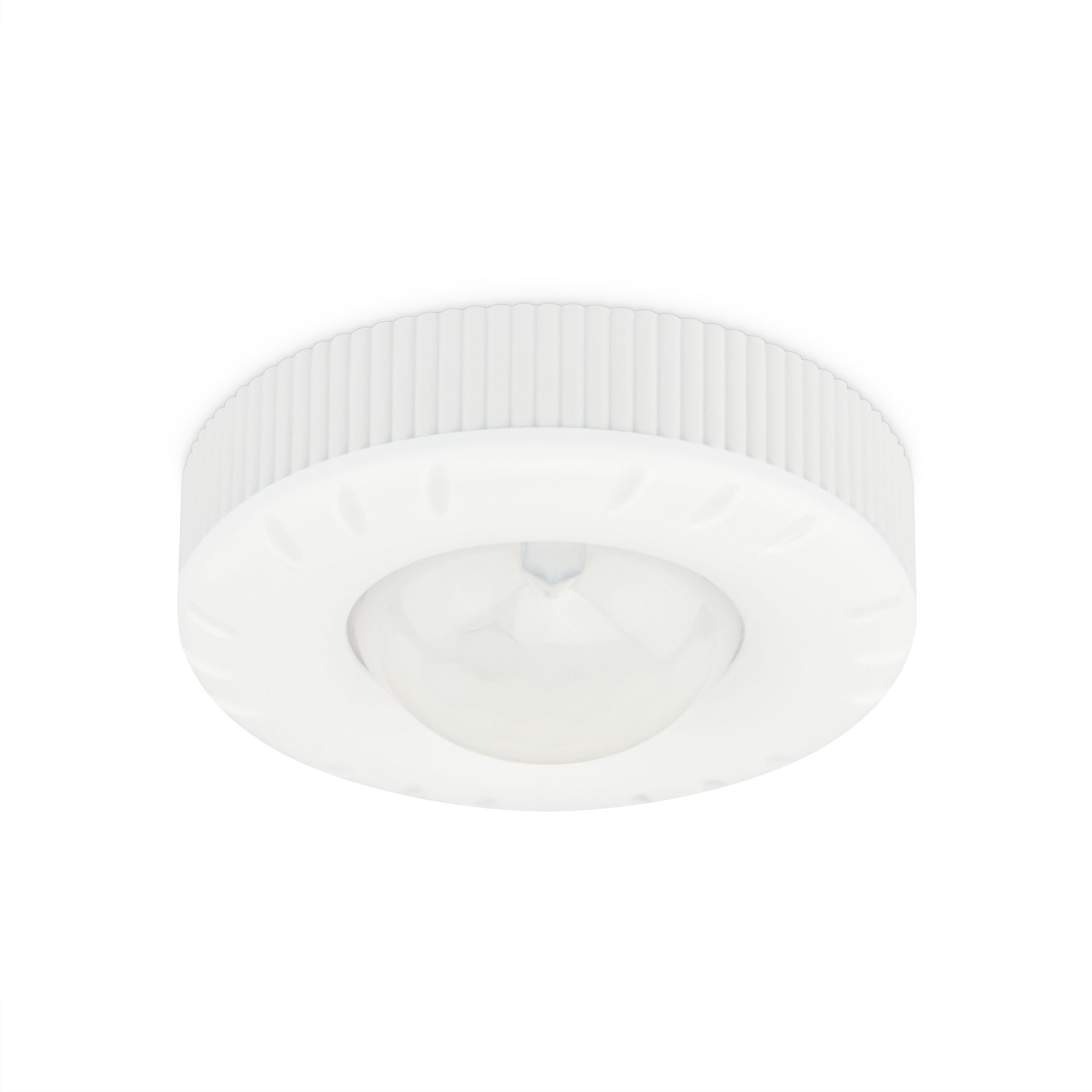

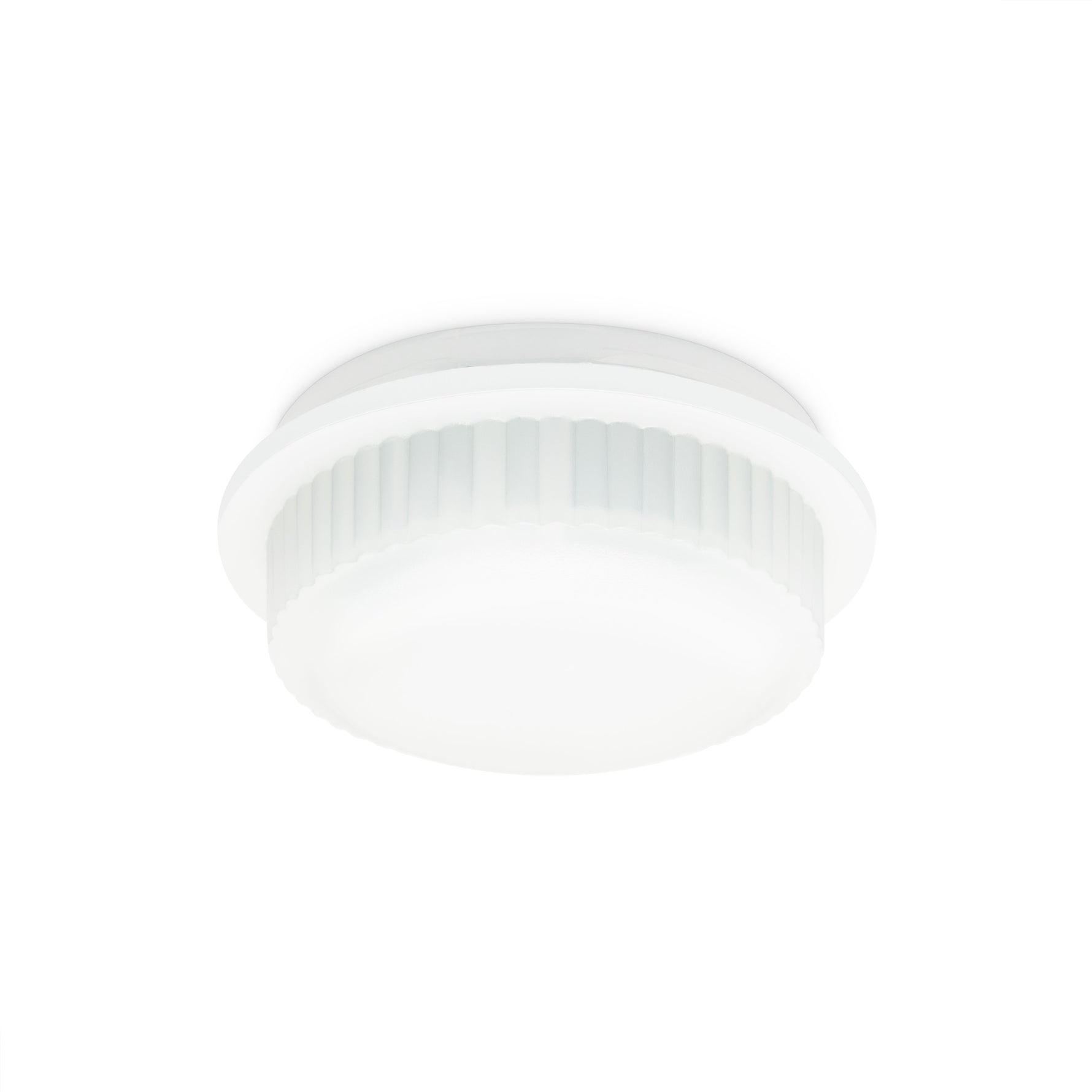

Simple toolless conversion to Microwave dim or PIR dim sensing
Remote control available to control PIR on/off, MW on/off and MW step dim
Ultra efficient, up to 150 Lumens per circuit Watt
Emergency options available
Surface mount bracket also available
5 year warranty including 1 year on-site

Manufacturer - JCC Lighting
Manufacturers Part Number - JC040214
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544123085
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 90
JCC - CRI: Ra - 82
JCC - Energy Rating - This product contains a light source of energy efficiency class C
JCC - Operating Temperature Range °C - -20°C to +40°C
JCC - Dimmable - Yes, 1-10V only
JCC - Power Factor Correction - 0.95
JCC - Total Harmonic Distortion (THD)% - <15
JCC - Output Voltage Max/Range (VDC) - 180-260
JCC - Class - Class I
JCC - Luminaire Circuit Wattage - 200/150/100
JCC - Rating(Amp) - 200/150/100
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 57.6A@242µs 230V~
JCC - Primary Running Current(Amp) - 2.6
JCC - Secondary running current(mA) - 500/670/830
JCC - Voltage Rating - 100-277
JCC - Dimming Protocol Compatibility - 1-10V
JCC - Warranty - 5 Year Warranty(includes 1 year onsite)(see website for terms and conditions)
JCC - IK Rating - IK10
JCC - IP Rating - IP65

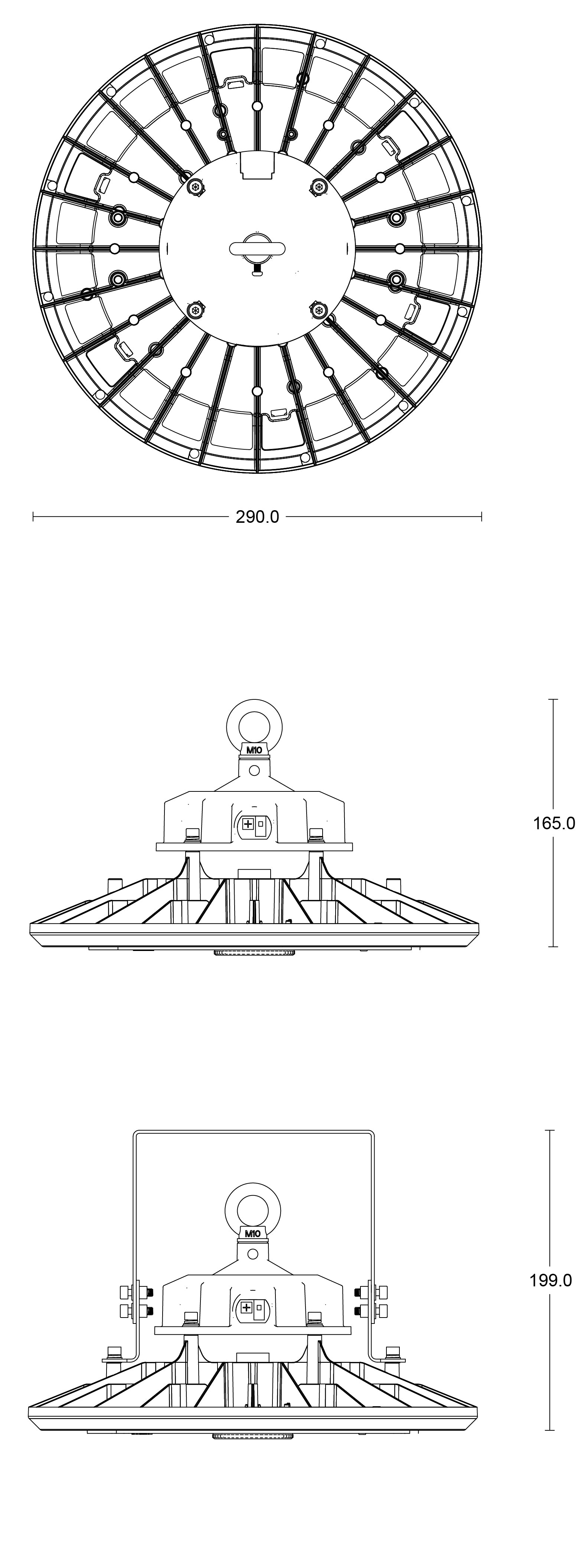

JCC - Overall dimensions (mm) Rim - 290Ø x 165mm
JCC - Diameter (mm) - 165
JCC - Height (mm) - 290
JCC - Color Finish - Black
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Highbay and Lowbay/Toughbay Pro- IS.pdf
