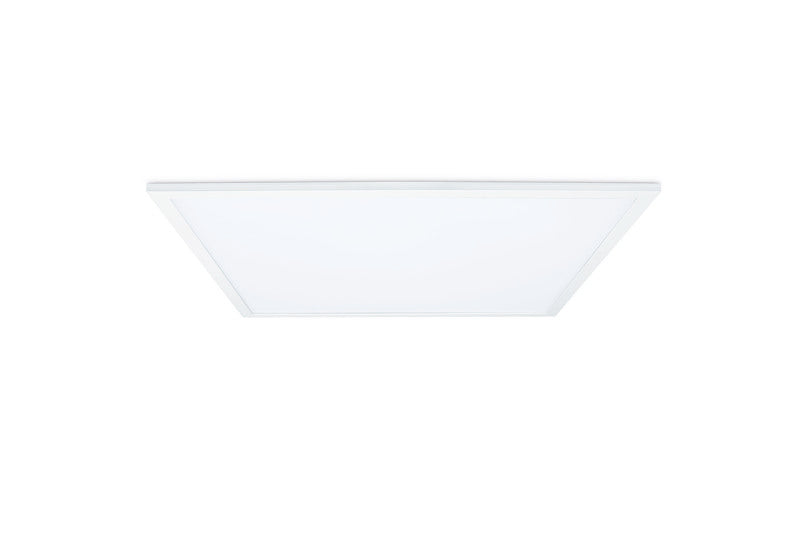

JCC Lighting Part Number JC080100 Skytile 600x600mm 30W IP44 3000K 3000lm Tp(a) UGR <19

JCC Lighting Skytile range of Led Lighting Product Code = JC080100
Skytile 600x600mm 30W IP44 3000K 3000lm Tp(a) UGR <19
Meets TP(a) requirements, suitable for all applications UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace Ultra efficient 100LpcW DALI/1-10V and DSI Dimming versions available IP44 protection against dust and moisture Comes with non-dimmable flicker free driver as standard Suspension kits and surface mount boxes available Suitable for use with JCEM002 and JCEM002ST emergency remote packs This product contains a light source of energy efficiency class F

Manufacturer - JCC Lighting
Manufacturers Part Number - JC080100
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544116544
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 90
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class F
JCC - Operating Temperature Range °C - -25 to +45
JCC - Dimmable - No
JCC - Power Factor Correction - 0.9
JCC - Total Harmonic Distortion (THD)% - 20
JCC - Output Voltage Max/Range (VDC) - 27-45
JCC - Class - II
JCC - Luminaire Circuit Wattage - 30
JCC - Rating(Amp) - 30
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - <15
JCC - Primary Running Current(Amp) - 0.2
JCC - Secondary running current(mA) - 700
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (inc 2 year on site)(See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 1
JCC - IP Rating - IP44
JCC - Method of fix - sits in 15mm and 25mm ceiling grid system

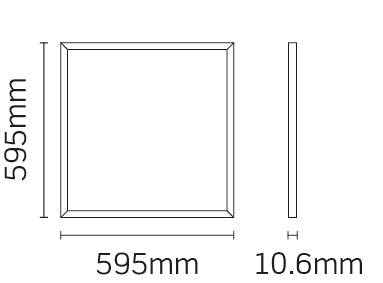

JCC - Height (mm) - 9.8
JCC - Length (mm) - 595
JCC - Color Finish - White
