JCC Lighting part no JC1001/NBDALI JCC Lighting JC1001/NBDALI V50 Fire-rated LED downlight 6W 700lm IP65 No Bezel DALI / 1-10V, in stock, low prices, fast delivery every time.✓✓✓

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

SKU: JC1001/NBDALI

Barcode: 5052544100000

JCC Lighting

JCC Lighting JC1001/NBDALI V50 Fire-rated LED downlight 6W 700lm IP65 No Bezel DALI / 1-10V

(3)

£60.84 £172.44

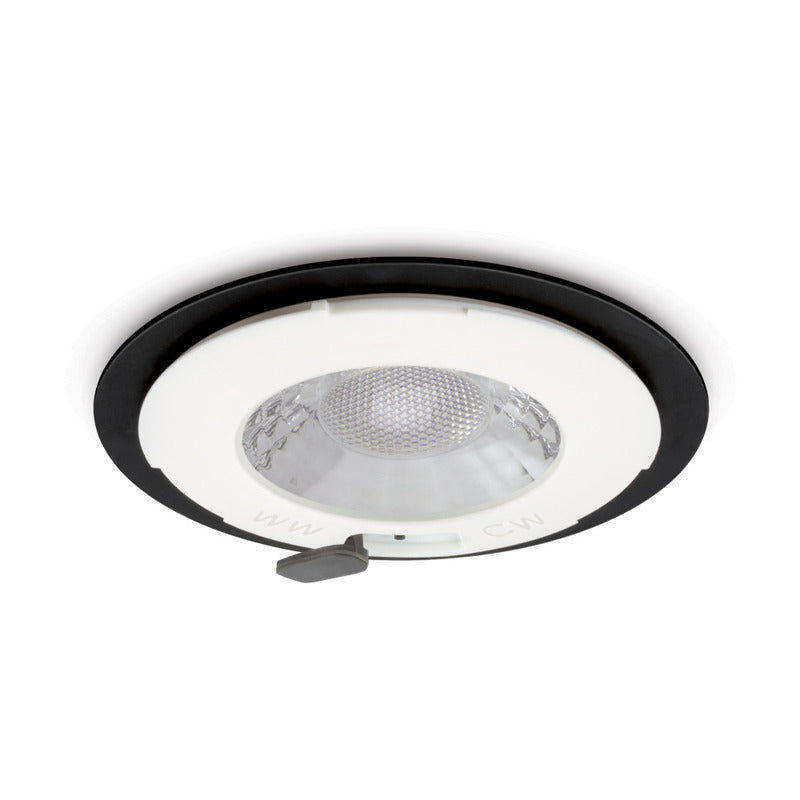

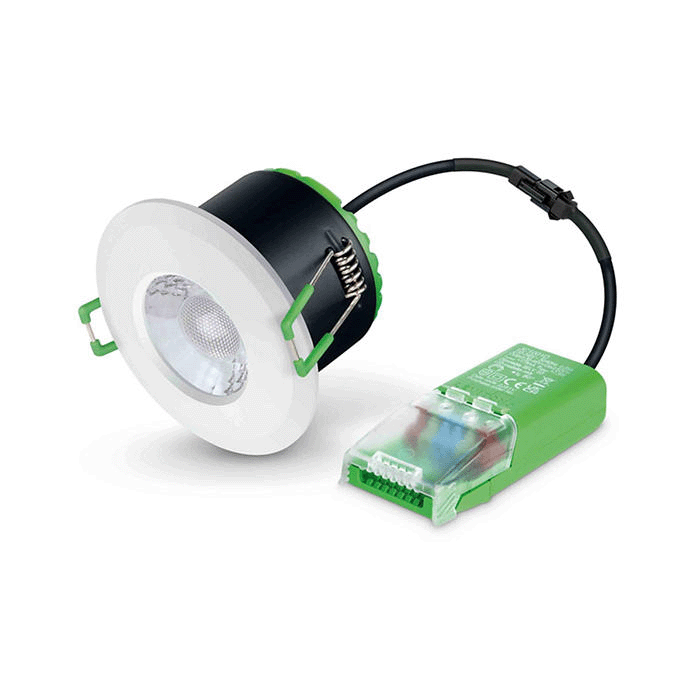

Two colour selectable from below the ceiling 3000K & 4000K Ultra-low profile suitable for shallow 50mm ceiling voids Tested for use in ﬁre-rated ceilings IP65 suitable for bathrooms (internal use only) Strong protected spring clips Fast push-fit termination with remote driver Twist & lock bezel design Available as complete fixture (JC1001) or without bezel (JC1001/NB) JC1001/NB requires separate bezel (JC1006)

Manufacturer - JCC Lighting
Manufacturers Part Number - JC1001/NBDALI
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544100000
JCC - Primary Material - Steel
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Operating Temperature Range °C - -25 to +50
JCC - Dimmable - Yes, DALI/1-10V
JCC - Power Factor Correction - 0.9
JCC - Total Harmonic Distortion (THD)% - 20
JCC - Output Voltage Max/Range (VDC) - 30-44
JCC - Class - II
JCC - Luminaire Circuit Wattage - 6
JCC - Rating(Amp) - 6
JCC - Operating Frequency Hz - 50/60Hz
JCC - Primary Running Current(Amp) - 0.065
JCC - Secondary running current(mA) - 160
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - DALI
JCC - Warranty - 5 Year Warranty(domestic) 3 Year( Commercial) (See Website for terms and conditions)
JCC - IP Rating - IP65
JCC - Product Aperture Size - 70mm
JCC - Method of fix - Recessed with Spring Clips

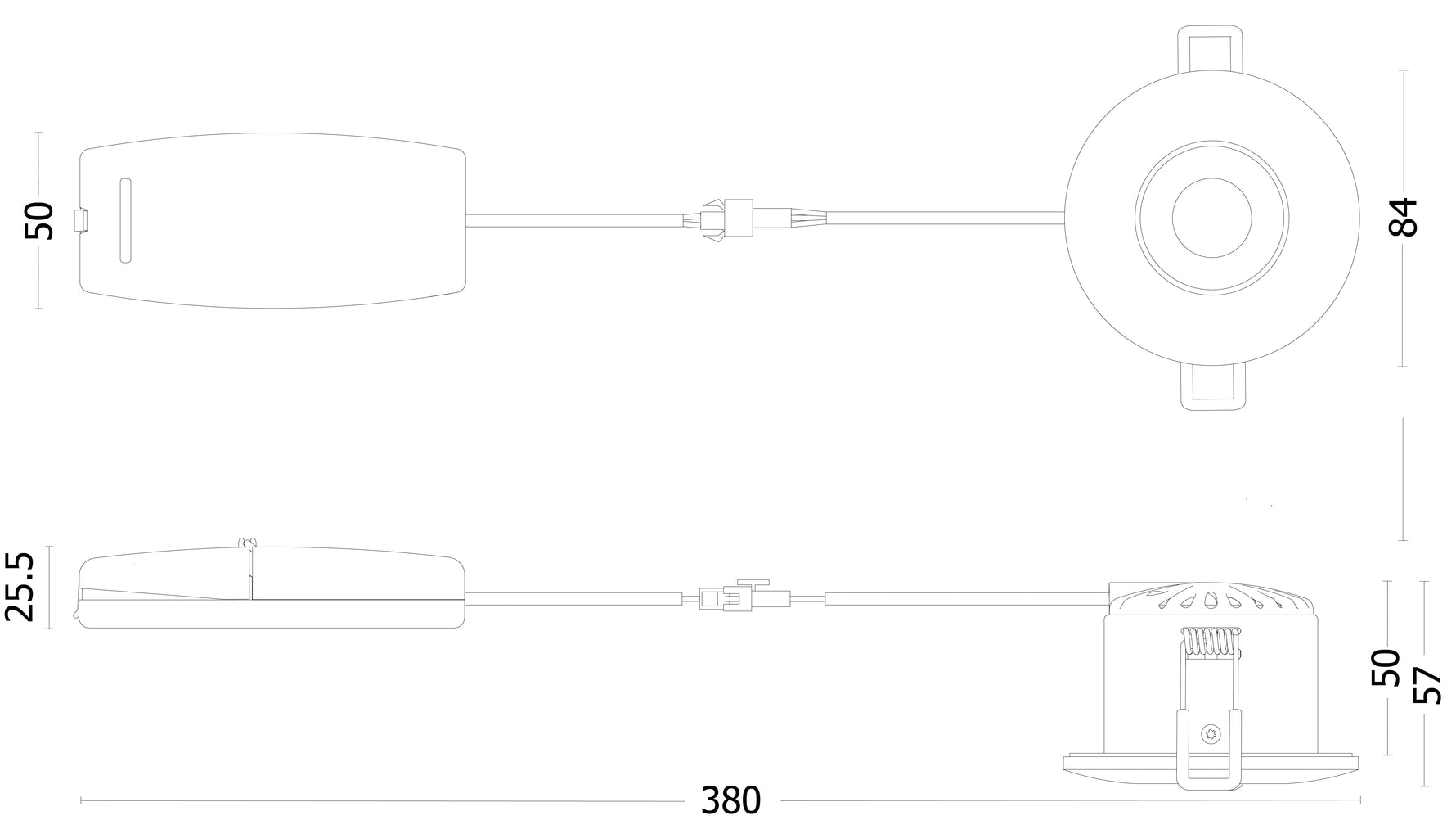

JCC - Overall dimensions (mm) Rim - Ø84
JCC - Diameter (mm) - 84
JCC - Height (mm) - 67.7
