JCC Lighting JC1001WHCP V50™ Fire-rated Downlight 6W IP65 C/W White bezel Contractor Pack (QTY 10)
JCC Lighting JC1001WHCP V50™ Fire-rated Downlight 6W IP65 C/W White bezel Contractor Pack (QTY 10) is backordered and will ship as soon as it is back in stock.
Two colour selectable from below the ceiling 3000K & 4000K
Ultra-low profile suitable for shallow 50mm ceiling voids
Tested for use in ?re-rated ceilings
IP65 suitable for bathrooms (internal use only)

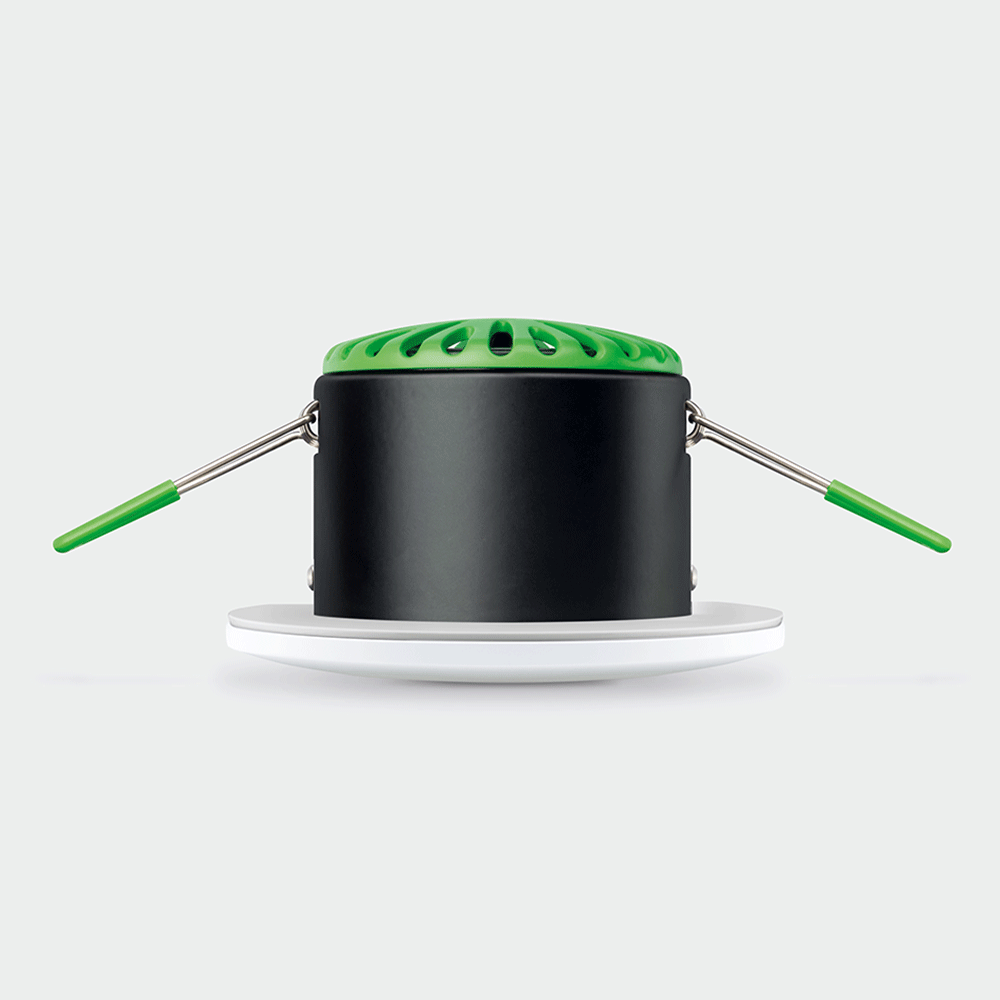

Strong protected spring clips

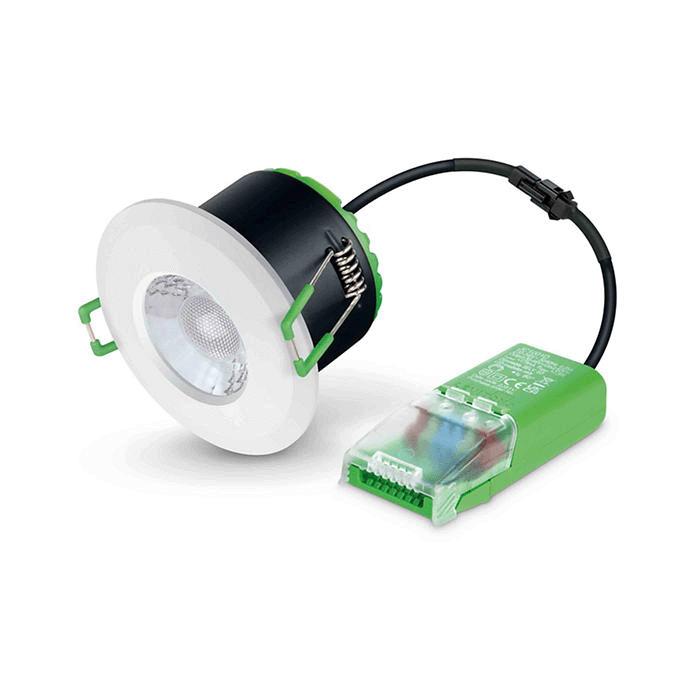

Fast push-fit termination with remote driver

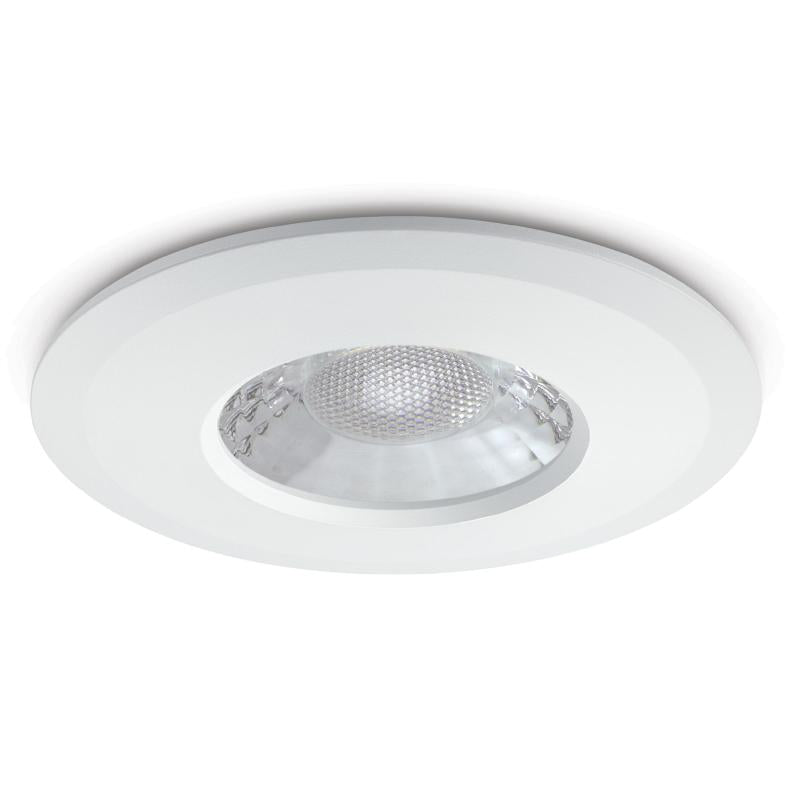

Twist & lock bezel design
Available as complete fixture (JC1001) or without bezel (JC1001/NB)
JC1001/NB requires separate bezel (JC1006)
2 years standard warranty extends to a 3 year commercial warranty or 5 year domestic warranty when registered within the first year of purchase (See Website for terms and conditions)
This product contains a light source of energy efficiency class D
Manufacturers Part Number - JC1001WHCP
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544122835
JCC - Primary Material - Steel
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Operating Temperature Range °C - 0 to 26
JCC - Dimmable - Yes
JCC - Output Voltage Max/Range (VDC) - 30-44
JCC - Class - II
JCC - Luminaire Circuit Wattage - 6
JCC - Rating(Amp) - 6
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 0.325A
JCC - Primary Running Current(Amp) - 0.042
JCC - Secondary running current(mA) - 145
JCC - Voltage Rating - 230-240
JCC - Dimming Protocol Compatibility - Triac
JCC - Warranty - 5 Year Warranty(domestic) 3 Year( Commercial) (See Website for terms and conditions)
JCC - IP Rating - IP65
JCC - Product Aperture Size - 70mm
JCC - Method of fix - Recessed with Spring Clips

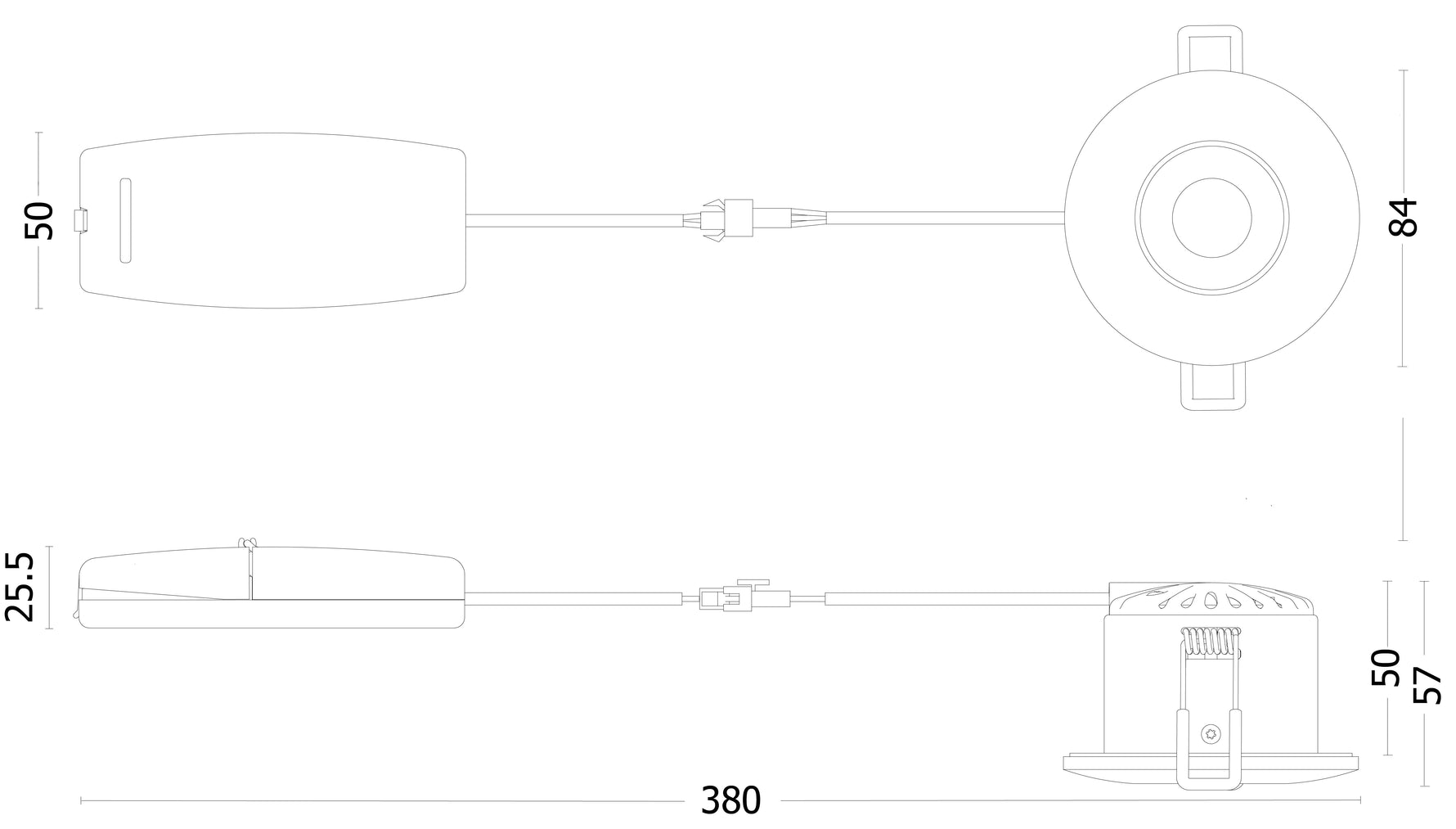

JCC - Overall dimensions (mm) Rim - Ø84 x 67.7
JCC - Diameter (mm) - 84
JCC - Height (mm) - 67.7
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Fire-Rated Downlights/V50_IS.pdf
