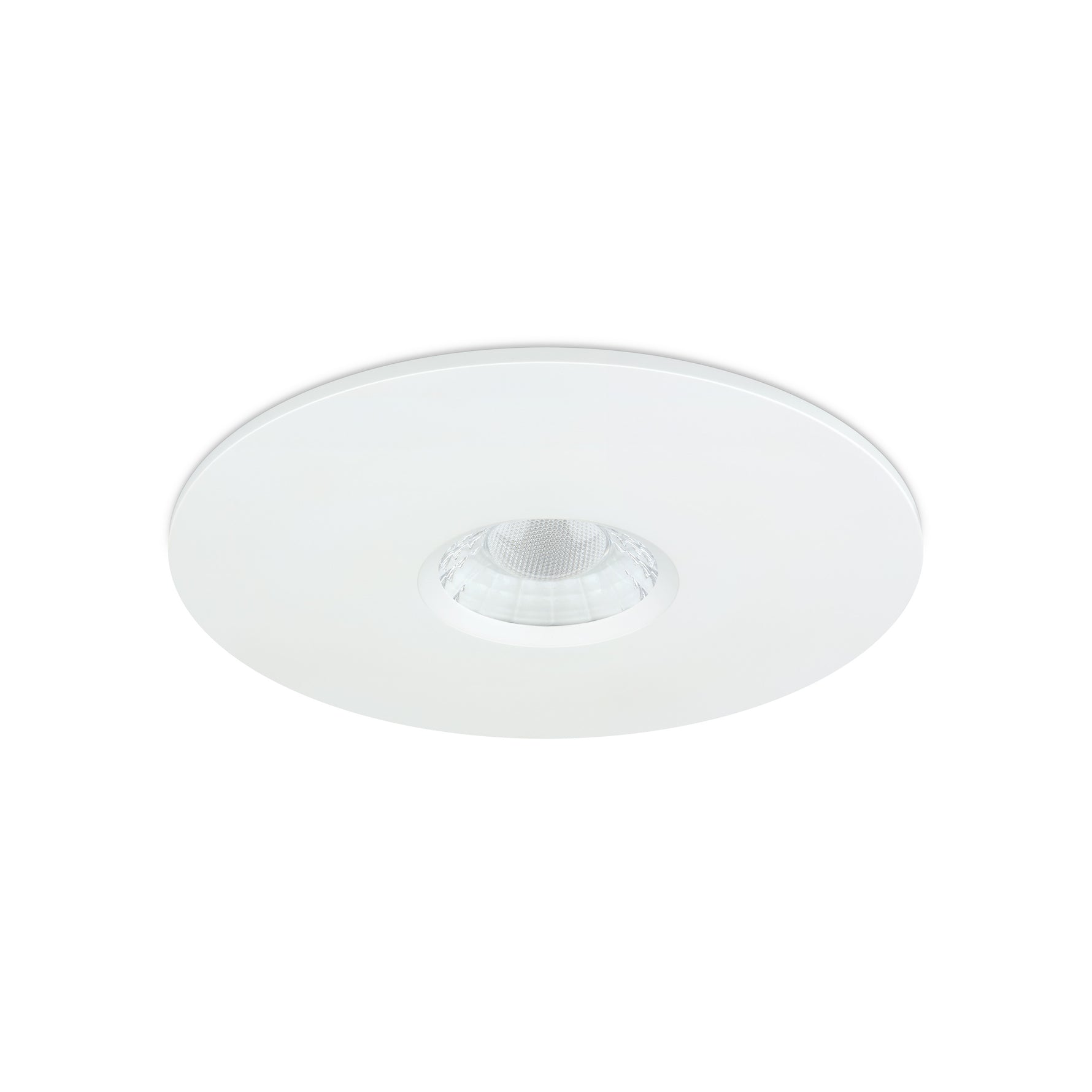

JCC Lighting Part Number JC1015/WH V50™ Pro Retrofit 135mm Fire-rated LED Downlight 6W IP65 3000/4000K White

JCC Lighting V50™ Pro range of Led Lighting Product Code = JC1015/WH
V50™ Pro Retrofit 135mm Fire-rated LED Downlight 6W IP65 3000/4000K White
Slim profile 3mm bezel with a slimline double hinged driver, including colour coded loop in/loop out terminals Allows for retrofit where larger downlights were previously installed covers ceiling cut-outs Ø70-127mm Ideal for damage from previous fittings or replacement of traditional large fittings Low profile design, for installations in shallow 50mm ceiling voids Selectable colour temperature from beneath the ceiling, 3000K & 4000K See jcc.co.uk for latest Fire test reports This product contains a light source of energy efficiency class F

Manufacturer - JCC Lighting
Manufacturers Part Number - JC1015/WH
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544112621
JCC - Primary Material - Steel
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Operating Temperature Range °C - 0 to 26
JCC - Dimmable - Yes
JCC - Output Voltage Max/Range (VDC) - 30-44
JCC - Class - II
JCC - Luminaire Circuit Wattage - 6
JCC - Rating(Amp) - 6
JCC - Operating Frequency Hz - 50/60Hz
JCC - Primary Running Current(Amp) - 0.042
JCC - Secondary running current(mA) - 145
JCC - Voltage Rating - 230-240
JCC - Dimming Protocol Compatibility - Triac
JCC - Warranty - 5 Year Warranty(domestic) 3 Year( Commercial) (See Website for terms and conditions)
JCC - IP Rating - IP65
JCC - Product Aperture Size - Ø70-127mm
JCC - Method of fix - Recessed with Spring Clips

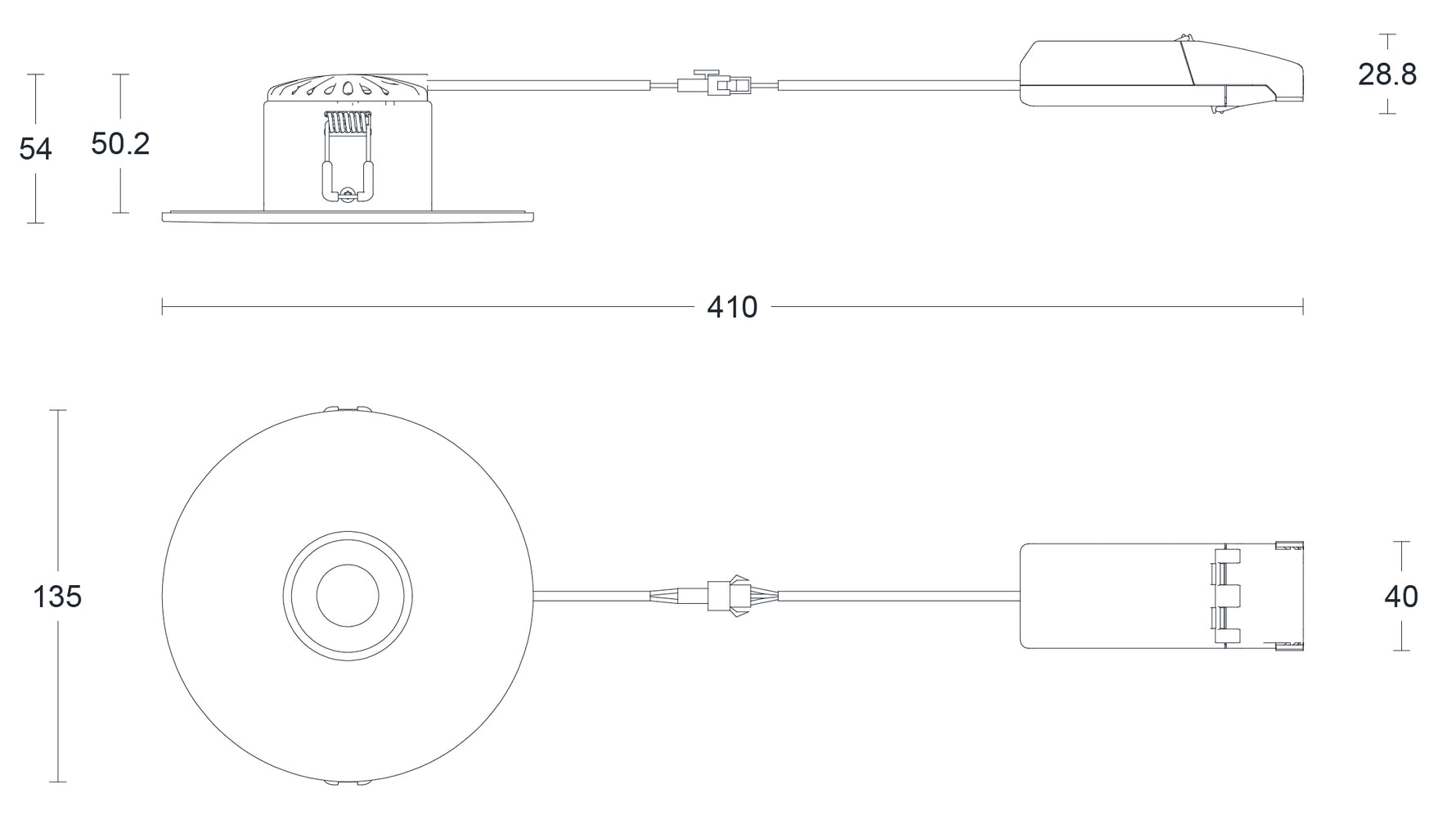

JCC - Overall dimensions (mm) Rim - Ø135
JCC - Diameter (mm) - 135
JCC - Height (mm) - 54
JCC - Color Finish - White
