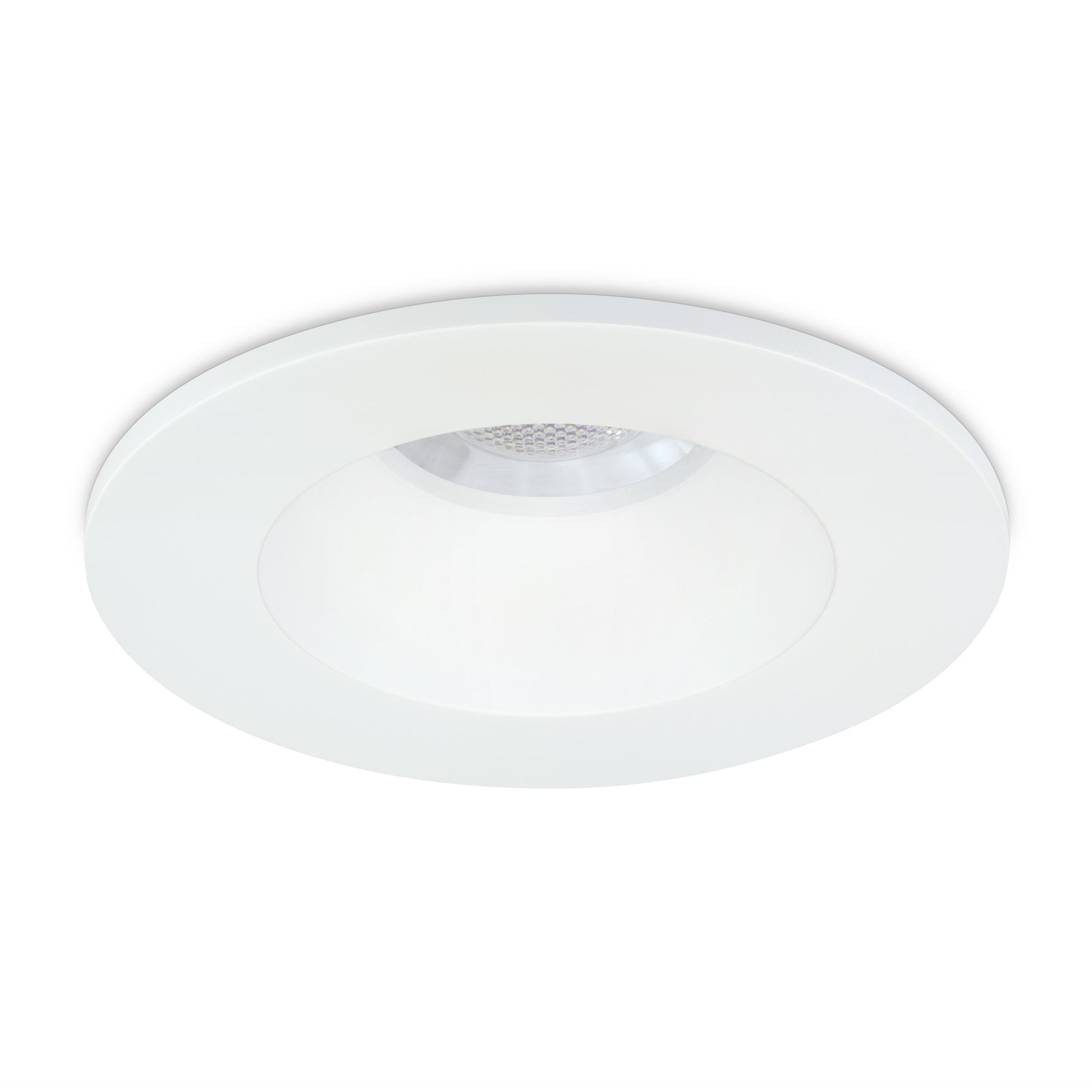

JCC Lighting Part Number JC1019/WHDALI V50 Pro Anti-glare Fire-rated LED Downlight 6W IP65 3000K/4000K White DALI

JCC Lighting V50™ Pro range of Led Lighting Product Code = JC1019/WHDALI
V50 Pro Anti-glare Fire-rated LED Downlight 6W IP65 3000K/4000K White DALI
Slim profile 3mm bezel with a slimline double hinged driver, including colour coded loop in/loop out terminals Recessed lens to reduce glare, suitable for cut outs Ø70-76mm Low profile design, for installations in shallow 50mm ceiling voids Selectable colour temperature from beneath the ceiling, 3000K & 4000K See jcc.co.uk for latest Fire test reports

Manufacturer - JCC Lighting
Manufacturers Part Number - JC1019/WHDALI
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544118180
JCC - Primary Material - Steel
JCC -Beam Angle ° - 60
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Operating Temperature Range °C - 0 to 26
JCC - Dimmable - Yes, DALI/1-10V
JCC - Output Voltage Max/Range (VDC) - 30-44
JCC - Class - II
JCC - Luminaire Circuit Wattage - 6
JCC - Rating(Amp) - 6
JCC - Operating Frequency Hz - 50/60Hz
JCC - Primary Running Current(Amp) - 0.065
JCC - Secondary running current(mA) - 160
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - DALI/1-10V
JCC - Warranty - 5 Year Warranty(domestic) 3 Year( Commercial) (See Website for terms and conditions)
JCC - IP Rating - IP65
JCC - Product Aperture Size - Ø70-76mm
JCC - Method of fix - Recessed with Spring Clips

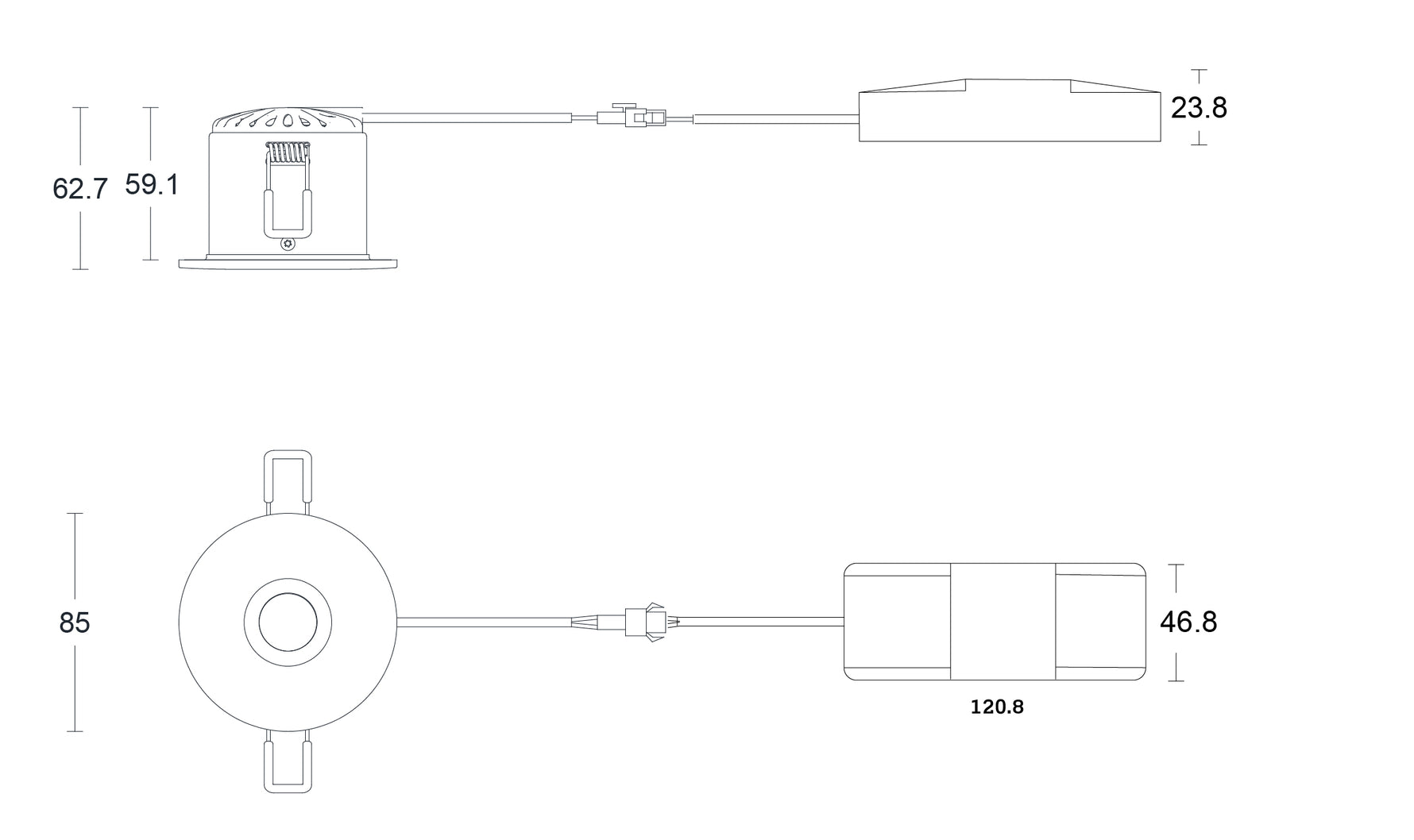

JCC - Overall dimensions (mm) Rim - Ø85
JCC - Diameter (mm) - 85
JCC - Height (mm) - 62.7
JCC - Color Finish - White bezel, black inner cone
