SKU: JC180047/DALI

Barcode: 5052544114625

JCC Lighting

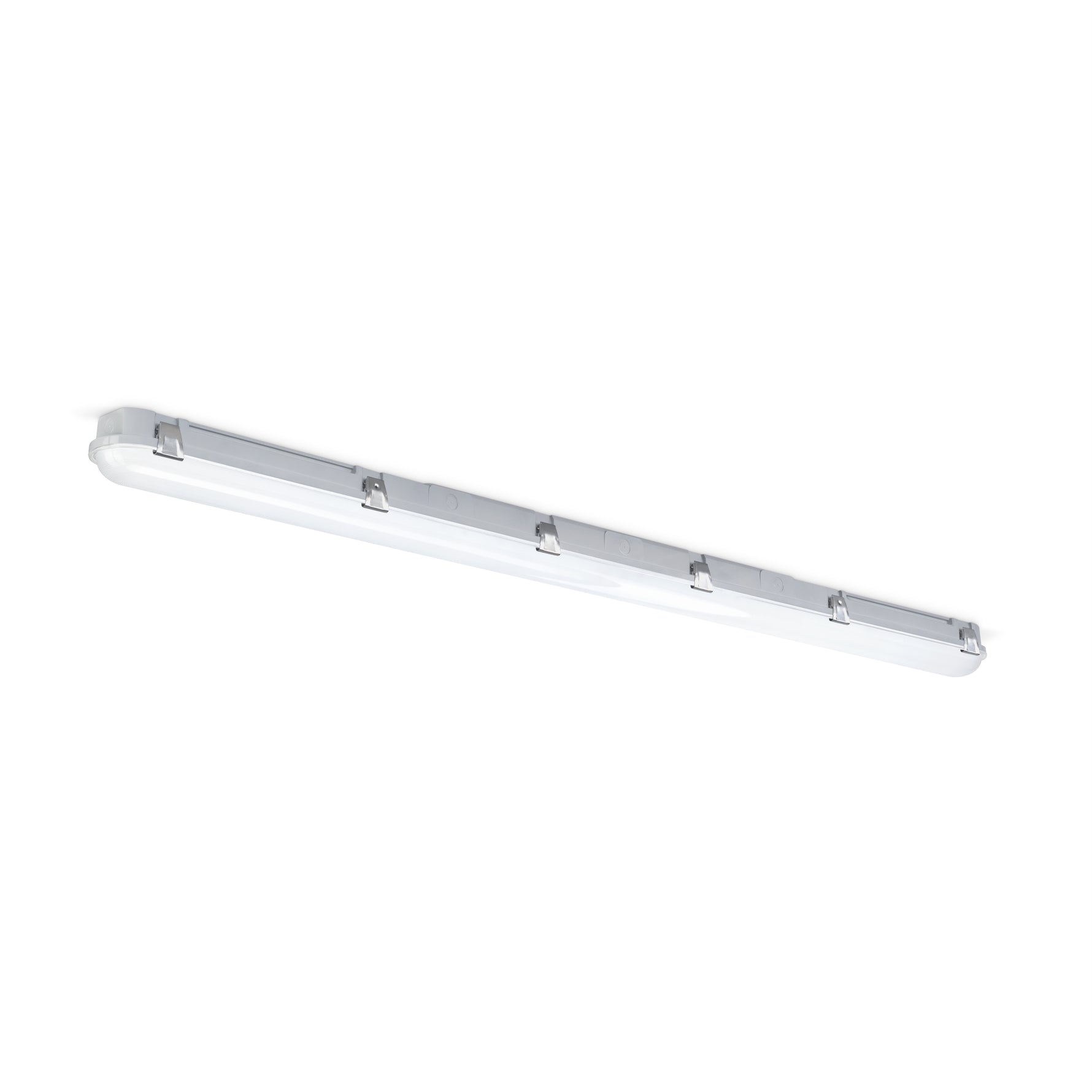

JCC Lighting JC180047/DALI ToughLED™ Pro 1500mm 5ft Single 29W IP66 4000K DALI WOP

(0)

£74.10 £228.42

High efficiency up to 145 LpcW, IP66, IK10

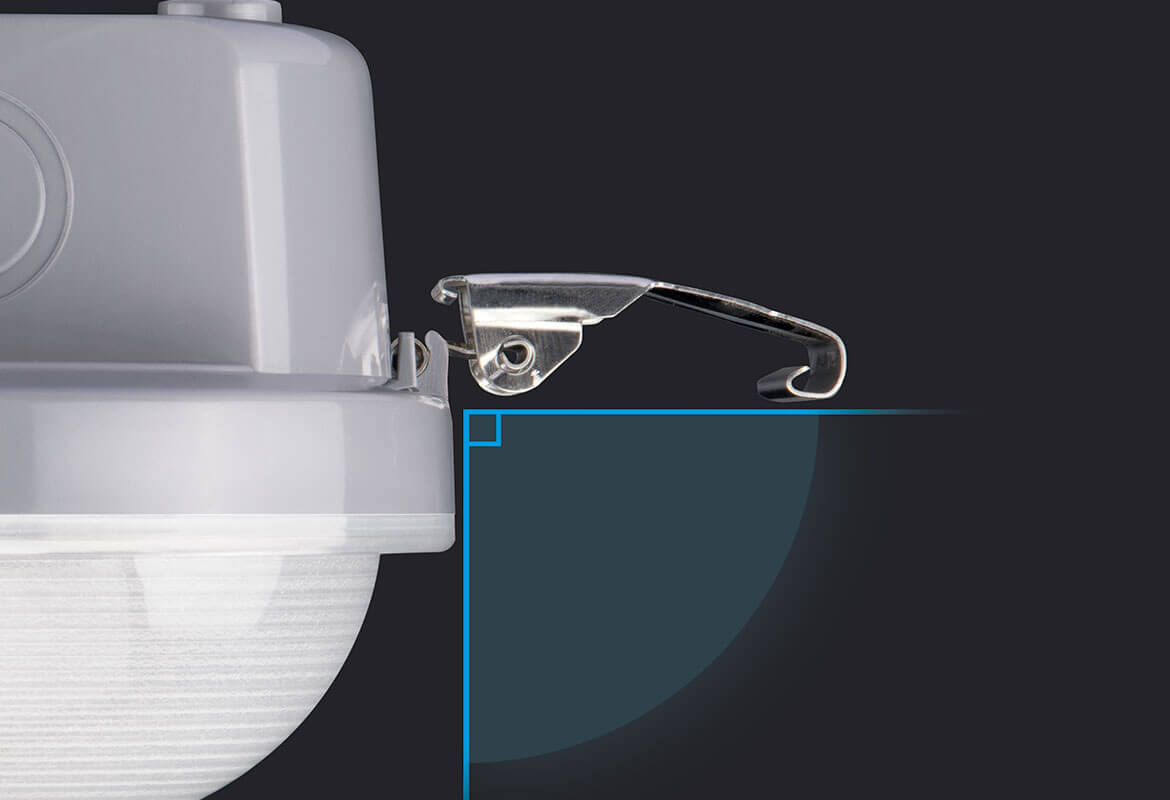

90º Lock-in-place side clip design, keeps clips clear during installation

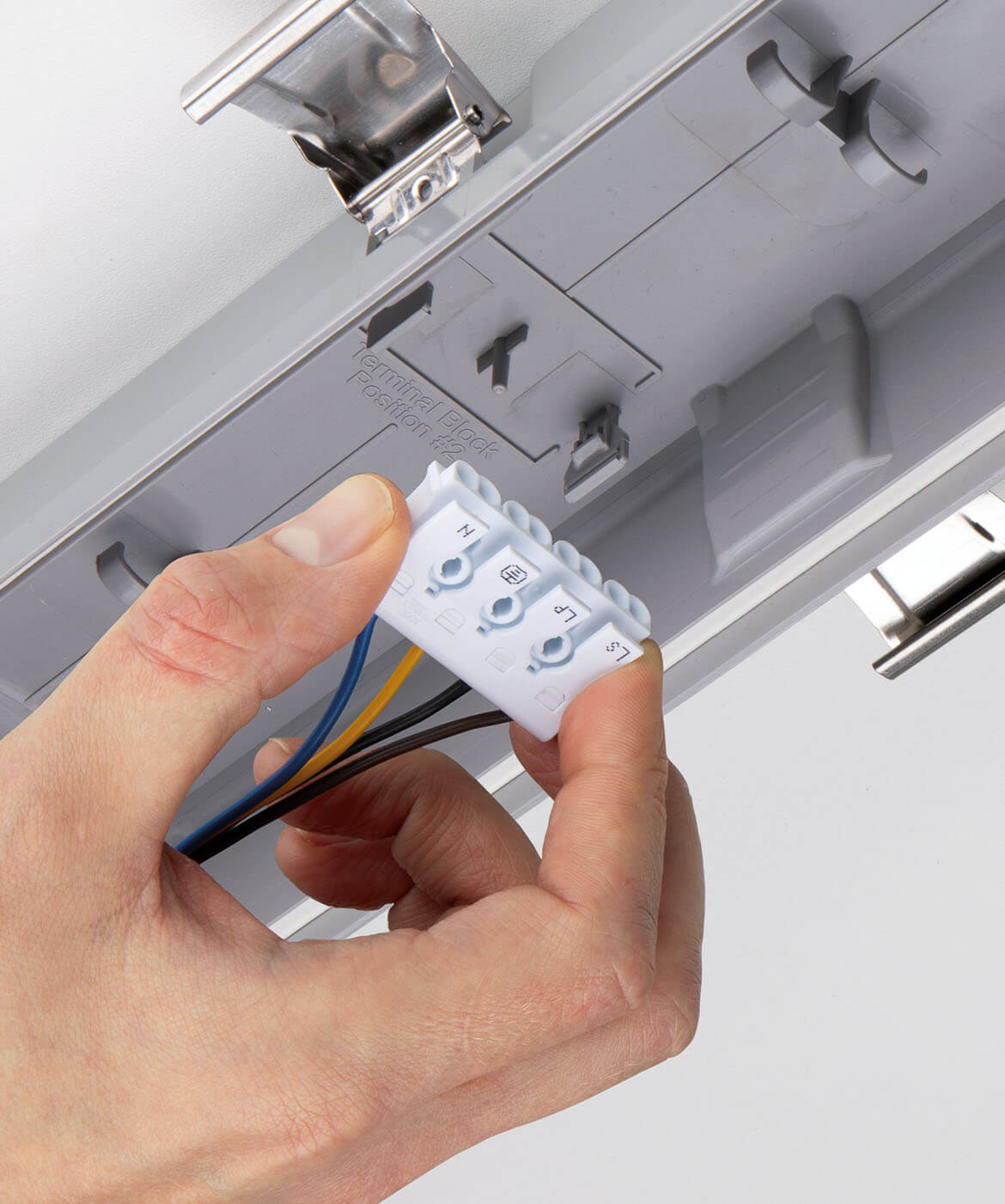

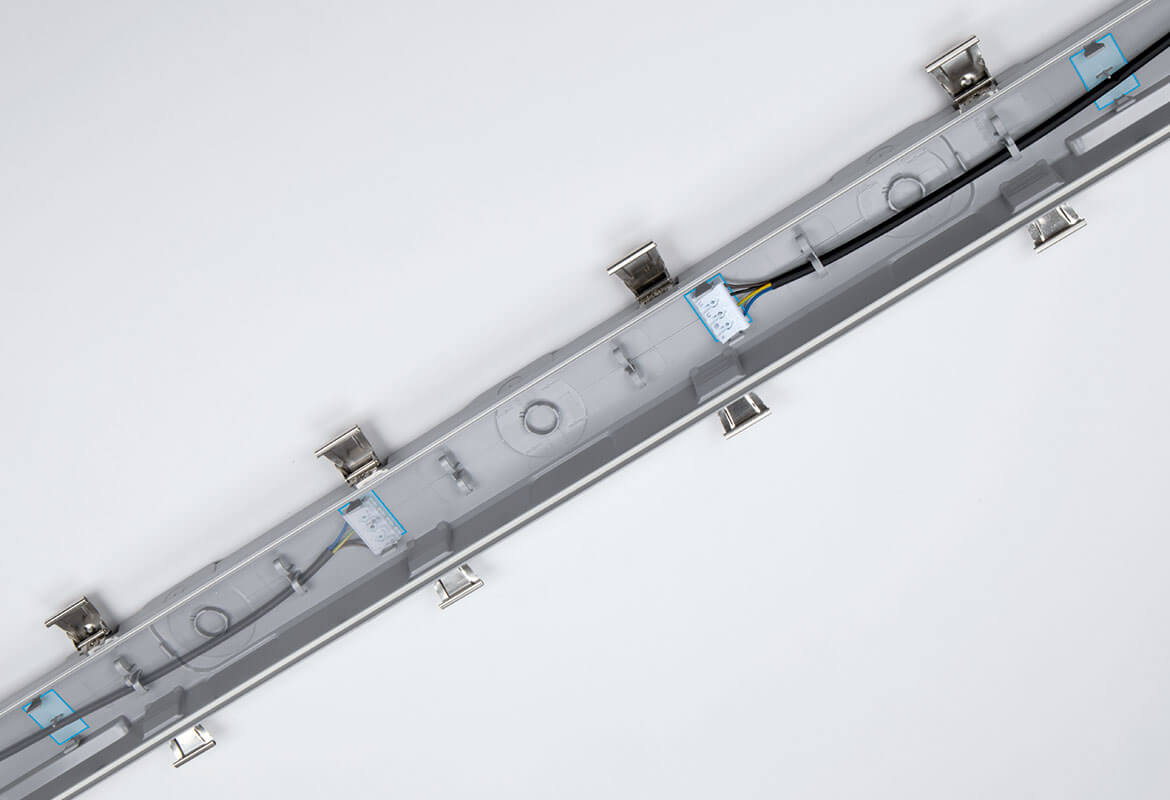

Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points
Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash when closing the fixture
Plug & play emergency & microwave sensor modules with optional remote control

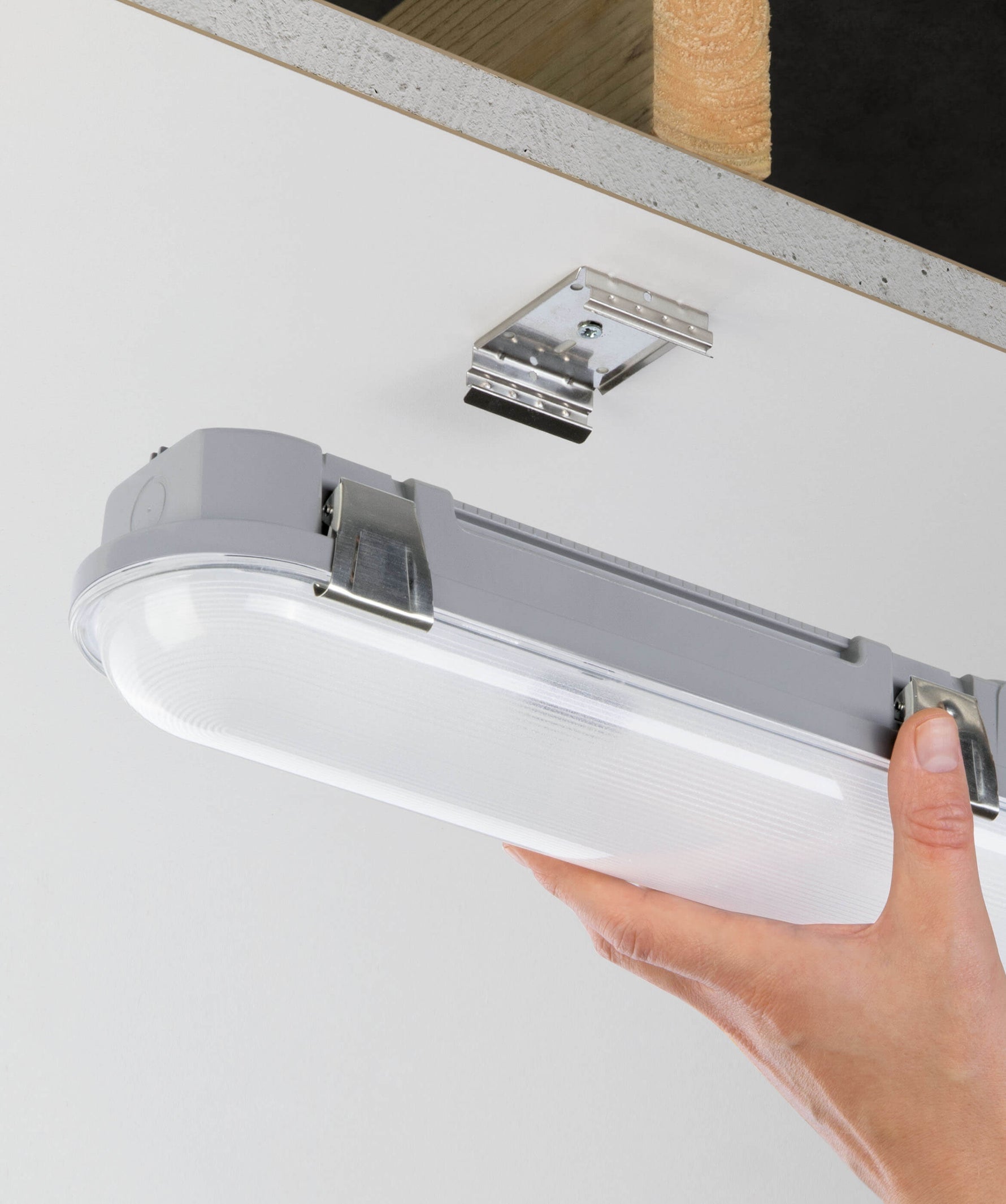

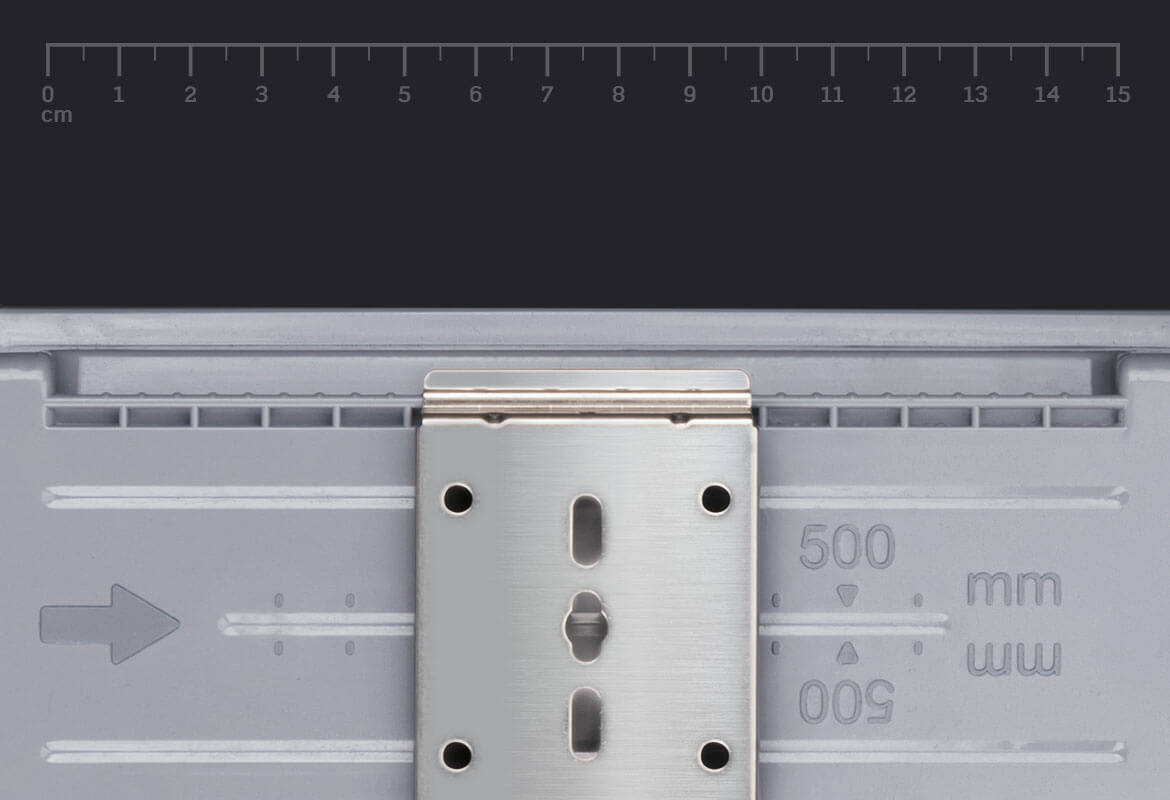

Ultra-wide surface mount bracket rail to enable flexibility to locate joists

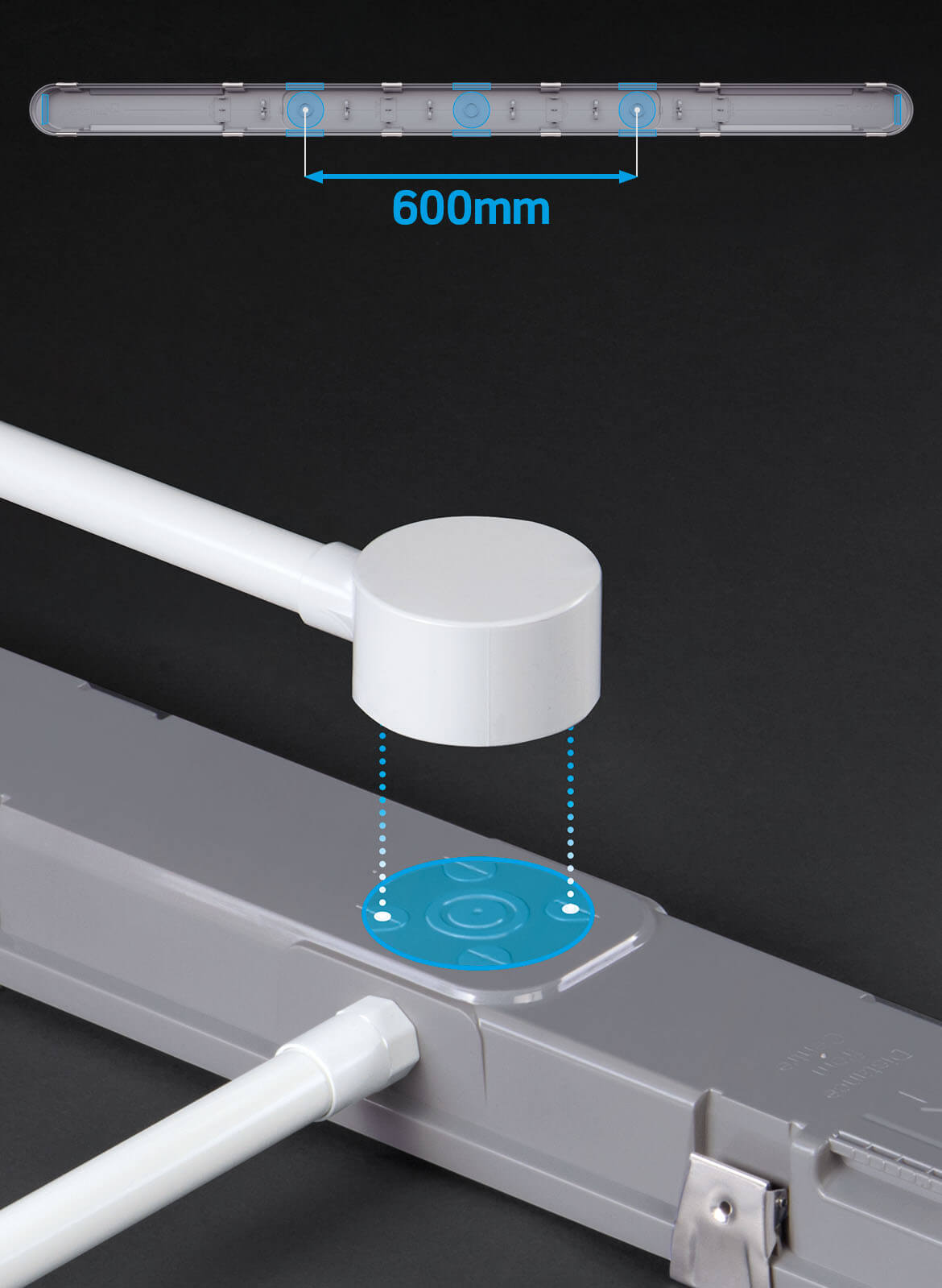

Wide body for retrofitting BESA conduit box mounting, with rear, side and end conduit entry points

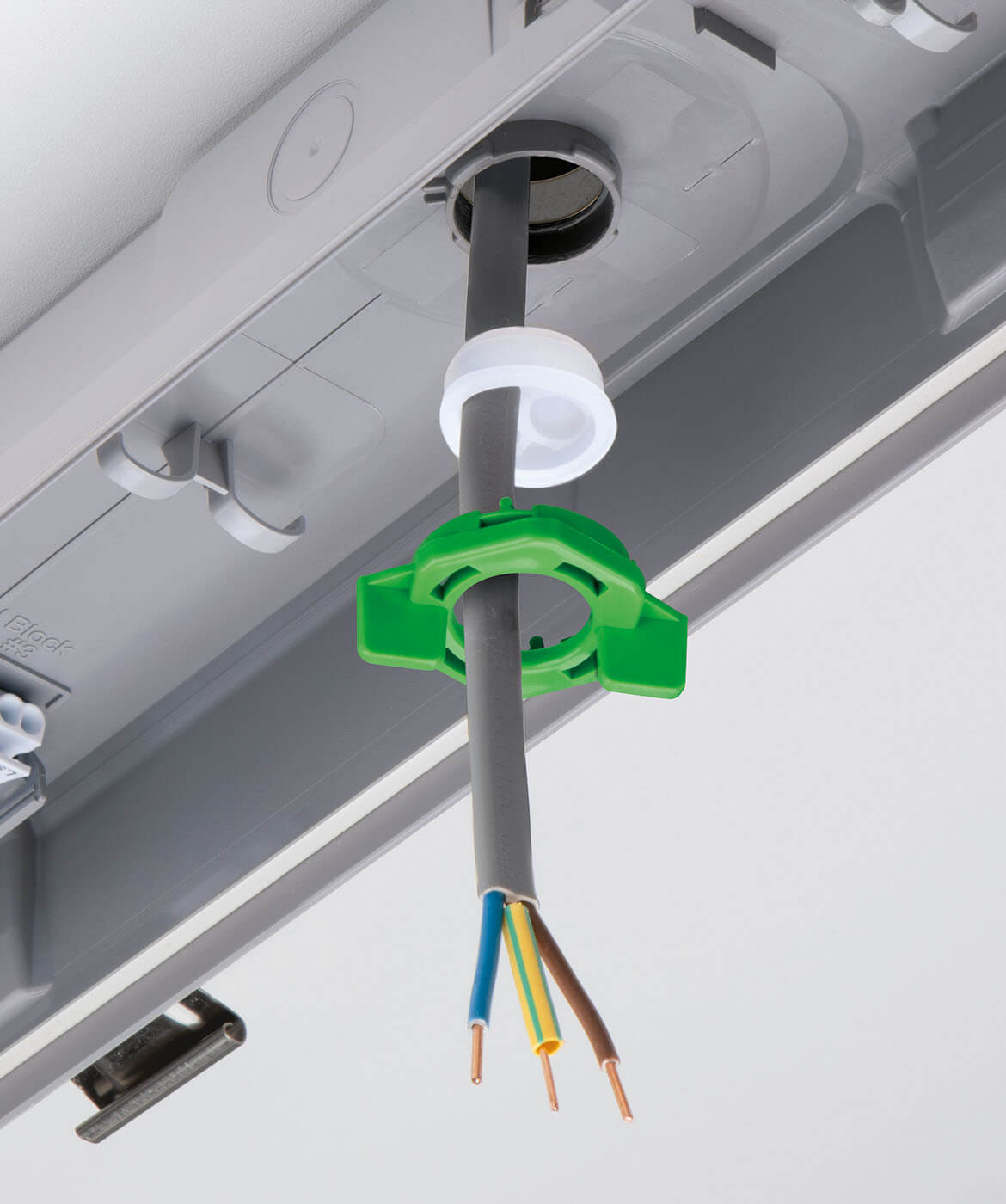

Unique rear IP66 gasket, sealing cable entry from within the fixture for surface mounting applications
4ft, 5ft, 6ft single and twin light outputs in both opal and prismatic diffuser options
Microwave step dimmable, DALI and 1-10V dimmable options available
5-year extended warranty on fixture and batteries, which uses LifePO4 batteries for improved performance and life

Manufacturer - JCC Lighting
Manufacturers Part Number - JC180047/DALI
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544114625
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 120
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Operating Temperature Range °C - -20 to +50
JCC - Dimmable - DALI
JCC - Power Factor Correction - 0.98
JCC - Total Harmonic Distortion (THD)% - 5
JCC - Output Voltage Max/Range (VDC) - 20-54
JCC - Class - I
JCC - Luminaire Circuit Wattage - 29
JCC - Rating(Amp) - 29
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 20 @100us
JCC - Primary Running Current(Amp) - 0.2
JCC - Secondary running current(mA) - 500
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - DALI
JCC - Warranty - 5 Year Warranty (5 years on batteries) (See Website for terms and conditions)
JCC - Suitable For Zones - Zone 1
JCC - IK Rating - IK10
JCC - IP Rating - IP66

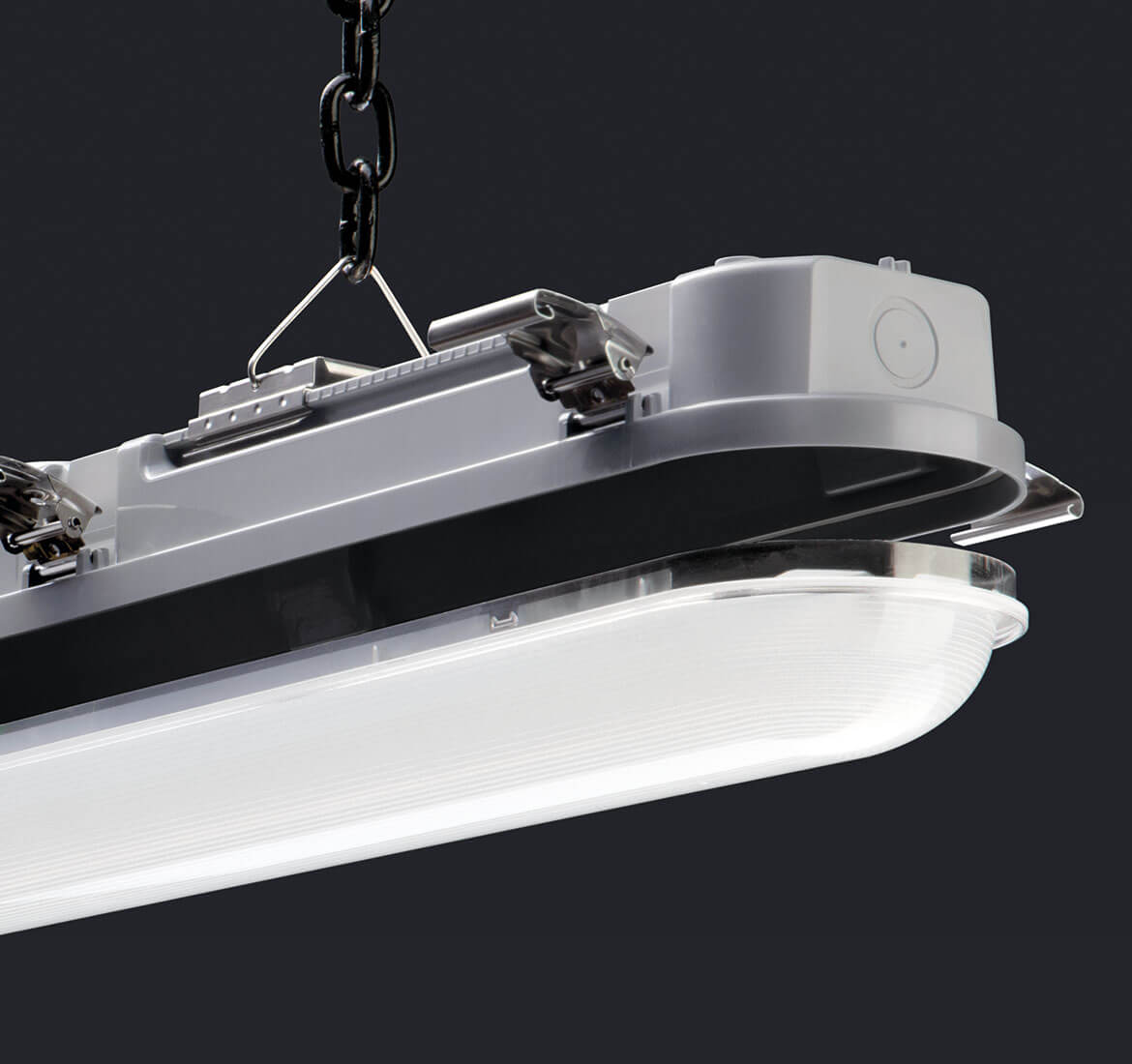

JCC - Method of fix - Mounting Brackets, Suspension chains or conduit mounting

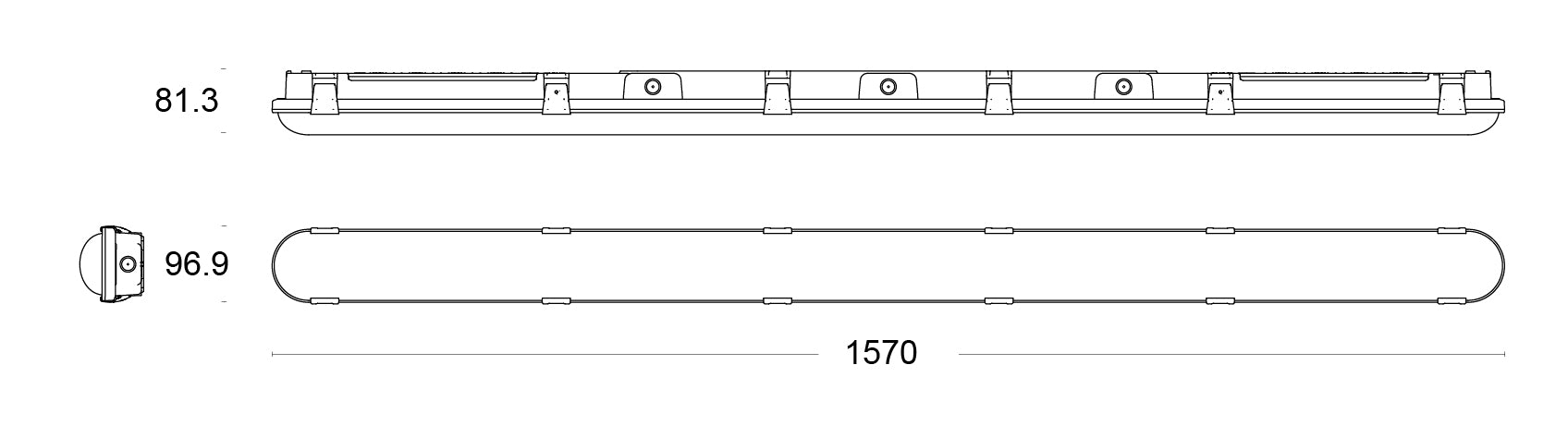

JCC - Overall dimensions (mm) Rim - 1570 x 96 x 81.3
JCC - Height (mm) - 81.3
JCC - Width (mm) - 96
JCC - Length (mm) - 1570
JCC - Color Finish - Grey
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Battens and Weatherproofs/ToughLED Pro/ToughLED Pro-IS.pdf
