JCC Lighting  |  SKU: JC180071/1-10V
Barcode: 5.05E+12

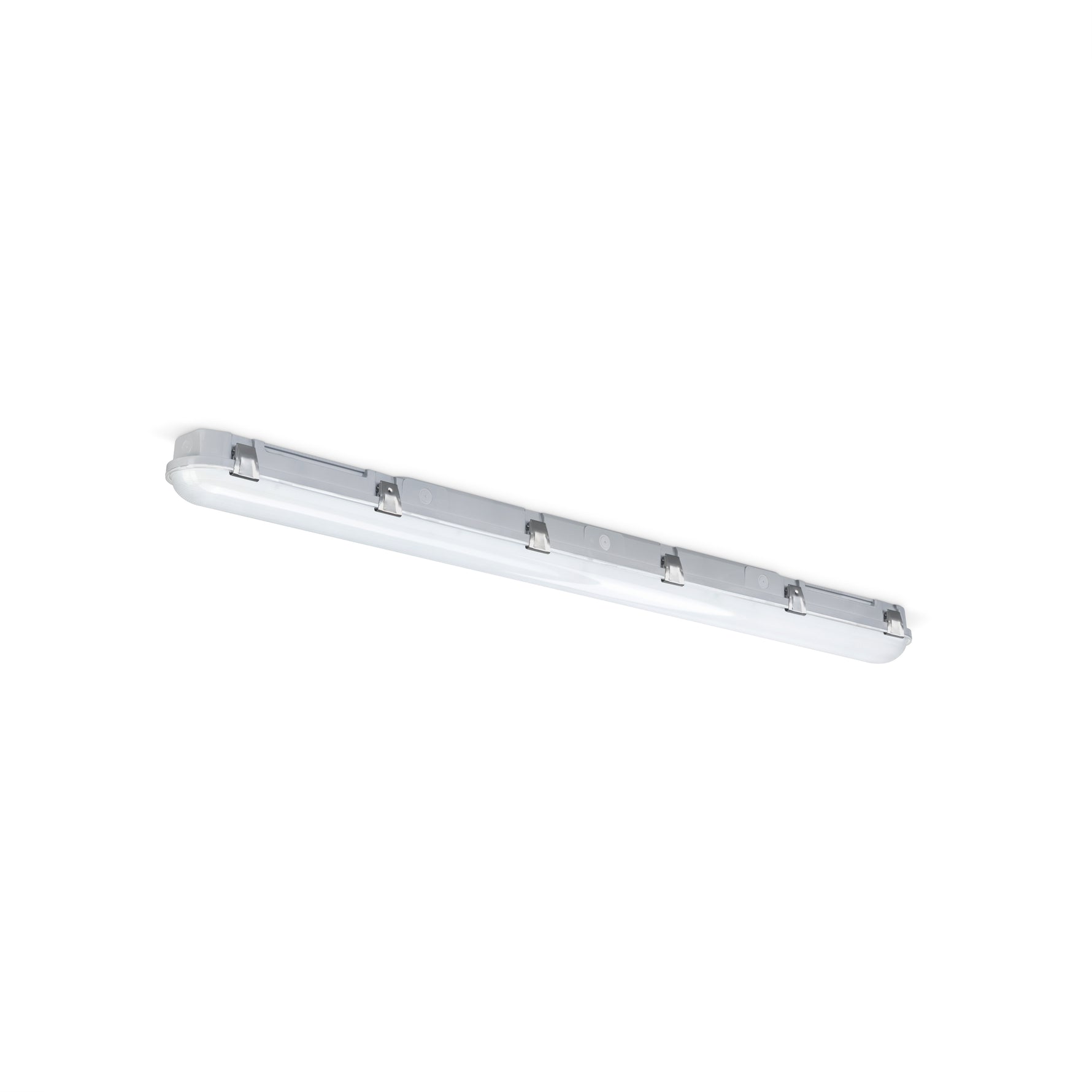

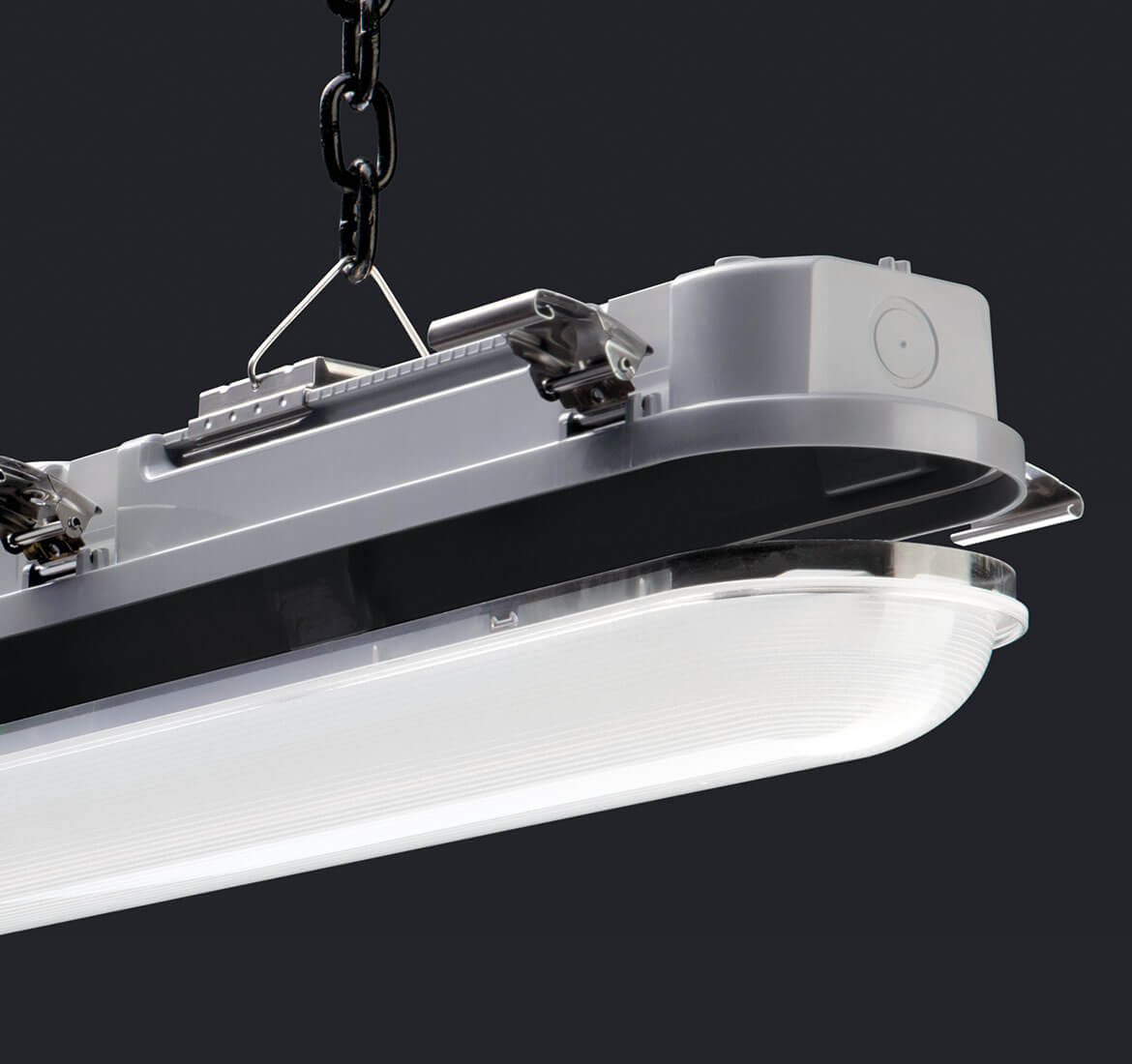

JCC Lighting JC180071/1-10V ToughLED™ Pro 1800mm 6ft Single 39W IP66 4000K 1-10V FR

£88.53 £258.30
Tax included, shipping and discounts calculated at checkout.

Fast Delivery - Normally 1 to 2 days

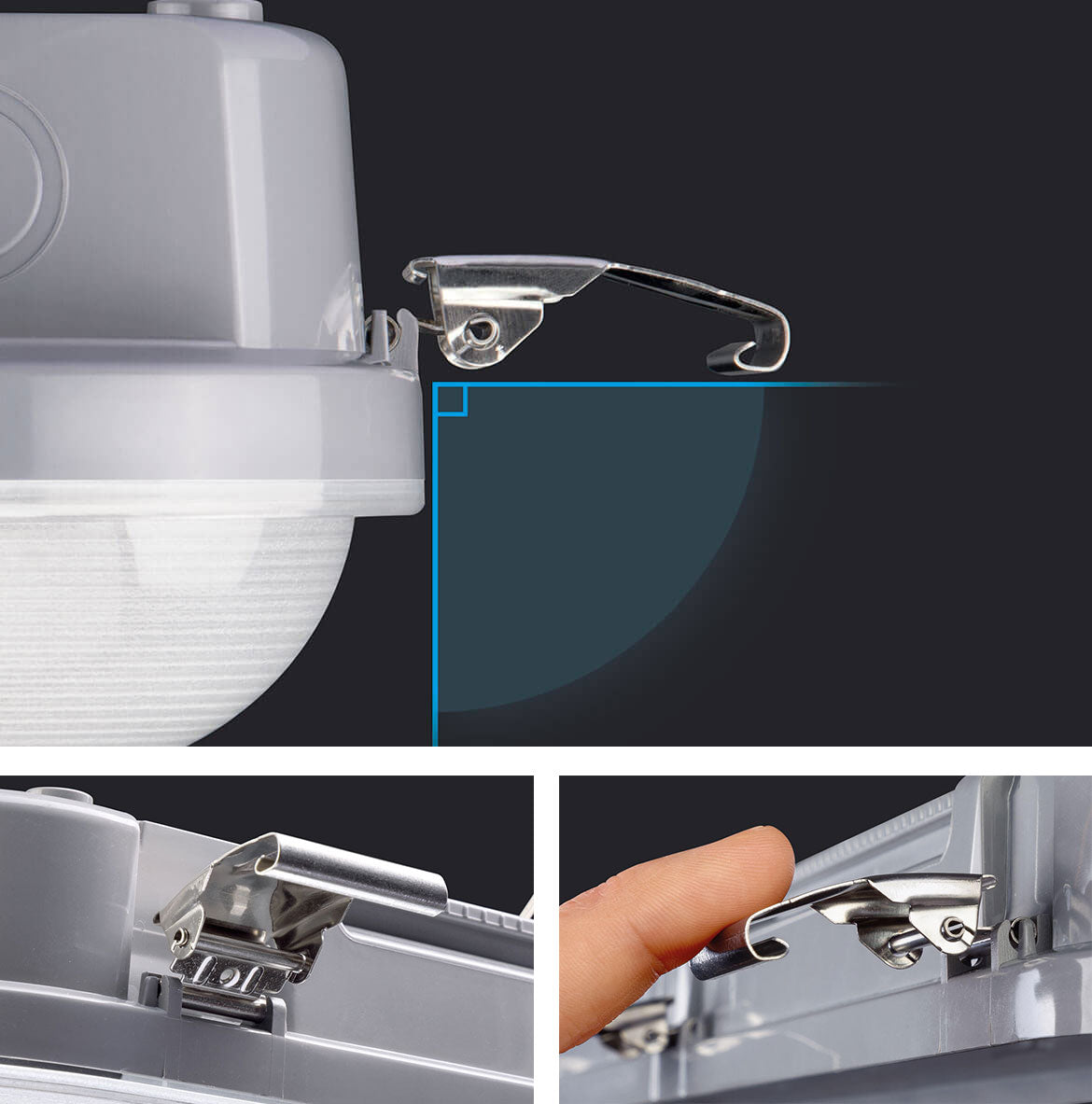

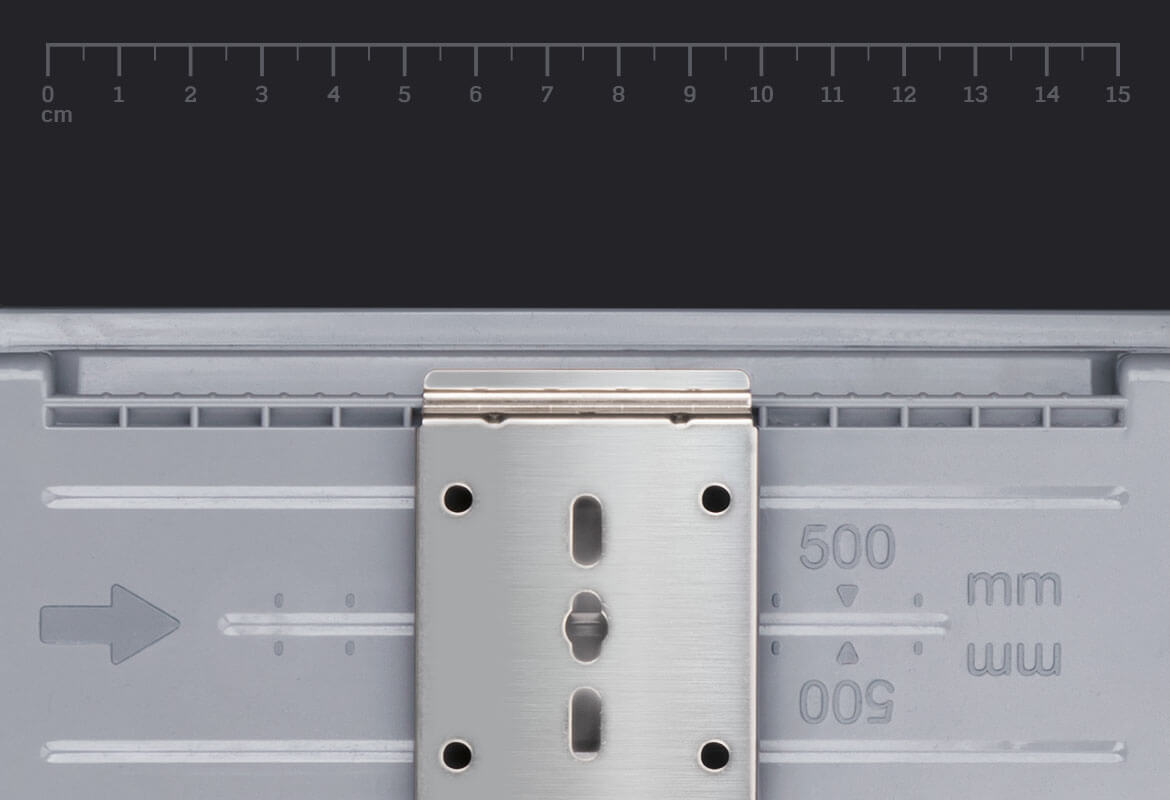

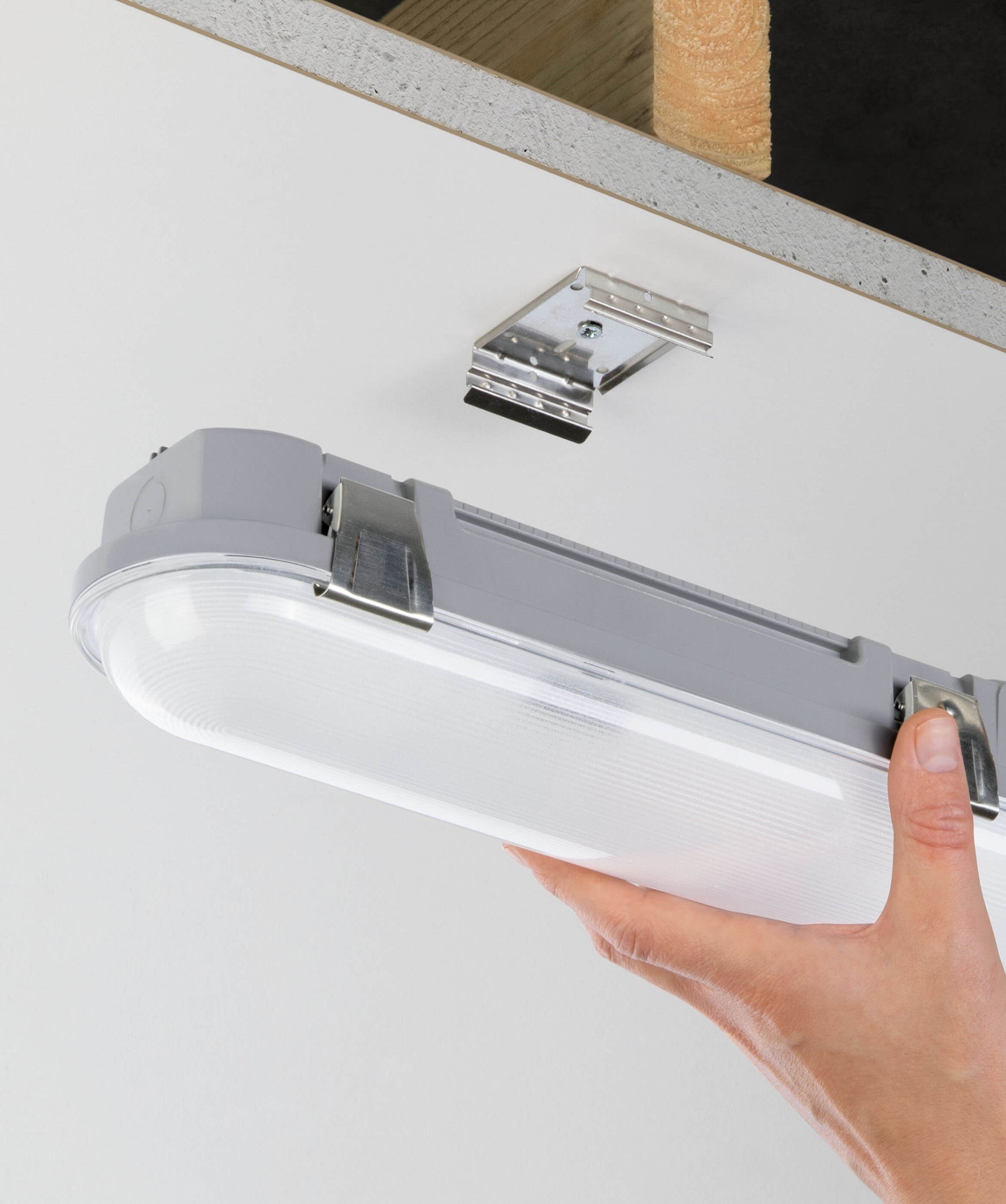

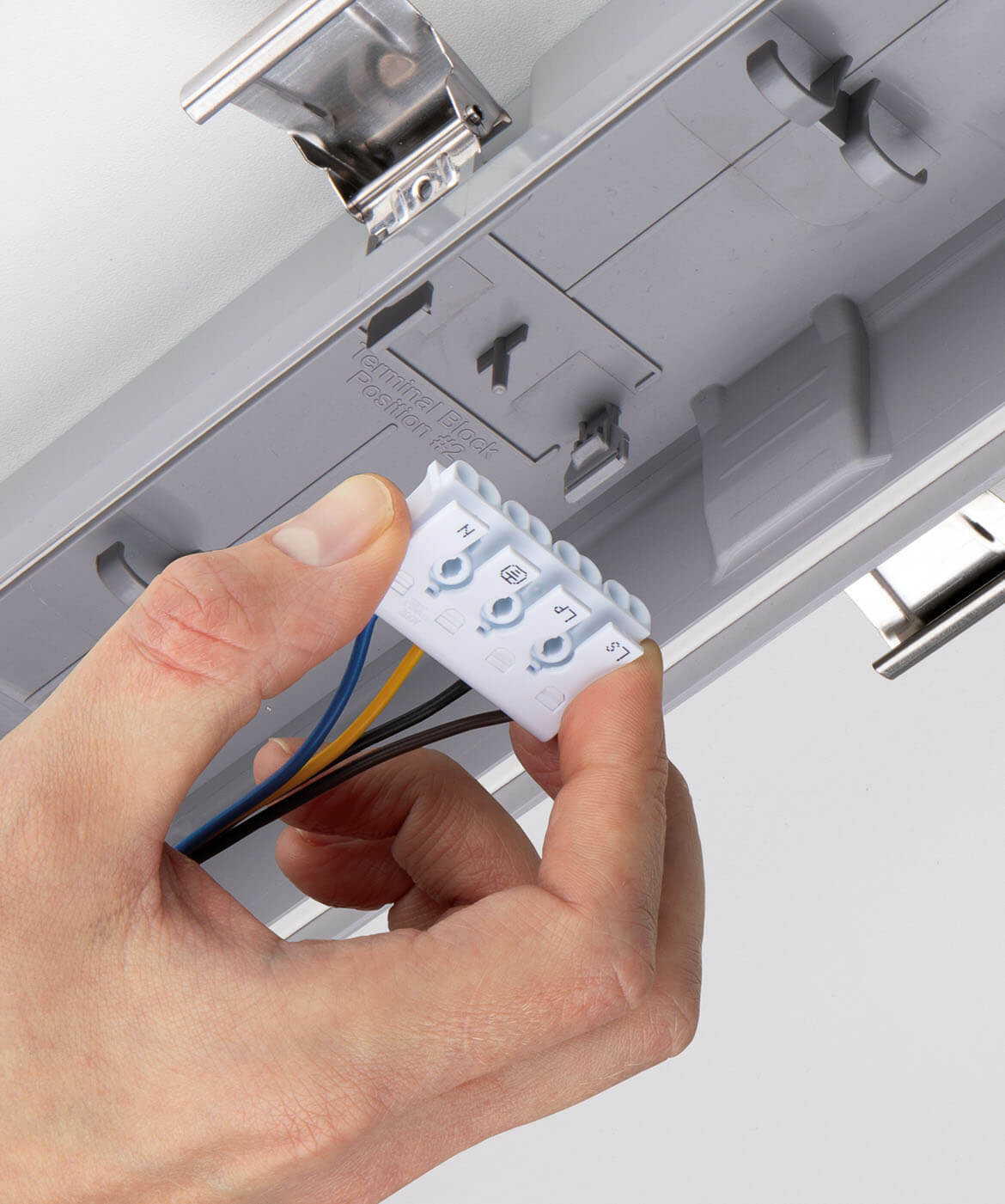

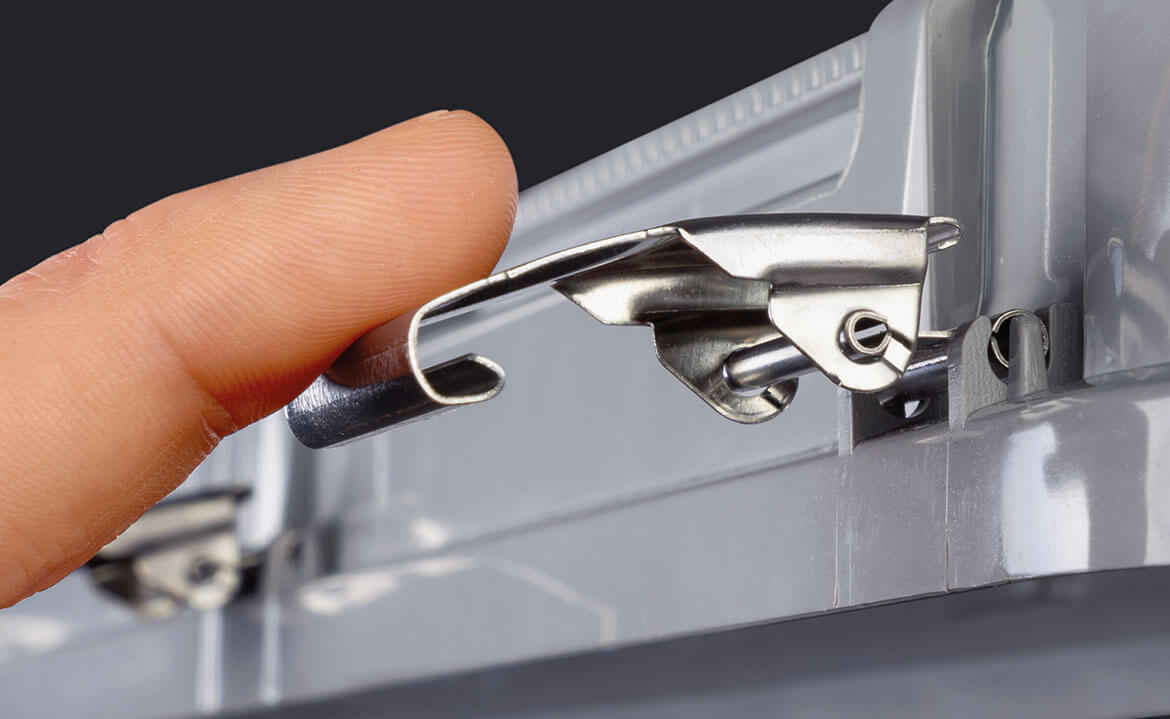

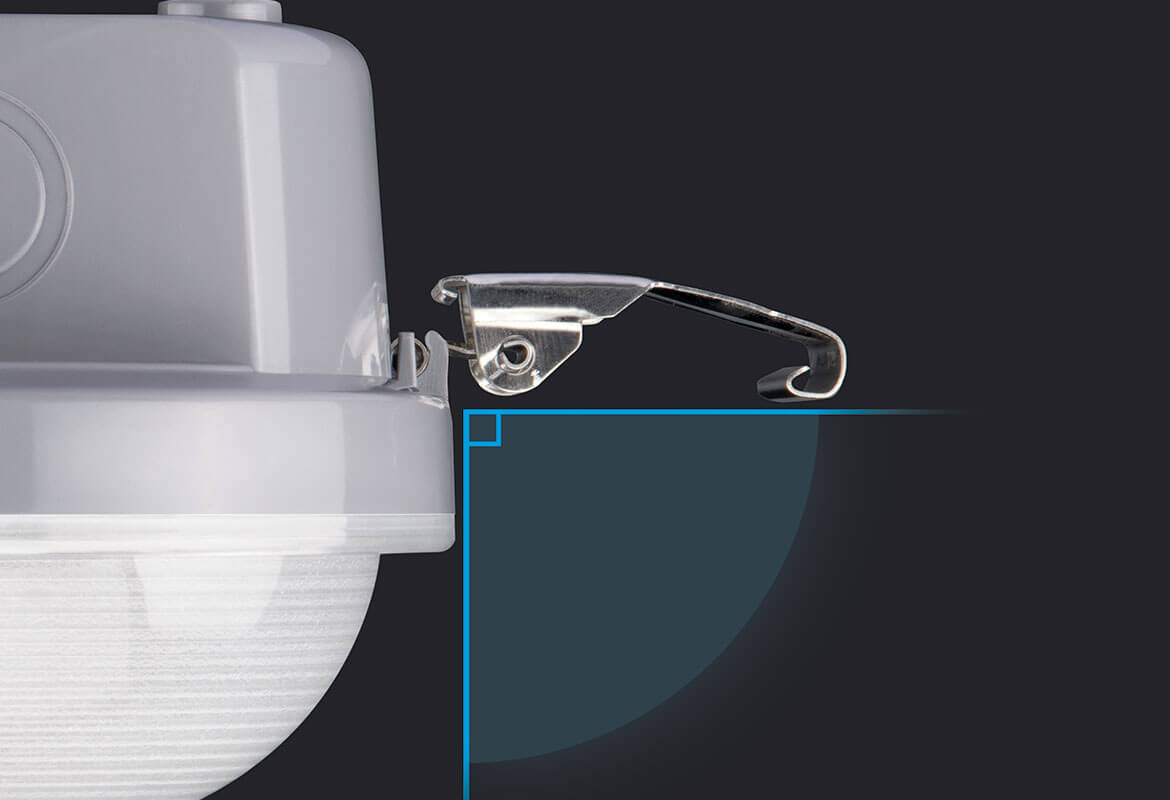

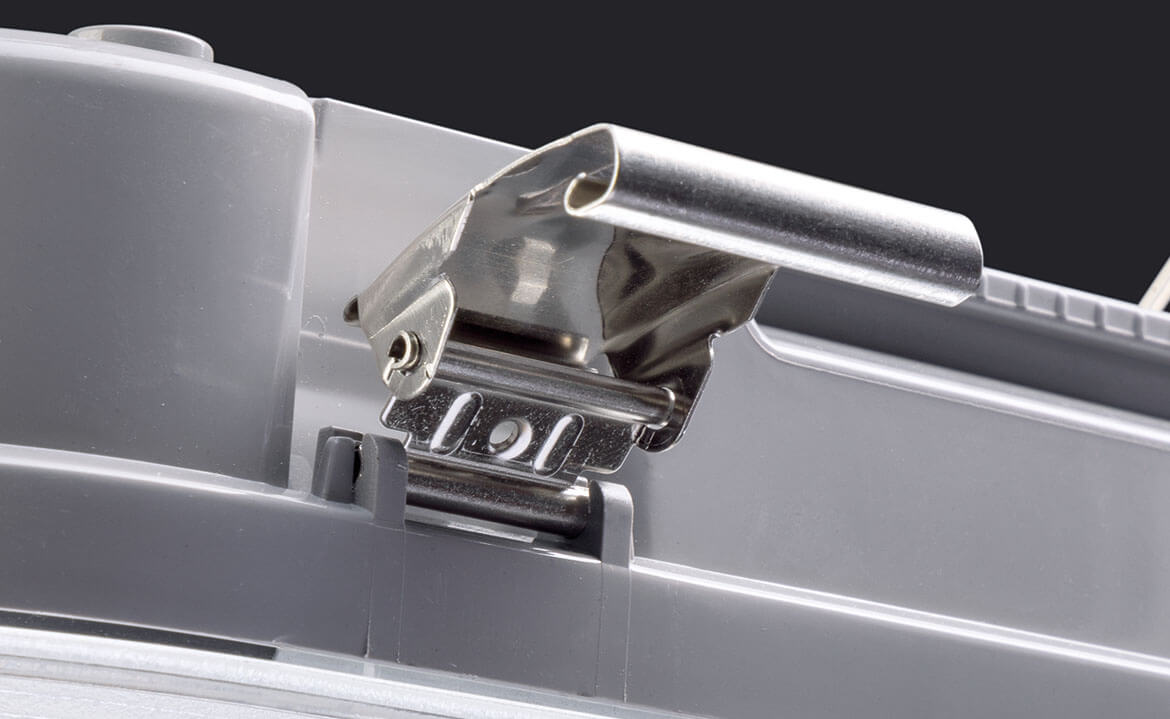

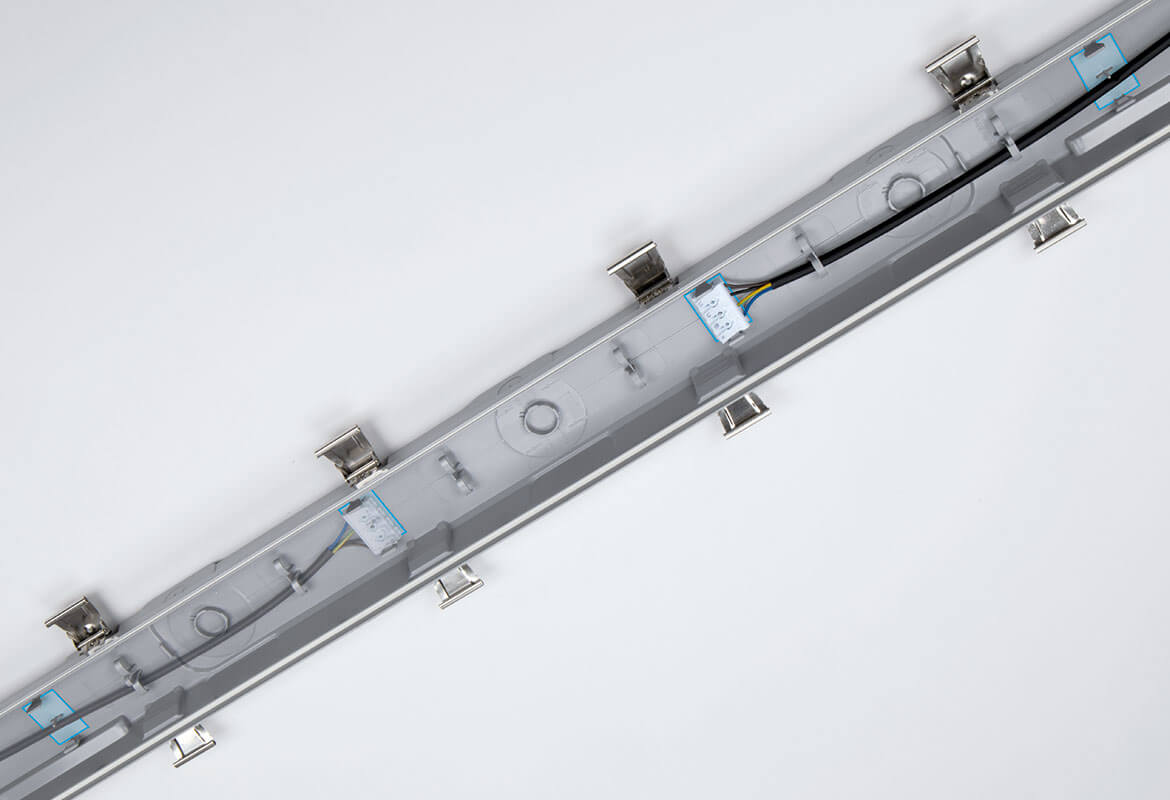

High efficiency up to 145 LpcW, IP66, IK10 90º Lock-in-place side clip design, keeps clips clear during installation Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash when closing the fixture Plug & play emergency & microwave sensor modules with optional remote control Ultra-wide surface mount bracket rail to enable flexibility to locate joists Wide body for retrofitting BESA conduit box mounting, with rear, side and end conduit entry points Unique rear IP66 gasket, sealing cable entry from within the fixture for surface mounting applications 4ft, 5ft, 6ft single and twin light outputs in both opal and prismatic diffuser options Microwave step dimmable, DALI and 1-10V dimmable options available 5-year extended warranty on fixture and batteries, which uses LifePO4 batteries for improved performance and life
Manufacturer - JCC Lighting
Manufacturers Part Number - JC180071/1-10V
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544113857
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 120
JCC - CRI: Ra - 80

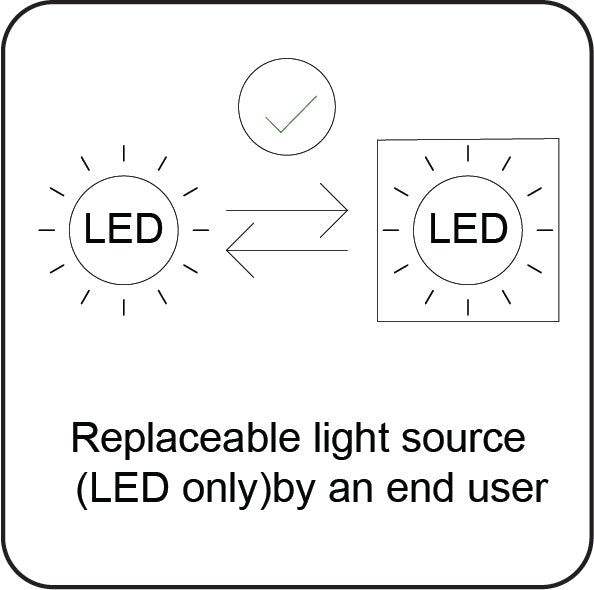

JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Operating Temperature Range °C - -20 to +50
JCC - Dimmable - 1-10V
JCC - Power Factor Correction - 0.98
JCC - Total Harmonic Distortion (THD)% - 5
JCC - Output Voltage Max/Range (VDC) - 20-54
JCC - Class - I
JCC - Luminaire Circuit Wattage - 39
JCC - Rating(Amp) - 39
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 30.4
JCC - Primary Running Current(Amp) - 0.11-0.28
JCC - Secondary running current(mA) - 650
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Zone 1
JCC - IK Rating - IK10
JCC - IP Rating - IP66
JCC - Method of fix - Mounting Brackets, Suspension chains or conduit mounting

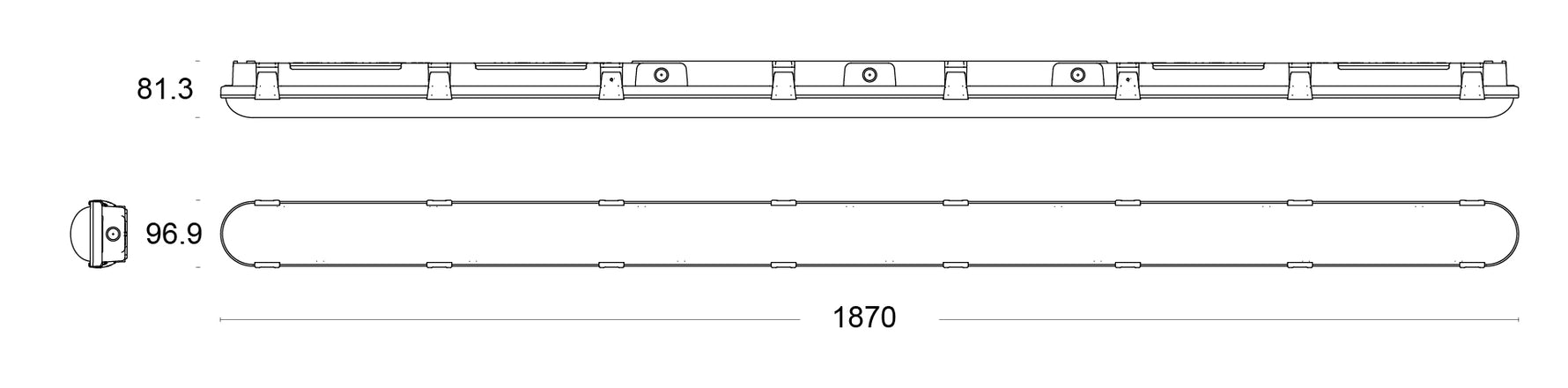

JCC - Height (mm) - 81.3
JCC - Length (mm) - 1870
JCC - Color Finish - Grey
