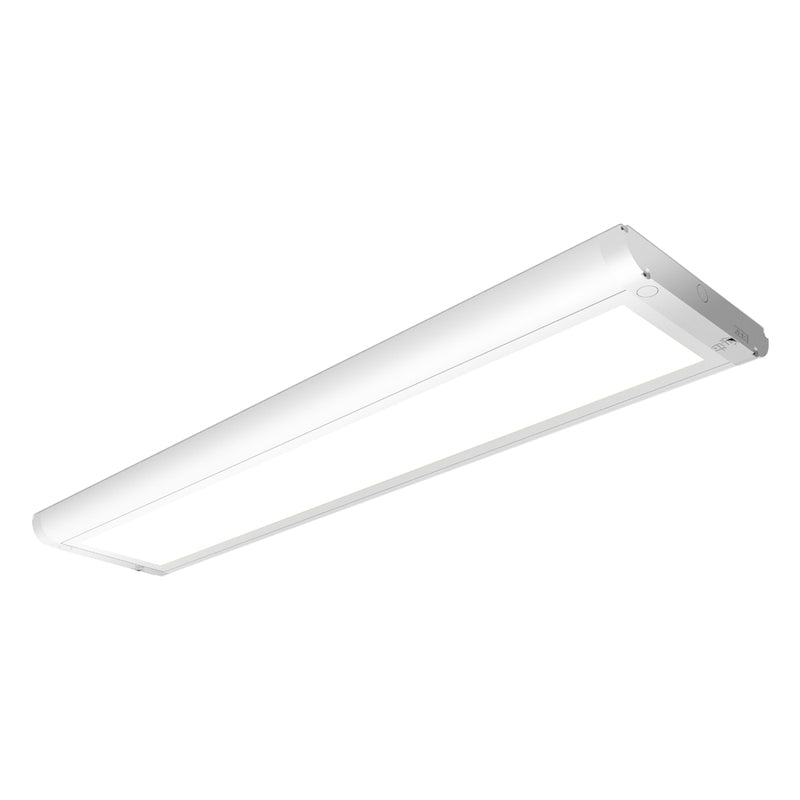

JCC Lighting JC73302/1-10V Skytile Surface Linear IP20 1500mm LED 60W 5700K 1-10V Dimmable

(3)

£247.73 £616.62

Outperforms 2x58W T8 fluorescent Secure anti-tamper design Shallow design ideal for lower mounting heights Easy to clean wipeable surface 1.5m wire suspension kit available

Manufacturer - JCC Lighting
Manufacturers Part Number - JC73302/1-10V
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544102455
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 120
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class G
JCC - Operating Temperature Range °C - -20 to +50
JCC - Dimmable - 1-10V
JCC - Power Factor Correction - 0.98
JCC - Total Harmonic Distortion (THD)% - 5
JCC - Class - I
JCC - Luminaire Circuit Wattage - 60
JCC - Rating(Amp) - 60
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 38A
JCC - Primary Running Current(Amp) - 0.29-0.41
JCC - Secondary running current(mA) - 1500
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - 1-10V
JCC - Warranty - 5 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - IP20
JCC - Method of fix - Screws & Rawl Plugs or conduit mounting
JCC - Height (mm) - 54
JCC - Length (mm) - 1500
JCC - Color Finish - White
