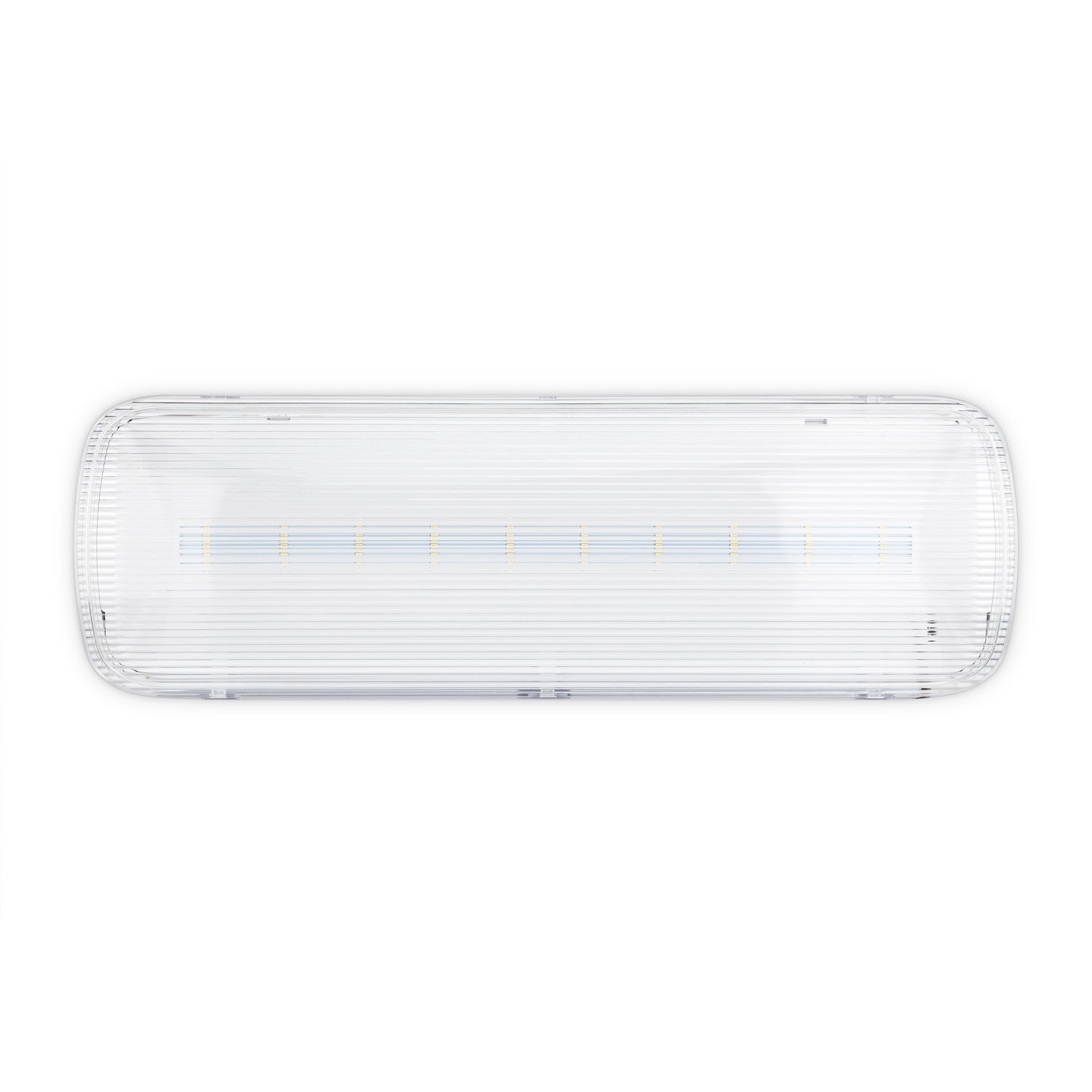

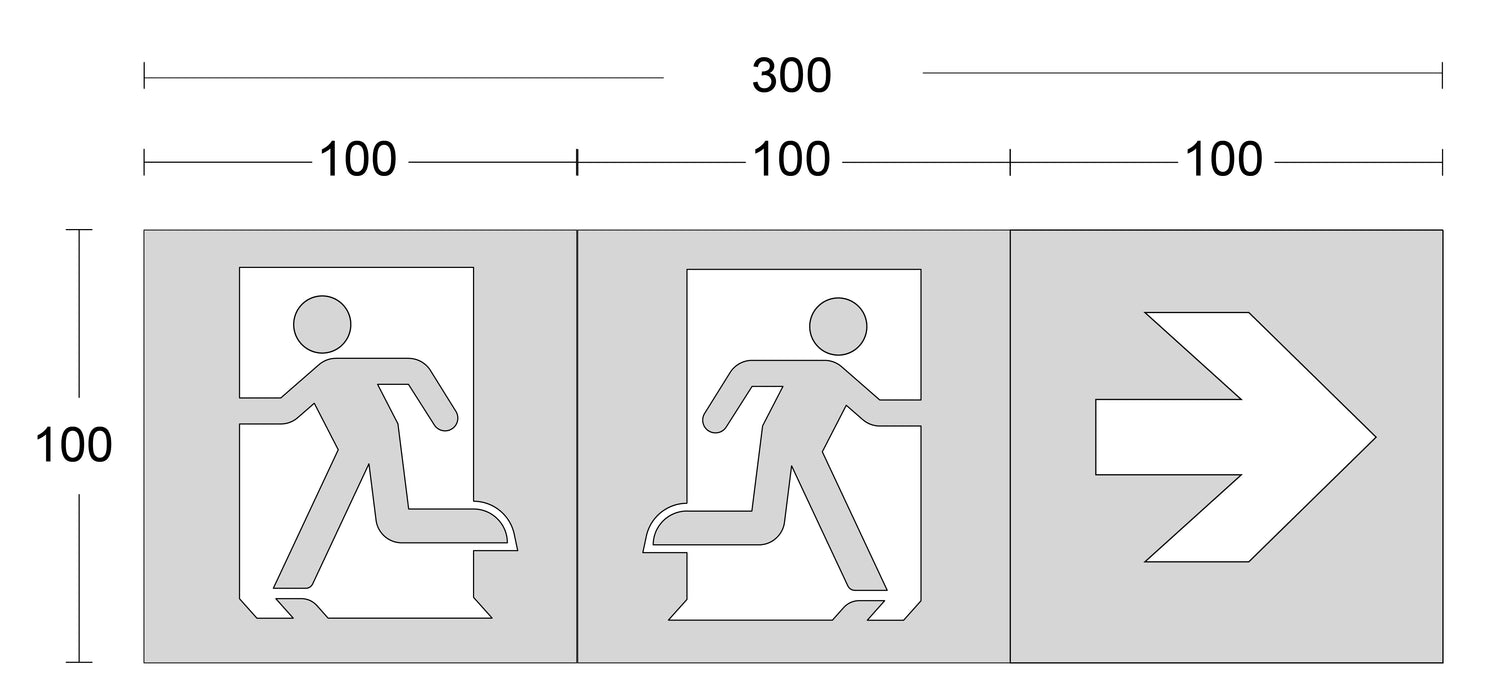

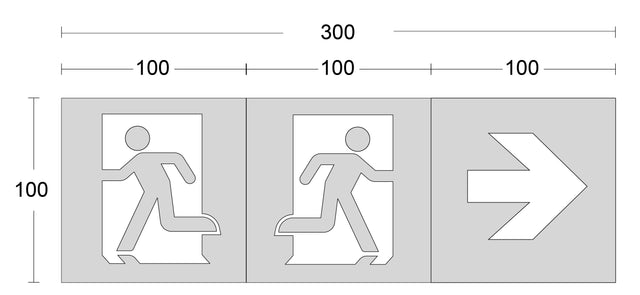

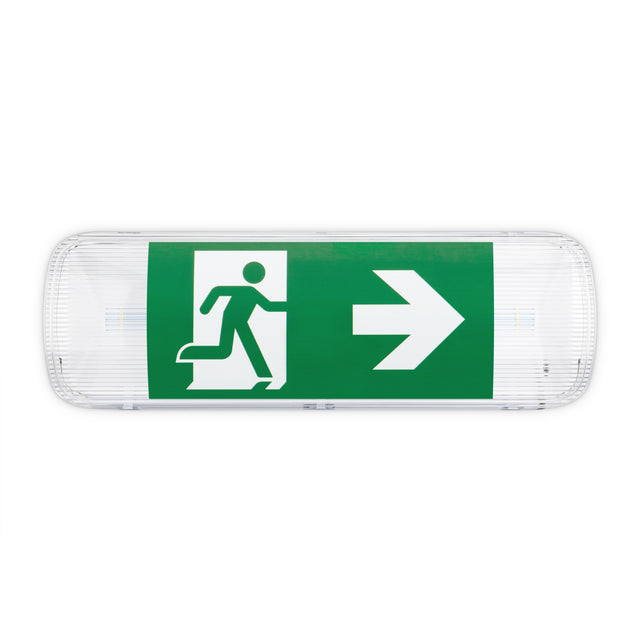

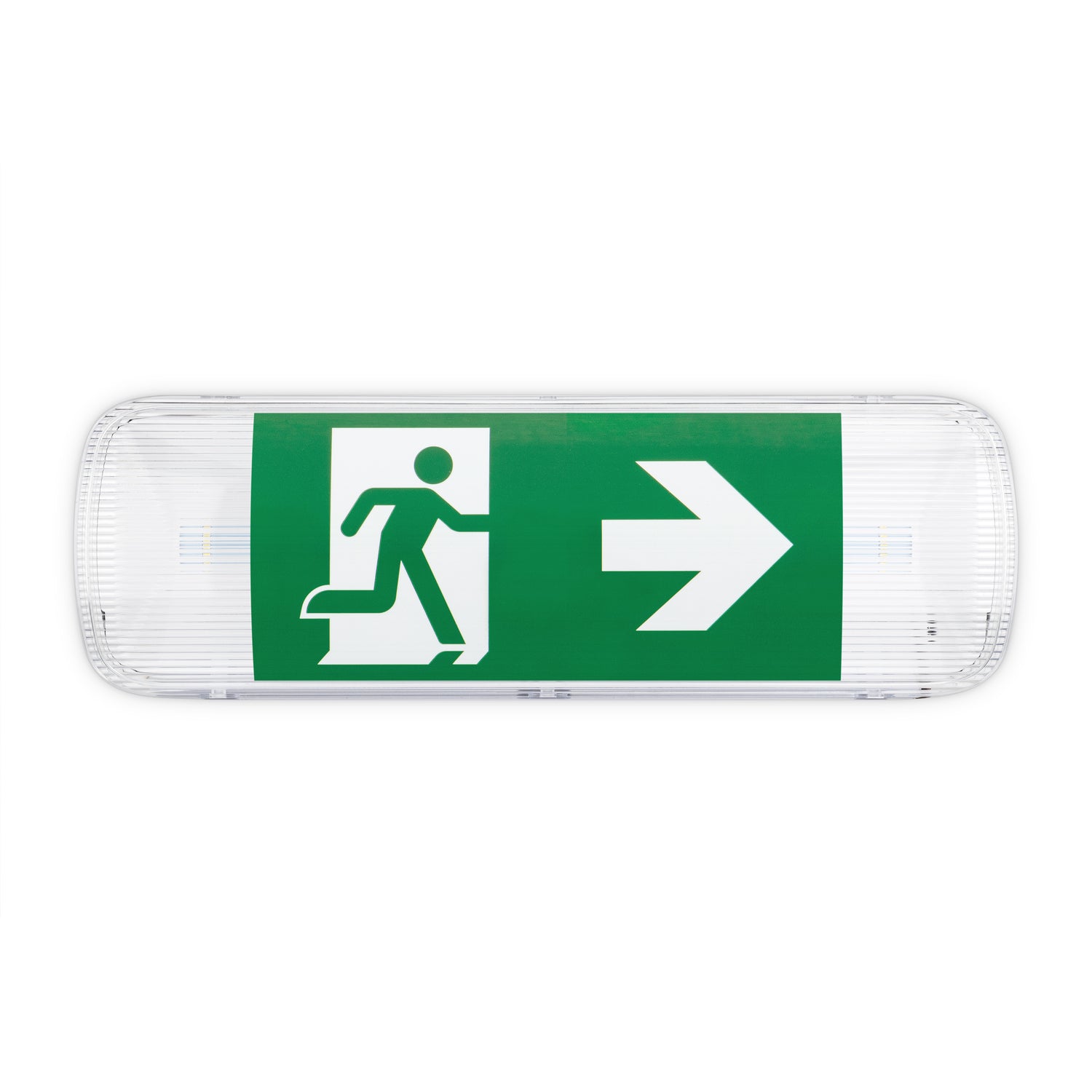

JCC Lighting JC110004 Emergency Bulkhead 3W IP65 6000K Maintained/non-maintained White with legends

Qty

Decrease quantity Increase quantity

Add to cart

Manufacturer - JCC Lighting
Manufacturers Part Number - JC110004
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544121937
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 120
JCC - CRI: Ra - 86
JCC - Operating Temperature Range °C - 0 to +40
JCC - Dimmable - No
JCC - Power Factor Correction - 0.4
JCC - Output Voltage Max/Range (VDC) - 2.7-3
JCC - Class - II
JCC - Luminaire Circuit Wattage - 3
JCC - Rating(Amp) - 3
JCC - Operating Frequency Hz - 50/60Hz
JCC - Primary Running Current(Amp) - 0.05-0.5
JCC - Voltage Rating - 220-240
JCC - Warranty - 5 Year Warranty (including 5 years on batteries)(See Website for terms and conditions)
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - IP65
JCC - Method of fix - Screw Fix to Suitable Surface

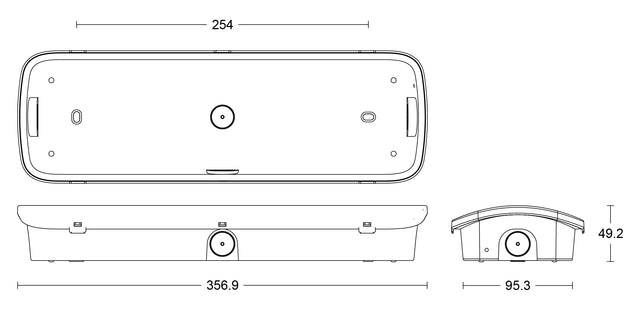

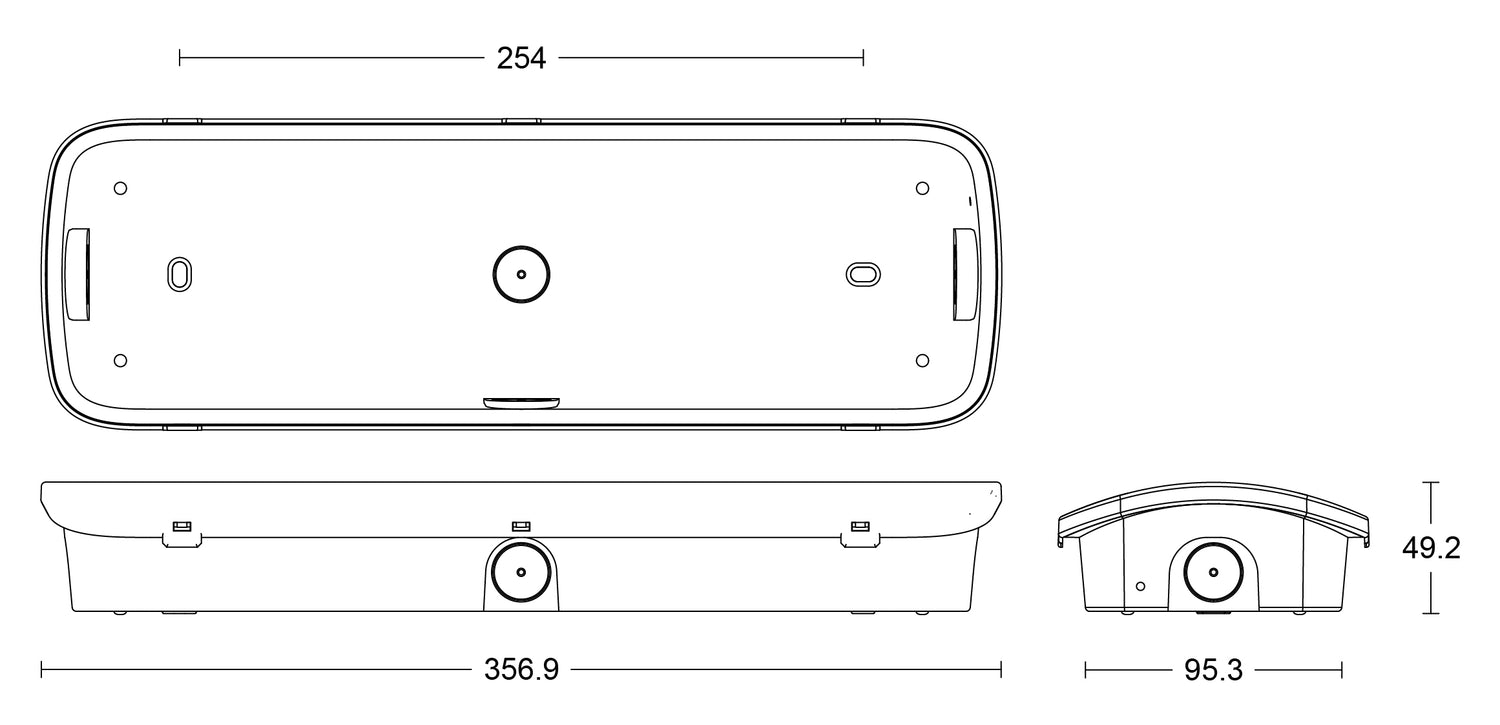

JCC - Overall dimensions (mm) Rim - 356.9 x 95.3 x 49.2
JCC - Depth (mm) - 49.2
JCC - Height (mm) - 95.3
JCC - Length (mm) - 356.9
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Emergency Range/JC110004-IS.pdf
