JCC JC72004 Skydisc 170mm 8W/12W 3000K/4000K/5700K IP65 TP(a) DALI/1-10V

Qty

Decrease quantity Increase quantity

Sold out





This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC72004
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 110
JCC - CRI: Ra - 80
JCC - Energy Rating - E
JCC - Dimmable - Yes
JCC - Power Factor Correction - 0.95
JCC - Output Voltage Max/Range (VDC) - 30651
JCC - Class - II
JCC - Luminaire Circuit Wattage - 8
JCC - Rating(Amp) - 8
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - <8A (Half current pulse twidth 50?s) @230V
JCC - Dimming Protocol Compatibility - DALI, 1-10V and Switch dimmable
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.95
JCC - Method of fix - Spring Clips (supplied)
JCC - Overall dimensions (mm) Rim - 2

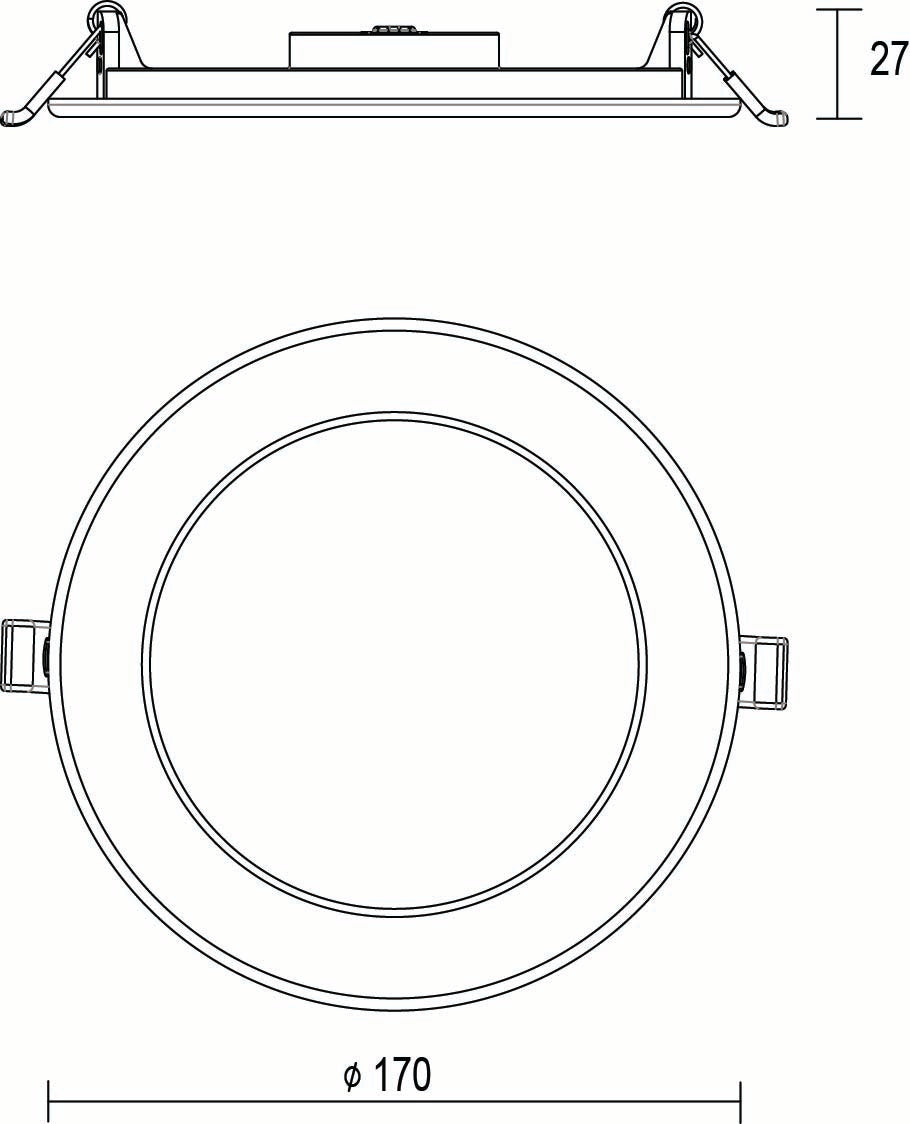

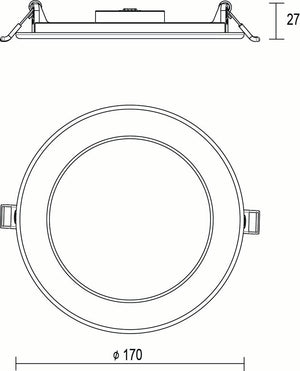

JCC - Diameter (mm) - 170
JCC - Depth (mm) - 27
JCC - Color Finish - White
