JCC JC72010 Skydisc 240mm 14W/20W 3000K/4000K/5700K IP65 TP(a) DALI/1-10V
JCC JC72010 Skydisc 240mm 14W/20W 3000K/4000K/5700K IP65 TP(a) DALI/1-10V is backordered and will ship as soon as it is back in stock.
Description
Description
IP65 suitable for use in bathrooms (internal use only)

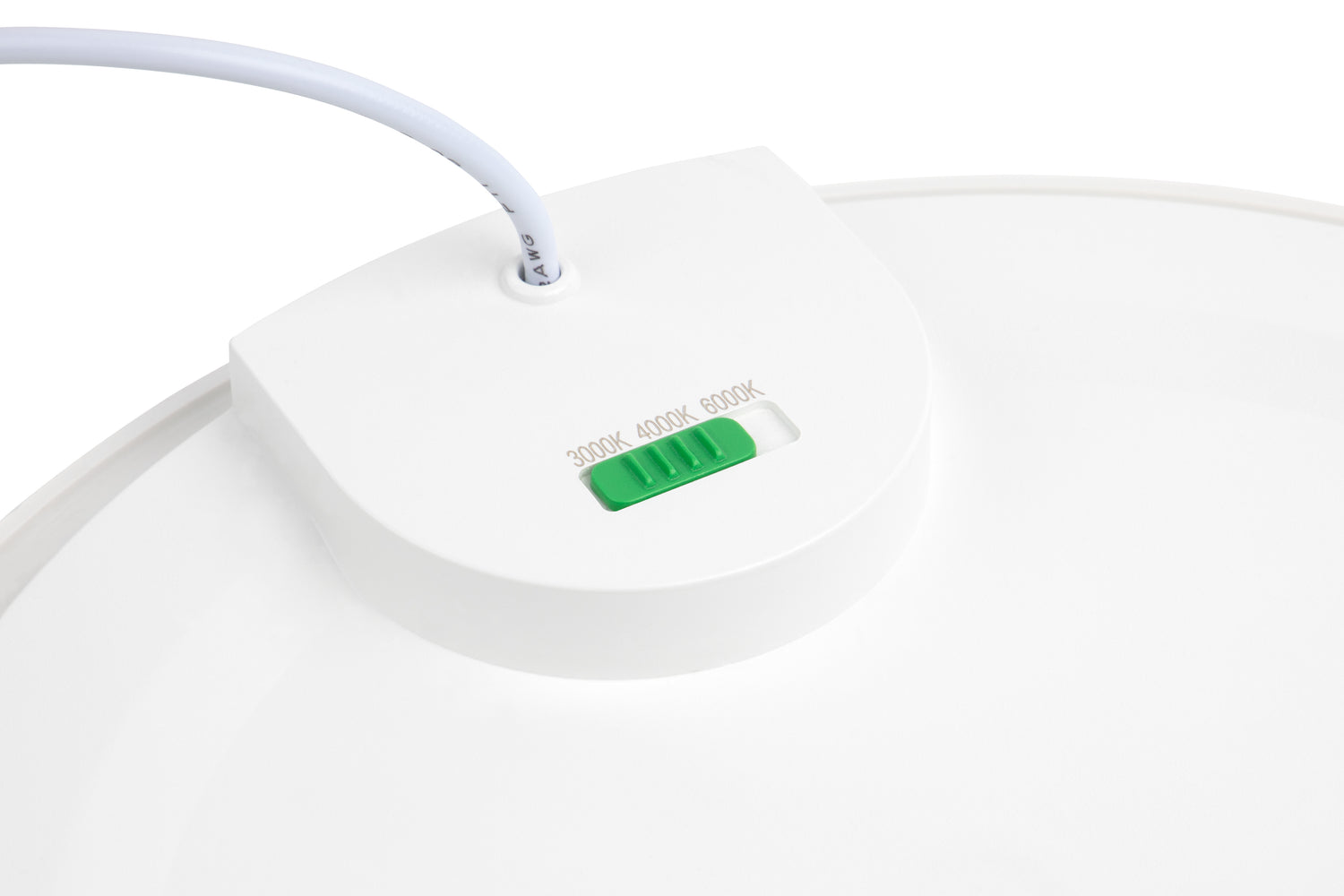

Two wattage and three colour selectable from fitting
Loop-in/loop-out driver with permanent live and earth provision
Designed for ceiling cut-outs from 220-230mm
Polycarbonate construction
TP(a) rated
Manufacturers Part Number - JC72010
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 110
JCC - CRI: Ra - 80
JCC - Energy Rating - D
JCC - Dimmable - Yes
JCC - Power Factor Correction - 0.95
JCC - Output Voltage Max/Range (VDC) - 30651
JCC - Class - II
JCC - Luminaire Circuit Wattage - 14
JCC - Rating(Amp) - 14
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - <8A (Half current pulse twidth 50?s) @230V
JCC - Dimming Protocol Compatibility - DALI, 1-10V and Switch dimmable
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.95
JCC - Method of fix - Spring Clips (supplied)
JCC - Overall dimensions (mm) Rim - 2

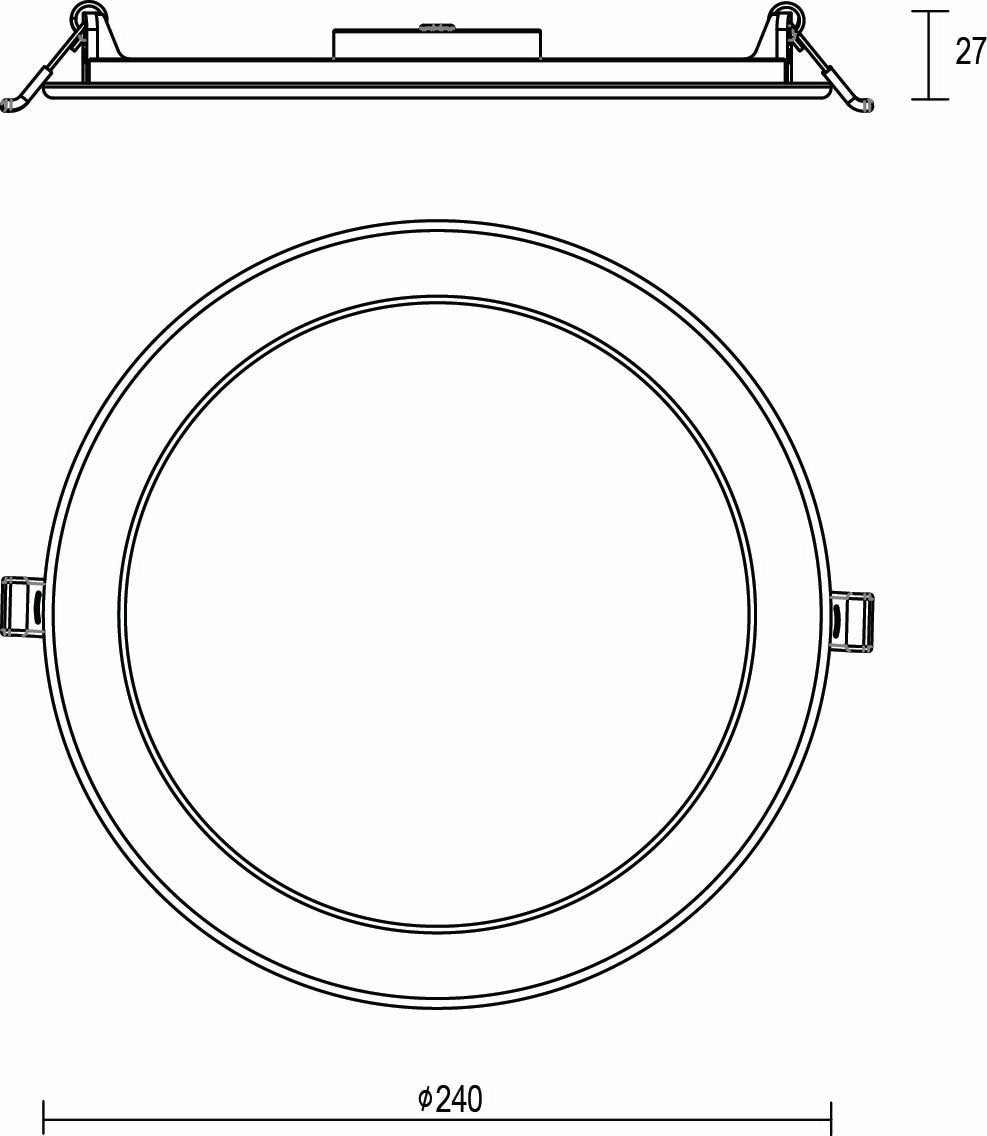

JCC - Diameter (mm) - 240
JCC - Depth (mm) - 27
JCC - Color Finish - White
