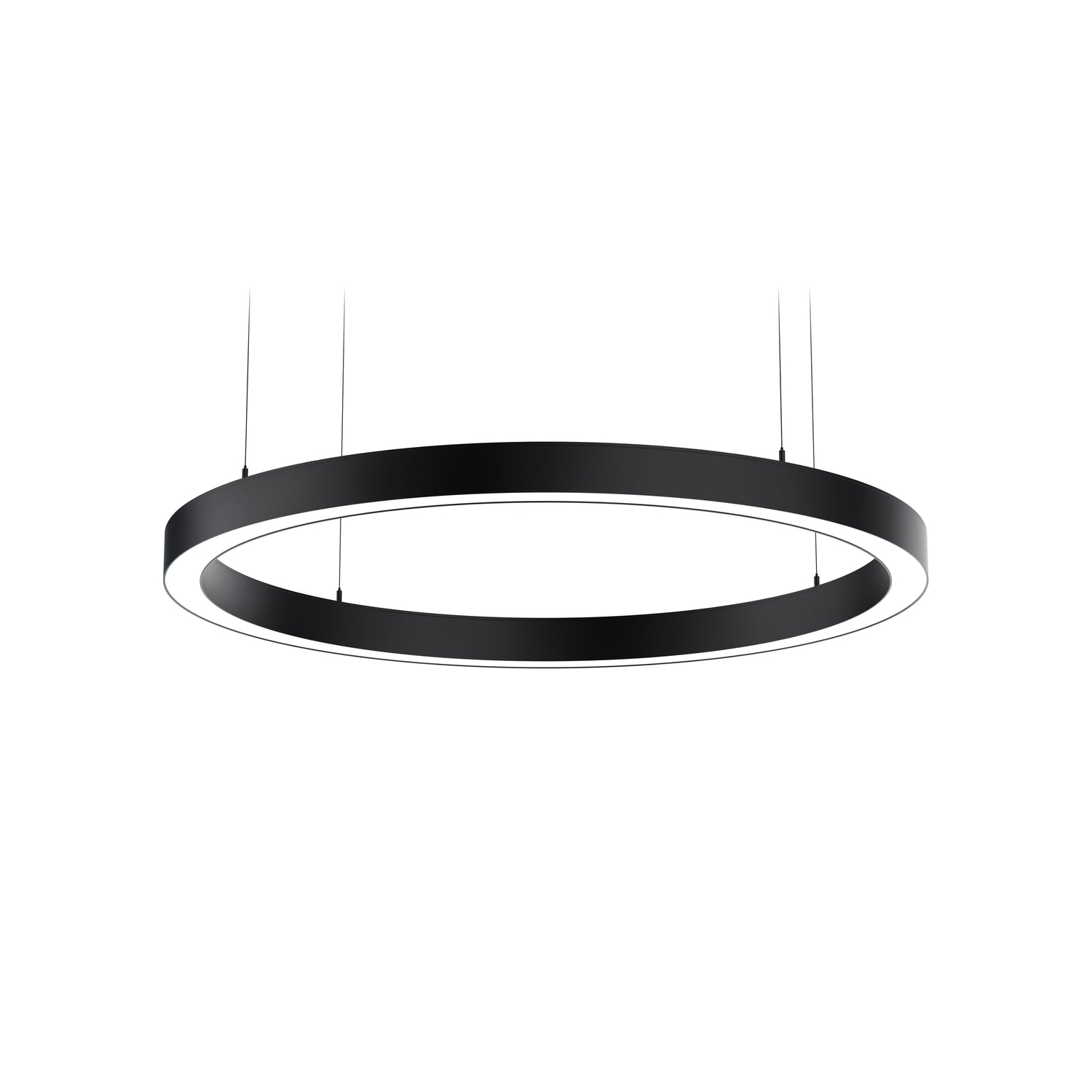

JCC JC077228 Ring of Light 1200mm 48/64/77W 3/4/57K IP20 Black DALI/Swdim EM

Qty

Decrease quantity Increase quantity

Sold out





This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC077228
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 70
JCC - CRI: Ra - 80
JCC - Dimmable - Yes, DALI and Switch dimmable
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 28-38
JCC - Class - I
JCC - Luminaire Circuit Wattage - 48
JCC - Rating(Amp) - 48
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 16A @ 242 uS
JCC - Mounting height - Max 5m suspension cables
JCC - Dimming Protocol Compatibility - DALI/Switch dim
JCC - Suitable For Zones - Outside zone 2
JCC - IP Rating - 20
JCC - Product Aperture Size - 0.32
JCC - Diameter (mm) - 1200
JCC - Height (mm) - 75
JCC - Color Finish - Black
