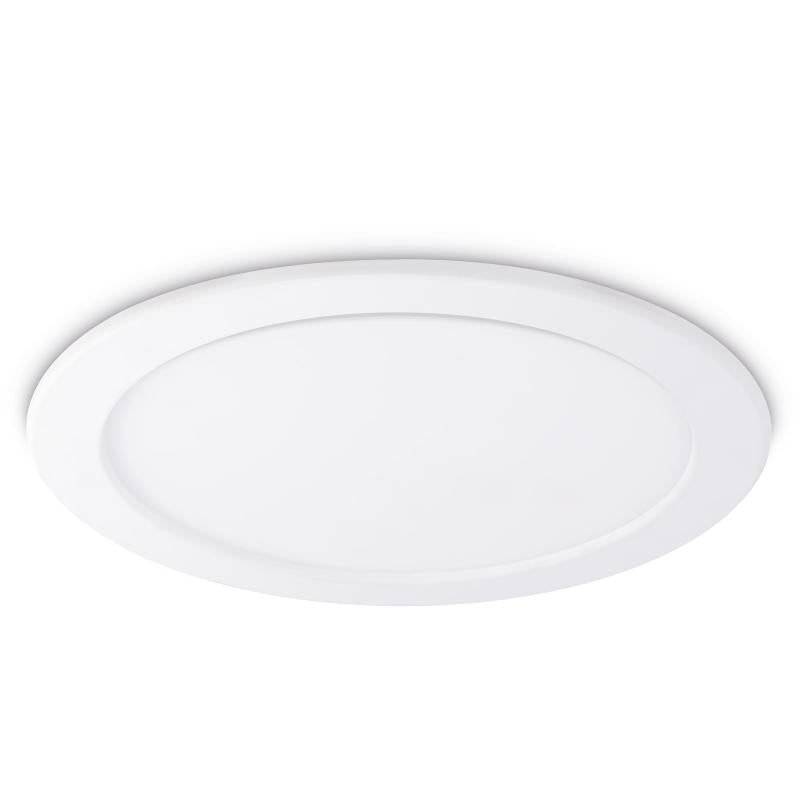

JCC Lighting JC72503DALI Skydisc IP65 17W 4000K DALI

Qty

Decrease quantity Increase quantity

Add to cart

Manufacturer - JCC Lighting
Manufacturers Part Number - JC72503DALI
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544122910
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 120
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class F
JCC - Operating Temperature Range °C - -20 to 50°C
JCC - Dimmable - Yes, DALI /1-10V Switch dim
JCC - Power Factor Correction - 0.95
JCC - Output Voltage Max/Range (VDC) - 20-112
JCC - Luminaire Circuit Wattage - 17
JCC - Rating(Amp) - 17
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 10
JCC - Secondary running current(mA) - 250
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - DALI /1-10V /Switch dim
JCC - Warranty - 3 Year Warranty (See Website for terms and conditions)
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - IP65
JCC - Product Aperture Size - 210mm
JCC - Method of fix - Spring Clips (supplied)

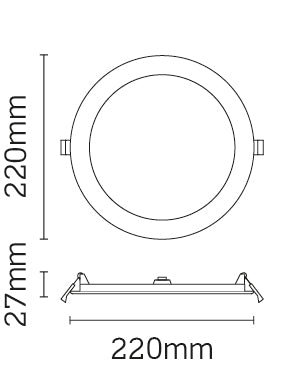

JCC - Diameter (mm) - 220
JCC - Depth (mm) - 25
JCC - Height (mm) - 2
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Downlights/SkydiscIP65_IS.pdf
