JCC JC180150/1-10V ToughLED™ Pro 6ft 72W 3000K/4000K/5700K IP66 WOP 1-10V
JCC JC180150/1-10V ToughLED™ Pro 6ft 72W 3000K/4000K/5700K IP66 WOP 1-10V is backordered and will ship as soon as it is back in stock.
Pickup available at Light Bulb Warehouse
Usually ready in 24 hours

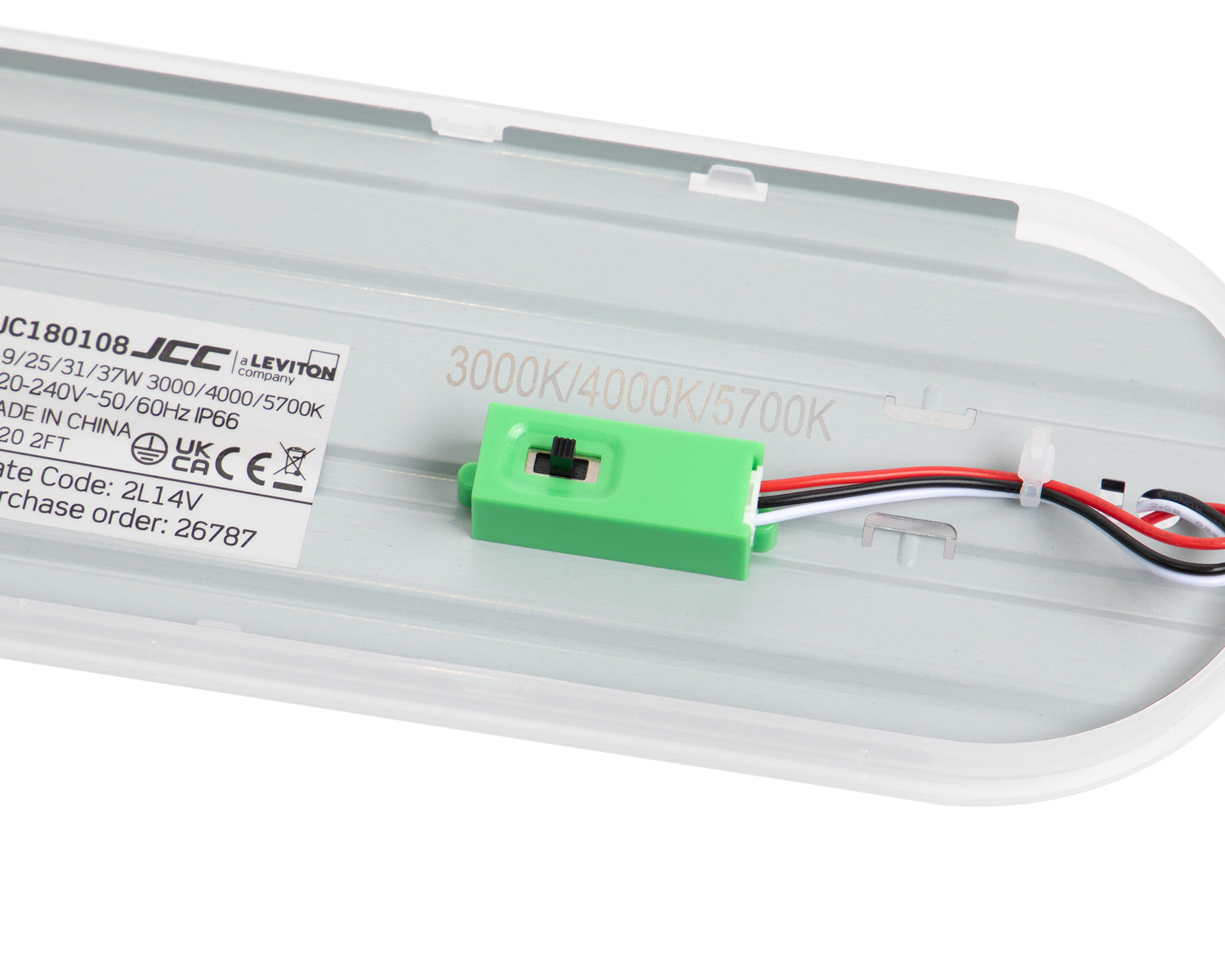

3 CCT selectable

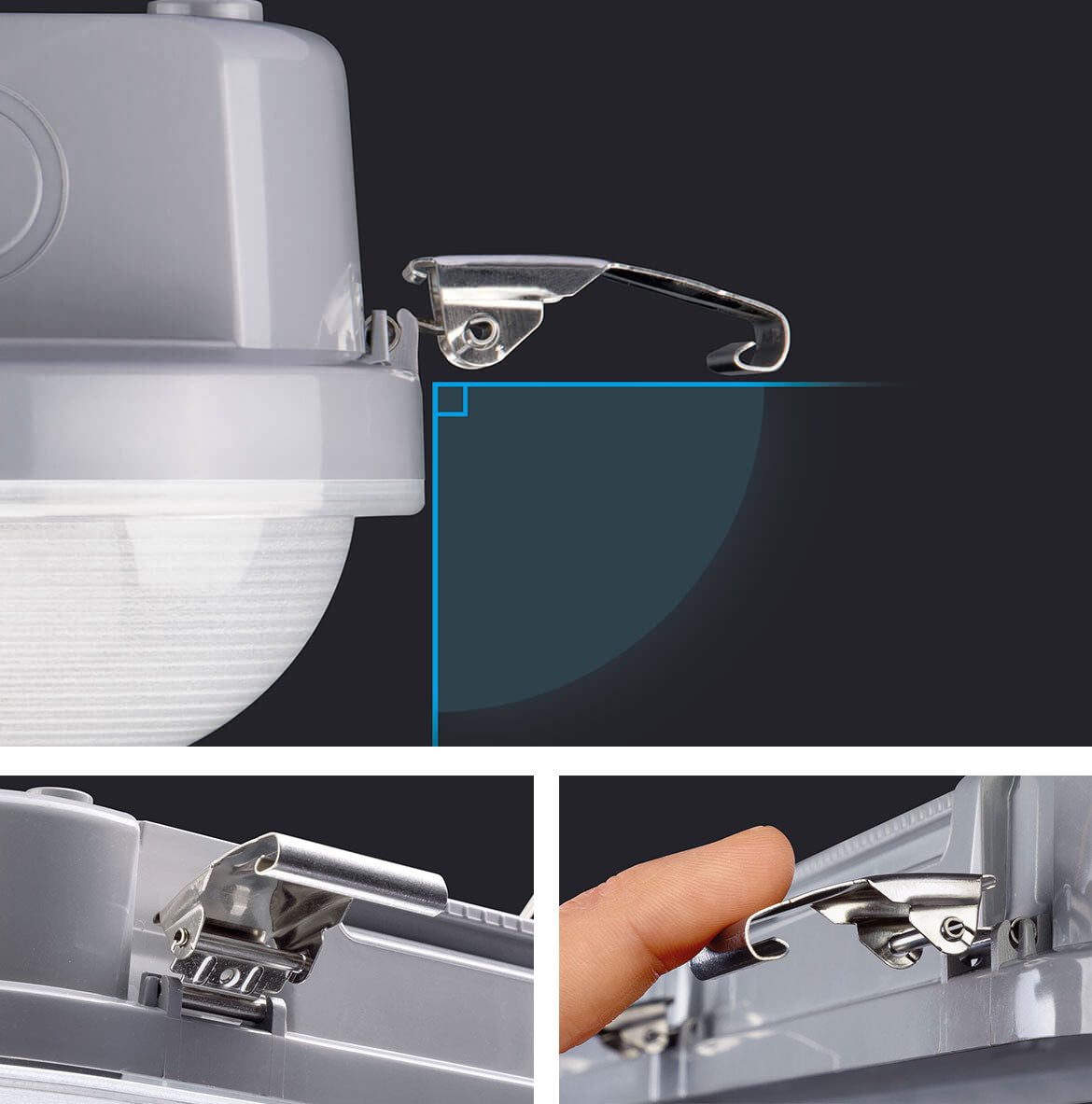

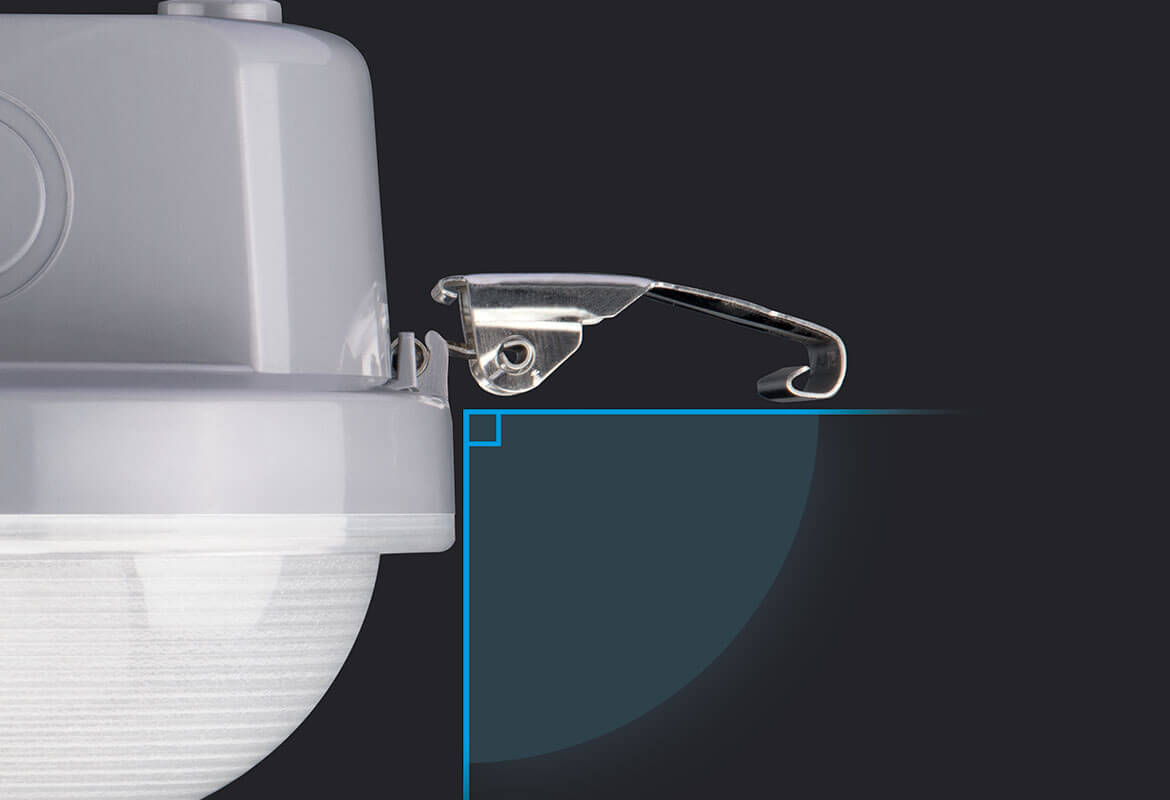

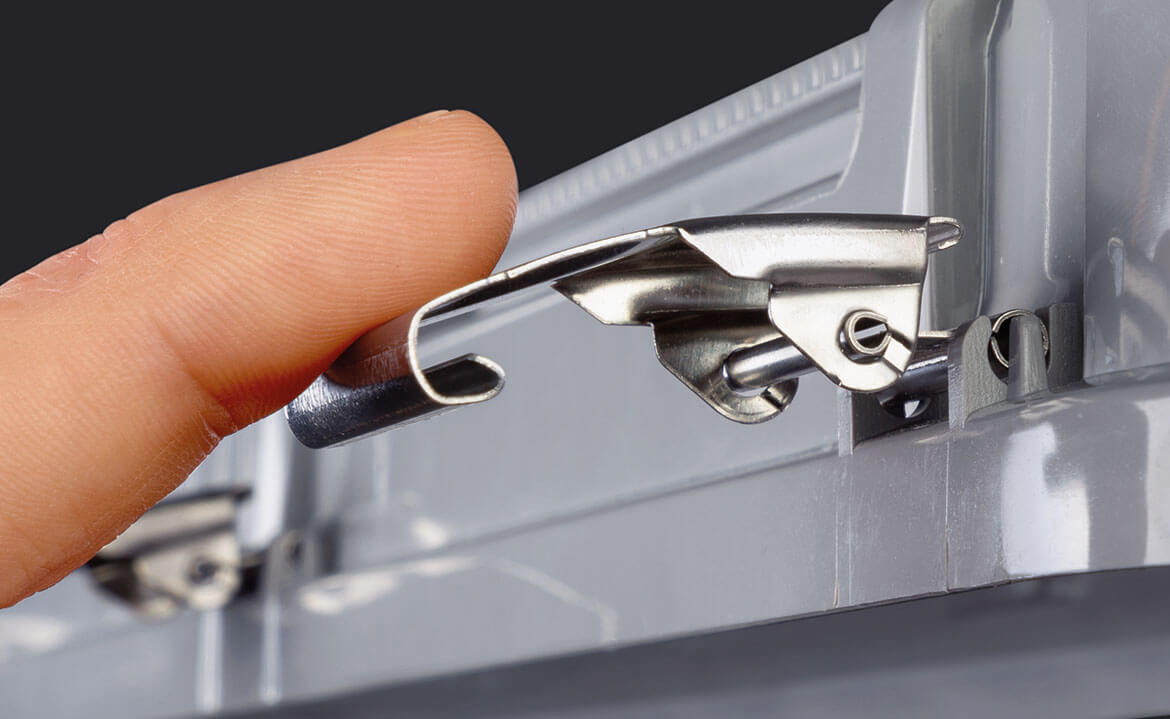

90º Lock-in-place side clip design, keeps clips clear during installation

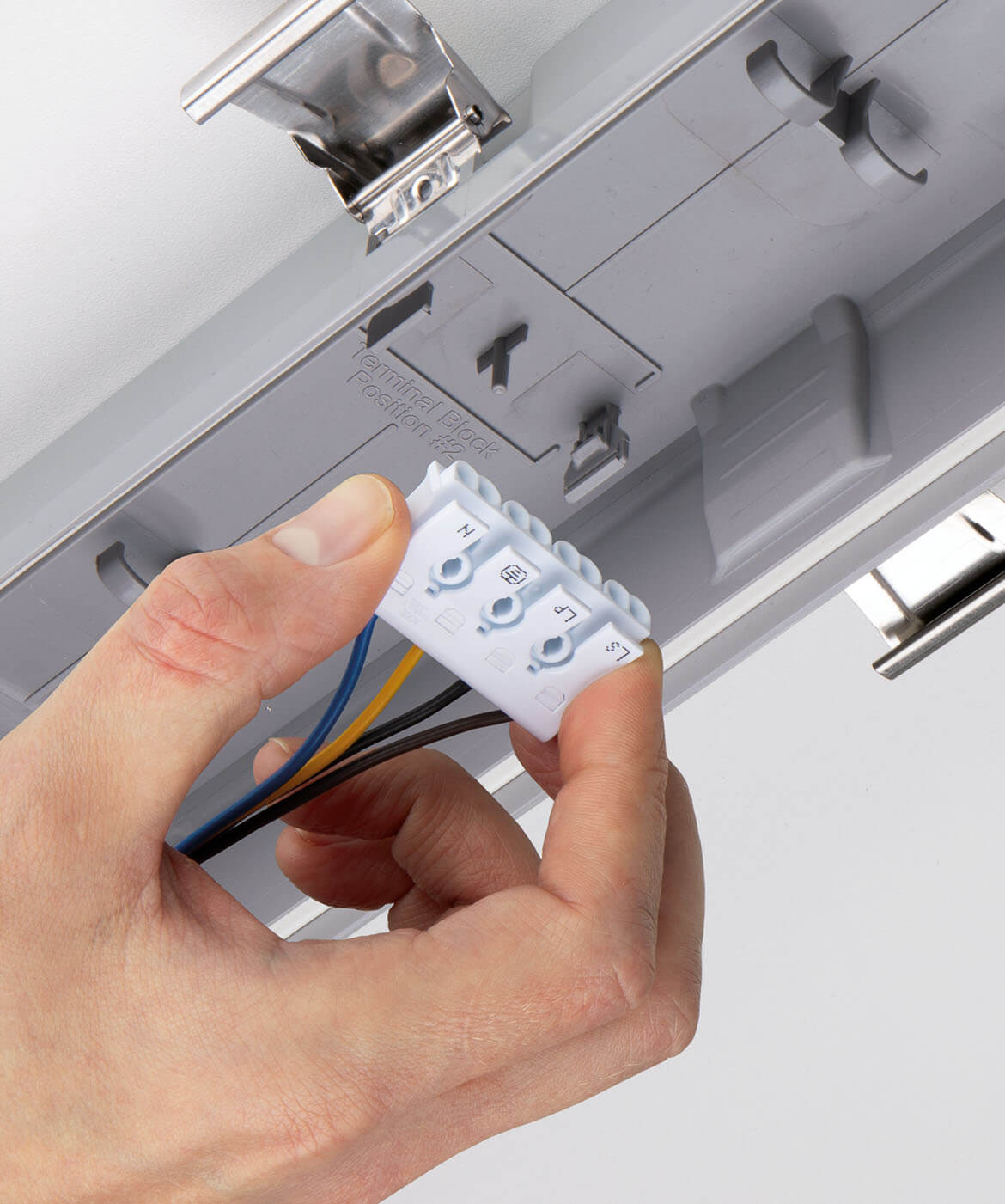

Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

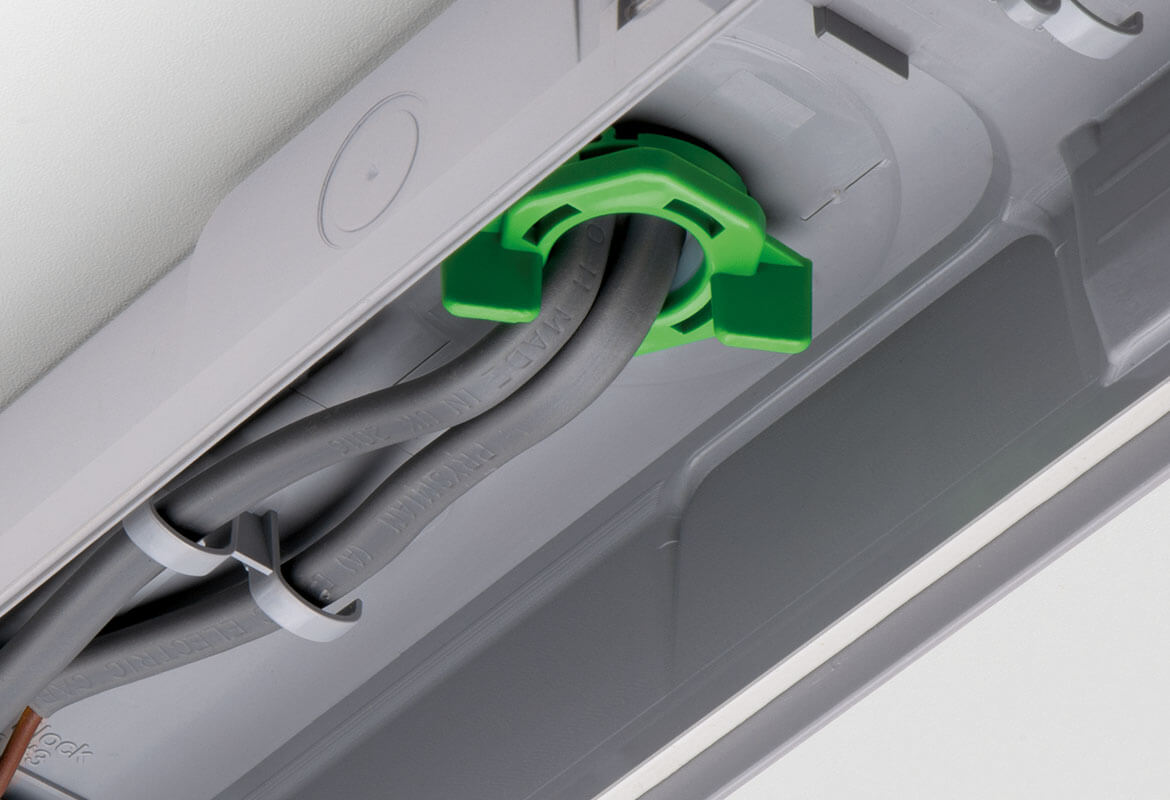

Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash when closing the fixture

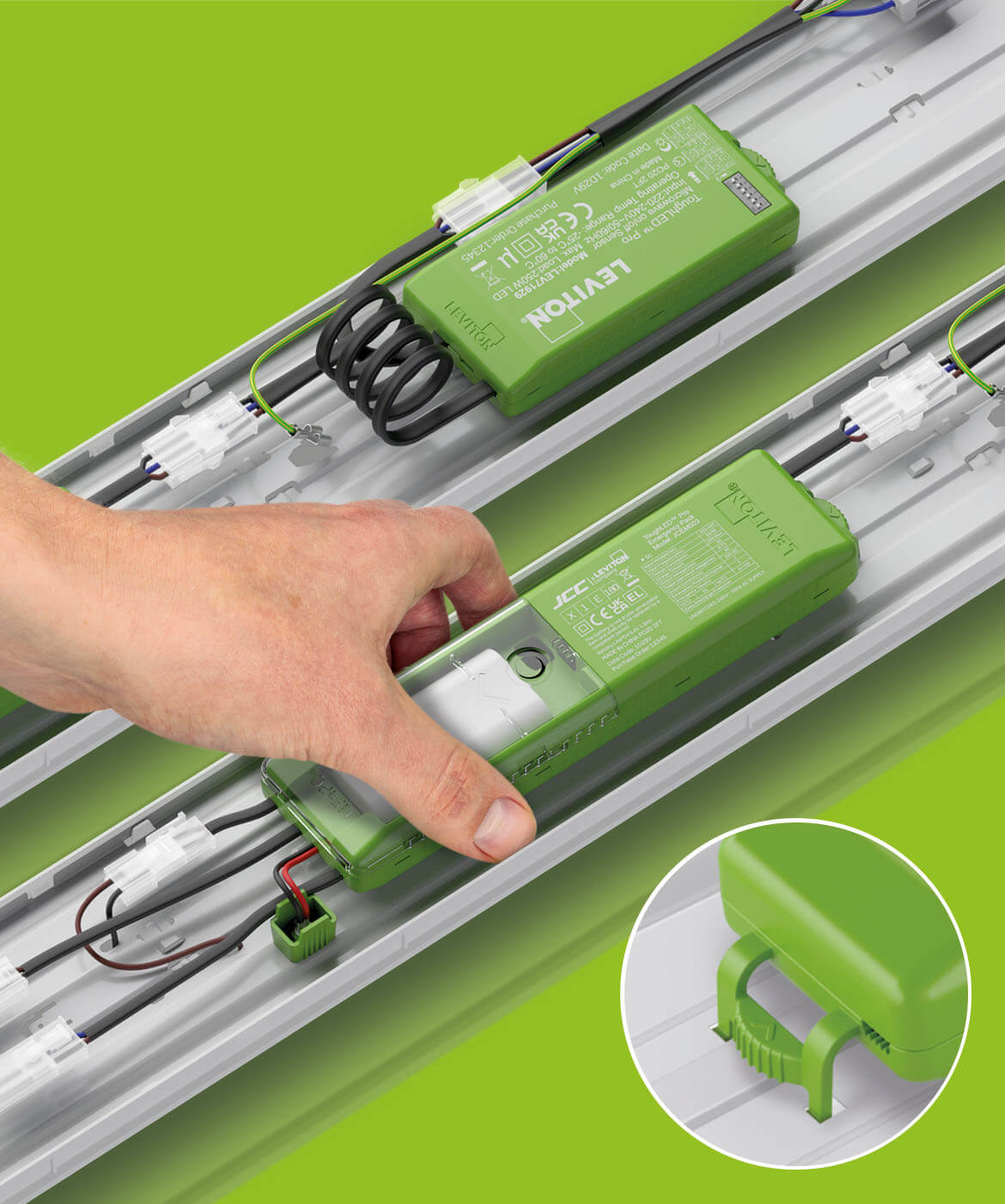

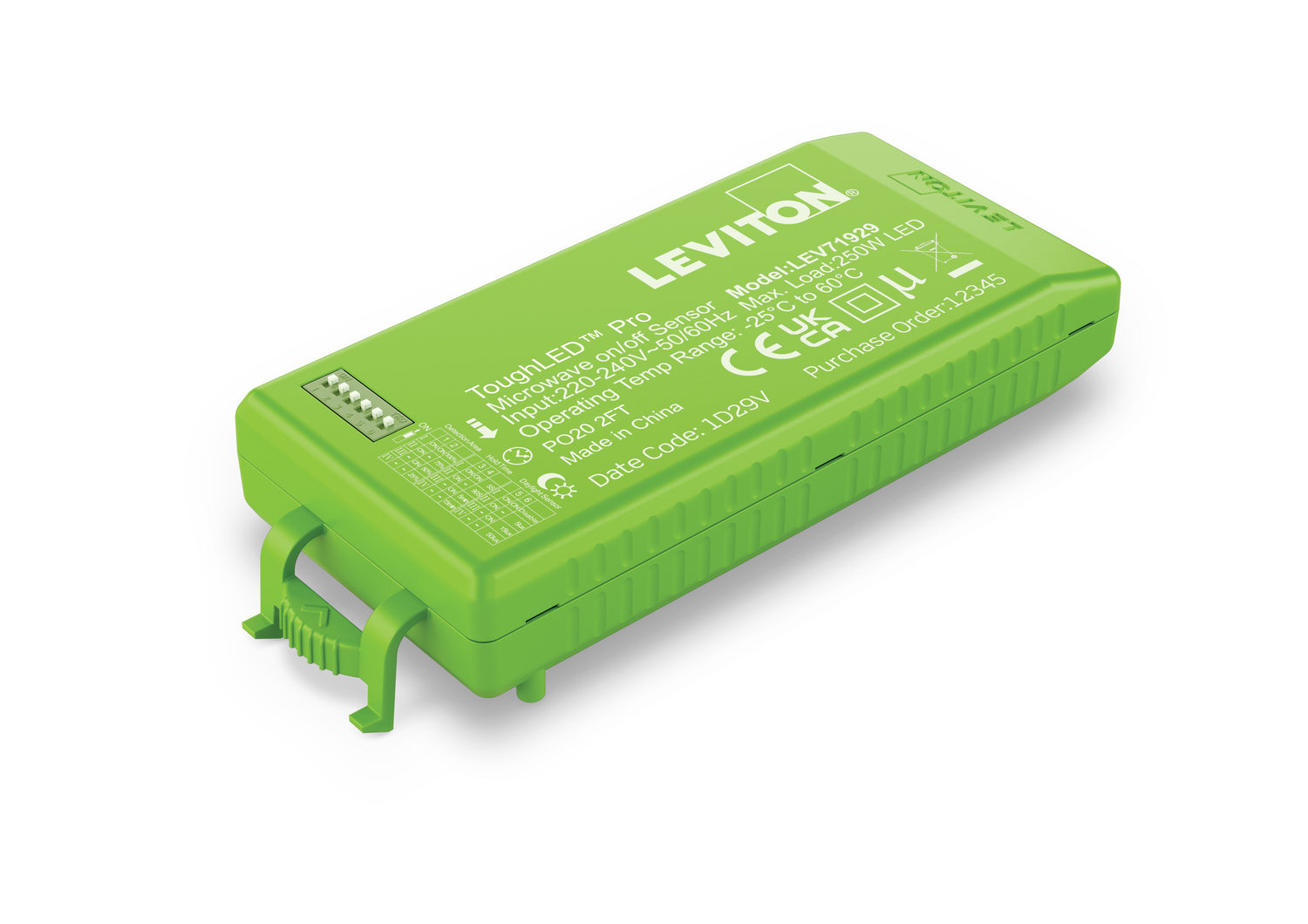

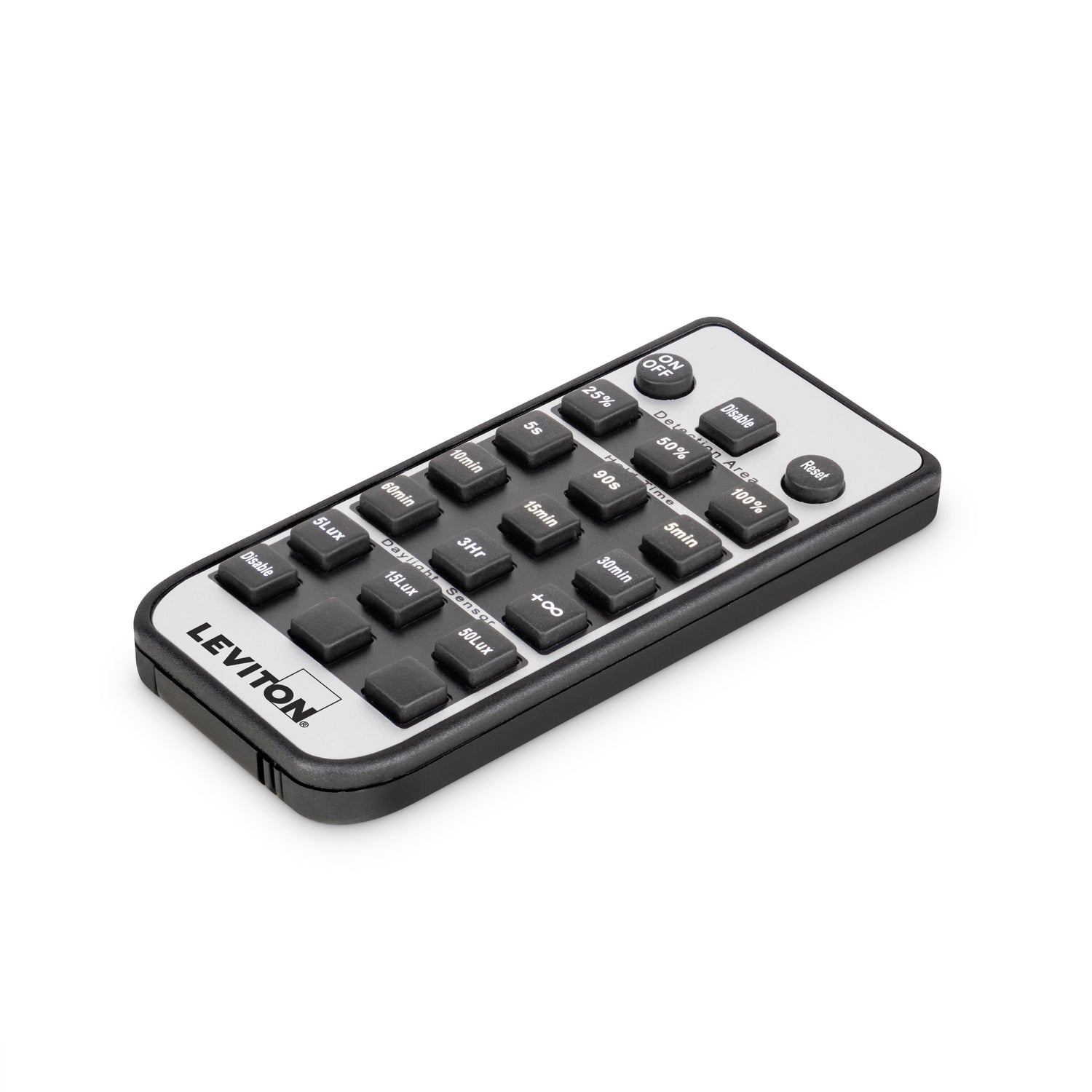

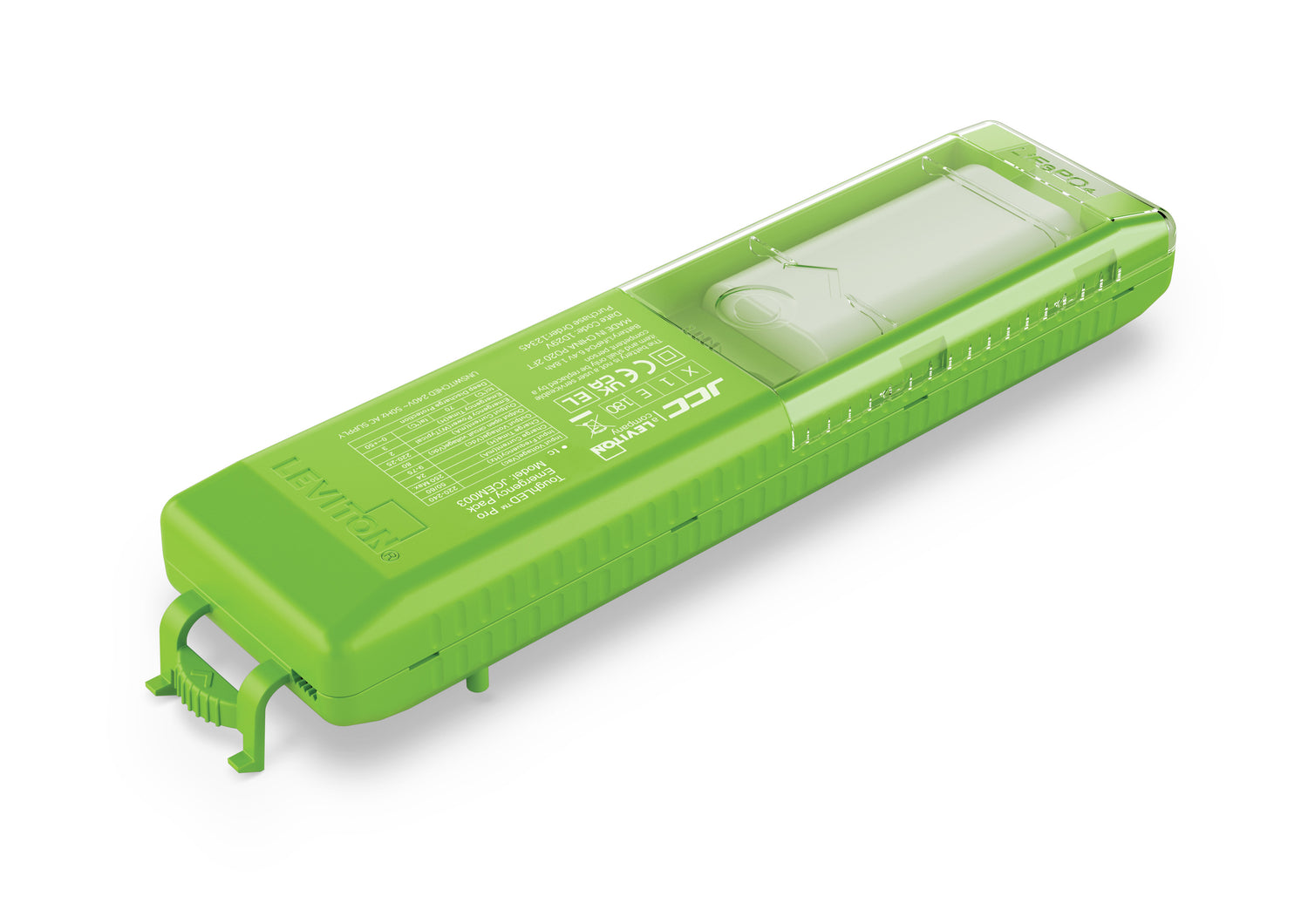

Plug & play emergency & microwave sensor modules with optional remote control

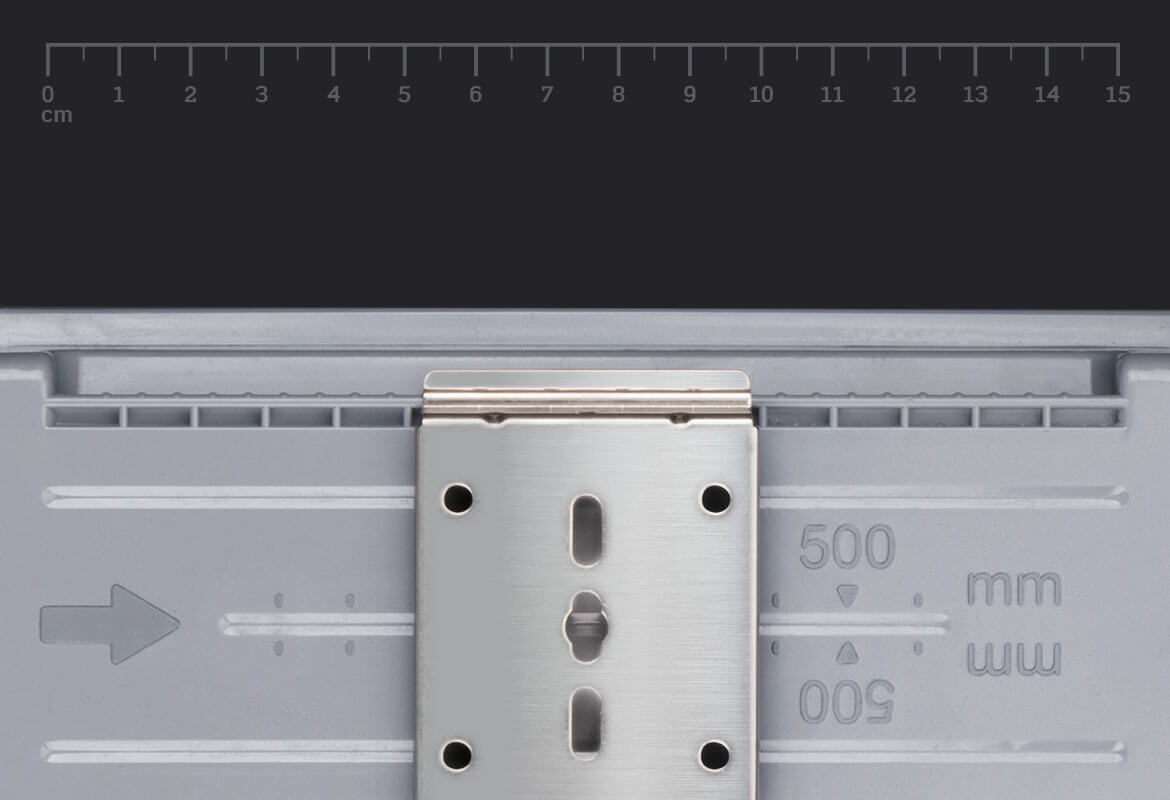

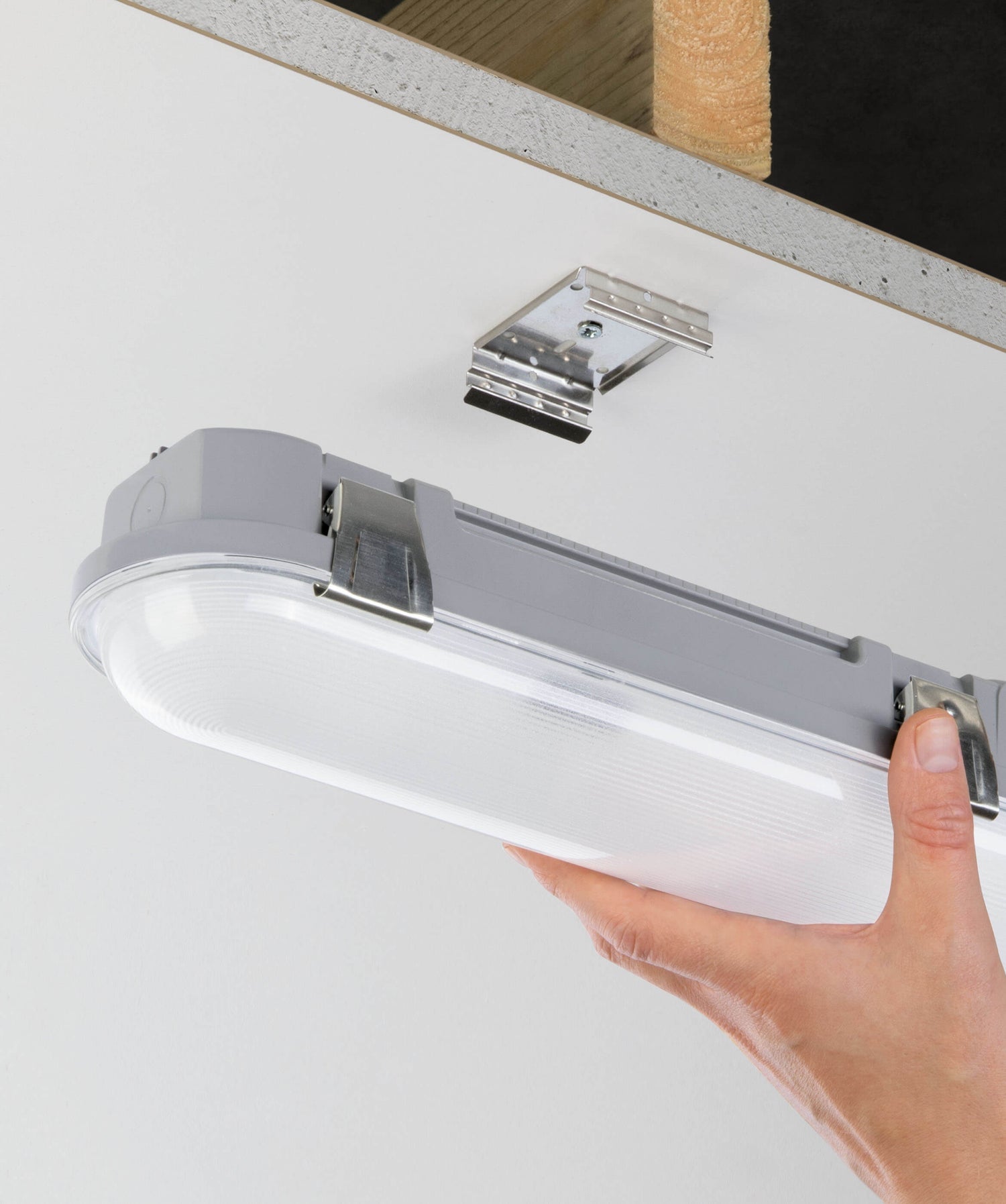

Ultra-wide surface mount bracket rail to enable flexibility to locate joists

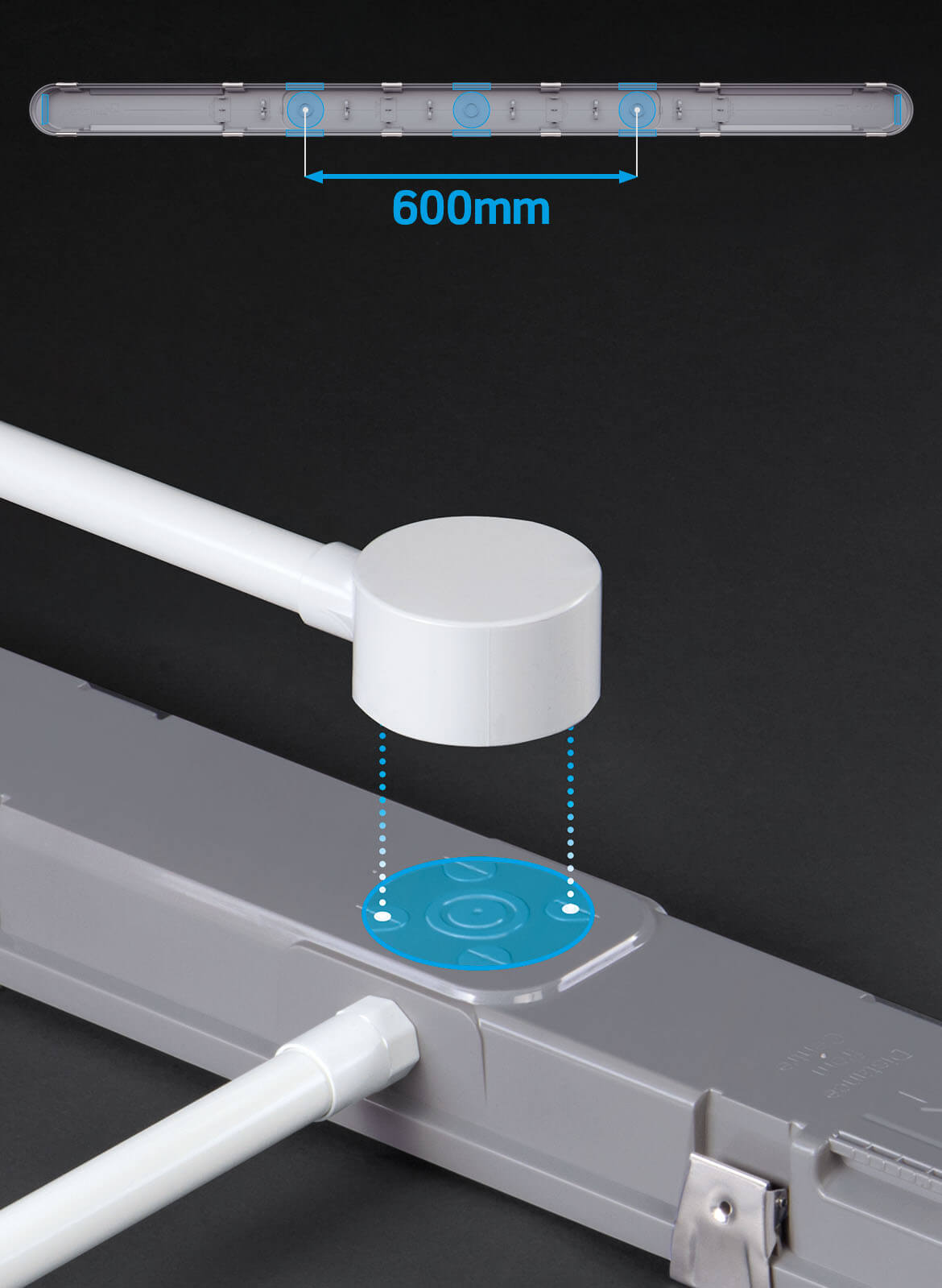

Wide body for retrofitting BESA conduit box mounting, with rear, side and end conduit entry points

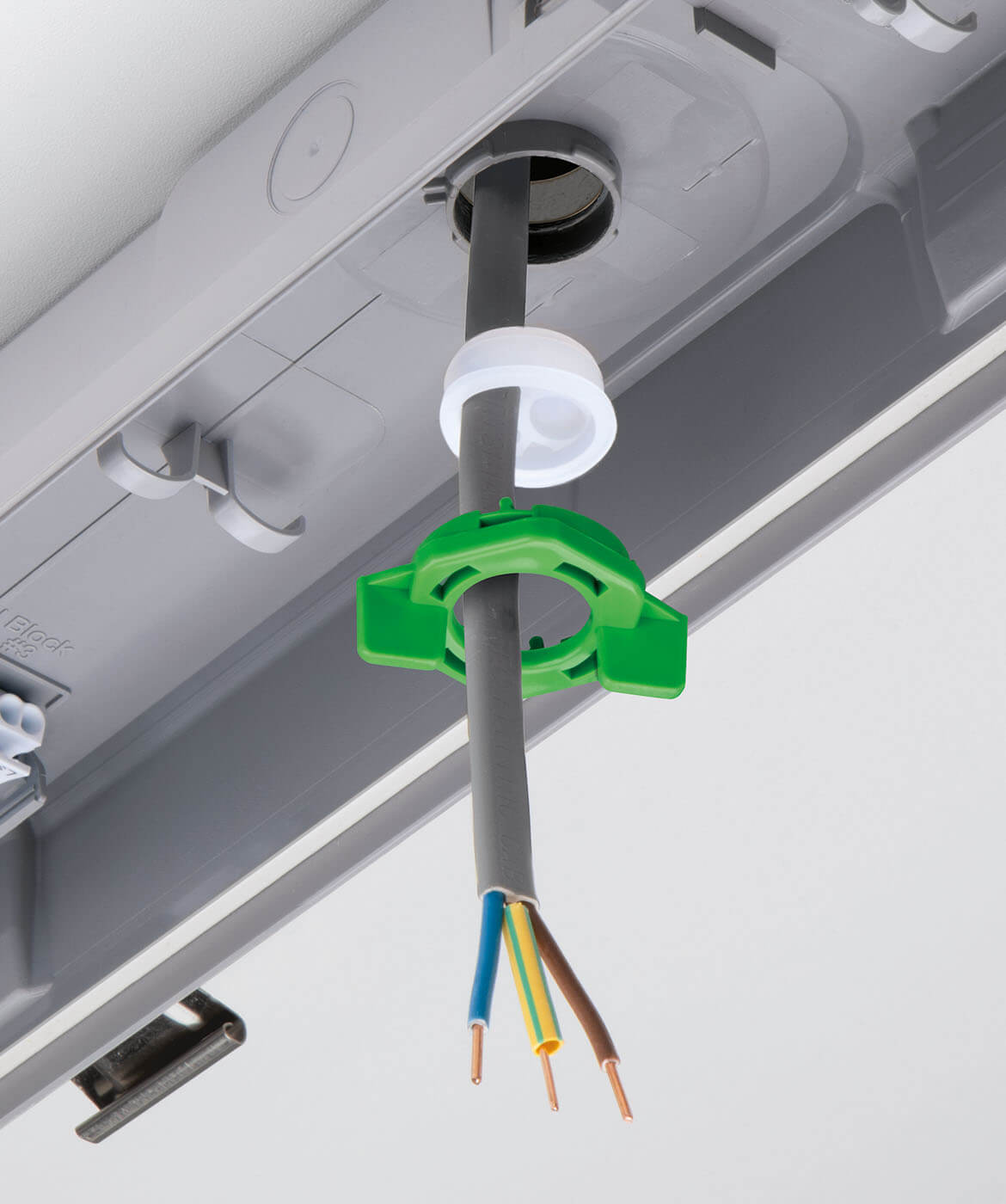

Unique rear IP66 gasket, sealing cable entry from within the fixture for surface mounting applications
4ft, 5ft, 6ft single and twin light outputs in both opal and prismatic diffuser options
Microwave step dimmable, DALI and 1-10V dimmable options available
High efficiency up to 165 lpcW, IP66, IK10
5-year extended warranty on fixture and batteries
Manufacturers Part Number - JC180150/1-10V
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Polycarbonate
JCC -Beam Angle ° - 120
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class D
JCC - Dimmable - 1-10V
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 40-56
JCC - Class - I
JCC - Luminaire Circuit Wattage - 72
JCC - Rating(Amp) - 72
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - 20 @100us
JCC - Suitable For Zones - Zone 1
JCC - IK Rating - IK10
JCC - IP Rating - IP66
JCC - Product Aperture Size - 0.36

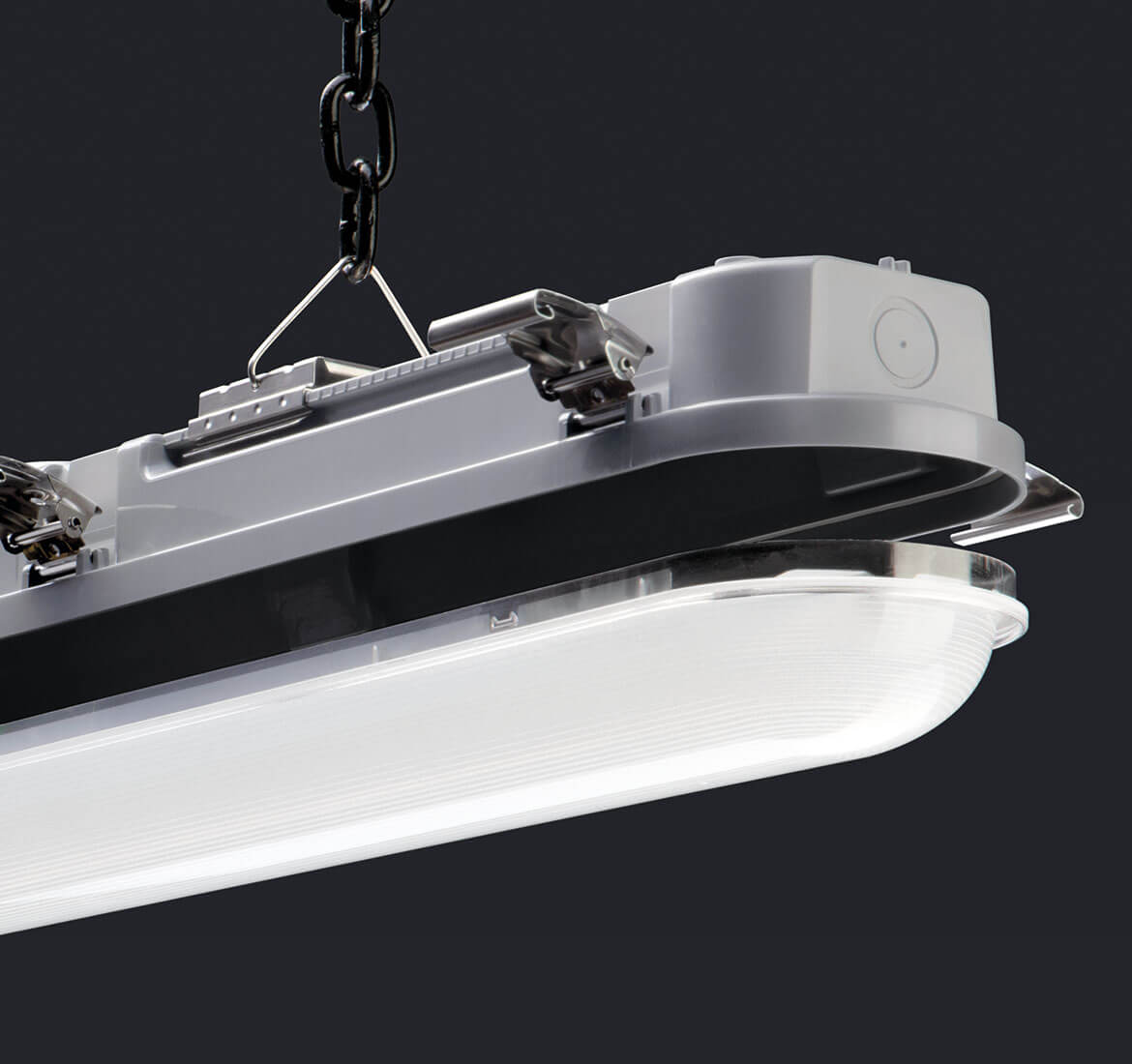

JCC - Method of fix - Mounting Brackets, Suspension chains or conduit mounting

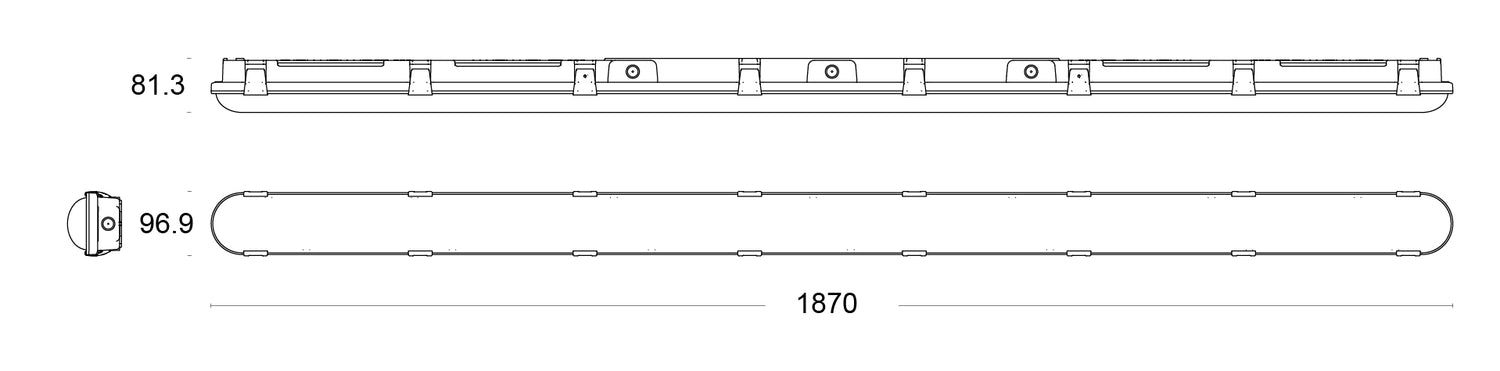

JCC - Height (mm) - 81.3
JCC - Length (mm) - 1870
JCC - Color Finish - Grey
