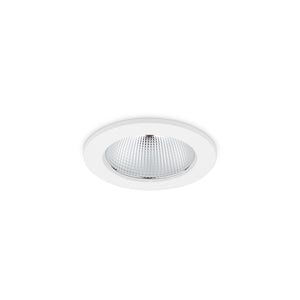

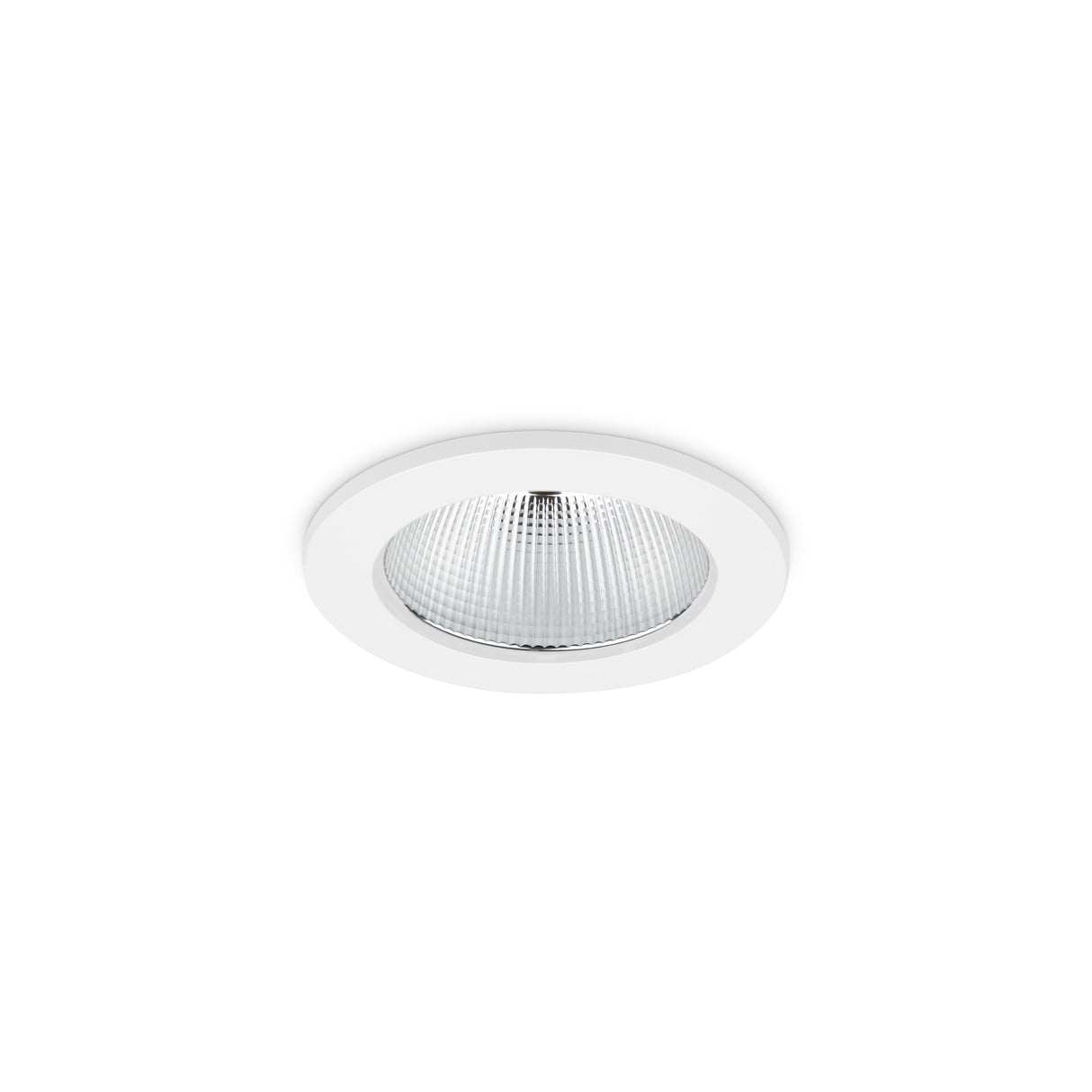

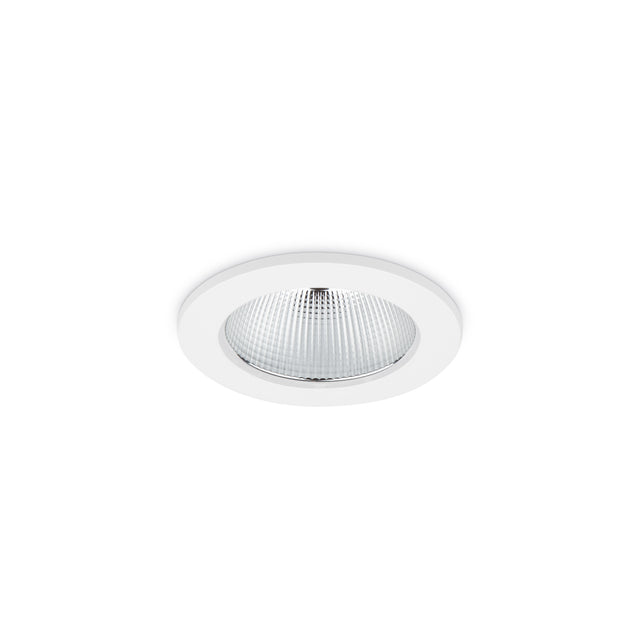

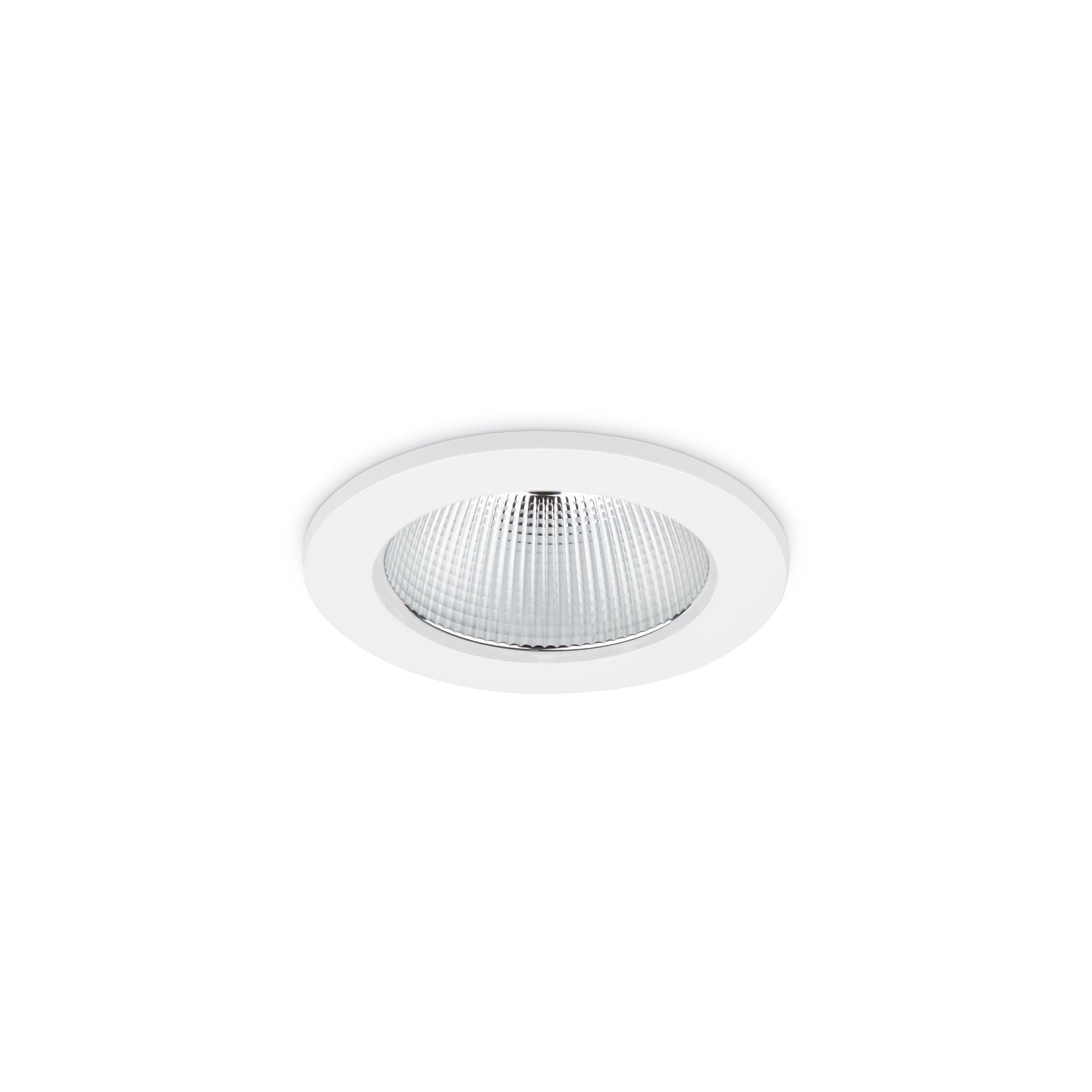

JCC JC74002 Rakula downlight 114mm 7W/10W 3000K/4000K/5700K IP65 TP(a) DALI/1-10V

Qty

Decrease quantity Increase quantity

Sold out





This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Manufacturer - JCC Lighting
Manufacturers Part Number - JC74002
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 56
JCC - CRI: Ra - 80
JCC - Dimmable - DALI/1-10V, Retractive switch dimming
JCC - Power Factor Correction - 0.9
JCC - Output Voltage Max/Range (VDC) - 14-42
JCC - Class - II
JCC - Luminaire Circuit Wattage - 7
JCC - Rating(Amp) - 7
JCC - Operating Frequency Hz - 50/60
JCC - Inrush current(Amps) - 35A@50uS
JCC - Dimming Protocol Compatibility - DALI, 1-10V, Retractive switch dimming
JCC - Suitable For Zones - Zone 1
JCC - IP Rating - 65
JCC - Product Aperture Size - 0.18-0.3
JCC - Method of fix - Spring clips
JCC - Diameter (mm) - 114
JCC - Height (mm) - 66
JCC - Color Finish - White
