JCC Lighting JC1102/WH X50 Fire rated Tilt downlight 3W/5W IP65 3000/4000/5700K 400/650 lms White
JCC Lighting JC1102/WH X50 Fire rated Tilt downlight 3W/5W IP65 3000/4000/5700K 400/650 lms White is backordered and will ship as soon as it is back in stock.
Description
Description
Upgrade your lighting with the JCC JC1102/WH X50 Fire-Rated Tilt LED Downlight, finished in a clean white bezel for a timeless look. This IP65-rated downlight offers dual wattage options (3.5W or 5W) and three selectable colour temperatures (3000K, 4000K, 5700K), all adjustable via the remote inline driver for effortless customization.

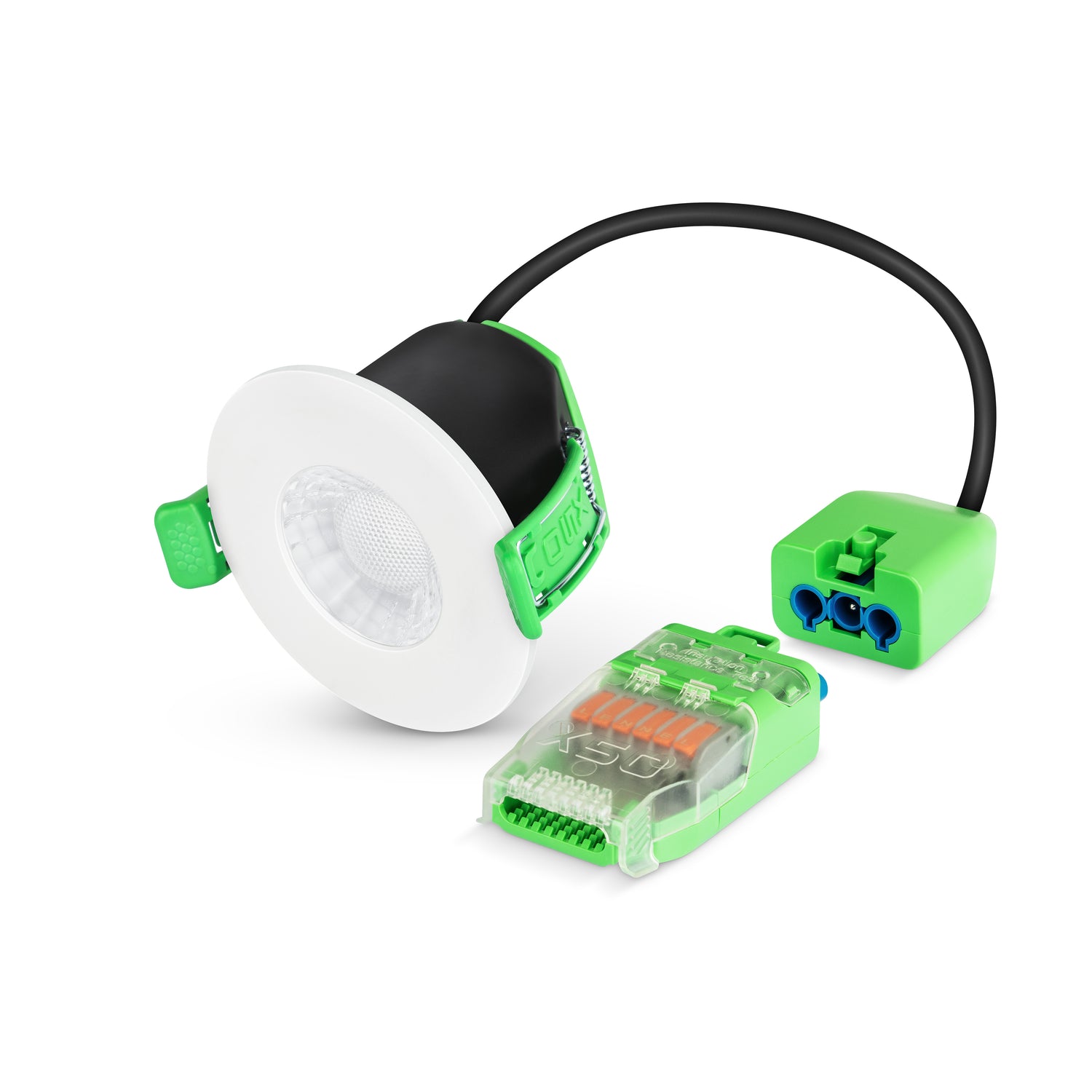

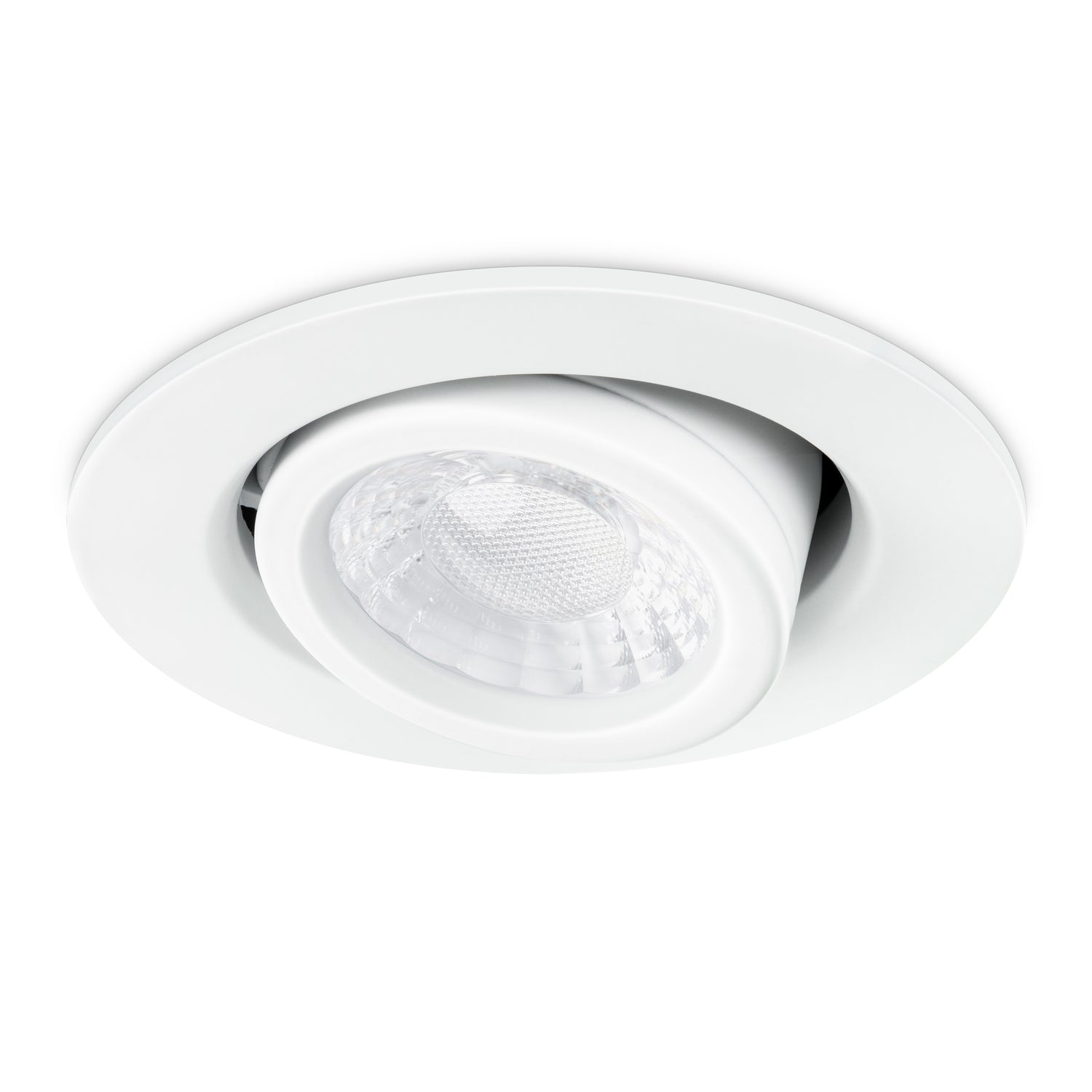

Designed with a 20º tilt adjustment, the JC1102/WH provides directional flexibility—perfect for accent lighting, sloped ceilings, or highlighting architectural features. Its plug-and-play two-part connector, double-hinged terminal block, and easy-glide protective clips ensure fast, secure installation with minimal ceiling damage.
Fully fire-rated for Solid, I-Joist, and Steel Open Web joist ceilings, this downlight meets rigorous safety standards while delivering up to 650 lumens of bright, energy-efficient illumination. Compatible with Triac dimmers, it allows smooth brightness control to suit any environment.
Whether you’re upgrading a kitchen, living room, or commercial space, the JC1102/WH combines modern white aesthetics, advanced functionality, and certified fire safety—making it a top choice for electricians, contractors, and design-conscious homeowners.
Manufacturers Part Number - JC1102/WH
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - CE Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5.05254E+12
JCC -Beam Angle ° - 60°
JCC - CRI: Ra - 80
JCC - Dimmable - Yes, Triac dimmable only
JCC - Class - II
JCC - Luminaire Circuit Wattage - 3/5 selectable
JCC - Rating(Amp) - 3/5 selectable
JCC - Dimming Protocol Compatibility - Triac dimmable
JCC - IP Rating - IP65
JCC - Diameter (mm) - 100
JCC - Height (mm) - 58.4
JCC - Length (mm) - 547
JCC - Color Finish - White
Install Product Instructions - https://dam.epim.online/jcclighting-482afec2-bf4a-4da8-8a7d-7b5cf02fbe41/Instruction Sheets/Fire-Rated Downlights/X50 Tilt Instruction sheet.pdf
