JCC Lighting Part Number JC080130 Skytile 1200x600mm 48W IP44 4000K 4800lm Tp(a) UGR <19 DALI

JCC Lighting Skytile range of Led Lighting Product Code = JC080130
Skytile 1200x600mm 48W IP44 4000K 4800lm Tp(a) UGR <19 DALI
Meets TP(a) requirements, suitable for all applications UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace Ultra efficient 100LpcW DALI/1-10V and DSI Dimming versions available IP44 protection against dust and moisture Comes with non-dimmable flicker free driver as standard Suspension kits and surface mount boxes available Suitable for use with JCEM002 and JCEM002ST emergency remote packs

Manufacturer - JCC Lighting
Manufacturers Part Number - JC080130
JCC - Accredited Members -
LIA, ISO9001-2015, ISO14001-2015
JCC - UKCA Marked - Yes
JCC - Product Bar Code EAN-13 Number - 5052544116841
JCC - Primary Material - Aluminium
JCC -Beam Angle ° - 90
JCC - CRI: Ra - 80
JCC - Energy Rating - This product contains a light source of energy efficiency class F
JCC - Operating Temperature Range °C - -25 to +50
JCC - Dimmable - DALI
JCC - Power Factor Correction - 0.9
JCC - Total Harmonic Distortion (THD)% - 20
JCC - Output Voltage Max/Range (VDC) - 9-47
JCC - Class - II
JCC - Luminaire Circuit Wattage - 48
JCC - Rating(Amp) - 48
JCC - Operating Frequency Hz - 50/60Hz
JCC - Inrush current(Amps) - <7
JCC - Primary Running Current(Amp) - 0.3
JCC - Secondary running current(mA) - 1050
JCC - Voltage Rating - 220-240
JCC - Dimming Protocol Compatibility - DALI
JCC - Warranty - 5 Year Warranty (inc 2 year on site)(See Website for terms and conditions)
JCC - Suitable For Zones - Outside zone 1
JCC - IP Rating - IP44
JCC - Method of fix - sits in 15mm and 25mm ceiling grid system

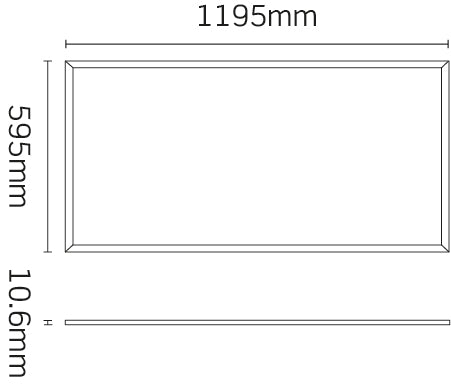

JCC - Height (mm) - 10.6
JCC - Length (mm) - 1195
JCC - Color Finish - White
